Library› Safety & LSA› Lifeboats› Rescue Boat› Survitec SLA3.5
Survitec

SLA3.5

Rescue Boat · Lifeboats

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Safe Working Load3.5tonnes
Safe Working Load (SWL)3.5 tonne (35 kN)
Static Proof Load8.75 tonne (87.5 kN)
Dimensions (L x W x H)360 x 136 x 67 (mm)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Safelaunch SLA3.5 is an off-load fall-mounted automatic release hook for use with davit-launched liferafts and single-fall rescue boats.

Applications

  • liferafts & rescue boats

Features

  • Load over-centre design
  • Two modes of operation
  • COLOUR CODED VISUAL INDICATORS
  • NO SERVICE EXCHANGE REQUIREMENT
  • SINGLE OPERATING HANDLE FOR EASE OF OPERATION

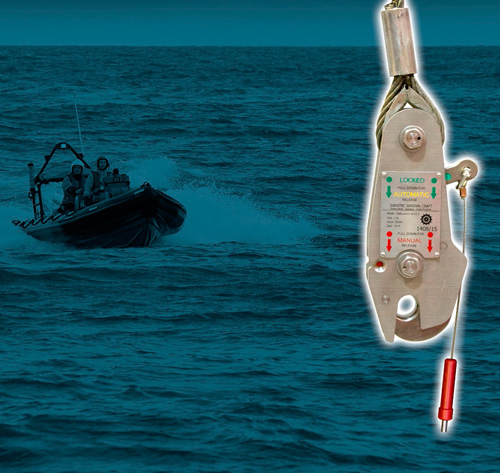

Survitec SLA3.5 – Photo (9494d5449248_S1-2 S. 1)
Photo · 9494d5449248_S1-2 · S. 1

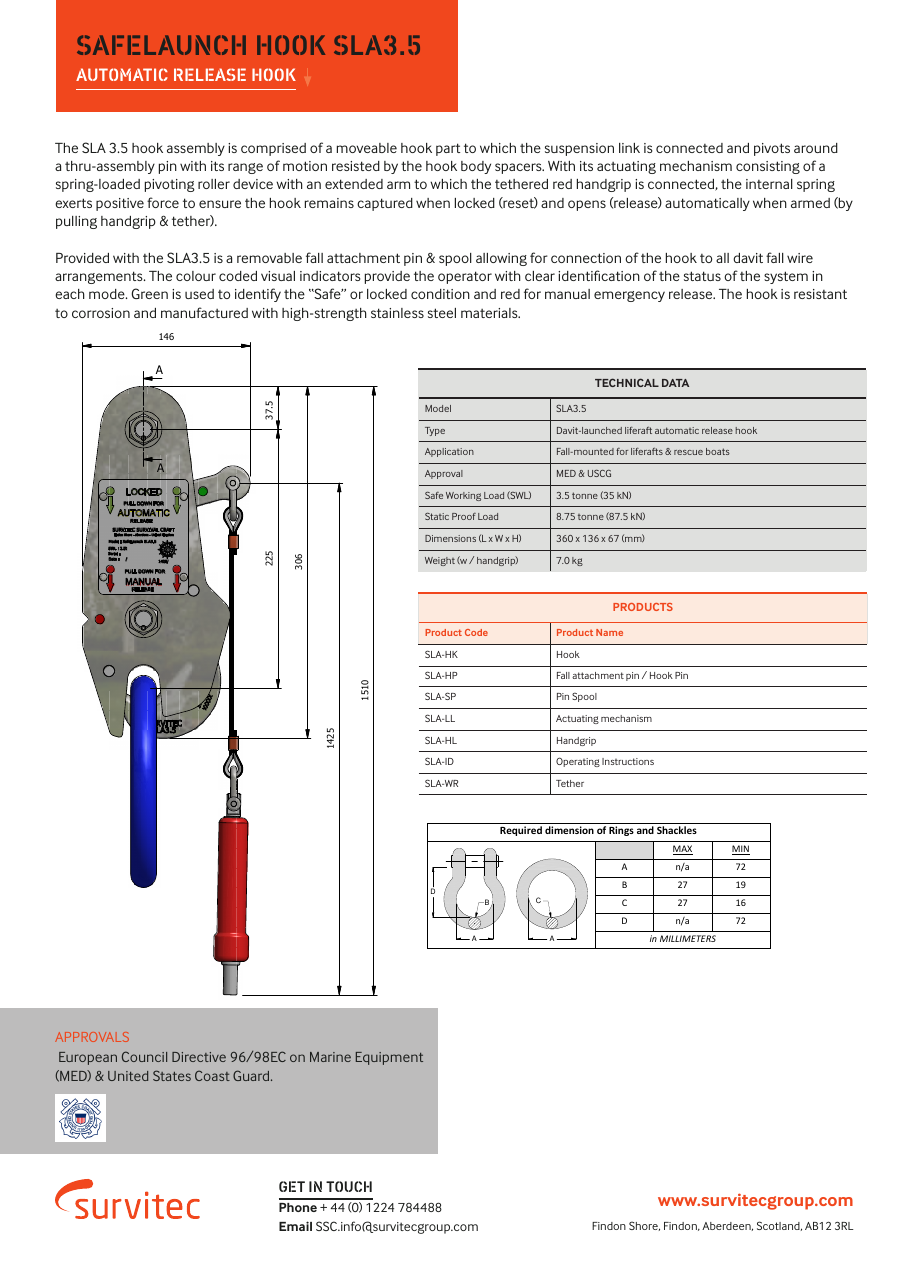

Survitec SLA3.5 – Drawing (9494d5449248_S1-2 S. 2)
Drawing · 9494d5449248_S1-2 · S. 2

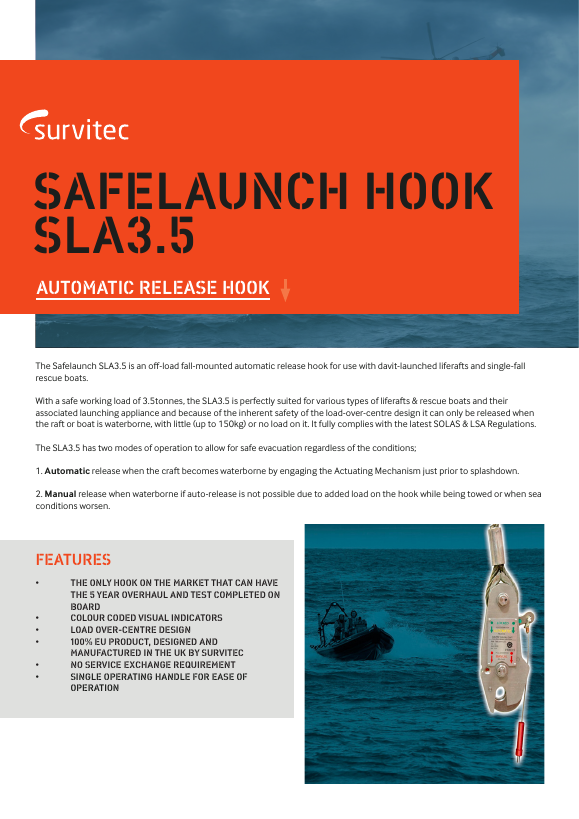

Survitec SLA3.5 – Page preview (9494d5449248_S1-2 S. 1)
Page preview · 9494d5449248_S1-2 · S. 1
Source: Survitec SLA3.5 datasheet, p. 1
