Library› Cargo› Cargo Level & Temperature Gauging› Temperature Sensor› Tokyo Keiso ATS-□□□□-□B-□□□□□ B
Tokyo Keiso

ATS-□□□□-□B-□□□□□ B

Temperature Sensor · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Example image: Temperature Sensor — not a photo of this model.
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Element standardPt (JIS C1604-1997)
Element classClass B
Rating current2mA
Measuring range0 to 100°C
No. of elementsMax. 16
Measuring lengthMax. 30000mm
Element interval1m, 2m, 3m
Operating pressureAtmospheric pressure
ConnectionFlange
Flange size40mm, 50mm, 80mm, 100mm or others
EnclosureFlameproof construction
Cable entryG3/4 or others (with adapters)
Cable terminationM3.5 screw terminal
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

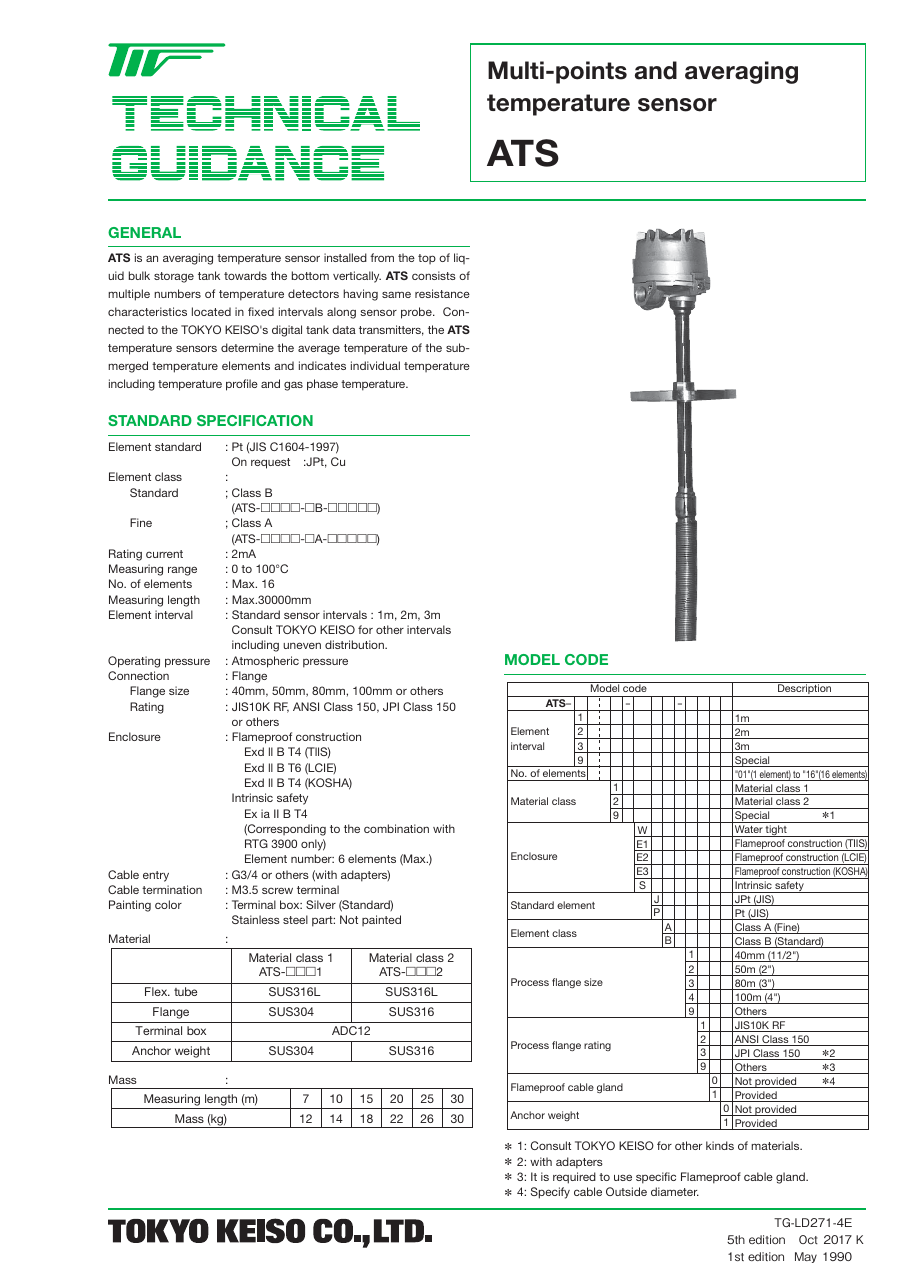

“ATS GENERAL ATS is an averaging temperature sensor installed from the top of liquid bulk storage tank towards the bottom vertically. ATS consists of multiple numbers of temperature detectors having…”

Tokyo Keiso ATS-□□□□-□B-□□□□□ B – Drawing (853359f80700_S1-1 S. 1)
Drawing · 853359f80700_S1-1 · S. 1
Source: ATS_TG-LD271-4E.indd, p. 1
