Library› Engine Room› Pumps› Pump› SHURflo 4008-101-A65
SHURflo

4008-101-A65

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Inlet Pressure30 PSI Max. [2.06 Bar]
Ports1/2”-14 NPSM-Male
Liquid130 °F [54 °C] Max
Dry-prime6 feet [1.82 M]
Inlet PSI30 PSI [2.1 Bar] Max
Net Weight5 Lb [2.3 Kg]
Carton Weight60 Lb [27 Kg]
Carton Size24”L x 18”W x 11”H [60.9cm x 45.7cm x 27.9cm]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A 12V DC adjustable by-pass fresh water pump for RV and cabin pressurized water systems.

Applications

  • RV fresh water systems
  • cabin pressurized water systems
  • general fresh water transfer

Features

  • 4 chamber diaphragm pump
  • thermal overload protection
  • automatic restart
  • low noise operation
  • can run dry without damage

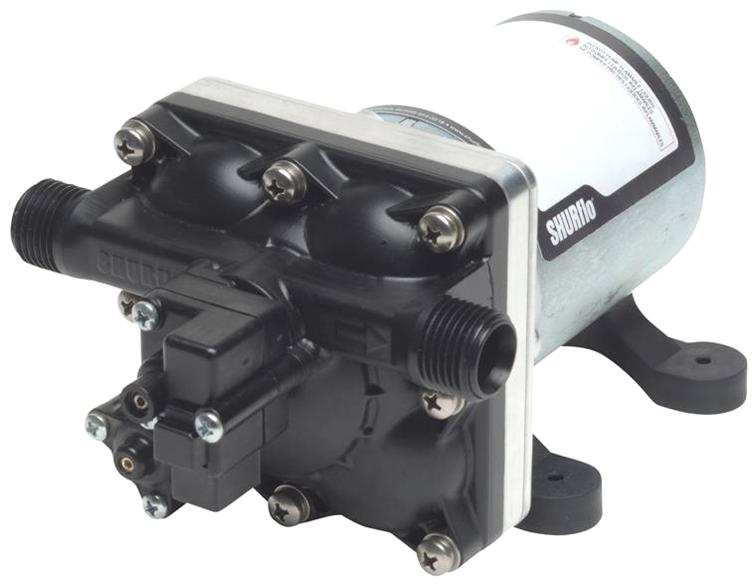

SHURflo 4008-101-A65 – Photo (2b194fc55b78_S1-1 S. 1)
Photo · 2b194fc55b78_S1-1 · S. 1
SHURflo 4008-101-A65 – Photo (2b194fc55b78_S1-1 S. 1)
Photo · 2b194fc55b78_S1-1 · S. 1

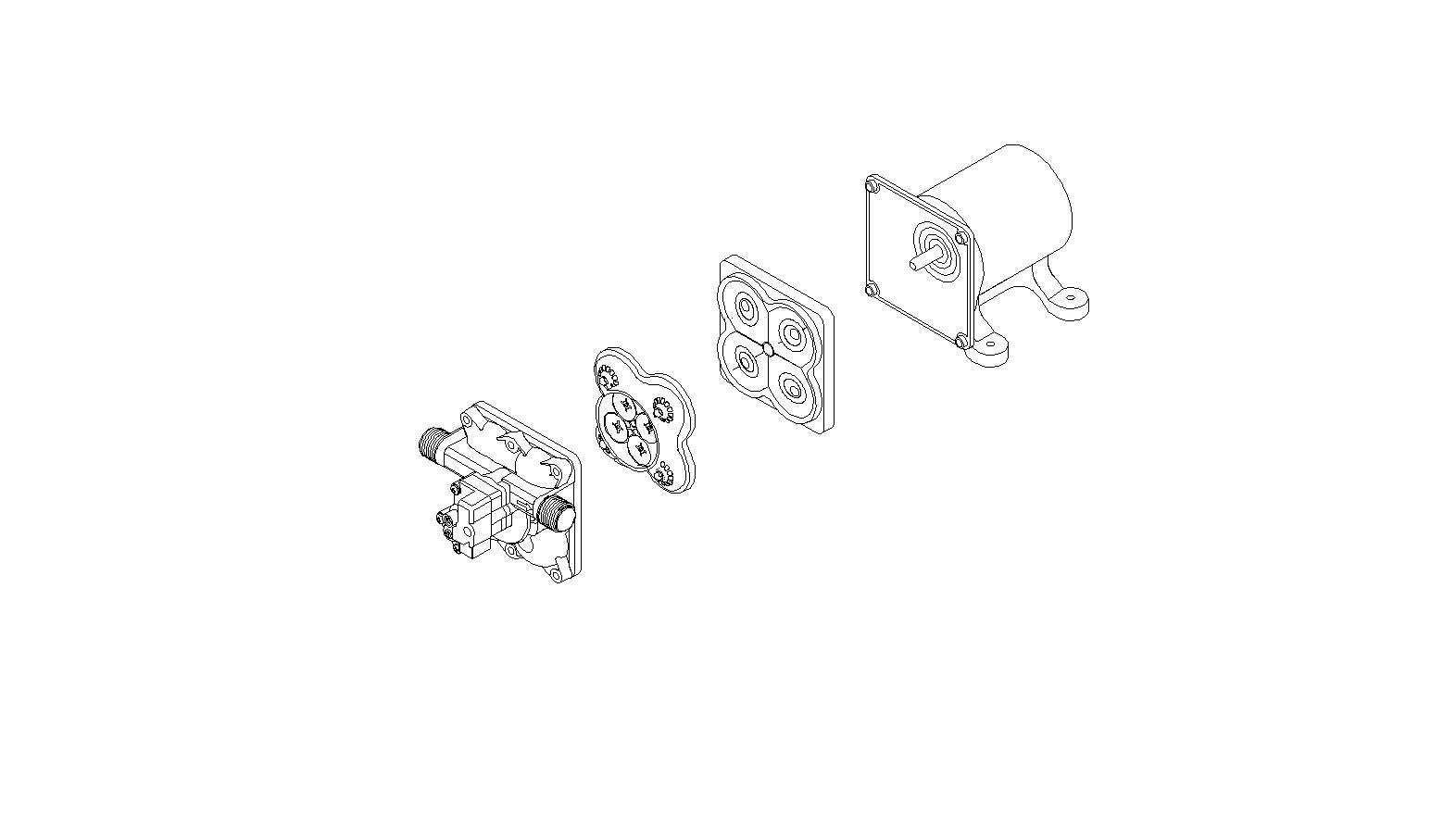

SHURflo 4008-101-A65 – Drawing (b21c18784b68_S1-1 S. 1)
Drawing · b21c18784b68_S1-1 · S. 1
SHURflo 4008-101-A65 – Drawing (2b194fc55b78_S1-1 S. 1)
Drawing · 2b194fc55b78_S1-1 · S. 1

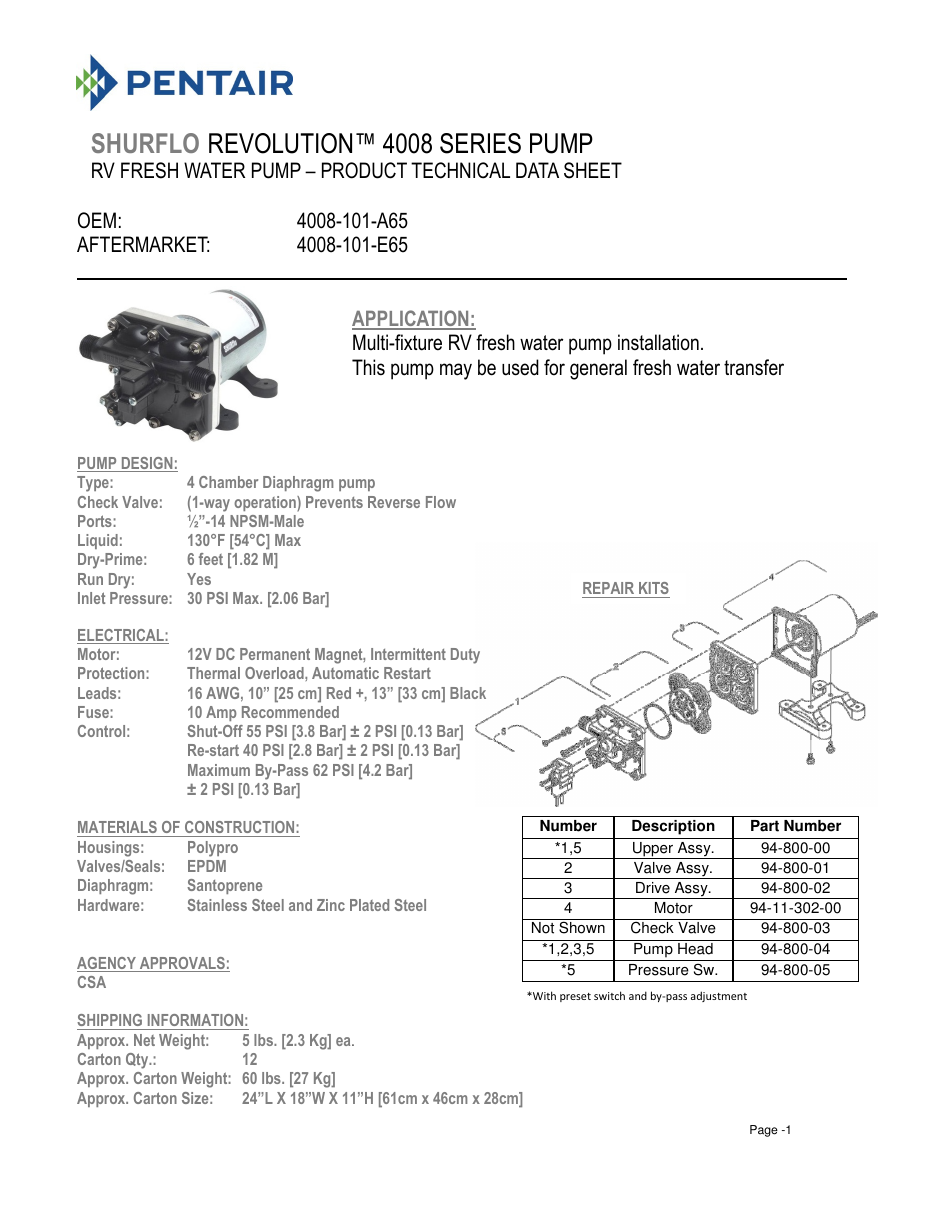

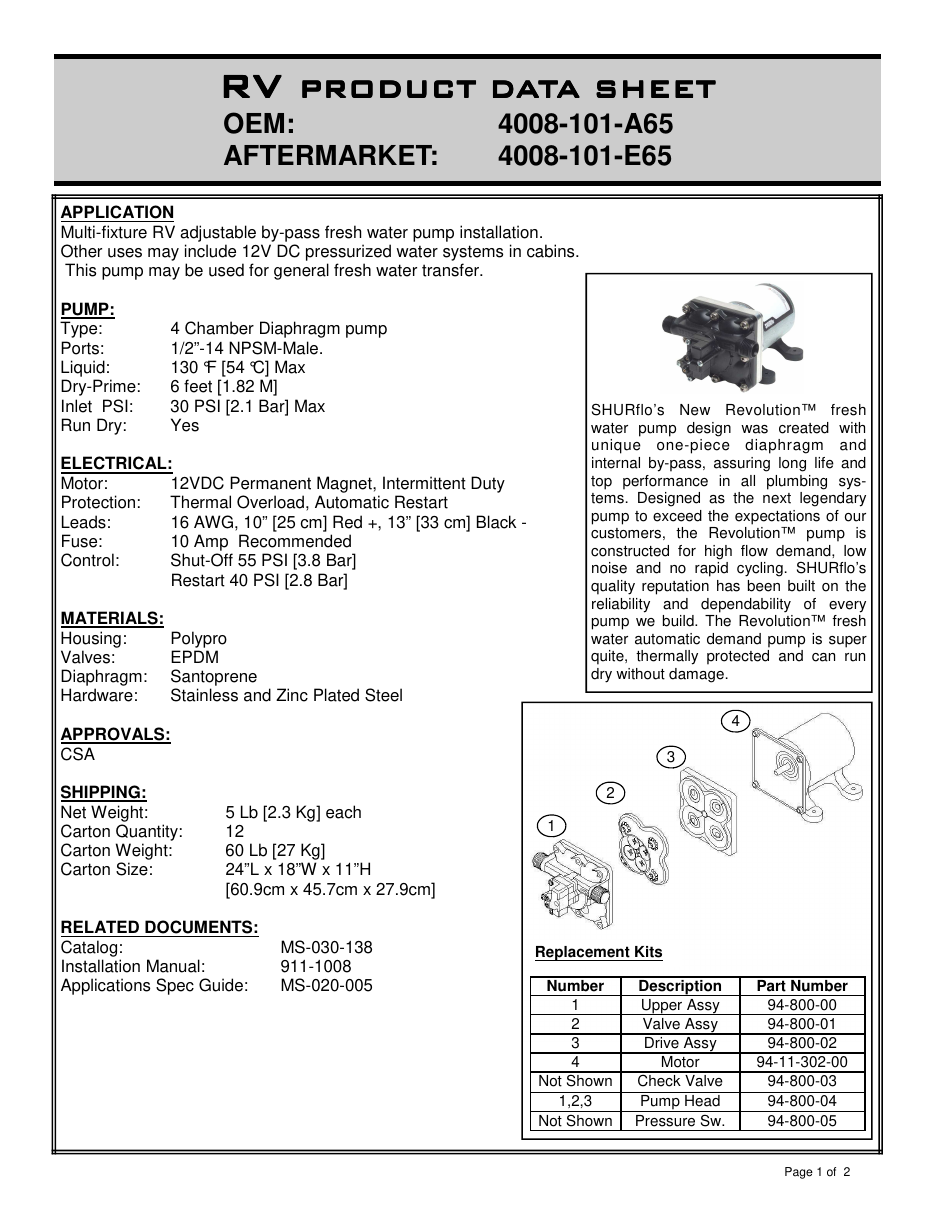

Source: SHURflo 4008-101-A65 datasheet, p. 1
