Library› Engine Room› Pumps› Pump› SHURflo 8050-305-626 12V
SHURflo

8050-305-626 12V

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Type3 Chamber Diaphragm
Ports3/8” NPT-F.
Liquid180 °F [82 °C] Max
Dry-prime6 feet with water [1.82 M]
Inlet PSI30 PSI [2.1 Bar] Max
Run DryYes
Engine12VDC Permanent Magnet, Continuous Duty
ProtectionThermal Overload, Automatic Restart
Leads8 feet [2.4m] with alligator clips
Fuse7.5 Amp Recommended
Control30 PSI Internal By-pass
HousingNylon
ValvesBuna
DiaphragmGeolast
HardwareStainless Steel
Approx. Net Weight4 Lbs. [1.8 Kg]
Approx. Carton Weight28 Lbs. [12.7 Kg]
Approx. Carton Size24”L x 18”W x 6”H [61cm x 46cm x 15cm]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“APPLICATION 12V DC Oil Change systems including transmission fluids, anti-freeze solutions, low viscosity gear and liquid transfer. PUMP: Type: Ports: Liquid: Dry-Prime: Inlet PSI: Run Dry:”

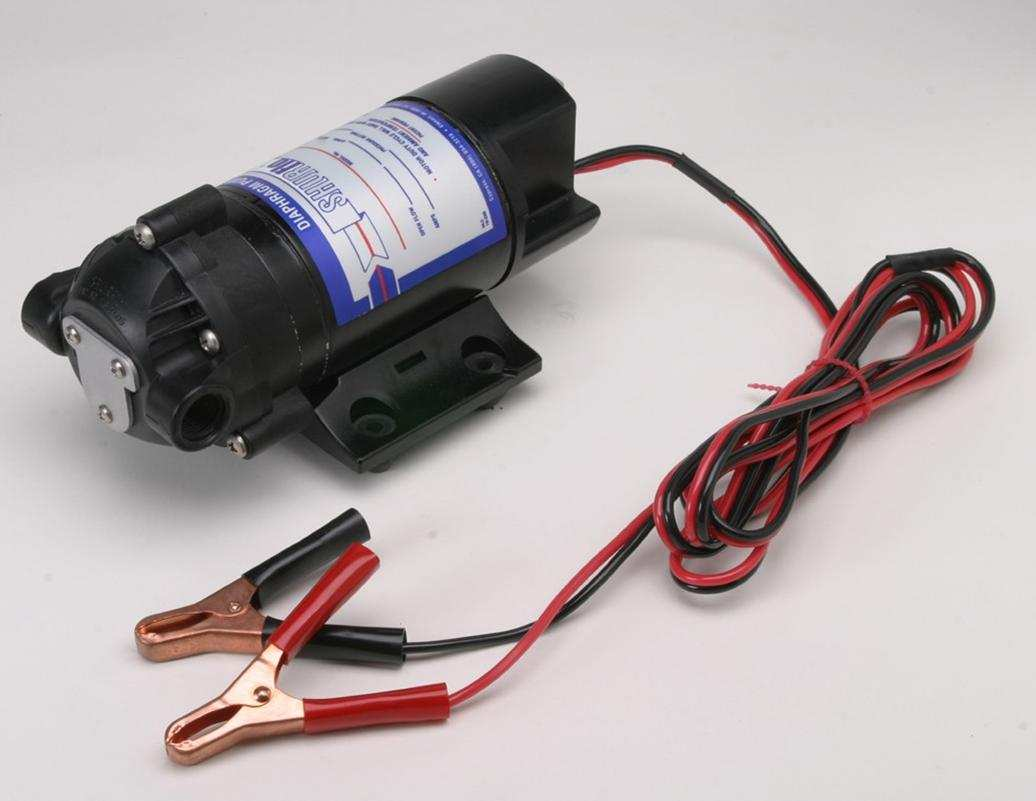

SHURflo 8050-305-626 12V – Photo (7aa6e600e0ed_S1-1 S. 1)
Photo · 7aa6e600e0ed_S1-1 · S. 1
SHURflo 8050-305-626 12V – Photo (7aa6e600e0ed_S1-1 S. 1)
Photo · 7aa6e600e0ed_S1-1 · S. 1

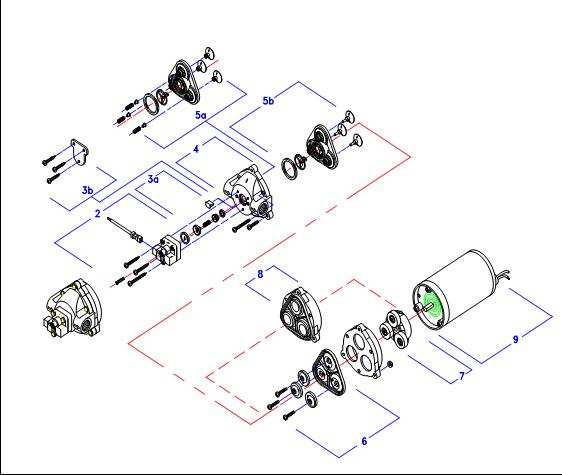

SHURflo 8050-305-626 12V – Drawing (7aa6e600e0ed_S1-1 S. 1)
Drawing · 7aa6e600e0ed_S1-1 · S. 1

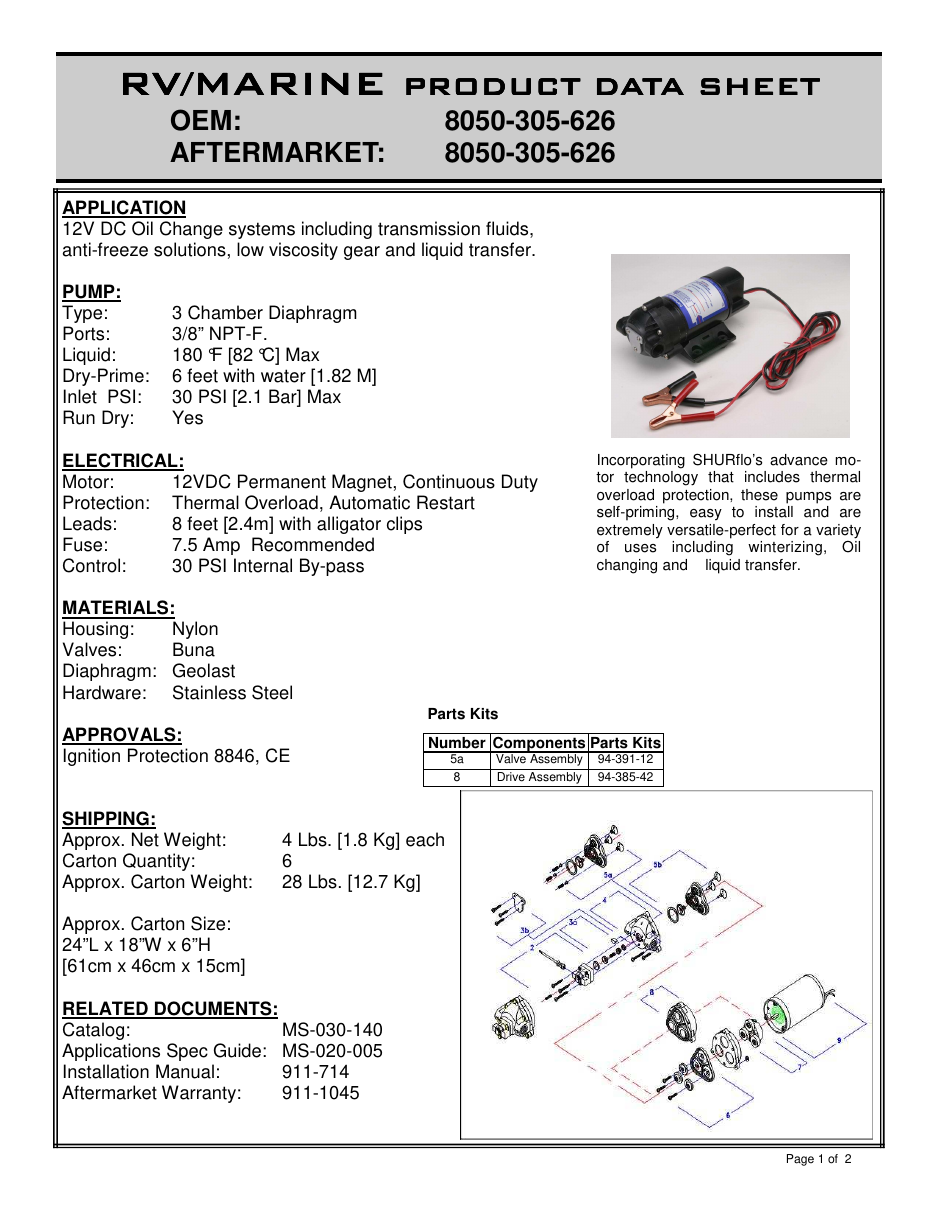

Source: Shurflo Premium General Purpose Pump Data Sheet, p. 1
