Library› Engine Room› Pumps› Pump› SHURflo 4238-121-A07 12V
SHURflo

4238-121-A07 12V

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Ports½”-14 NPSM-Male
Liquid130°F [54°C] Max
Dry-prime6 feet [1.82 M]
Inlet Pressure30 PSI Max. [2.06 Bar]
Engine12V DC Permanent Magnet, Intermittent Duty
ProtectionThermal Overload, Automatic Restart
Leads14 AWG, 14 ¾” [37 cm] Red +, 15” [38 cm] Black
Fuse10 Amp Recommended
ControlShut-Off 45 PSI [3.1 Bar] ± 2 PSI [0.13 Bar], Re-start 30 PSI [2.0 Bar] ± 2 PSI
HousingsPolypro
Valves/sealsEPDM
DiaphragmSantoprene
HardwareStainless Steel
Approx. Net Weight5.2 lbs. [2.4 Kg] ea.
Approx. Carton Weight31.2 lbs. [ 14.1 Kg]
Approx. Carton Size24”L X 18”W X 6”H [61cm x 46cm x 15cm]
Retail (individual) box11”L X 6”W X 5”H [28cm x 15cm x 13cm]
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“4238-121-A07 4238-121-E07 APPLICATION: Marine fresh or salt water wash-down installation. This pump may be used for general water transfer.”

SHURflo 4238-121-A07 12V – Photo (5a9d7f72b90f_S1-1 S. 1)
Photo · 5a9d7f72b90f_S1-1 · S. 1

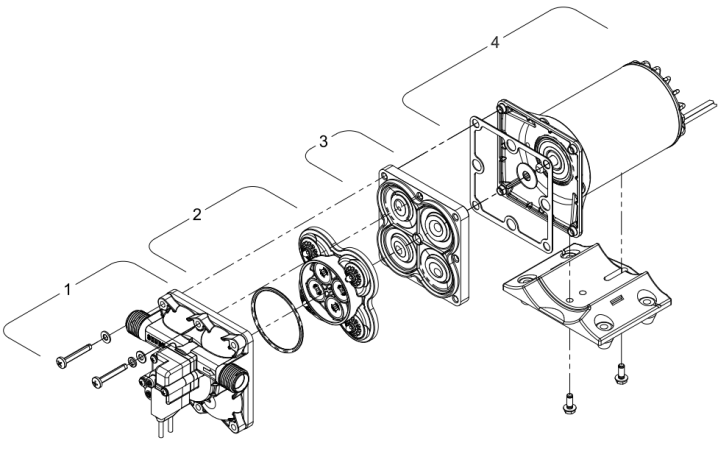

SHURflo 4238-121-A07 12V – Drawing (5a9d7f72b90f_S1-1 S. 1)
Drawing · 5a9d7f72b90f_S1-1 · S. 1

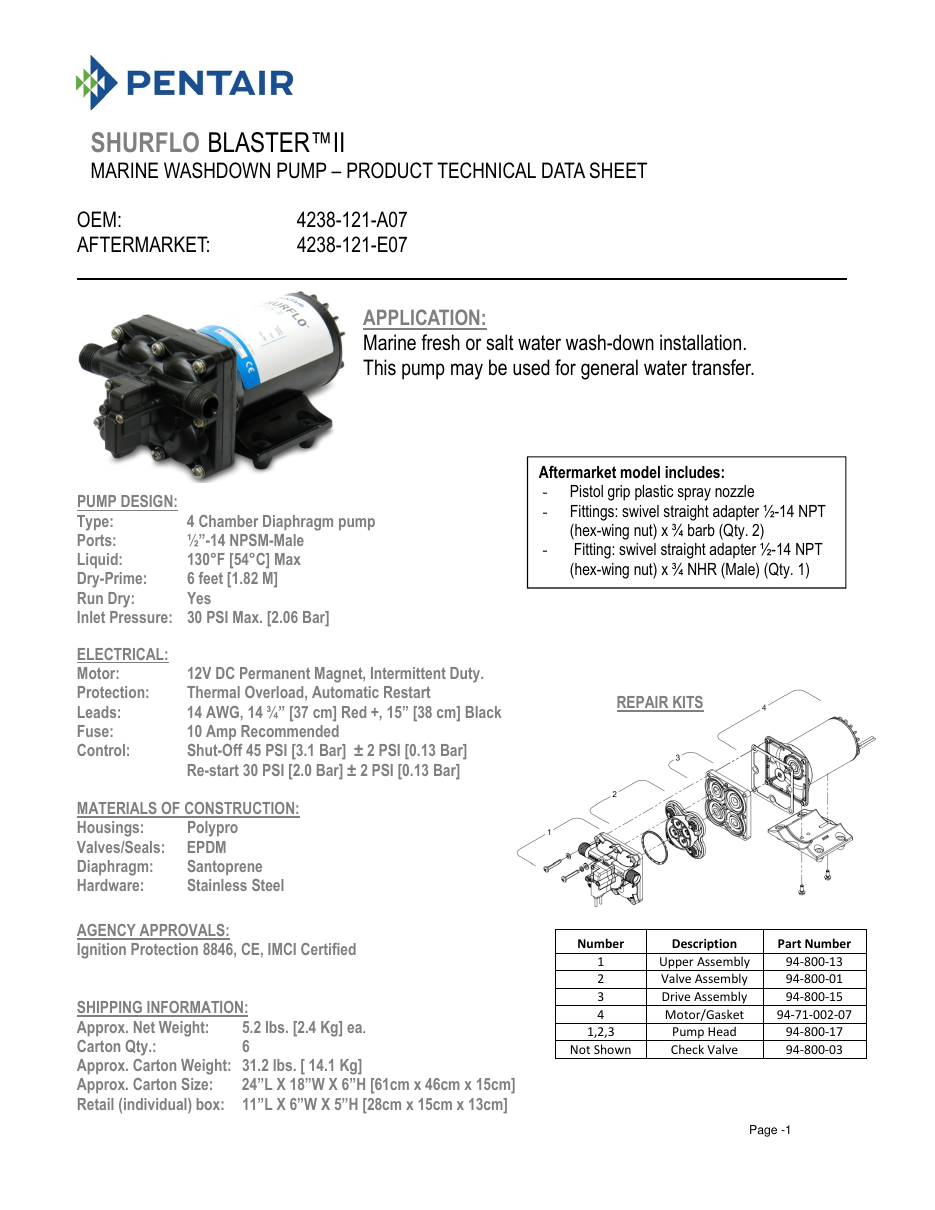

Source: Shurflo Blaster II 4238-121-X07 Washdown Pump Data Sheet, p. 1
