Library› Engine Room› Pumps› Pump› INOXPA RF-02
INOXPA

RF-02

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Dublette von182295
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The RF pump is a flexible impeller pump that is reversible, self-priming, and can suck from a maximum height of 5 meters. It is designed to pump products of both low and high viscosity, as well as products containing particles or gases.

Applications

  • transfer of dairy products
  • edible oils
  • beverages

Features

  • Reversible
  • Self-priming
  • Machined investment casting casing
  • Double flat drive of the impeller
  • External single mechanical seal
  • Easy maintenance

Options

  • Various impeller sizes
Source: INOXPA RF-02 datasheet, p. 4

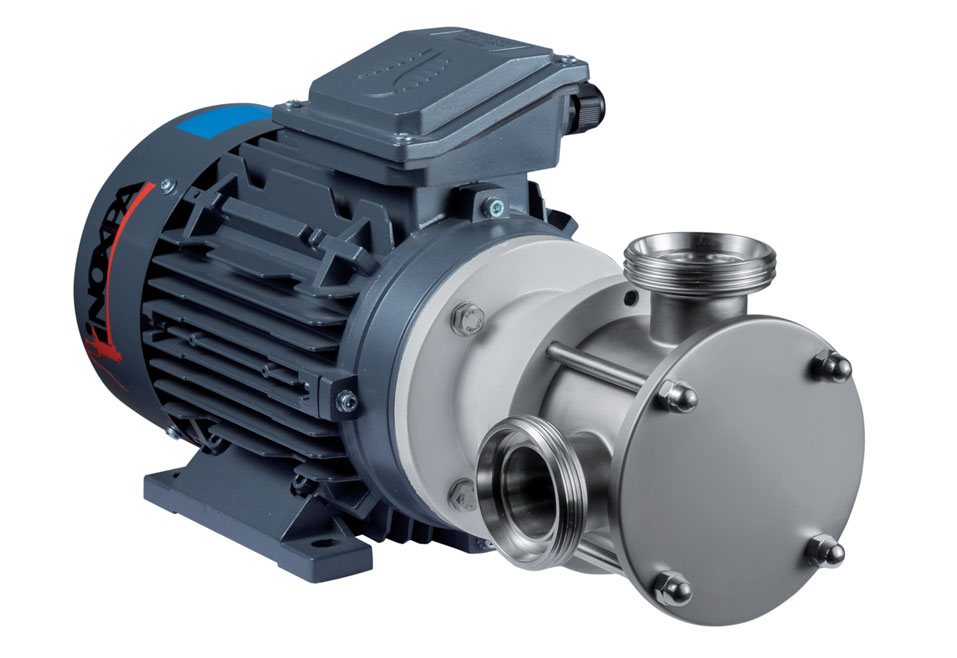

INOXPA RF-02 – Photo (3534a829eeb6_S1-4 S. 1)
Photo · 3534a829eeb6_S1-4 · S. 1
INOXPA RF-02 – Photo (3534a829eeb6_S1-4 S. 1)
Photo · 3534a829eeb6_S1-4 · S. 1

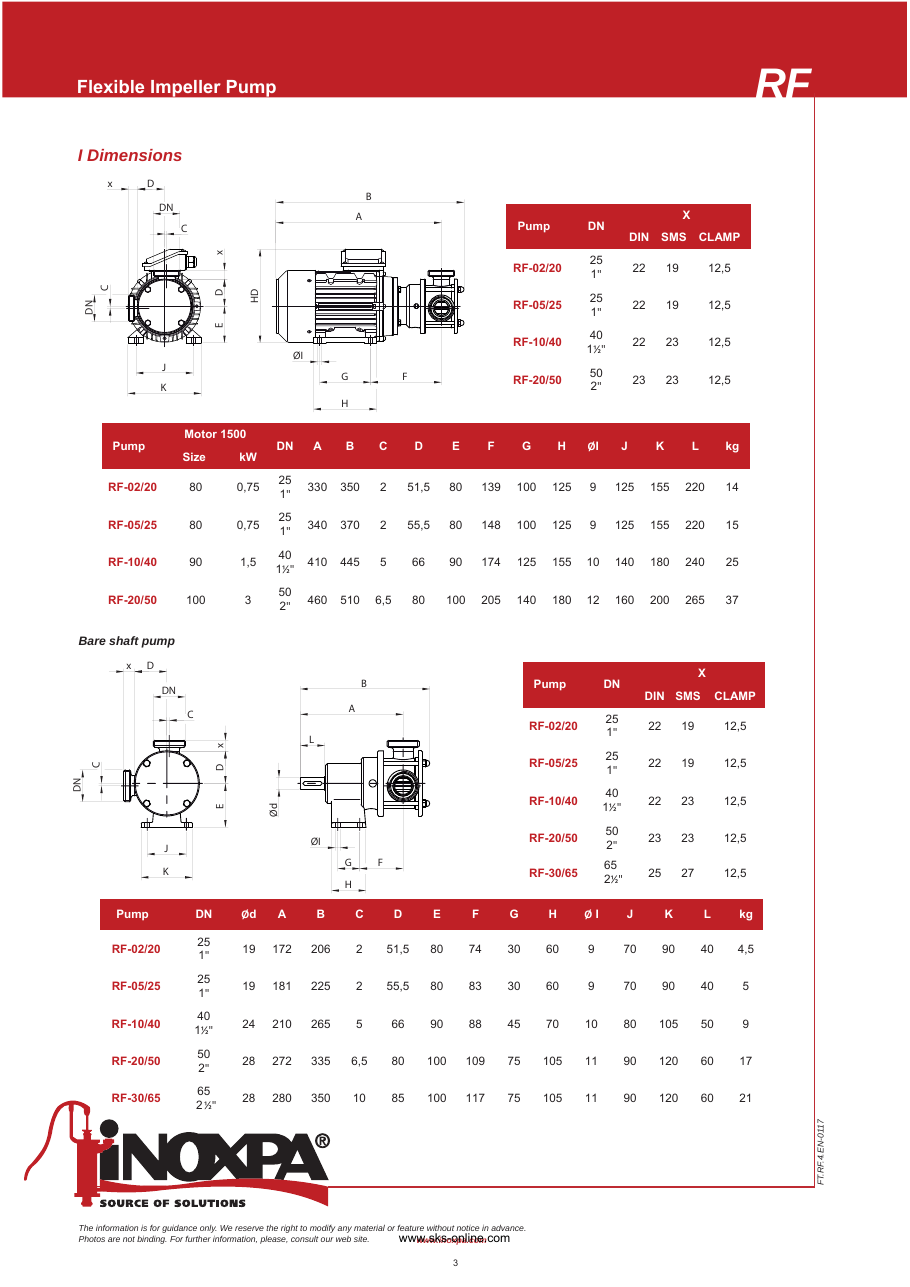

INOXPA RF-02 – Drawing (e4c9b2390f1a_S2-3 S. 2)
Drawing · e4c9b2390f1a_S2-3 · S. 2

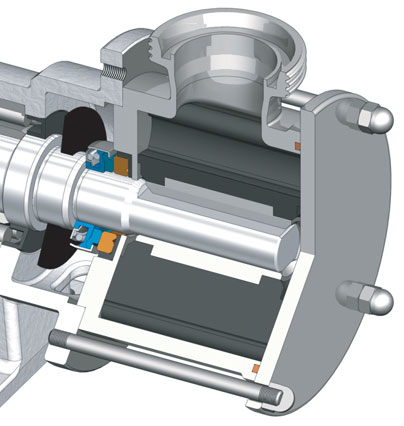

INOXPA RF-02 – Drawing (3534a829eeb6_S1-4 S. 3)
Drawing · 3534a829eeb6_S1-4 · S. 3

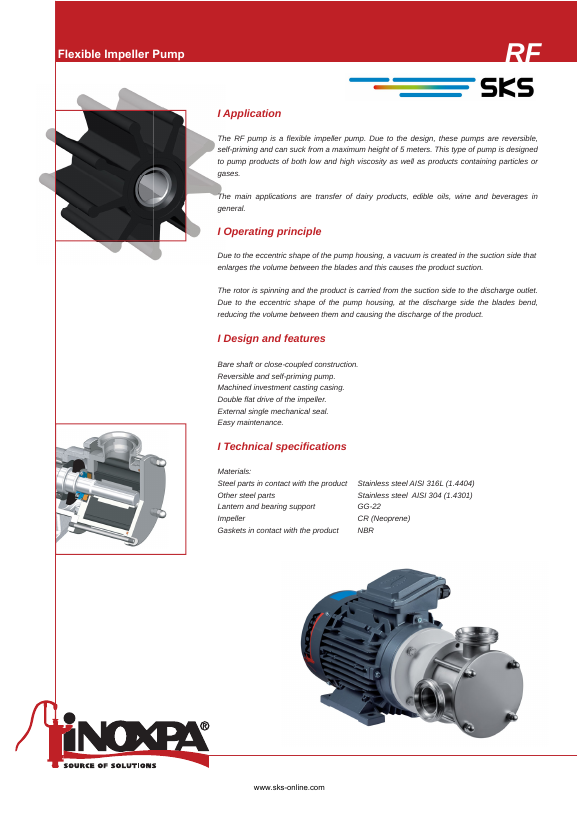

INOXPA RF-02 – Page preview (3534a829eeb6_S1-4 S. 1)
Page preview · 3534a829eeb6_S1-4 · S. 1

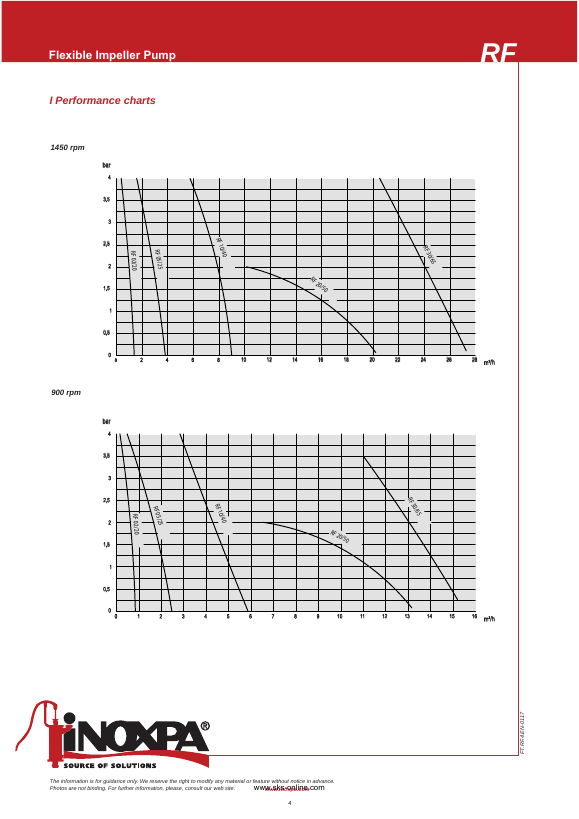

INOXPA RF-02 – Page preview (3534a829eeb6_S1-4 S. 4)
Page preview · 3534a829eeb6_S1-4 · S. 4
Source: INOXPA RF-02 datasheet, p. 1
