Library› Engine Room› Pumps› Pump› inoxpa EFI
inoxpa

EFI

Pump · Pumps

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Nenndruck6 bar🔖
Temperaturbereich-10°C bis +120 °C🔖
Maximale Förderhöhe66 m🔖
Maximale Drehzahl3500 U/min🔖
Materials: Parts in contact with the productStainless steel AISI 316L (1.4404)🔖
Materials: Other steel partsStainless steel AISI 304 (1.4301)🔖
Temperature range-10°C to +120 °C 14 °F to 248 °F🔖
Maximum flow65 m³/h 286 US GPM🔖
Maximum differential head66 m 217 ft🔖
Maximum speed3500 rpm🔖
Motor: 3 phases, 50 Hz, 400 V Δ / 690 V Υ≥ 5,5 kW🔖
Materiali: Parti in contatto con il prodottoAcciaio inox AISI 316L (1.4404)🔖
Materiali: Altre parti in acciaioAcciaio inox AISI 304 (1.4301)🔖
Range di temperatura-10°C a +120 °C 14 °F a 248 °F🔖
Portata massima65 m³/h 286 US GPM🔖
Pressione differenziale massima66 m 217 ft🔖
Velocità massima3500 rpm🔖
Motore: 3 fasi, 50 Hz, 400 V Δ / 690 V Υ≥ 5,5 kW🔖
Peças em contacto com o produtoAço inoxidável AISI 316L (1.4404)🔖
Outras peças de açoAço inoxidável AISI 304 (1.4301)🔖
Intervalo de temperaturas-10°C a +120 °C 14 °F a 248 °F🔖
Caudal máximo65 m³/h 286 US GPM🔖
Altura diferencial máxima66 m 217 pés🔖
Velocidade máxima3500 rpm🔖
MotorTrefas motor med B34-fläns (B35 för motorstorlek 132)🔖
3 fases, 50 Hz, 400 V Δ / 690 V Υ≥ 5,5 kW🔖
MaterialerAISI 316L (1.4404)🔖
Temperatur-10°C til +120 °C🔖
Maximum differenstryk66 m🔖
Maximum omdr.3500 rpm🔖
Plage de température-10°C a +120 °C🔖
Débit maximum65 m³/h🔖
Hauteur manométrique maximale66 m🔖
Vitesse maximale3500 rpm🔖
Moteur3 phases, 50 Hz, 230 V Δ / 400 V Υ, ≤ 4 kW🔖
MaterialAISI 316L (1.4404)🔖
Arbetsområde: Temperatur-10°C till +120 °C🔖
Arbetsområde: Maximum flow65 m³/h🔖
Arbetsområde: Maximum differenstryck66 m🔖
Arbetsområde: Max varvtal3500 rpm🔖
Материалы:Детали, контактирующие с продуктом Нерж.сталь AISI 316L (1.4404) Оста🔖
Двигатель3 фазы, 50 Hz, 230 V Δ / 400 V Υ, ≤ 4 кВт 3 фазы, 50 Hz, 400 V Δ / 690 V Υ, ≥ 5,🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

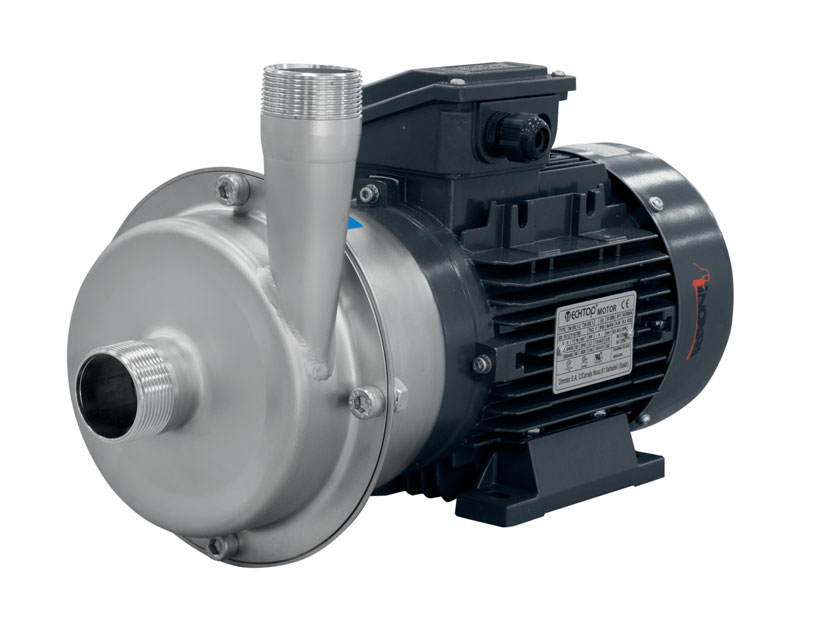

The Estampinox EFI pump is a stainless steel centrifugal pump designed for the transfer of water and other low viscosity liquids, suitable for auxiliary services in food-processing, chemical, pharmaceutical, and wine-making industries.

Applications

  • food-processing
  • chemical
  • pharmaceutical
  • wine-making

Features

  • stainless steel AISI 316L
  • cold-formed stainless steel casing
  • open impeller
  • internal single mechanical seal
  • threaded connection (ISO 7)

Standards

  • IEC
  • CE
Source: Bomba Centrífuga Estampinox EFI, p. 1

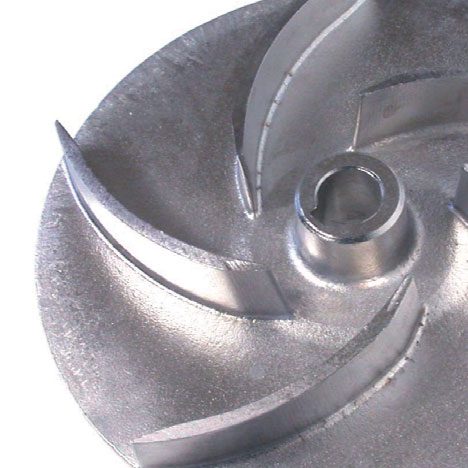

inoxpa EFI – Photo (f2d3a85f4d22_S1-1 S. 1)
Photo · f2d3a85f4d22_S1-1 · S. 1
inoxpa EFI – Photo (dfe074a28c56_S1-1 S. 1)
Photo · dfe074a28c56_S1-1 · S. 1
inoxpa EFI – Photo (f555bd314093_S1-1 S. 1)
Photo · f555bd314093_S1-1 · S. 1
inoxpa EFI – Photo (1e9f9d39ace7_S1-1 S. 1)
Photo · 1e9f9d39ace7_S1-1 · S. 1
inoxpa EFI – Drawing (f2d3a85f4d22_S1-1 S. 1)
Drawing · f2d3a85f4d22_S1-1 · S. 1

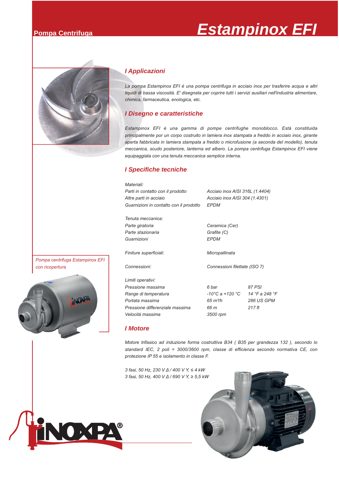

inoxpa EFI – Drawing (b7b767dd337e_S1-1 S. 1)
Drawing · b7b767dd337e_S1-1 · S. 1
inoxpa EFI – Drawing (1e9f9d39ace7_S1-1 S. 1)
Drawing · 1e9f9d39ace7_S1-1 · S. 1
Source: Centrifugal pump Estampinox EFI, p. 1
