Library› Navigation› Radar & ECDIS› Radar› JMR-9200

JMR-9200

Radar · Radar & ECDIS

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.verified

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

最大レンジ96NM🔖
距離範囲0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/🔖
距離分解能30m以下🔖
最小探知距離40m以下🔖
方位分解能2.5°以下🔖
指示機外形700（W）×1,100（H）×718（D）mm🔖
指示機質量約100kg🔖
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

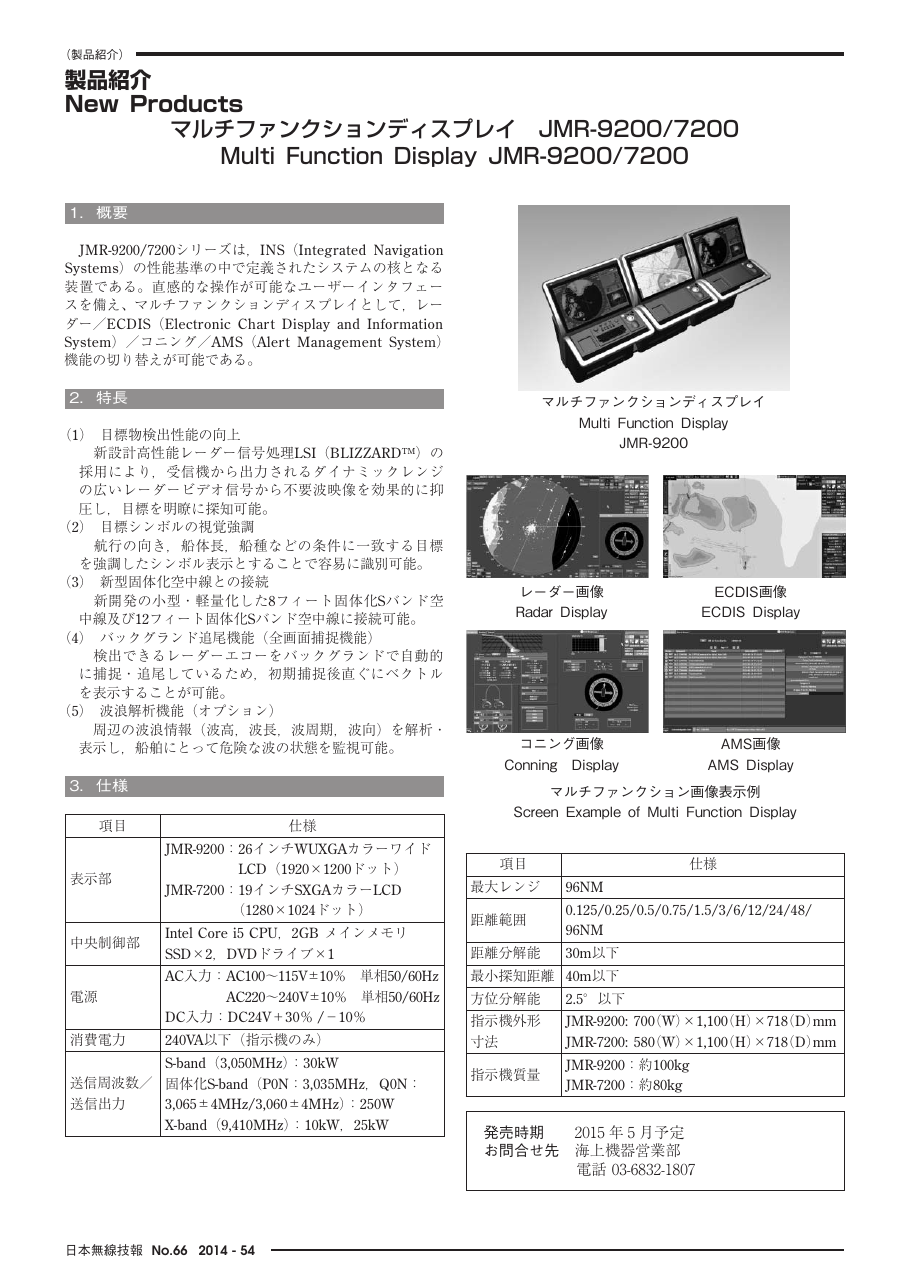

“製品紹介 New Products マルチファンクションディスプレイ JMR-9200/7200 Multi Function Display JMR-9200/7200 1．概要 JMR-9200/7200シリーズは，INS（Integrated Navigation Systems）の性能基準の中で定義されたシステムの核となる 装置である。直感的な操作が可能なユーザーインタフェー…”Source: 日本無線技報 JRC REVIEW No.66 2014 ソリューション技術特集, p. 1

Features

  • Safety Zone Viewer機能

Options

  • Safety Zone Viewer機能

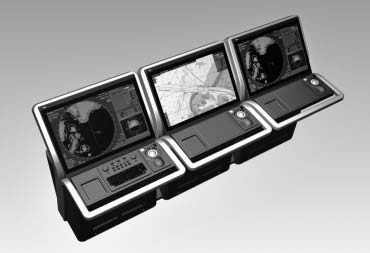

JMR-9200 – Photo (f26e18b32bed_S1-1 S. 1)
Photo · f26e18b32bed_S1-1 · S. 1
JMR-9200 – Drawing (f26e18b32bed_S1-1 S. 1)
Drawing · f26e18b32bed_S1-1 · S. 1
Source: 船舶用レーダー装置 JMR-9200/7200シリーズ, p. 4
