Library› Navigation› Signaling & Visual› Searchlight› Francis Searchlights L380RC 800w LED
Francis Searchlights

L380RC 800w LED

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input voltage110 VAC - 240 VAC
Input current10.0A Max - 5.0A Max
Total power consumption1200w Max
H,w,d1200 x 568 x 734mm
Weight67Kgs
LED power800w
Range @ 1 Lux1464m
Divergence10°-17°
LED life (approx.)30,000h
Colour temperature6500K
Luminous flux51,200 lumens
Pan rotation385°
Pan speed1 to 43°/sec
Tilt Speed1 to 14°/sec
IP ratingIP56
Operating temperature-20°C to +50°C (Optional -50°)
Base Fixings4 holes 12.5 Ø on a 350mm PCD
Joystick Control Panel120x120mm (106 x 106mm cutout)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

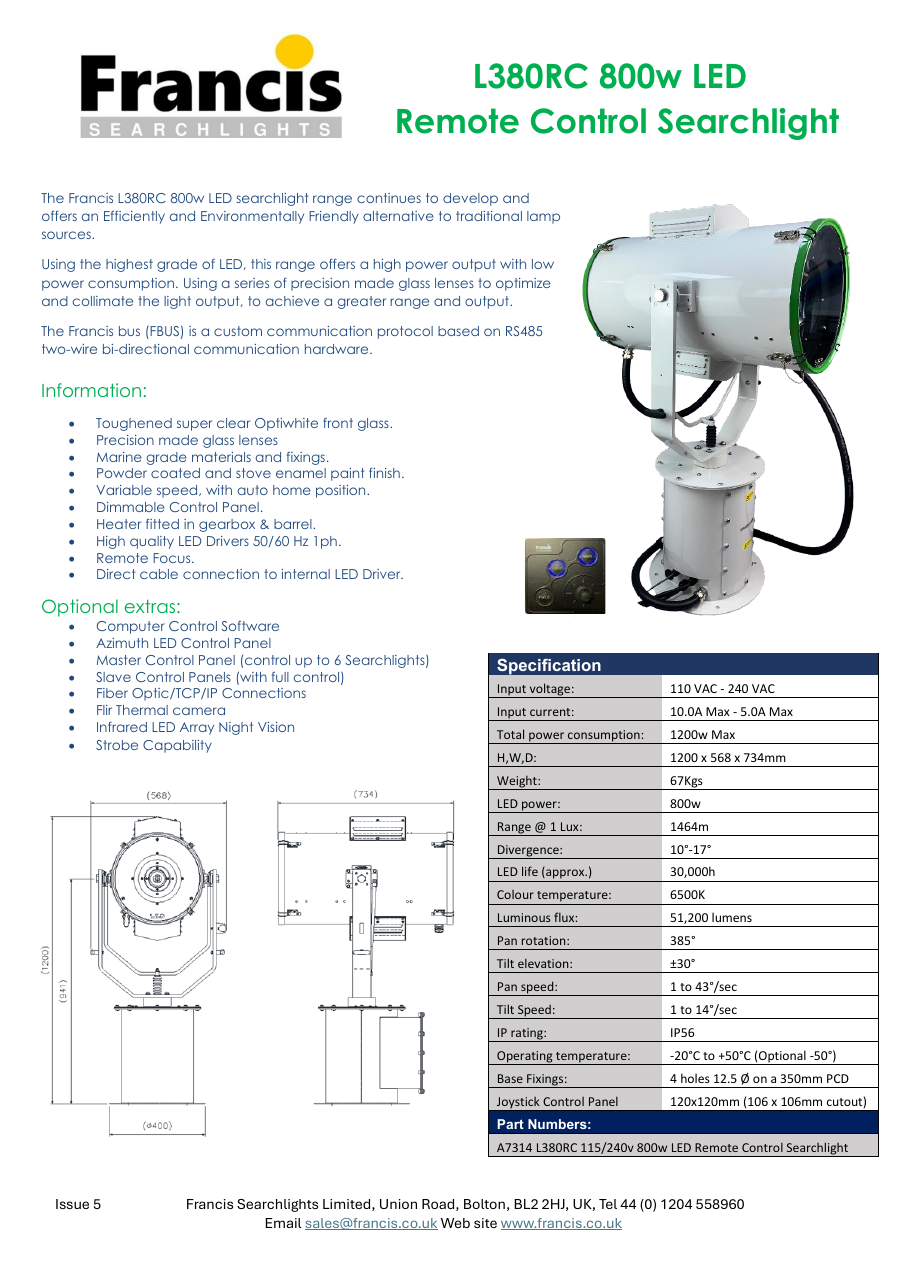

“L380RC 800w LED Remote Control Searchlight The Francis L380RC 800w LED searchlight range continues to develop and offers an Efficiently and Environmentally Friendly alternative to traditional lamp…”

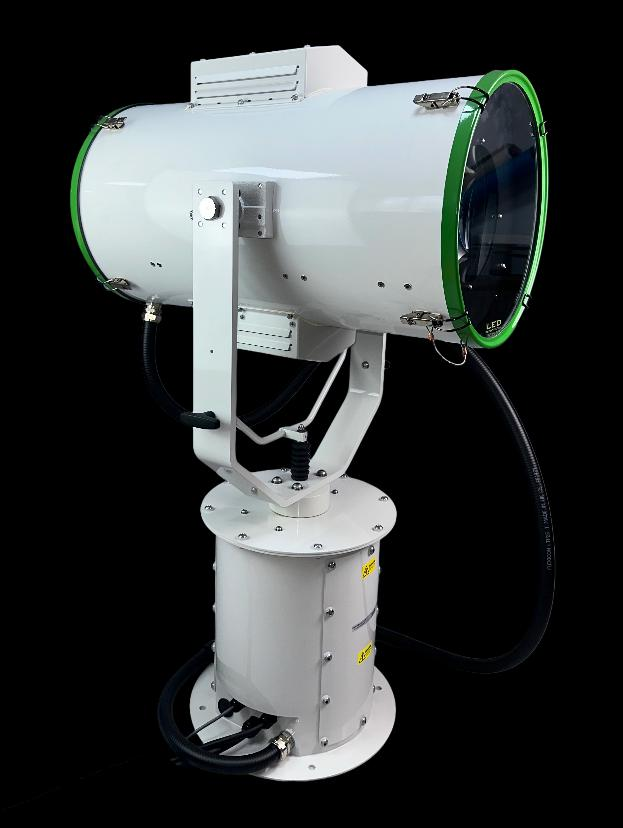

Francis Searchlights L380RC 800w LED – Photo (6ef8e5c5c196_S1-1 S. 1)
Photo · 6ef8e5c5c196_S1-1 · S. 1
Francis Searchlights L380RC 800w LED – Photo (6ef8e5c5c196_S1-1 S. 1)
Photo · 6ef8e5c5c196_S1-1 · S. 1
Francis Searchlights L380RC 800w LED – Drawing (6ef8e5c5c196_S1-1 S. 1)
Drawing · 6ef8e5c5c196_S1-1 · S. 1
Source: Francis Searchlights L380RC 800w LED datasheet, p. 1
