Library› Navigation› Signaling & Visual› Searchlight› FRANCIS L380RC 500w Laser LED
FRANCIS

L380RC 500w Laser LED

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Input voltage110 VAC - 240 VAC
Input current6A Max - 3A Max
Total power consumption800w Max
H,w,d1200 x 568 x 830mm
Weight61Kgs
LED power500w
LED life (approx.)12,000h
Colour temperature6500K
Luminous flux32,000 lumens
Pan rotation385°
Pan speed1 to 43°/sec
Tilt Speed1 to 14°/sec
IP ratingIP56
Operating temperature-20°C to +50°C (Optional -50°)
Base Fixings4 holes 12.5 Ø on a 350mm PCD
Joystick Control Panel120x120mm (106 x 106mm cutout)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“L380RC 500w Laser LED Remote Control Searchlight The new Francis L380RC 500w Laser LED Searchlight range has been developed to offer the most powerful light source available. Using the highest grade…”

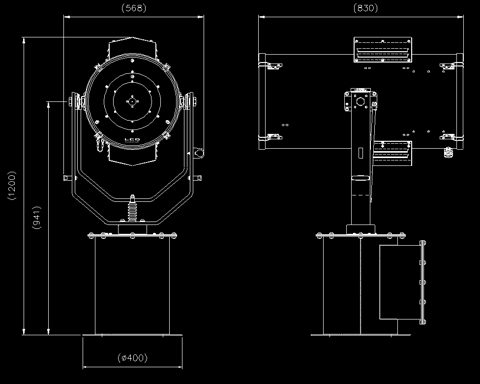

FRANCIS L380RC 500w Laser LED – Photo (f6959922dd4b_S1-1 S. 1)
Photo · f6959922dd4b_S1-1 · S. 1

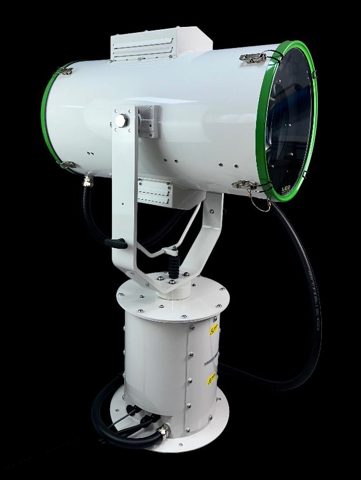

FRANCIS L380RC 500w Laser LED – Photo (f6959922dd4b_S1-1 S. 1)
Photo · f6959922dd4b_S1-1 · S. 1

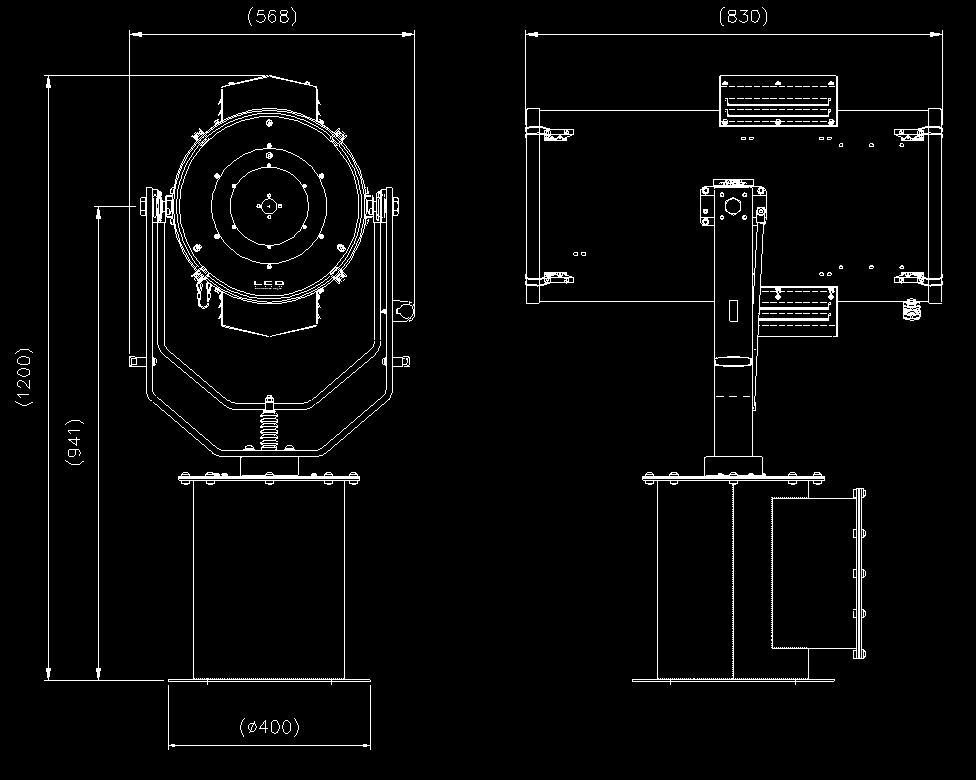

FRANCIS L380RC 500w Laser LED – Drawing (f6959922dd4b_S1-1 S. 1)
Drawing · f6959922dd4b_S1-1 · S. 1

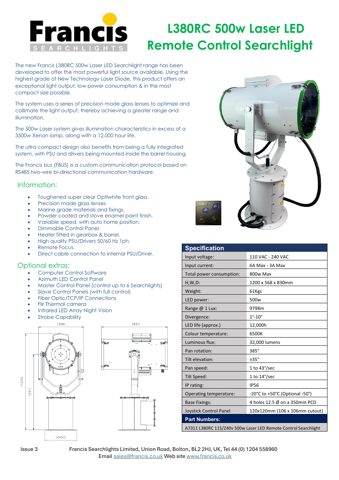

Source: franciscouk L380RC 500w Laser LED datasheet, p. 1
