Library› Navigation› Signaling & Visual› Searchlight› FRANCIS FSP300RC
FRANCIS

FSP300RC

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input voltage24v DC 115/240v AC
Input current5A Max
Total power consumption120w Max
Searchlight H.W.D1040 x 507 x 442mm
Weight39Kgs
LED power110w
Halogen power250w, 1000w
Range @ 1 Lux1490m, 905m, 1000m
PBCP x 1000250w = 2,220, 1Kw = 1,000
Divergence3° - 10°
Lamp life (approx.)300 – 750h
Colour temperature3000K
Luminous flux9,000 - 21,000 lumens
Pan rotation365°
Pan speed1 to 60°/sec
Tilt Speed1 to 17°/sec
IP ratingIP66
Operating temperature-20°C to +50°C (Optional -50°)
Base Fixings4 holes 12.5 Ø on a 290mm PCD
Joystick Control Panel120x120mm (106 x 106mm cutout)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The FSP300RC is a high-quality remote control searchlight designed for navigation and search and rescue, featuring a toughened super clear Optiwhite front glass and a parabolic glass reflector.

Applications

  • navigation
  • search and rescue
  • vessel signaling

Features

  • remote focus mechanism
  • combined tubular and V sights
  • shutter mechanism for morse code
  • variable speed with auto home position
  • dimmable control panel
  • heater fitted in gearbox
  • direct cable connection

Options

  • Computer Control Software
  • Azimuth LED Control Panel
  • Master Control Panel
  • Slave Control Panels
  • Fiber Optic/TCP/IP Connections
  • Flir Thermal camera

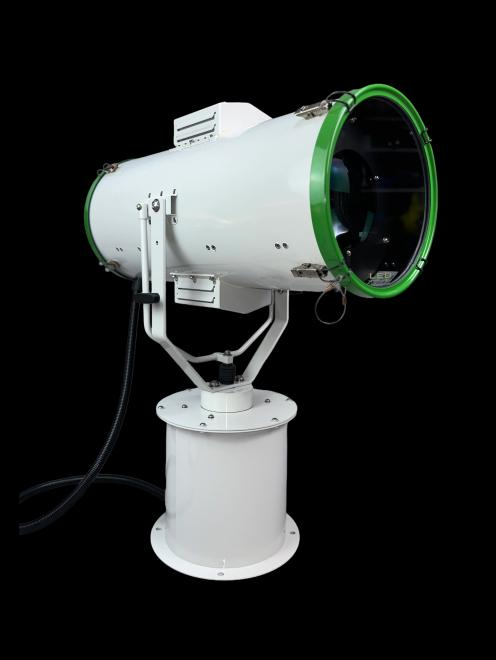

FRANCIS FSP300RC – Photo (73e2c5345ef5_S1-1 S. 1)
Photo · 73e2c5345ef5_S1-1 · S. 1

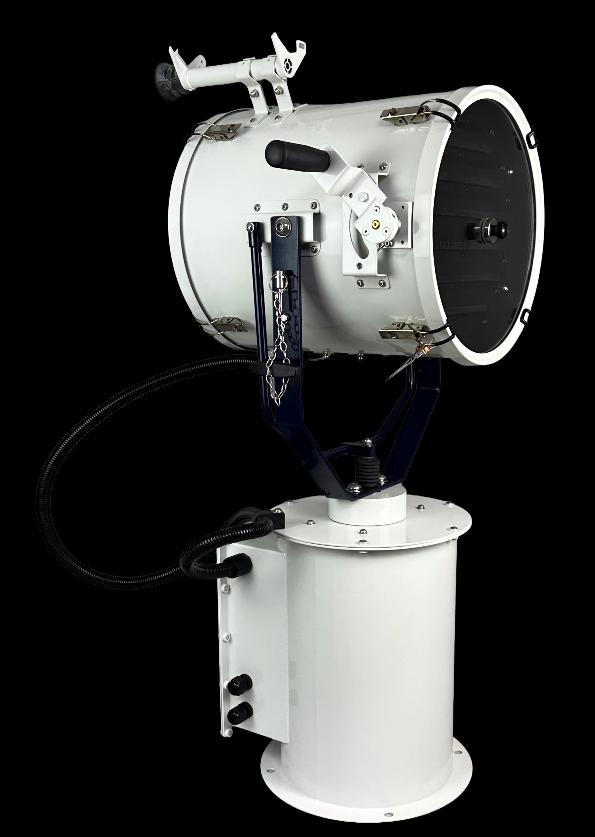

FRANCIS FSP300RC – Photo (697277367856_S1-1 S. 1)
Photo · 697277367856_S1-1 · S. 1
FRANCIS FSP300RC – Photo (697277367856_S1-1 S. 1)
Photo · 697277367856_S1-1 · S. 1

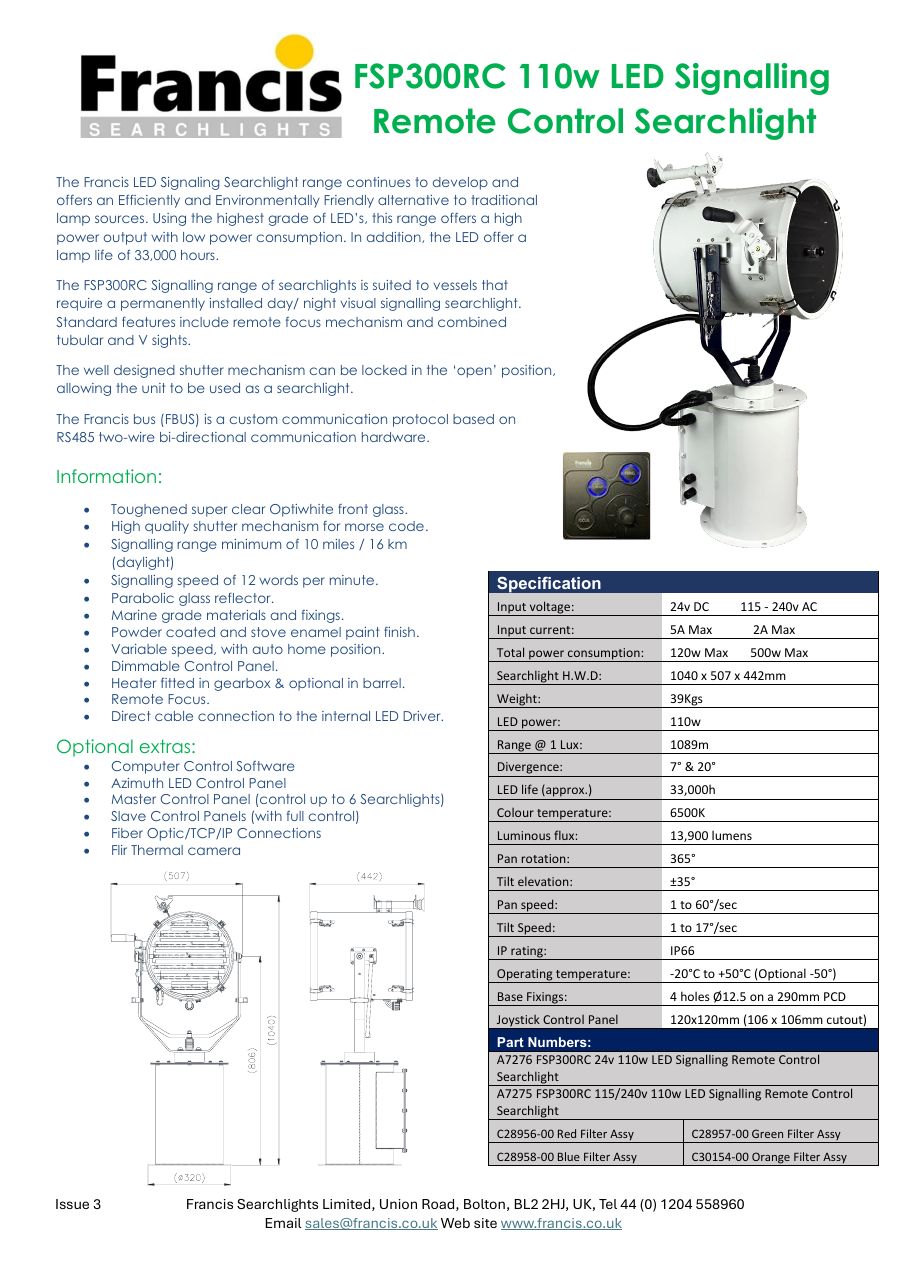

FRANCIS FSP300RC – Drawing (73e2c5345ef5_S1-1 S. 1)
Drawing · 73e2c5345ef5_S1-1 · S. 1

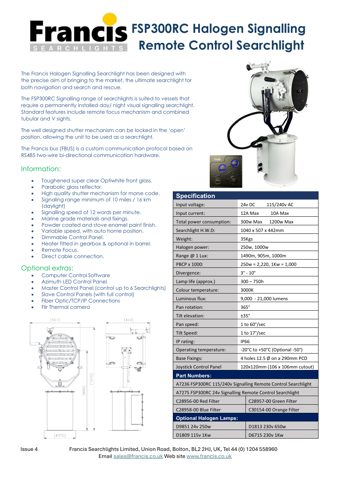

FRANCIS FSP300RC – Drawing (697277367856_S1-1 S. 1)
Drawing · 697277367856_S1-1 · S. 1
Source: franciscouk FSP300RC datasheet, p. 1
