OceanSphereENGINES

PL-40

Pressure Gauge · Instrumentation & Gauges

​‍⁠​‌​‌​‍​​‌​​‌‌⁠⁠⁠‌
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Output4 … 20mA adjustable
Accuracy±0.2% F.S at 20℃
Supply voltage12 … 28VDC
RangeGauge 175mbar to 4bar, Absolute 1400mbar to 4bar
OverpressureGauge 6bar to 25bar
Diaphragm cellCapacitive transmitter with ceramic diaphragm
OverpresureGauge 6bar to 25bar, Absolute 10bar to 25bar
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Hanla Level Transmitter PL-40 is a 2-wire, 4~20mA level transmitter used for continuously measuring liquid levels in marine ships' ballast tanks, draft, fuel oil tanks, and other tanks.

Applications

  • ballast tank remote reading
  • draft remote reading
  • heeling and trim remote reading
  • fuel oil tank remote reading
  • waste waters, wells, locks, rivers etc.

Features

  • 2-wire 4~20mA level transmitter
  • capacitive transmitter with ceramic diaphragm
  • submersible vented cable

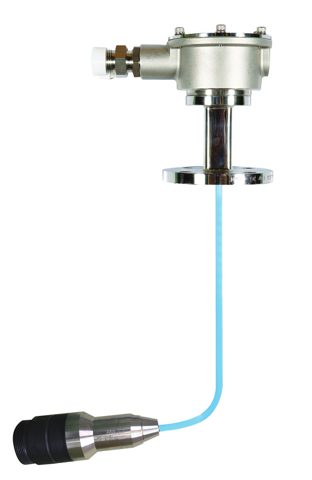

Hanla IMS PL-40 – Photo (6bb05287766e_S1-1 S. 1)
Photo · 6bb05287766e_S1-1 · S. 1

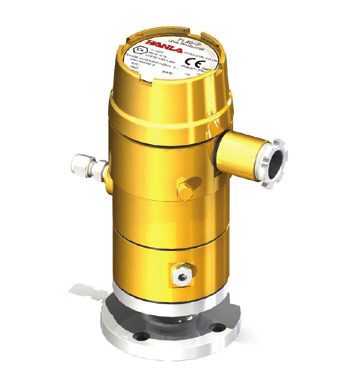

Hanla IMS PL-40 – Photo (6bb05287766e_S1-1 S. 1)
Photo · 6bb05287766e_S1-1 · S. 1
Source: Hanla IMS PL-40 datasheet, p. 4
