Library› Navigation› Signaling & Visual› Searchlight› FRANCIS LX300RC
FRANCIS

LX300RC

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input voltage24v DC V
Input current10A Max
Total power consumption250w W
Searchlight H.W.D1012 x 414 x 533mm
Weight40Kgs
Xenon power150w W
Range @ 1 Lux2465m
PBCP x 10006,000
Divergence1.5° - 10°
Lamp life (approx.)1200h
Colour temperature6000K
Luminous flux3200 lumens
Pan rotation365°
Pan speed1 to 60°/sec
Tilt Speed1 to 17°/sec
IP ratingIP66
Operating temperature-20°C to +50°C (Optional -50°)
Base Fixings4 holes 12.5 Ø on a 290mm PCD
Joystick Control Panel120x120mm (106 x 106mm cutout)
Supply Voltage230v
Watts300
Pan Rotation385°
Variable Rotation Speed (Pan)1 to 43°/sec
Operational Temp-50°
Base fixing details4 holes 12.5 Ø equi-spaced on a 350mm PCD
Joystick panel120 x 120mm (106 x 106mm cutout)
Lamp Wattage300 Watts
Supply voltage110v or 240v AC 1Ph 50/60 Hz
Peak Beam Candlepower12.1 Million lux
Range3,487 metres
Output from the PSU20v at 15 amps
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

High power searchlight for marine applications, ideal for collision avoidance and man overboard situations.

Applications

  • collision avoidance
  • man overboard

Features

  • toughened super clear Optiwhite front glass
  • parabolic super pure aluminum reflector
  • marine grade materials and fixings
  • powder coated and stove enamel paint finish
  • variable speed with auto home position
  • dimmable control panel
  • heater fitted in gearbox & barrel
  • remote focus

Options

  • computer control software
  • azimuth LED control panel
  • master control panel (control up to 6 searchlights)
  • slave control panels (with full control)
  • fiber optic/tcp/ip connections
  • flir thermal camera

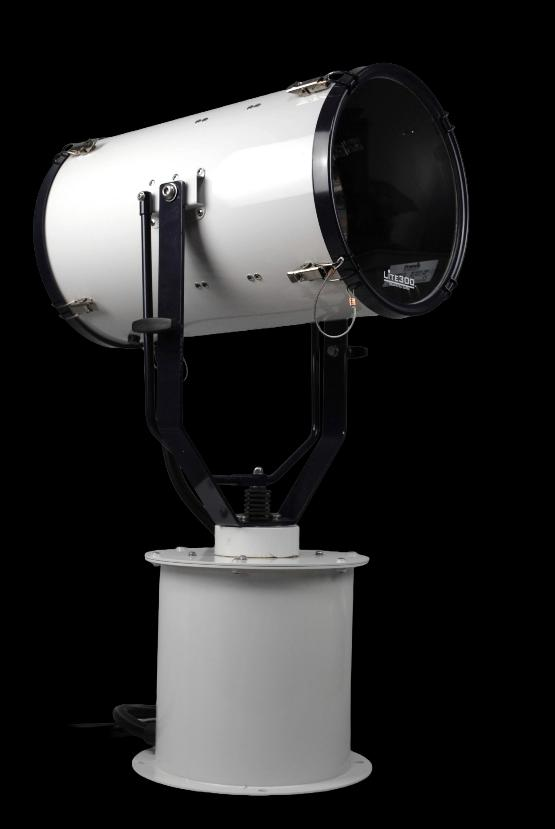

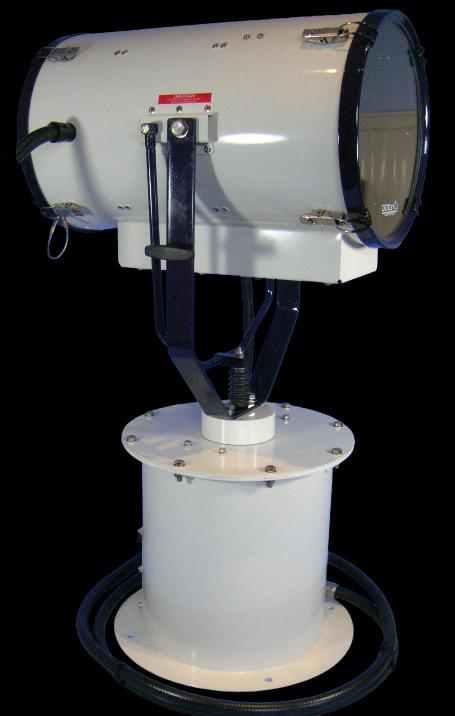

FRANCIS LX300RC – Photo (94d36ddd13aa_S1-1 S. 1)
Photo · 94d36ddd13aa_S1-1 · S. 1
FRANCIS LX300RC – Photo (02153f855ac8_S1-1 S. 1)
Photo · 02153f855ac8_S1-1 · S. 1

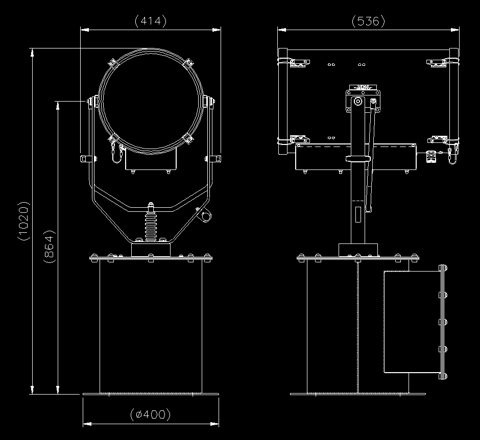

FRANCIS LX300RC – Photo (0cddf45c8b44_S1-1 S. 1)
Photo · 0cddf45c8b44_S1-1 · S. 1

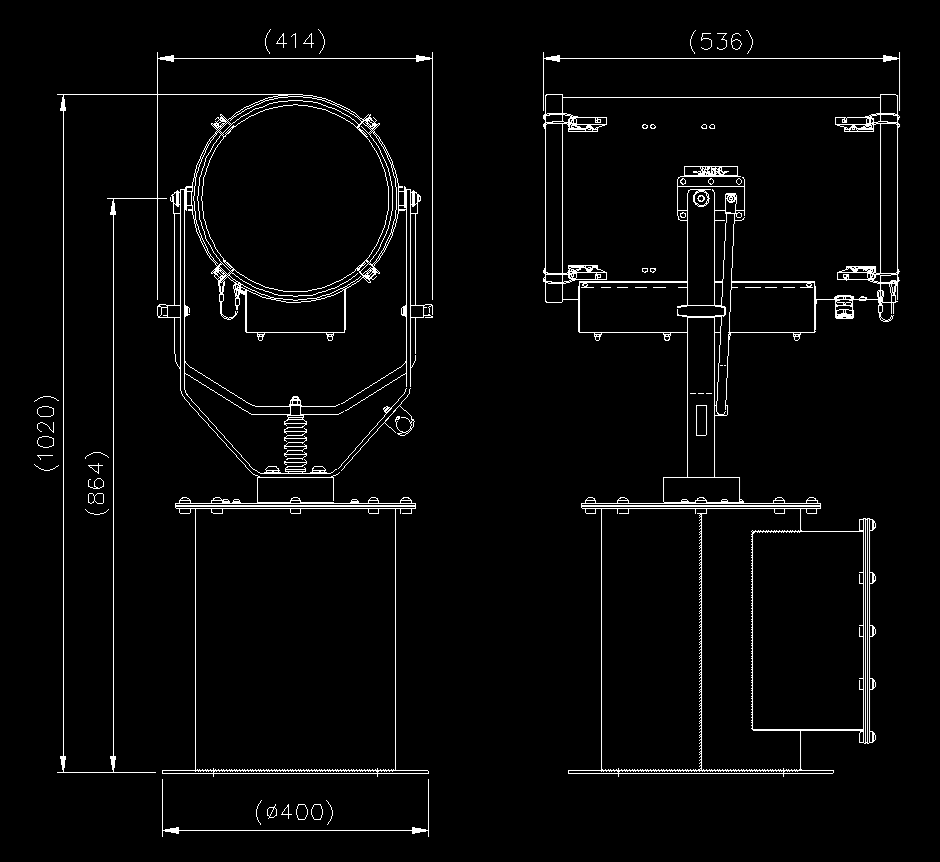

FRANCIS LX300RC – Drawing (94d36ddd13aa_S1-1 S. 1)
Drawing · 94d36ddd13aa_S1-1 · S. 1
FRANCIS LX300RC – Drawing (02153f855ac8_S1-1 S. 1)
Drawing · 02153f855ac8_S1-1 · S. 1
FRANCIS LX300RC – Drawing (0cddf45c8b44_S1-1 S. 1)
Drawing · 0cddf45c8b44_S1-1 · S. 1

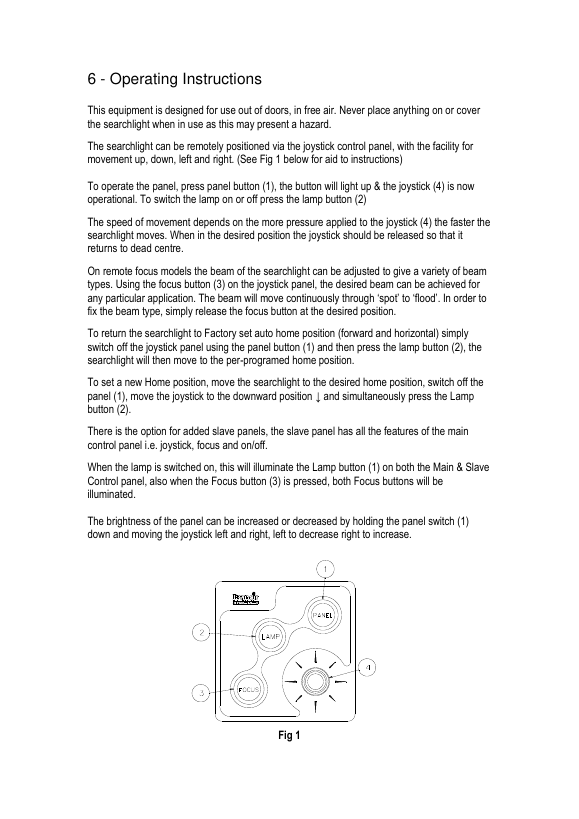

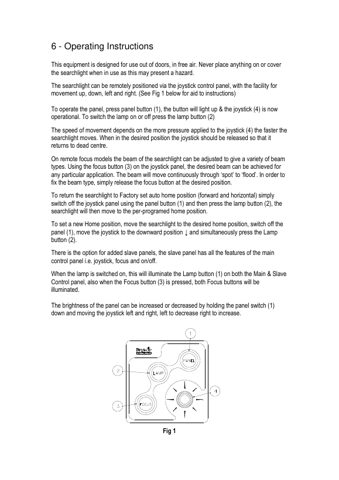

FRANCIS LX300RC – Page preview (ba56a0e47251_S5-31 S. 5)
Page preview · ba56a0e47251_S5-31 · S. 5

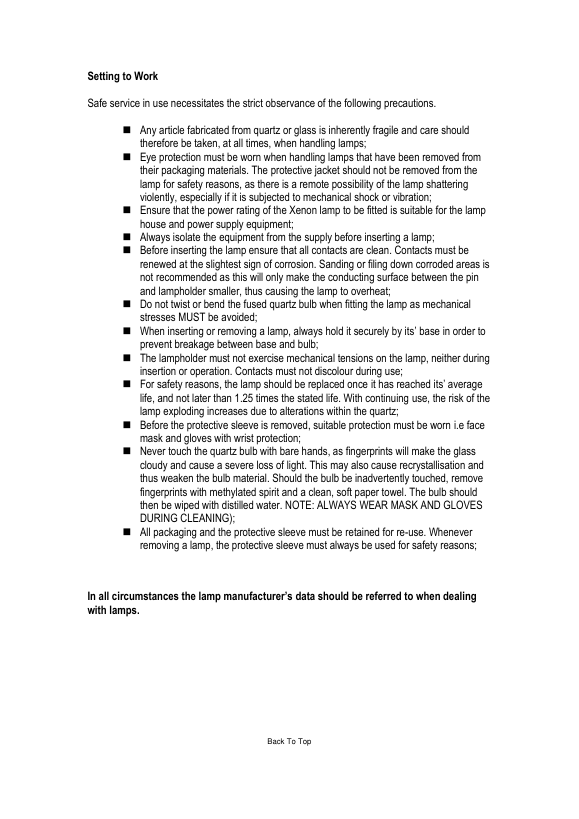

FRANCIS LX300RC – Page preview (ba56a0e47251_S5-31 S. 6)
Page preview · ba56a0e47251_S5-31 · S. 6

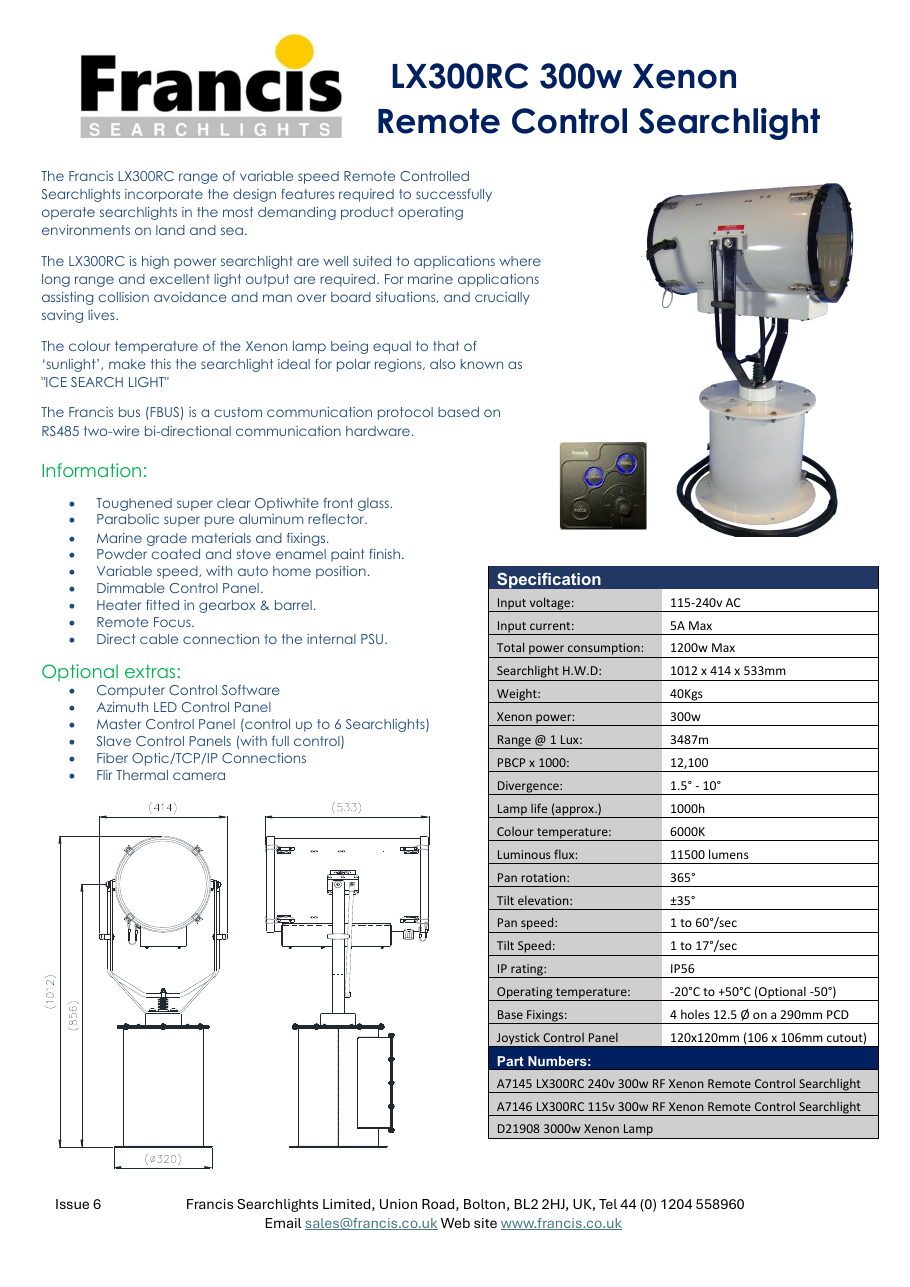

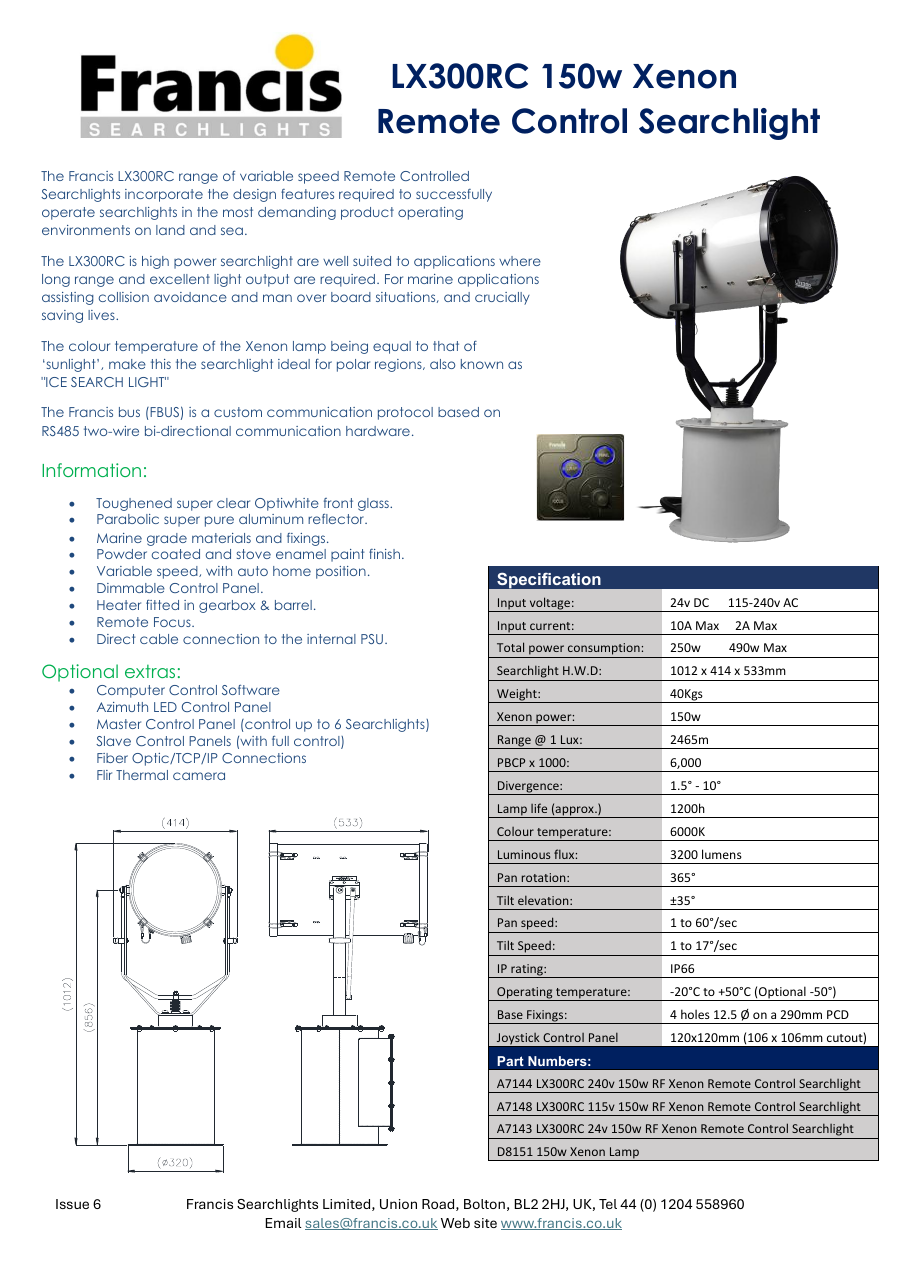

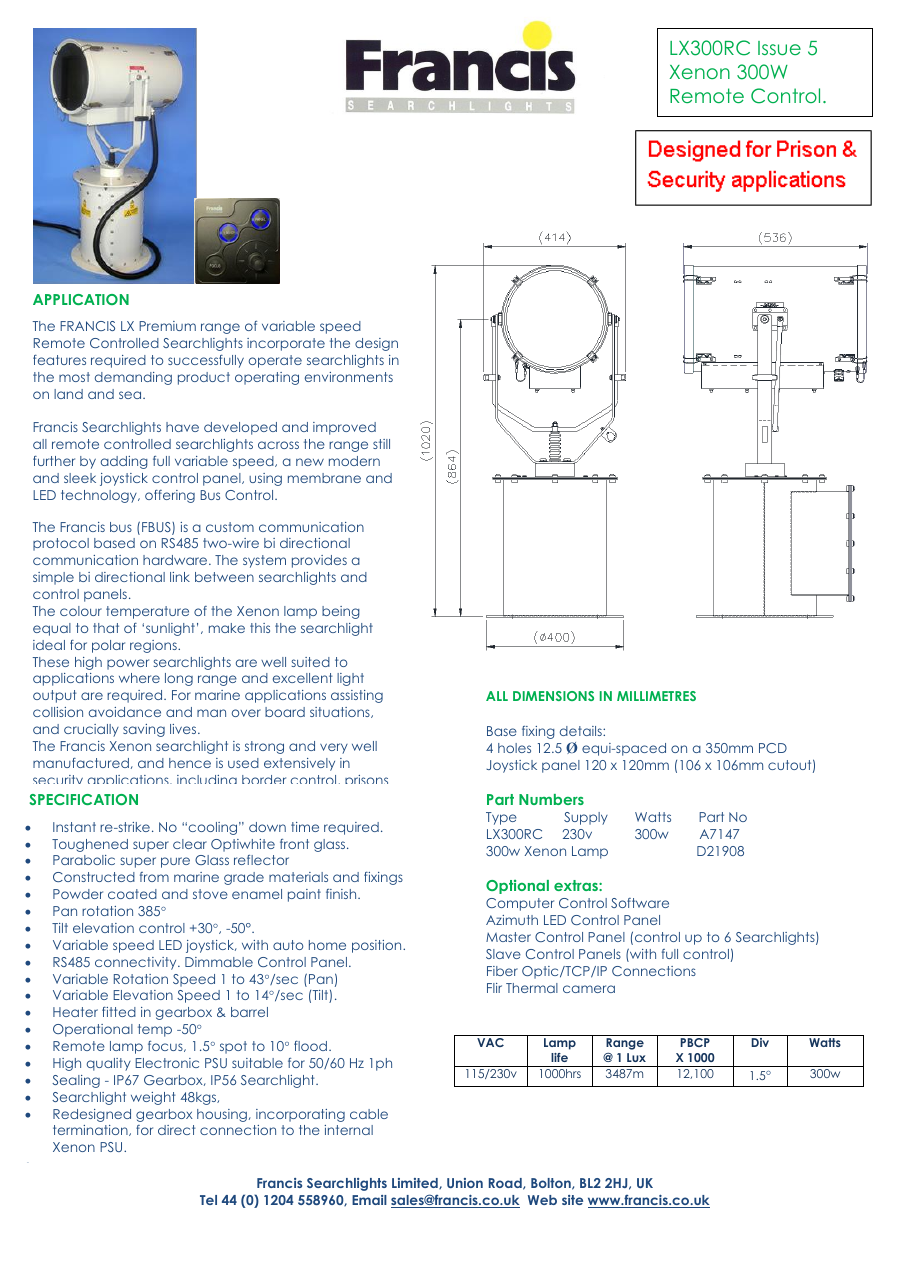

Source: franciscouk LX300RC datasheet, p. 1
