Library› Navigation› Signaling & Visual› Searchlight› FRANCIS L300RC
FRANCIS

L300RC

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input voltage24v DC 110 - 240 VAC
Input current24A Max 5A Max
Total power consumption600w Max 1300w Max

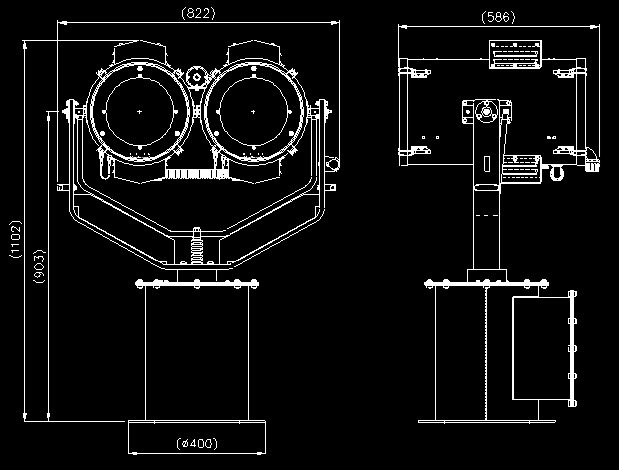

H,w,d1102 x 822 x 586mm
Weight75Kgs
LED power468w
Range @ 2 Lux4309m
Divergence4°-10°
LED life (approx.)20,000h
Colour temperature6000K
Luminous flux71,074 lumens
Pan rotation385°
Pan speed1 to 43°/sec
Tilt Speed1 to 14°/sec
IP ratingIP56
Operating temperature-20°C to +50°C (Optional -50°)
Base Fixings4 holes 12.5 Ø on a 350mm PCD
Lamp life hours33,000 hrs
Supply115/230v
Watts220w
Luminous Flux27,800 lm
Div7-20°
Operational temp-50°
Halogen power250w, 1Kw
Lamp life (approx.)300-750 h
PBCP x 10002,220, 1,000 each barrel
Joystick Control Panel120x120mm (106 x 106mm cutout)
Searchlight H.W.D962 x 414 x 393mm
Range @ 1 Lux250w = 1490m, 1Kw = 1000m
Power234w
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

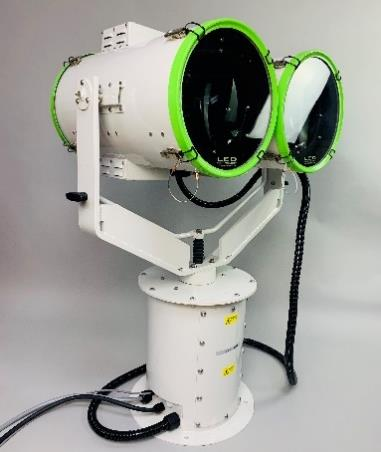

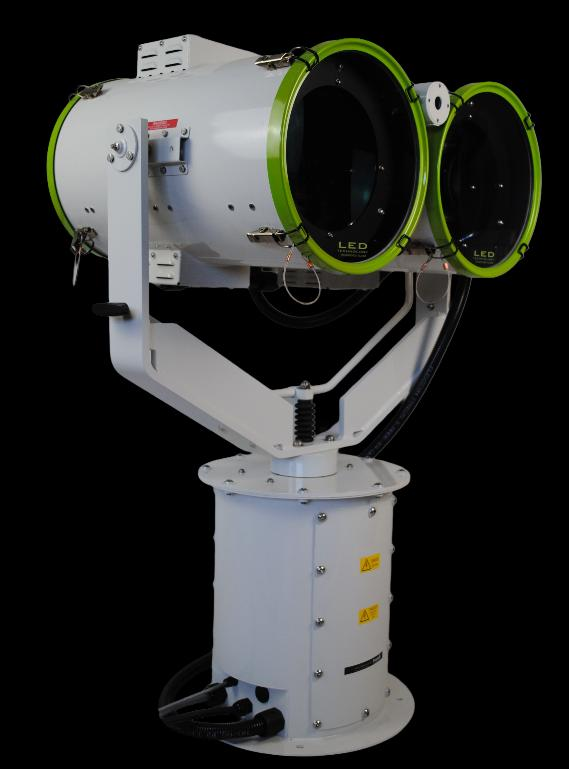

The Francis LED Twinhead searchlight range offers a high power output with low power consumption. It uses CREE LEDs and has a lamp life of 33,000 hours.

Applications

  • Searchlights

Features

  • Remote Focus fitted as standard
  • Variable speed LED joystick, with auto home position
  • RS485 connectivity
  • Dimmable Control Panel
  • Master Control Panel (control up to 6 Searchlights)
  • Slave Control Panels (with full control)
  • Fiber Optic/TCP/IP Connections
  • Flir Thermal camera

Options

  • Computer Control Software
  • Azimuth LED Control Panel

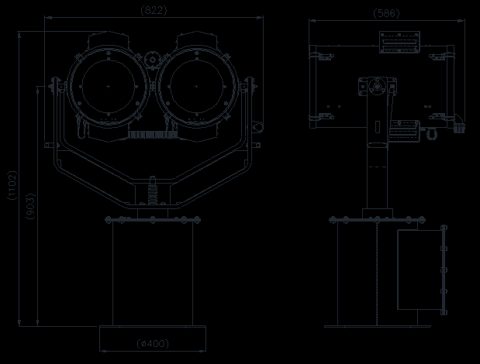

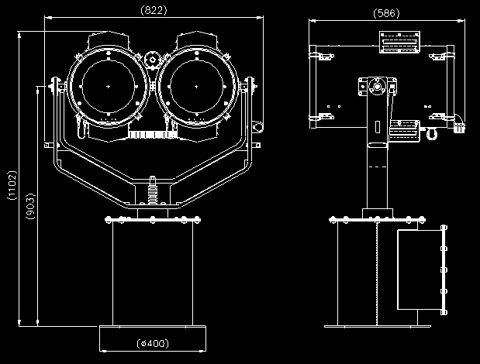

FRANCIS L300RC – Photo (4f1f263c2883_S1-1 S. 1)
Photo · 4f1f263c2883_S1-1 · S. 1
FRANCIS L300RC – Photo (4f1f263c2883_S1-1 S. 1)
Photo · 4f1f263c2883_S1-1 · S. 1
FRANCIS L300RC – Photo (4f1f263c2883_S1-1 S. 1)
Photo · 4f1f263c2883_S1-1 · S. 1

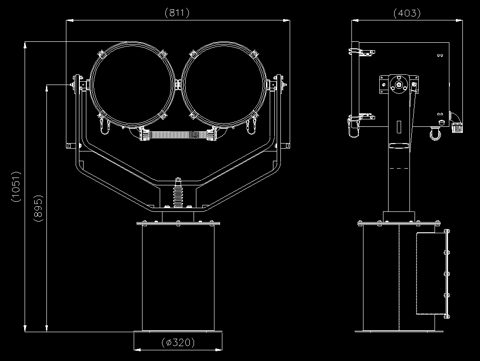

FRANCIS L300RC – Photo (da212dd06d70_S1-1 S. 1)
Photo · da212dd06d70_S1-1 · S. 1
FRANCIS L300RC – Photo (da212dd06d70_S1-1 S. 1)
Photo · da212dd06d70_S1-1 · S. 1

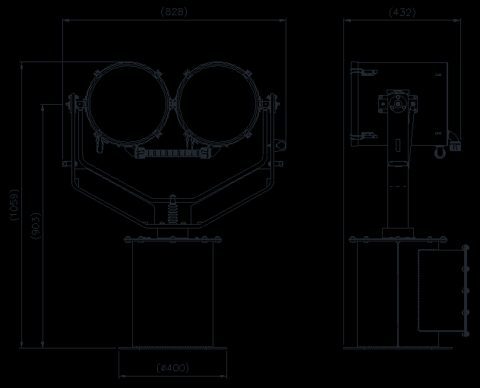

FRANCIS L300RC – Photo (de09b73f7c1b_S1-1 S. 1)
Photo · de09b73f7c1b_S1-1 · S. 1
FRANCIS L300RC – Photo (de09b73f7c1b_S1-1 S. 1)
Photo · de09b73f7c1b_S1-1 · S. 1
FRANCIS L300RC – Photo (de09b73f7c1b_S1-1 S. 1)
Photo · de09b73f7c1b_S1-1 · S. 1
Source: franciscouk L300RC datasheet, p. 1
