Francis Searchlights

L230RC

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified​‍⁠​‌​​‌⁠⁠⁠‍‌‍⁠‍⁠​​‌
View photo ↗
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Input voltage24v DC🔖
Input current12A Max🔖
Total power consumption288w Max 520w Max🔖

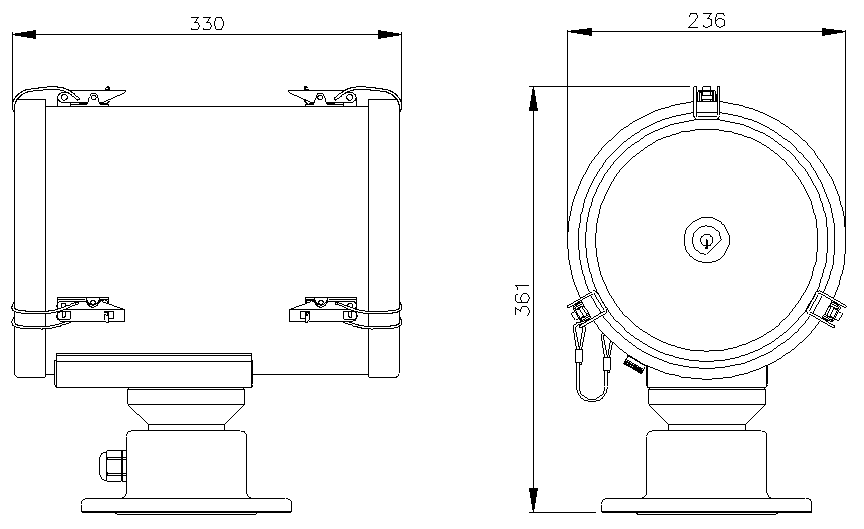

Searchlight H.W.D361 x 236 x 332mm🔖
Weight11Kgs🔖
Halogen power250w, 300w🔖
Range @ 1 Lux1095m, 888m🔖
Divergence2.3°, 4.8°🔖
Lamp life (approx.)300h, 75h🔖
Colour temperature3000K🔖
Luminous flux8,000-9,000 lumens🔖
Pan rotation365°🔖
Pan speed24°/sec🔖
Tilt Speed4°/sec🔖
IP ratingIP66🔖
Operating temperature-20°C to +50°C🔖
Base Fixings3 holes Ø11 on a 154mm PCD🔖

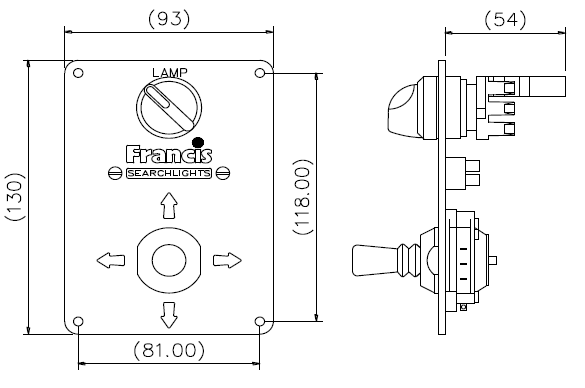

Joystick Control Panel93 x 130mm (80 x 117mm cutout)🔖
LED power45w🔖
📄
Download datasheet (PDF) (334 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

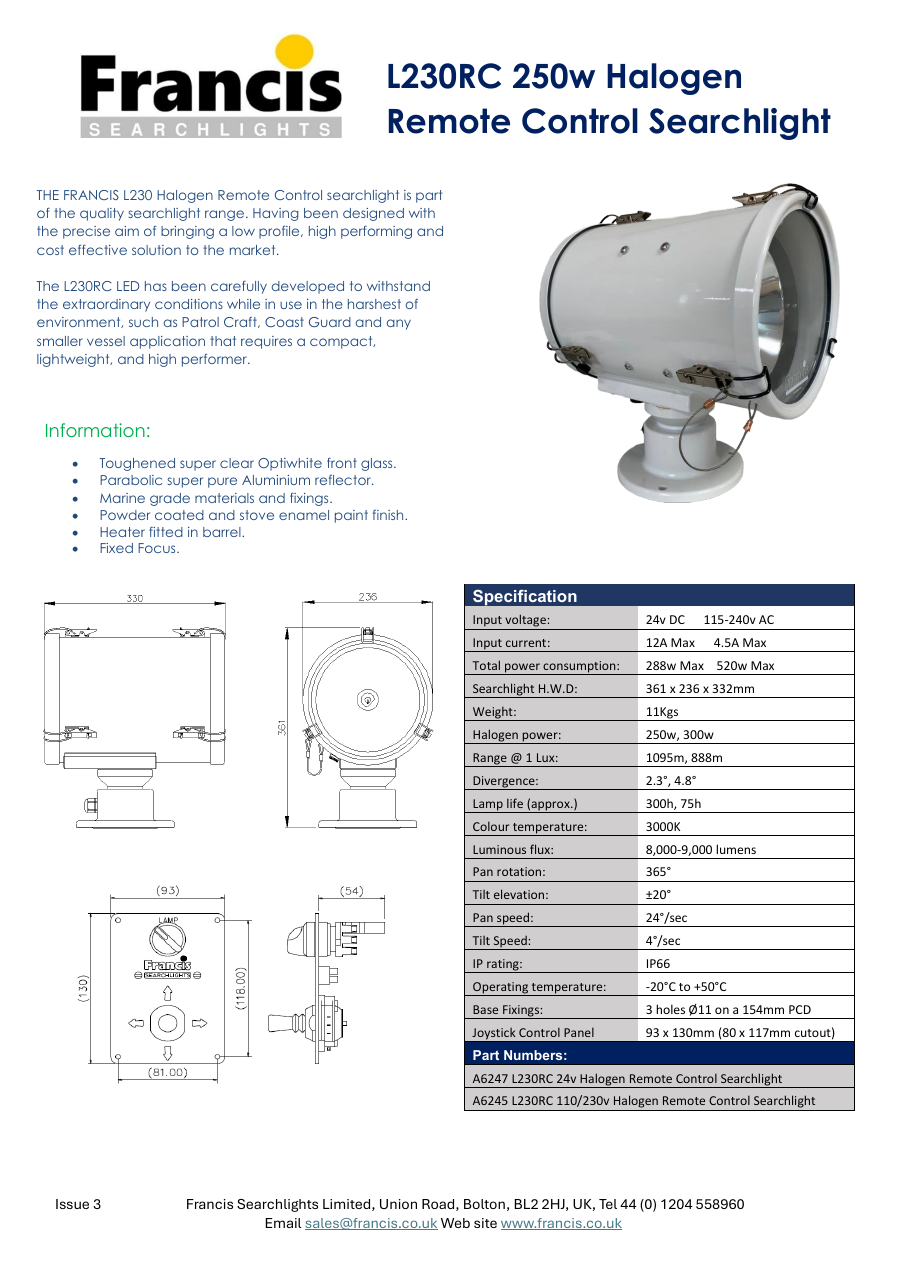

“L230RC 250w Halogen Remote Control Searchlight THE FRANCIS L230 Halogen Remote Control searchlight is part of the quality searchlight range. Having been designed with the precise aim of bringing a…”

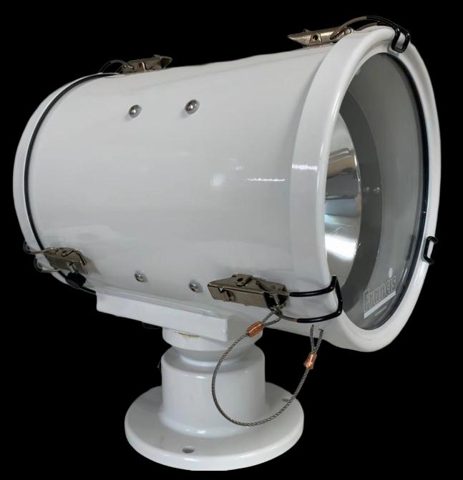

Francis Searchlights L230RC – Photo (f3c8a1a158e6_S1-1 S. 1)
Photo · f3c8a1a158e6_S1-1 · S. 1
Francis Searchlights L230RC – Photo (f3c8a1a158e6_S1-1 S. 1)
Photo · f3c8a1a158e6_S1-1 · S. 1
Francis Searchlights L230RC – Photo (f3c8a1a158e6_S1-1 S. 1)
Photo · f3c8a1a158e6_S1-1 · S. 1

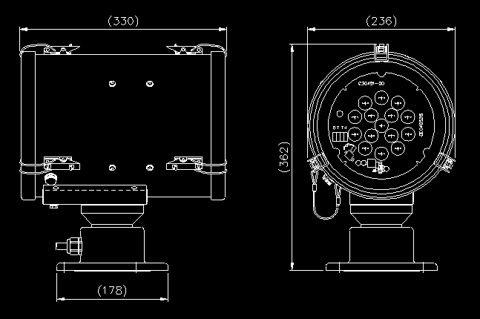

Francis Searchlights L230RC – Photo (abeb565a8e4a_S1-1 S. 1)
Photo · abeb565a8e4a_S1-1 · S. 1
Francis Searchlights L230RC – Photo (abeb565a8e4a_S1-1 S. 1)
Photo · abeb565a8e4a_S1-1 · S. 1
Francis Searchlights L230RC – Photo (Francis Searchlights datasheet S. 1)
Photo · Francis Searchlights datasheet · S. 1
Francis Searchlights L230RC – Photo (Francis Searchlights datasheet S. 1)
Photo · Francis Searchlights datasheet · S. 1
Francis Searchlights L230RC – Photo (Francis Searchlights datasheet S. 1)
Photo · Francis Searchlights datasheet · S. 1
Source: Francis Searchlights L230RC datasheet, p. 1
