Library› Navigation› Signaling & Visual› Searchlight› FRANCIS FX560RC
FRANCIS

FX560RC

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input voltage110 VAC - 240 VAC 50/60Hz
Input current10A Max – 5A Max
Total power consumption1100w Max 1200ww Max

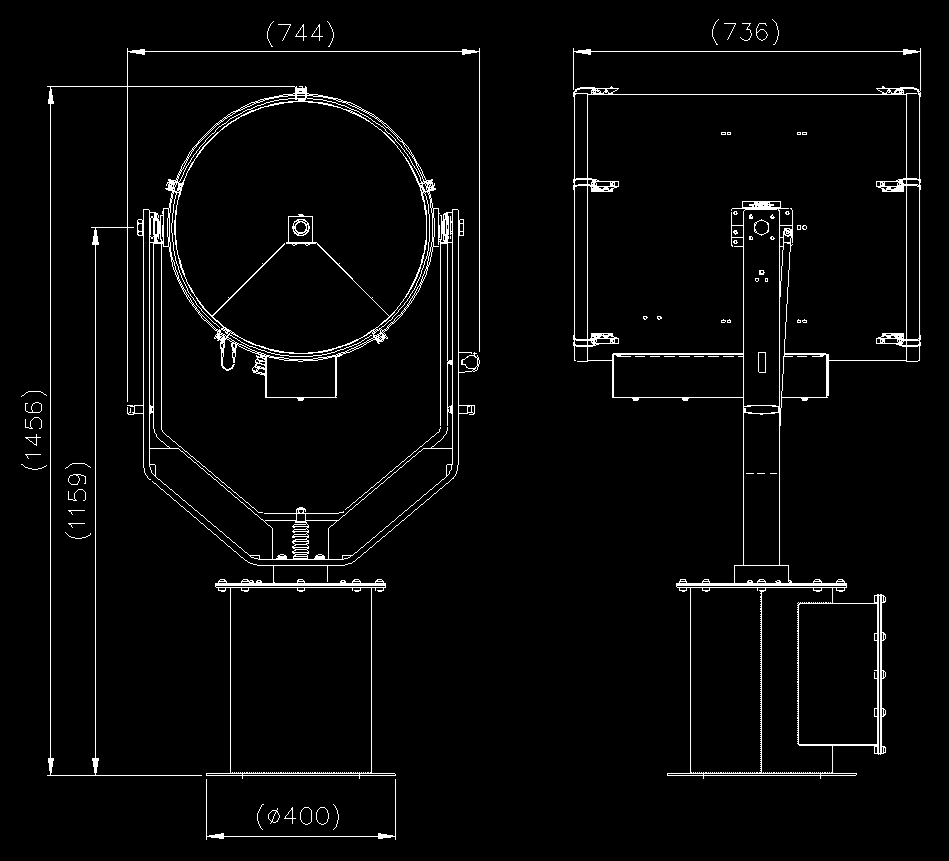

H,w,d1456 x 744 x 736mm
Weight81Kgs Searchlight; 14Kgs PSU
Range @ 1 Lux10,400m
Lamp life (approx.)2400h
Colour temperature6000K
Luminous flux75,000 lm
Pbcp108,000 Mil
Pan rotation385°
Pan speed1 to 43°/sec
Tilt Speed1 to 14°/sec
IP ratingIP67
Operating temperature-20°C to +50°C (Optional -50°)
Base Fixings4 holes 12.5 Ø on a 350mm PCD
Joystick Control Panel120x120mm (106 x 106mm cutout)
Supply230v
Lamp Wattage3000 Watts
Supply voltage220/240V single phase 50/60Hz
Peak Beam Candlepower175,000,000 lux
Range13,251 metres
Lamp life2200 hours
Divergence1.5° spot to 10˚ flood
Temperature range-50°C
Weight Searchlight74 Kgs
Weight PSU24 Kgs
Output Voltage29 V dc
Output Current100 A
Supply Voltage24 V
PBCP X 1000175,000
Div1.5
Lamp life @ 1 Lux2200hrs
PSU Weight24Kgs
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A high-power searchlight designed for marine applications, providing excellent light output for collision avoidance and man overboard situations.

Applications

  • collision avoidance
  • man overboard situations

Features

  • toughened super clear Optiwhite front glass
  • instant re-strike
  • parabolic glass reflector
  • marine grade materials and fixings
  • variable speed with auto home position
  • dimmable control panel
  • heater fitted in gearbox & barrel
  • remote focus

Options

  • computer control software
  • azimuth LED control panel
  • master control panel
  • slave control panels
  • fiber optic/TCP/IP connections
  • flir thermal camera

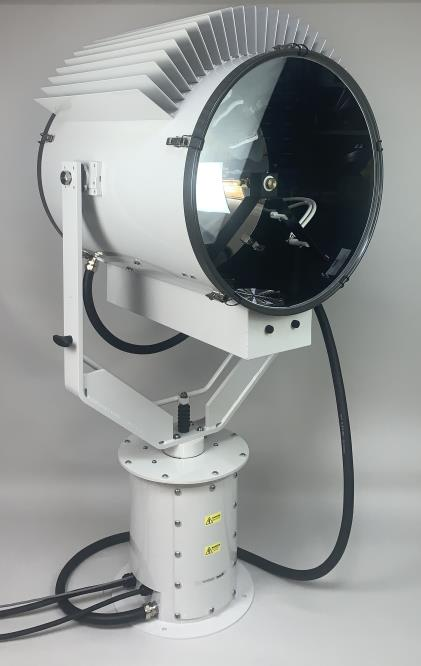

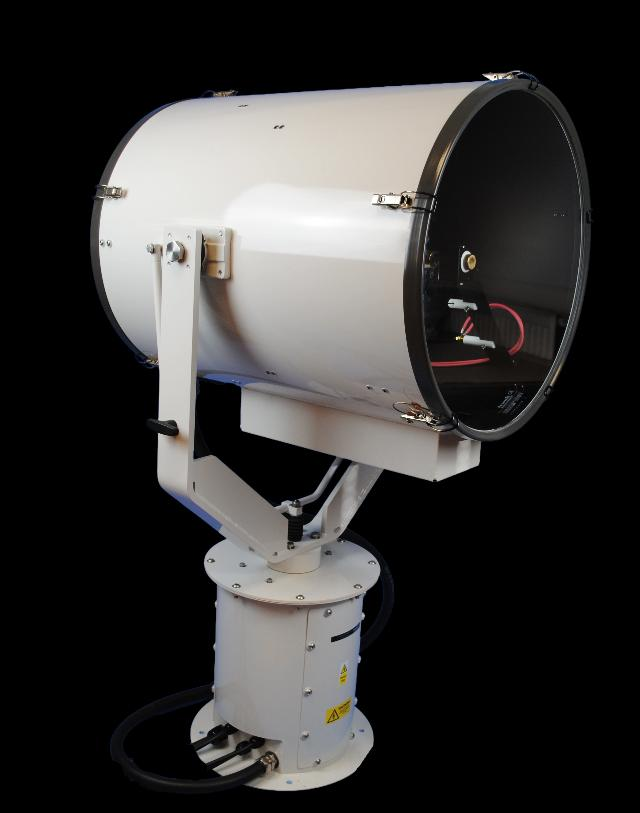

FRANCIS FX560RC – Photo (7bab72fb4329_S1-1 S. 1)
Photo · 7bab72fb4329_S1-1 · S. 1
FRANCIS FX560RC – Photo (7bab72fb4329_S1-1 S. 1)
Photo · 7bab72fb4329_S1-1 · S. 1

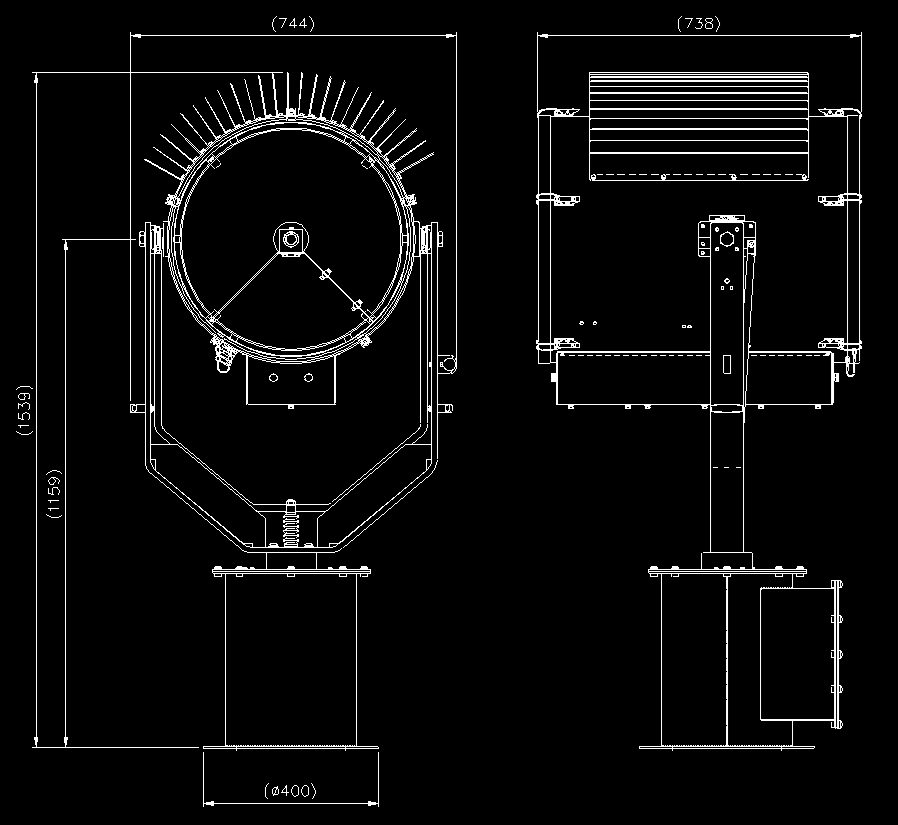

FRANCIS FX560RC – Photo (28c39038284a_S1-1 S. 1)
Photo · 28c39038284a_S1-1 · S. 1

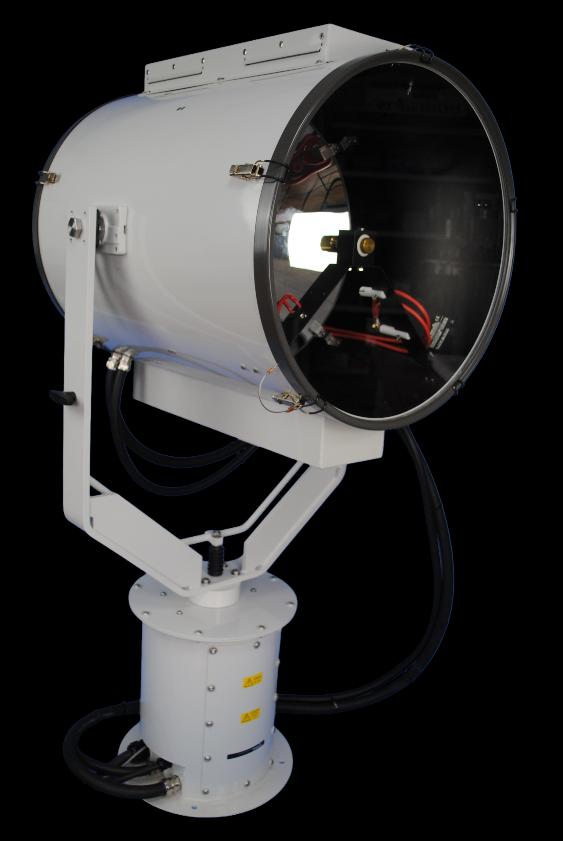

FRANCIS FX560RC – Photo (93971100a932_S1-1 S. 1)
Photo · 93971100a932_S1-1 · S. 1

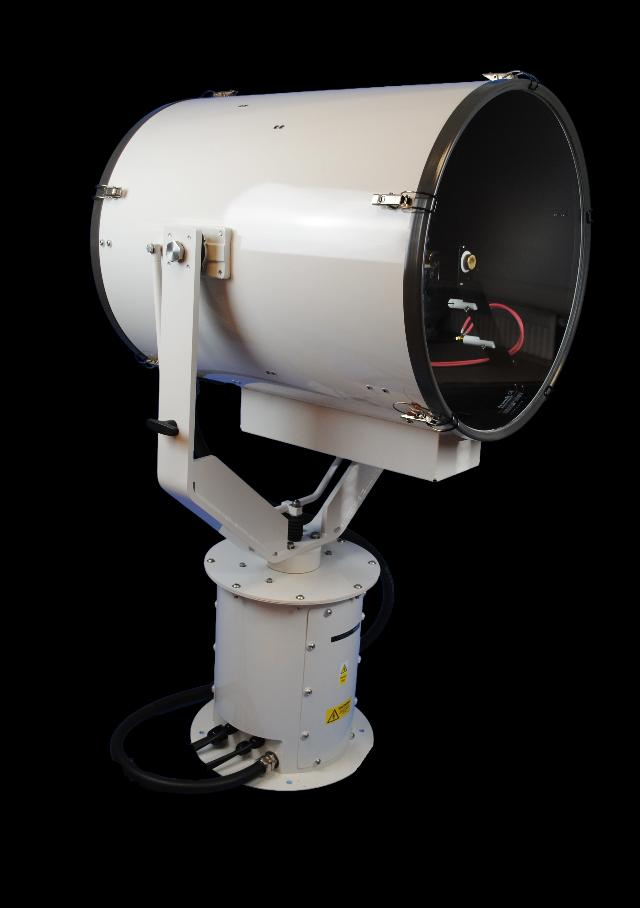

FRANCIS FX560RC – Photo (93971100a932_S1-1 S. 1)
Photo · 93971100a932_S1-1 · S. 1

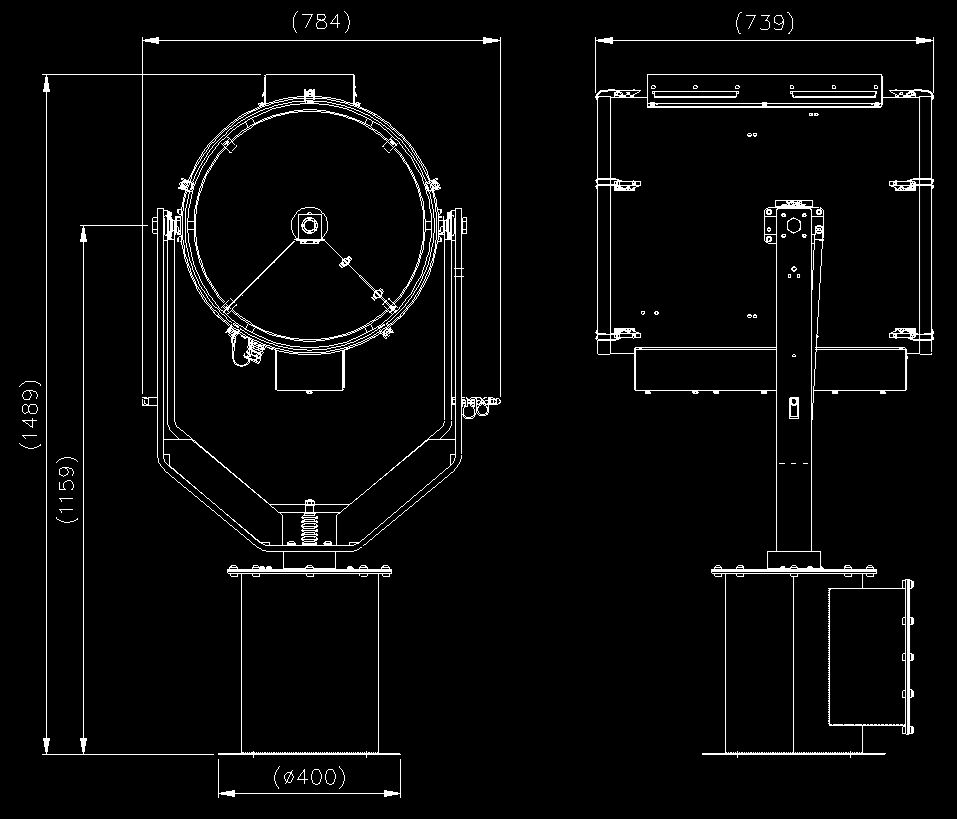

FRANCIS FX560RC – Photo (7c3d73ccd4f0_S1-1 S. 1)
Photo · 7c3d73ccd4f0_S1-1 · S. 1

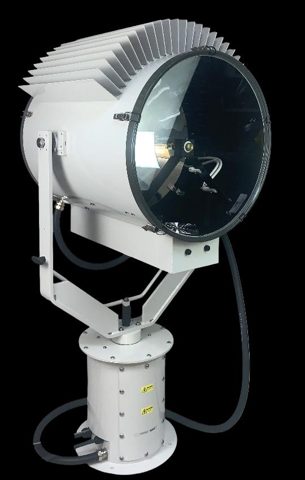

FRANCIS FX560RC – Photo (e5bdf4edc23a_S1-1 S. 1)
Photo · e5bdf4edc23a_S1-1 · S. 1

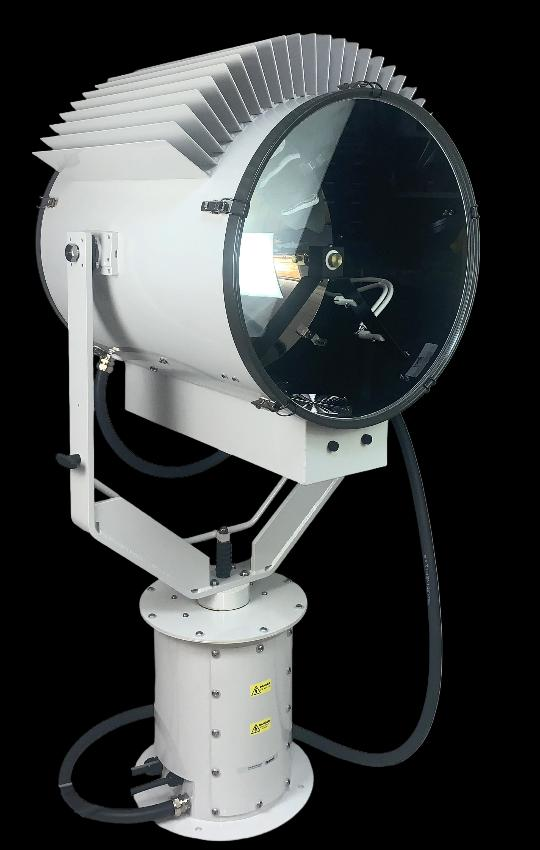

FRANCIS FX560RC – Photo (e5bdf4edc23a_S1-1 S. 1)
Photo · e5bdf4edc23a_S1-1 · S. 1
Source: franciscouk FX560RC datasheet, p. 1
