Library› Navigation› Signaling & Visual› Searchlight› FRANCIS FSP300
FRANCIS

FSP300

Searchlight · Signaling & Visual

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Input voltage24v DC
Input current12A Max
Total power consumption300w Max 1200w Max
Searchlight weight16Kgs
Halogen power250w, 650w, 1000w
Range @ 1 Lux1490m, 905m, 1000m
PBCP x 10002220, 820, 1000
LED life (approx.)300, 750h
Colour temperature3000 - 3200K
Luminous flux9,000 – 23,500 lumens
Pan rotation450°
IP ratingIP66
Operating temperature-20°C to +50°C
Base FixingsDeck fixings: 3 holes Ø11.00 on a 154mm PCD
Pedestal weight5Kgs
Divergence2° - 5°
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Francis Halogen Signalling Searchlight for navigation and search and rescue.

Applications

  • navigation
  • search and rescue

Features

  • toughened super clear Optiwhite front glass
  • parabolic glass reflector
  • high quality shutter mechanism for morse code
  • minimum signalling range of 10 nautical miles (daylight)
  • signalling speed of 12 words per minute
  • marine grade materials and fixings
  • powder coated and stove enamel paint finish
  • shutter mechanism can be locked in the 'open' position

Options

  • C28956-00 Red Filter Assy
  • C28957-00 Green Filter Assy
  • C28958-00 Blue Filter Assy
  • C30154-00 Orange Filter Assy

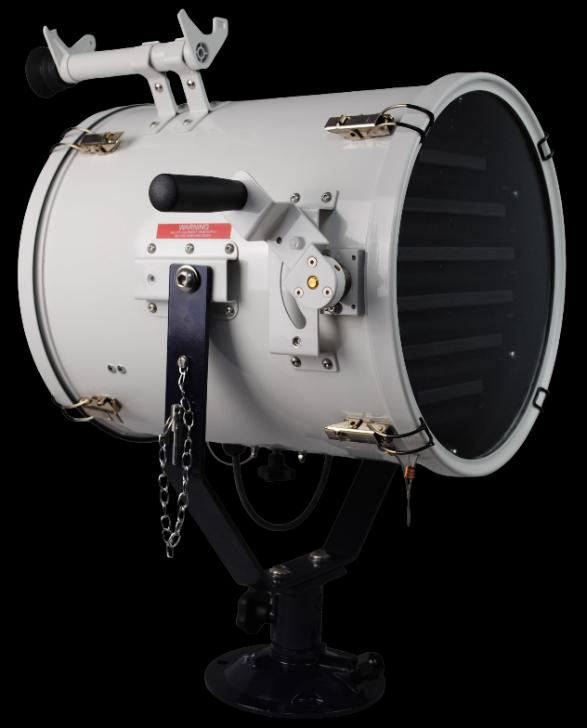

FRANCIS FSP300 – Photo (bd3a4eb6aecf_S1-1 S. 1)
Photo · bd3a4eb6aecf_S1-1 · S. 1
FRANCIS FSP300 – Drawing (bd3a4eb6aecf_S1-1 S. 1)
Drawing · bd3a4eb6aecf_S1-1 · S. 1

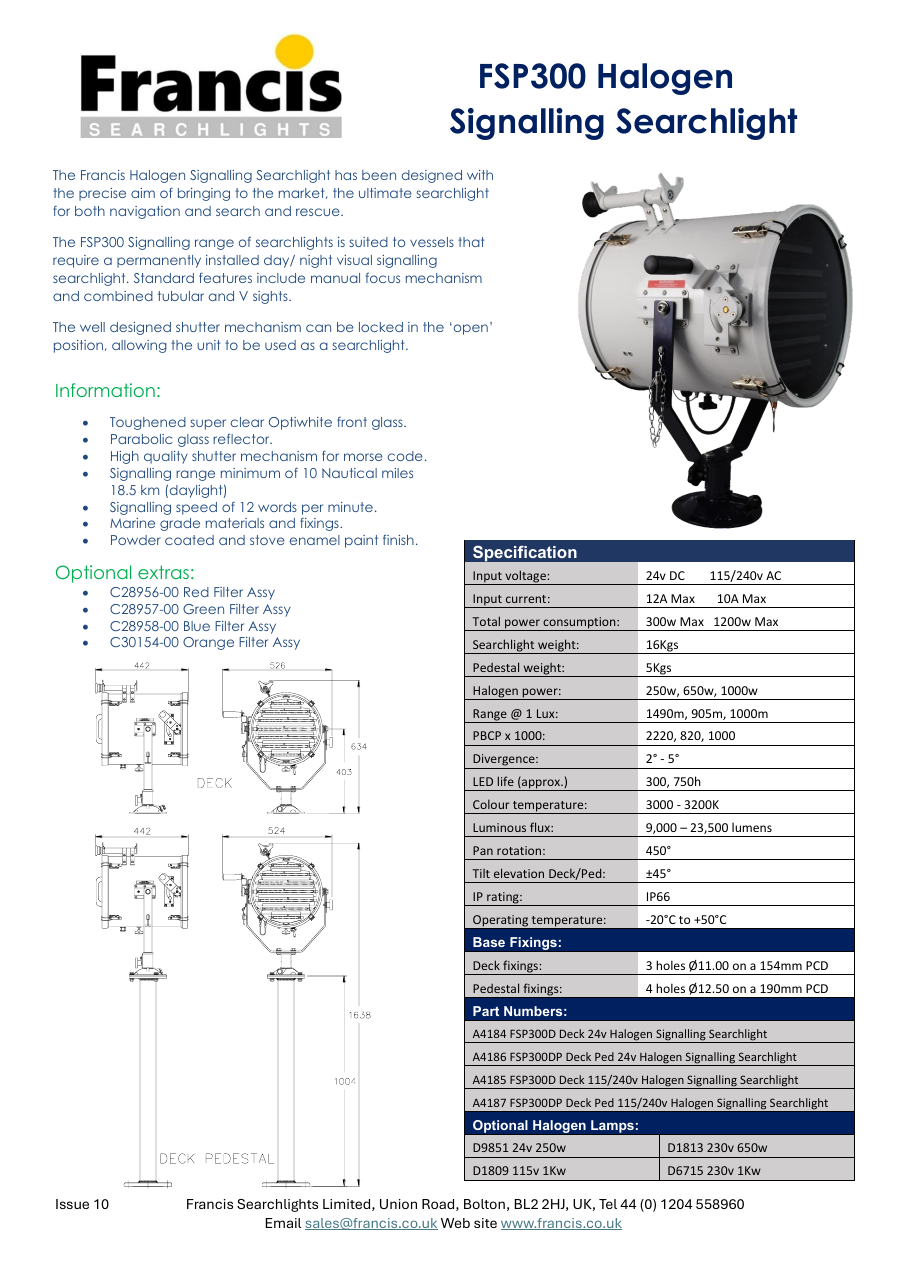

Source: franciscouk FSP300 datasheet, p. 1
