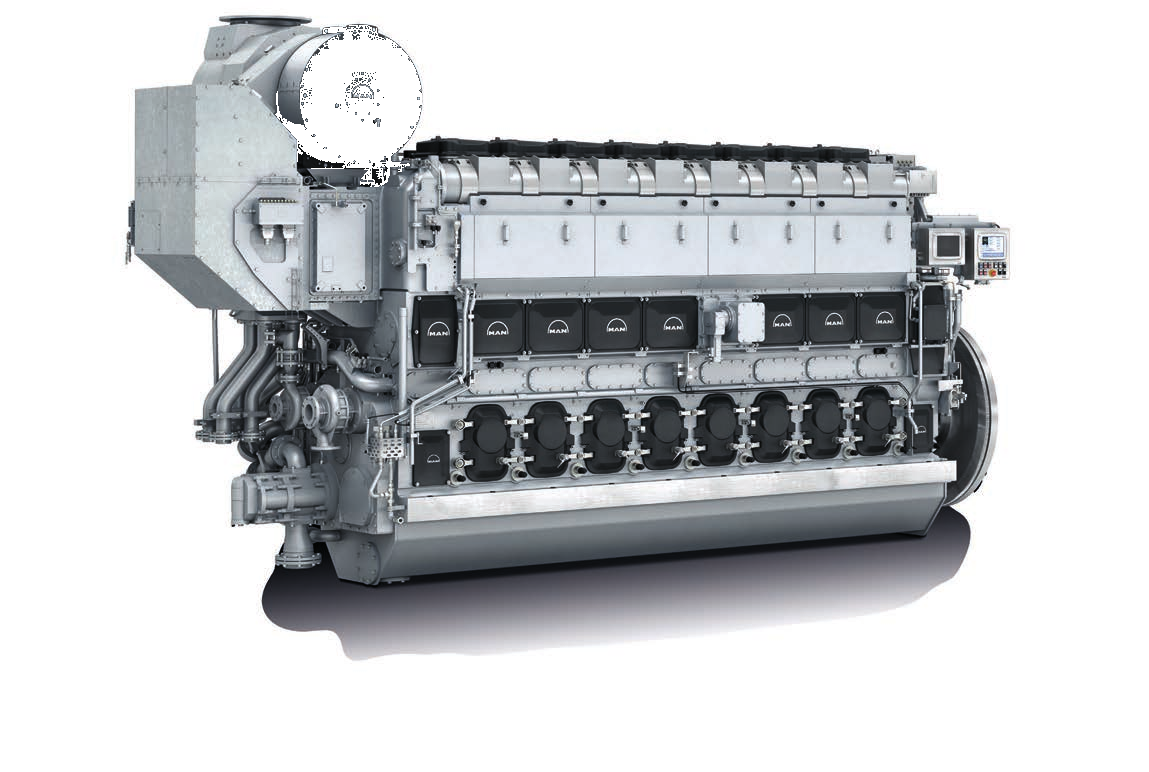

MAN V32/44CR

Common issues

• Cylinder liner wear exceeding limits, leading to increased lube oil consumption and blow-by.
• Exhaust valve burning or leakage due to carbon build-up, poor seating, or material fatigue, affecting combustion efficiency.
• Fuel injector nozzle clogging or wear, causing poor atomization, increased fuel consumption, and potential cylinder overload.
• Turbocharger bearing wear, fouling of compressor/turbine blades, or damage, leading to reduced boost pressure and engine performance.
• Main and connecting rod bearing wear, indicated by abnormal noise, increased lube oil temperature, or pressure drop.
• High-pressure fuel pump element wear or common rail pressure control valve malfunction, affecting fuel delivery timing and quantity.
• Corrosion in cooling water spaces (jacket water, charge air cooler) due to improper water treatment or material degradation.
• Control system (CR - Common Rail) sensor or actuator failures, leading to erratic engine operation, alarms, or shutdowns.

Inspection checklist

• **Visual Inspection of Engine Exterior**: Check for leaks (fuel, lube oil, cooling water), loose fastenings, abnormal vibrations, and general cleanliness around the engine.
• **Engine Room Logbook Review**: Verify running hours, fuel/lube oil consumption, alarm history, and maintenance records against manufacturer's recommendations.
• **Operational Parameter Check**: Monitor exhaust gas temperatures (individual cylinders), turbocharger speeds, boost pressure, lube oil pressure/temperature, cooling water pressure/temperature, and fuel pressure during operation at various loads.
• **Crankcase Inspection**: Safely open crankcase doors (if operational conditions allow) to visually inspect connecting rod bolts, main bearing caps, and check for abnormal oil mist, debris, or water ingress.
• **Fuel System Integrity**: Inspect high-pressure fuel lines, common rail, and injector connections for leaks, chafing, or damage. Check leak-off lines for proper function.
• **Exhaust System & Turbocharger**: Look for signs of exhaust gas leakage, insulation damage, expansion bellows condition, and visually check turbocharger compressor/turbine blades for fouling or damage (if accessible).
• **Safety Devices Functionality**: Verify the functionality of critical safety devices such as overspeed trip, low lube oil pressure shutdown, high cooling water temperature shutdown, and emergency stop.
• **Charge Air Cooler Inspection**: Check for fouling on air and water sides, and signs of leakage (air-side oil/water contamination, water-side pressure drop).
• **Vibration Monitoring**: Assess engine vibration levels visually and by hand, noting any unusual patterns or excessive vibrations at different RPMs.
• **Documentation Verification**: Confirm availability of the latest manufacturer's manuals, class certificates, and a comprehensive planned maintenance system (PMS).

Service intervals

Typical wear limits

Ranges are typical for this design class. Always confirm against the manufacturer documentation for your serial number.

Critical spares

• Complete Fuel Injector Unit (at least one per cylinder, or critical components like nozzles, plungers)
• Exhaust Valve Spindle and Seat Ring (at least one complete set)
• Piston Rings (complete set for one cylinder)
• Cylinder Head Gaskets / O-rings (complete set for one cylinder)
• Main Bearing Shells (one complete set, upper and lower)
• Connecting Rod Bearing Shells (one complete set, upper and lower)
• Fuel Pump Element (for Common Rail, if applicable, or high-pressure pump components)
• Critical Sensors (e.g., speed sensor, pressure/temperature sensors for fuel/lube oil/cooling water)

Safety

• **High-Pressure Fuel Leaks**: Common Rail systems operate at extremely high pressures (up to 1800 bar). A pinhole leak can create a fine, penetrating spray that can cause severe injury or ignite instantly.
• **Hot Surfaces & Exhaust Gases**: Engine components (turbocharger, exhaust manifold, exhaust piping) reach very high temperatures, posing severe burn risks. Exhaust gases contain toxic components (NOx, SOx, CO).
• **Rotating Machinery**: The flywheel, crankshaft, turbocharger, and other rotating parts present entanglement, crushing, and impact hazards, especially during engine operation or turning.
• **Crankcase Explosions**: Accumulation of oil mist in the crankcase, combined with hot spots, can lead to a violent crankcase explosion. Functional crankcase relief valves and oil mist detectors are crucial.
• **Electrical Hazards**: Complex control systems and high-voltage components pose electrical shock risks during inspection or maintenance, especially if proper lockout/tagout procedures are not followed.

Class survey

Class surveyors typically check for: - **Documentation Review**: Verification of engine logbook, planned maintenance system (PMS) records, previous survey reports, and valid class certificates. - **Safety Device Testing**: Witnessing tests of overspeed trip, low lube oil pressure shutdown, high cooling water temperature shutdown, and emergency stop functionality. - **Crankcase Safety**: Inspection of crankcase relief valves, oil mist detector (OMD) functionality, and alarm settings. - **Fuel System Integrity**: Visual inspection of high-pressure fuel lines, leak-off arrangements, and fuel oil supply/return systems for leaks, chafing, or damage. - **Exhaust System & Turbocharger**: Inspection of exhaust gas piping, insulation, expansion bellows, and general condition of the turbocharger. - **Steering Gear Prime Mover (if applicable)**: If the main engine drives a hydraulic pump for steering, its condition and associated systems are checked. - **General Condition & Cleanliness**: Overall assessment of the engine's physical state, absence of excessive leaks, and cleanliness of the engine room. - **Operational Test**: Observing the engine running at various loads, checking for abnormal noises, vibrations, and monitoring key parameters.
