Library› Engine Room› Industrial Valves› Check Valve› Swagelok Clapet anti-retour à levée verticale en acier inoxydable, Cv de 2,20, filetage NPT femelle 1/2 po
Swagelok

Clapet anti-retour à levée verticale en acier inoxydable, Cv de 2,20, filetage NPT femelle 1/2 po

Check Valve · Industrial Valves

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Rated pressure at -53 to 37°C413 (6000) bar (psig)🔖
Flow coefficient Cv2,20 Cv🔖
Dimension du raccordement 11/2 po
Dimension du raccordement 21/2 po
Pression nominale à température ambiante4600 PSIG À 100°F / 316 BAR À 37°C
📄
Download datasheet (PDF) (313 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

“Clapets anti-retour à levé e ve r ticale Sé r ie 50 Les clapets anti-retour Swagelok à levée verticale limitent le retour de débit pour des pressions allant jusqu’à 413 bar (6000 psig) et des…”

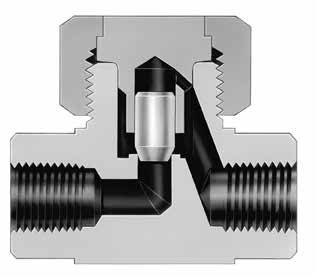

Swagelok Clapet anti-retour à levée verticale en acier inoxydable, Cv de 2,20, filetage NPT femelle 1/2 po – Photo (Swagelok datasheet S. 1)
Photo · Swagelok datasheet · S. 1

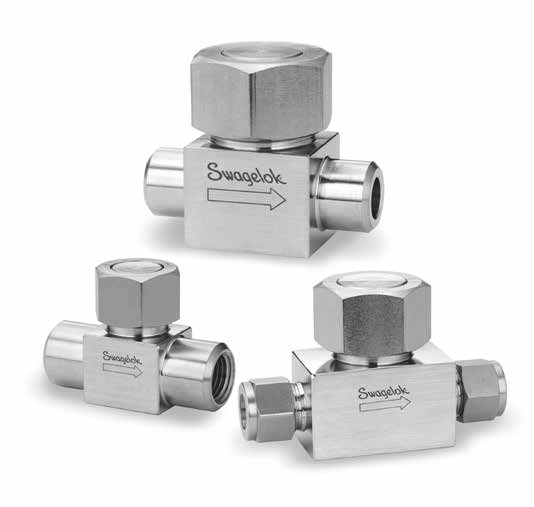

Swagelok Clapet anti-retour à levée verticale en acier inoxydable, Cv de 2,20, filetage NPT femelle 1/2 po – Photo (Swagelok datasheet S. 1)
Photo · Swagelok datasheet · S. 1
Swagelok Clapet anti-retour à levée verticale en acier inoxydable, Cv de 2,20, filetage NPT femelle 1/2 po – Drawing (Swagelok datasheet S. 2)
Drawing · Swagelok datasheet · S. 2

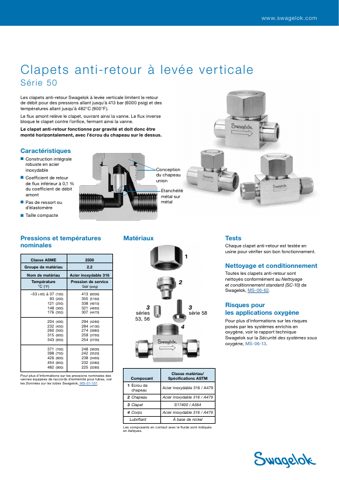

Swagelok Clapet anti-retour à levée verticale en acier inoxydable, Cv de 2,20, filetage NPT femelle 1/2 po – Page preview (Swagelok datasheet S. 1)
Page preview · Swagelok datasheet · S. 1
Source: Clapets anti-retour à levée verticale: Série 50 (MS-01-98;rev_K;fr-FR;, p. 1
