Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO MS G½ x G¾
AFRISO

MS G½ x G¾

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

Safety valve with factory-adjusted opening pressure. MSM with pressure gauge for indicating the system pressure. The size of the valve inlet determine

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Dimensions (W x H x D)48 x 60 x 35 mm
Operating temperature range-20/+120 °C
Opening pressure2.5 bar
CertificationsTÜV.SV.yy-2017.13.H
ConnectionG½ x G¾
Medium-20/+120 °C
HousingBrass
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A diaphragm safety valve designed to protect heating systems against overpressure, suitable for water and water/glycol mixtures.

Applications

  • sealed heating systems
  • water heating systems

Features

  • for protection against overpressure in heating systems
  • for water, water/glycol mixtures
  • MSM with pressure gauge for indicating system pressure

Standards

  • TRD 721
  • VdTÜV sheet Safety Valve 100 and 100/4 sheet 1
  • EN 12828
  • DIN 4751-2
  • DIN 4751-3

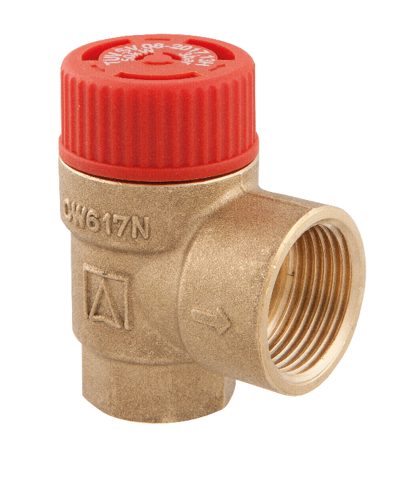

AFRISO MS G½ x G¾ – Photo (035df92d5315_S1-1 S. 1)
Photo · 035df92d5315_S1-1 · S. 1
AFRISO MS G½ x G¾ – Drawing (035df92d5315_S1-1 S. 1)
Drawing · 035df92d5315_S1-1 · S. 1
Source: AFRISO MS G½ x G¾ datasheet, p. 1
