Library› Electrical› Instrumentation & Gauges› Pressure Gauge› AFRISO MS Rp1 x Rp1¼
AFRISO

MS Rp1 x Rp1¼

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

Safety valve with factory-adjusted opening pressure. MSM with pressure gauge for indicating the system pressure. The size of the valve inlet determine

Specifications

Technical data.reference — unverified

Operating temperature rangeMedium: -20/+120 °C
CertificationsTÜV.SV.yy-2017.13.H
Maximum heating capacity200 kW
Opening pressure3 bar
ConnectionRp1 x Rp1¼
Medium-20/+120 °C
HousingBrass
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A diaphragm safety valve designed to protect heating systems against overpressure. It is suitable for water and water/glycol mixtures.

Applications

  • sealed heating systems
  • water heating systems

Features

  • for protection against overpressure in heating systems
  • for water, water/glycol mixtures
  • MSM with pressure gauge for indicating system pressure

Standards

  • TRD 721
  • VdTÜV sheet Safety Valve 100 and 100/4 sheet 1
  • EN 12828
  • DIN 4751-2
  • DIN 4751-3

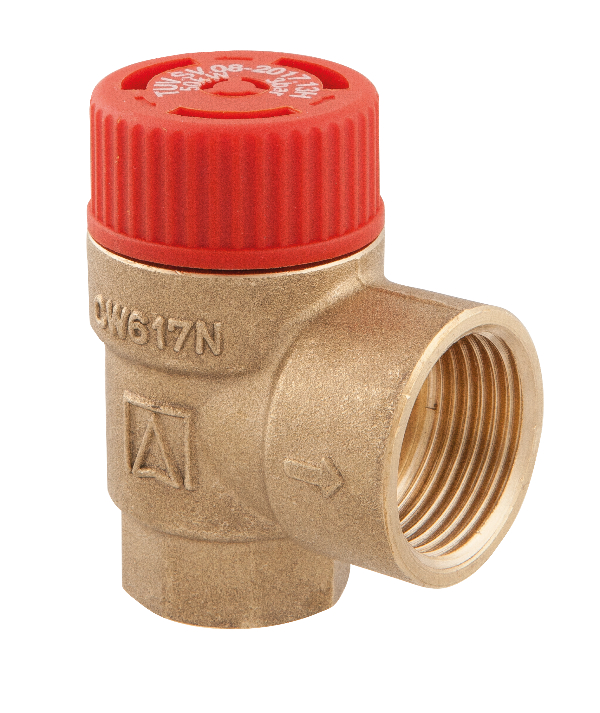

AFRISO MS Rp1 x Rp1¼ – Photo (02d3fc1a9fa6_S1-2 S. 1)
Photo · 02d3fc1a9fa6_S1-2 · S. 1

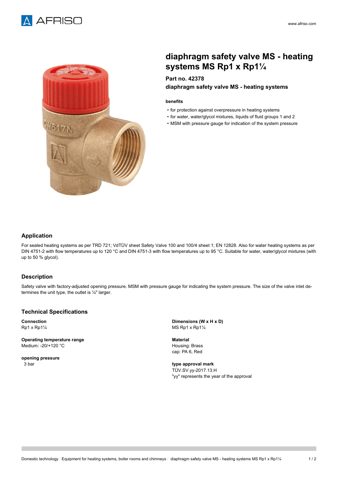

AFRISO MS Rp1 x Rp1¼ – Drawing (02d3fc1a9fa6_S1-2 S. 1)
Drawing · 02d3fc1a9fa6_S1-2 · S. 1

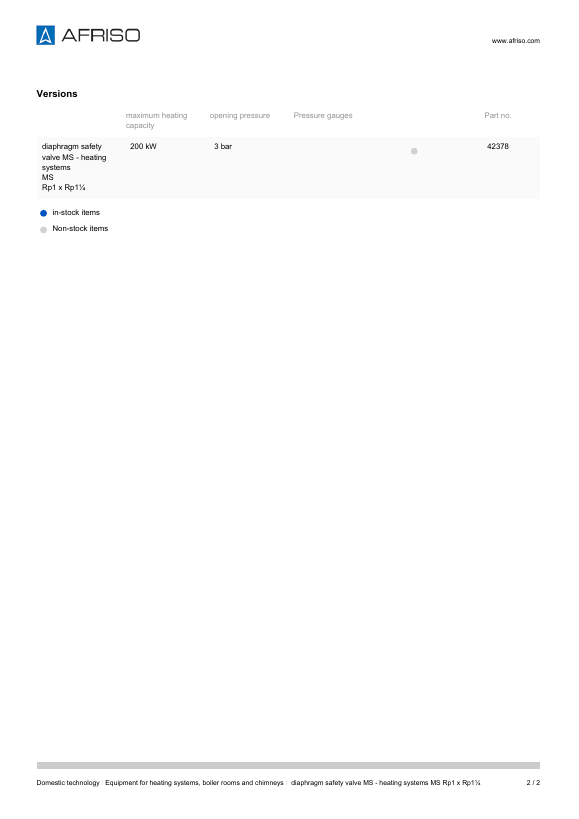

AFRISO MS Rp1 x Rp1¼ – Page preview (02d3fc1a9fa6_S1-2 S. 2)
Page preview · 02d3fc1a9fa6_S1-2 · S. 2
Source: AFRISO MS Rp1 x Rp1¼ datasheet, p. 1
