Library› Cargo› Cargo Level & Temperature Gauging› Pressure/DP Transmitter› Keller Druckmesstechnik DCX-22AA
Keller Druckmesstechnik

DCX-22AA

Pressure/DP Transmitter · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Total length180 mm
Standard cable length5 m / 10 m
Level sensor diameter21 mm
Electronics housing dimensions24 x 25 mm
Width across corners of electronics housing34,8 mm
SupplyLithium-Battery 3,6 V
Battery Life10 years @ 1 measurement/hour
Shortest Measuring Cycle1x per second
OutputRS 485 digital
Memory16’000 or 28’000 measuring values
Linearitytyp. 0,05 %FS
Error Band (0…30 °C)typ. 1 mbar (max. 2 mbar)
Resolutionmax. 0,0025 %FS
Long Term Stabilitytyp. 0,5 mbar
Overload2 x nominal range
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The DCX-22 AA is a waterproof data collector for measuring water levels, using differential pressure measurement with absolute sensors.

Applications

  • water level monitoring

Features

  • 100% waterproof
  • air pressure compensated
  • autonomous operation
  • high data security
  • high measuring accuracy
  • robust design

Options

  • recording barometric pressure
  • recording water and ambient temperature
  • wireless data transfer via modem

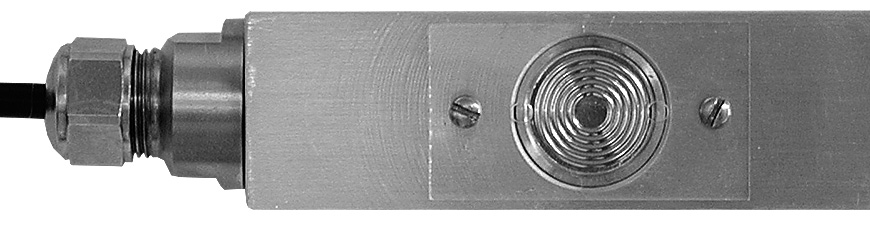

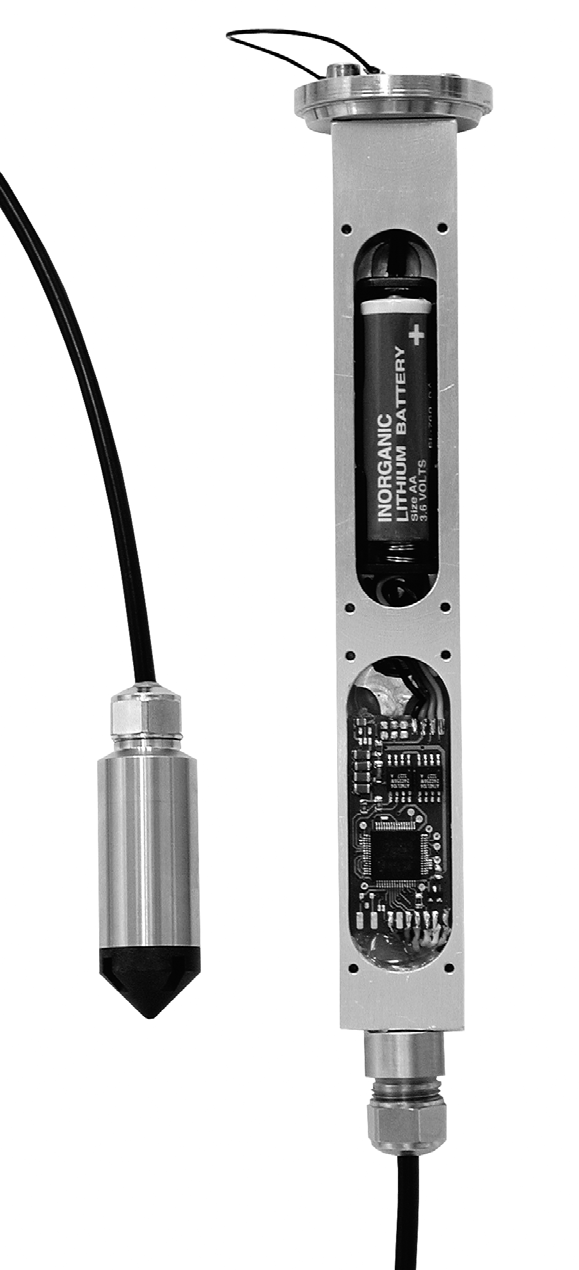

Keller Druckmesstechnik DCX-22AA – Photo (84f97b74e396_S1-1 S. 1)
Photo · 84f97b74e396_S1-1 · S. 1
Keller Druckmesstechnik DCX-22AA – Photo (84f97b74e396_S1-1 S. 1)
Photo · 84f97b74e396_S1-1 · S. 1

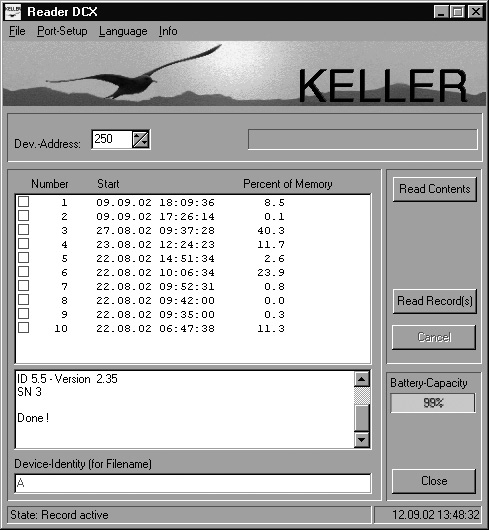

Keller Druckmesstechnik DCX-22AA – Photo (726b0205dc49_S1-2 S. 2)
Photo · 726b0205dc49_S1-2 · S. 2

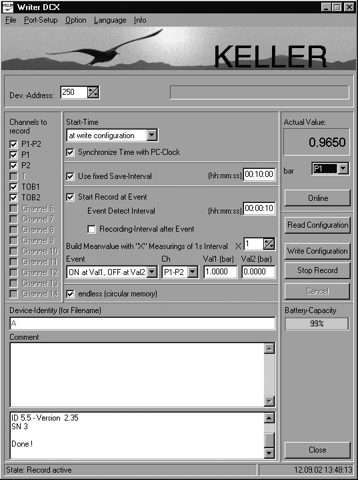

Keller Druckmesstechnik DCX-22AA – Photo (726b0205dc49_S1-2 S. 2)
Photo · 726b0205dc49_S1-2 · S. 2

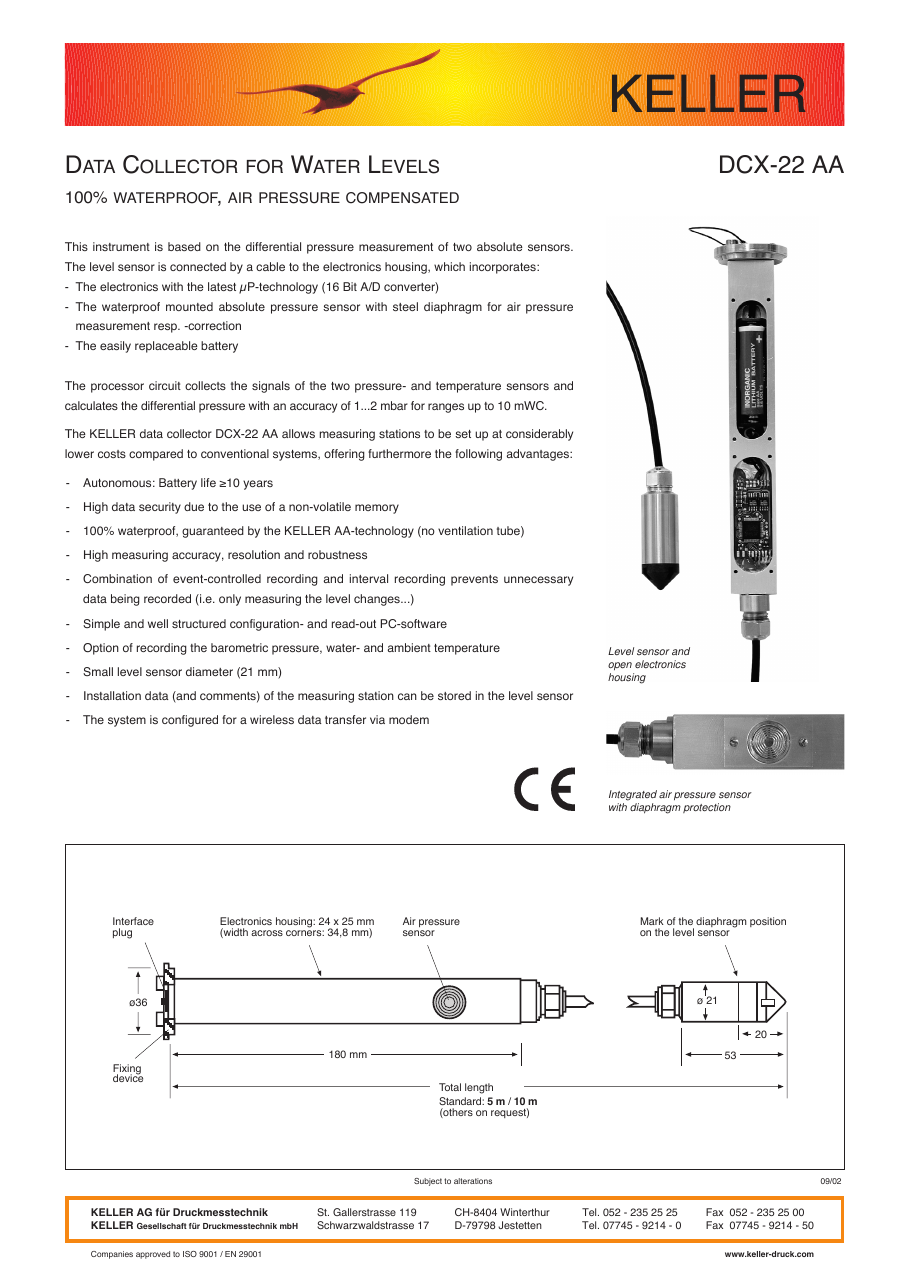

Keller Druckmesstechnik DCX-22AA – Drawing (84f97b74e396_S1-1 S. 1)
Drawing · 84f97b74e396_S1-1 · S. 1

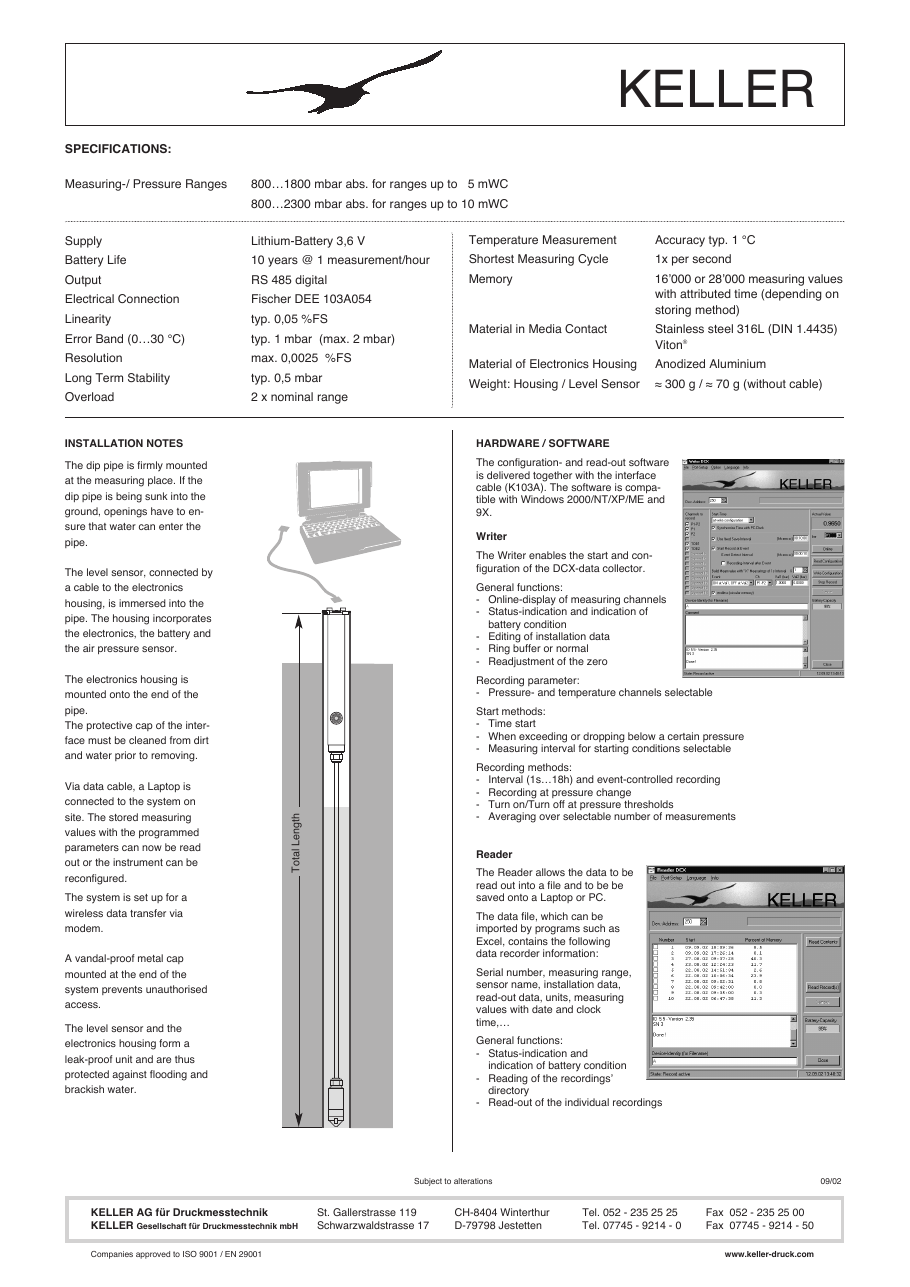

Keller Druckmesstechnik DCX-22AA – Drawing (726b0205dc49_S1-2 S. 2)
Drawing · 726b0205dc49_S1-2 · S. 2
Source: Keller Druckmesstechnik DCX-22AA datasheet, p. 1
