Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra

Pipe Fitting & Flange · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

CertificationsAPI 624🔖
Max. working pressure413 bar🔖
Material del CuerpoAcero inoxidable 316
Máxima Temperatura, °F (°C)250 (121)
Mínima Temperatura, °F (°C)-20 (-28)
📄
Download datasheet (PDF) (767 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

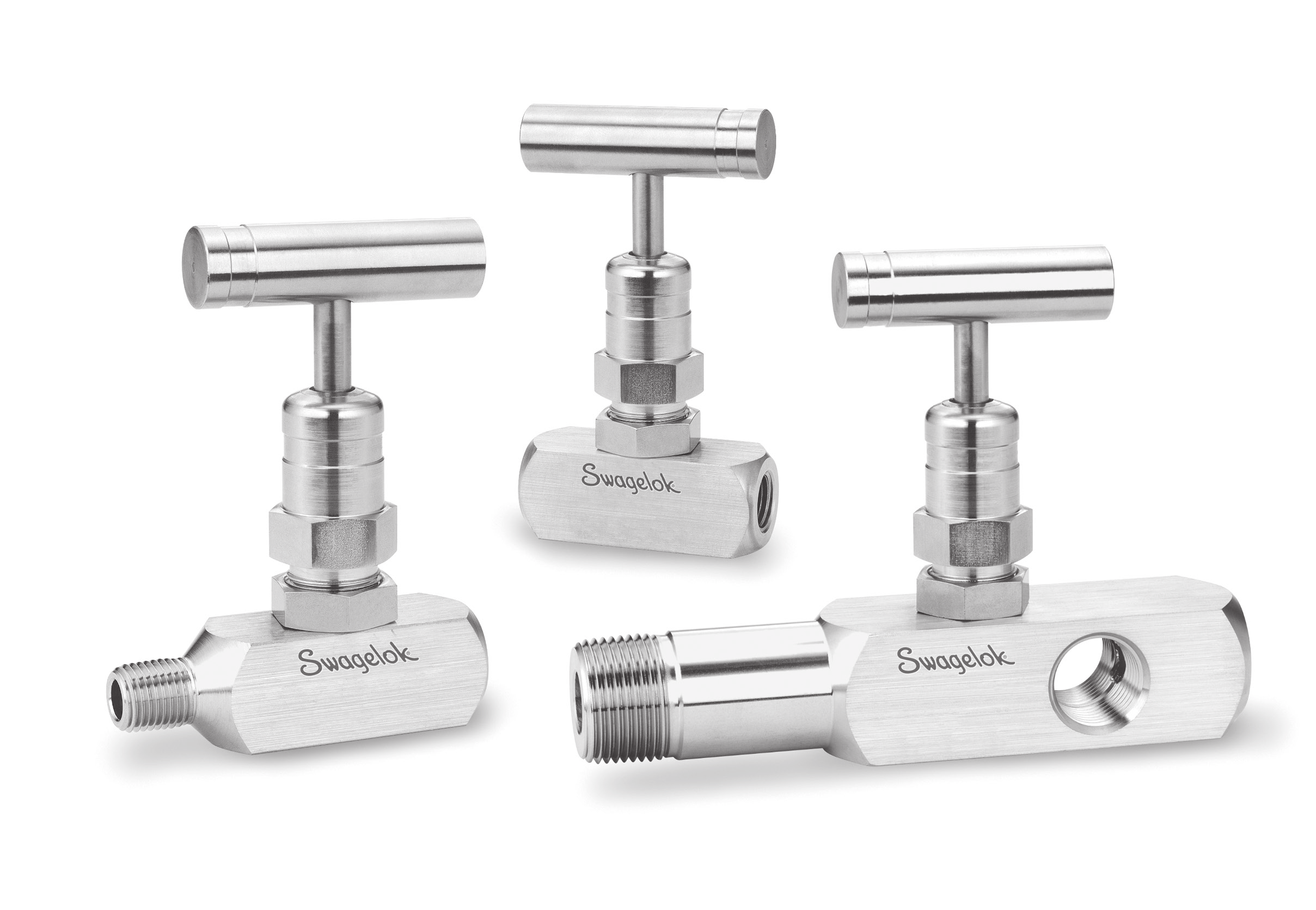

“Se r ie s 4P y 5P ■ Orificio pasante, baquetable para un máximo caudal ■ Presiones de trabajo de hasta 413 bar (6000 psig) ■ Empaquetadura por debajo de la rosca ■ Diseño reemplazable de asiento y…”

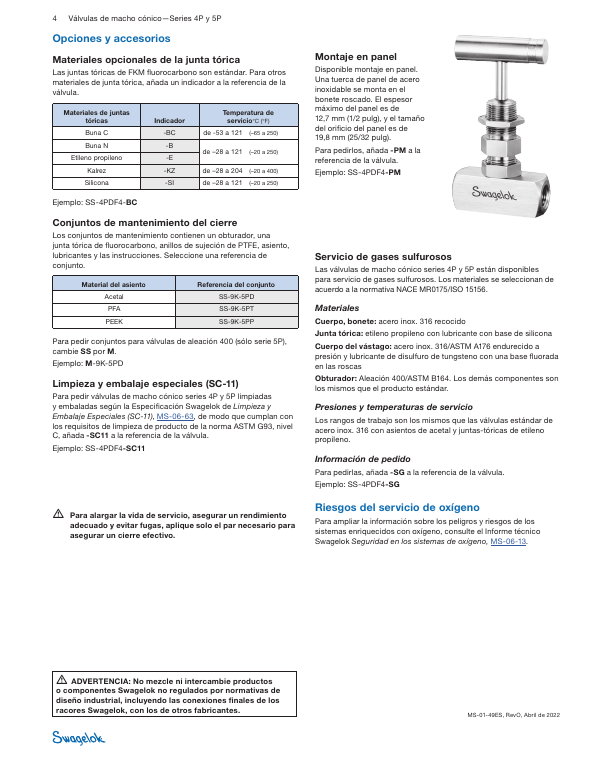

Swagelok Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra – Photo (Swagelok datasheet S. 1)
Photo · Swagelok datasheet · S. 1
Swagelok Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra – Photo (Swagelok datasheet S. 1)
Photo · Swagelok datasheet · S. 1

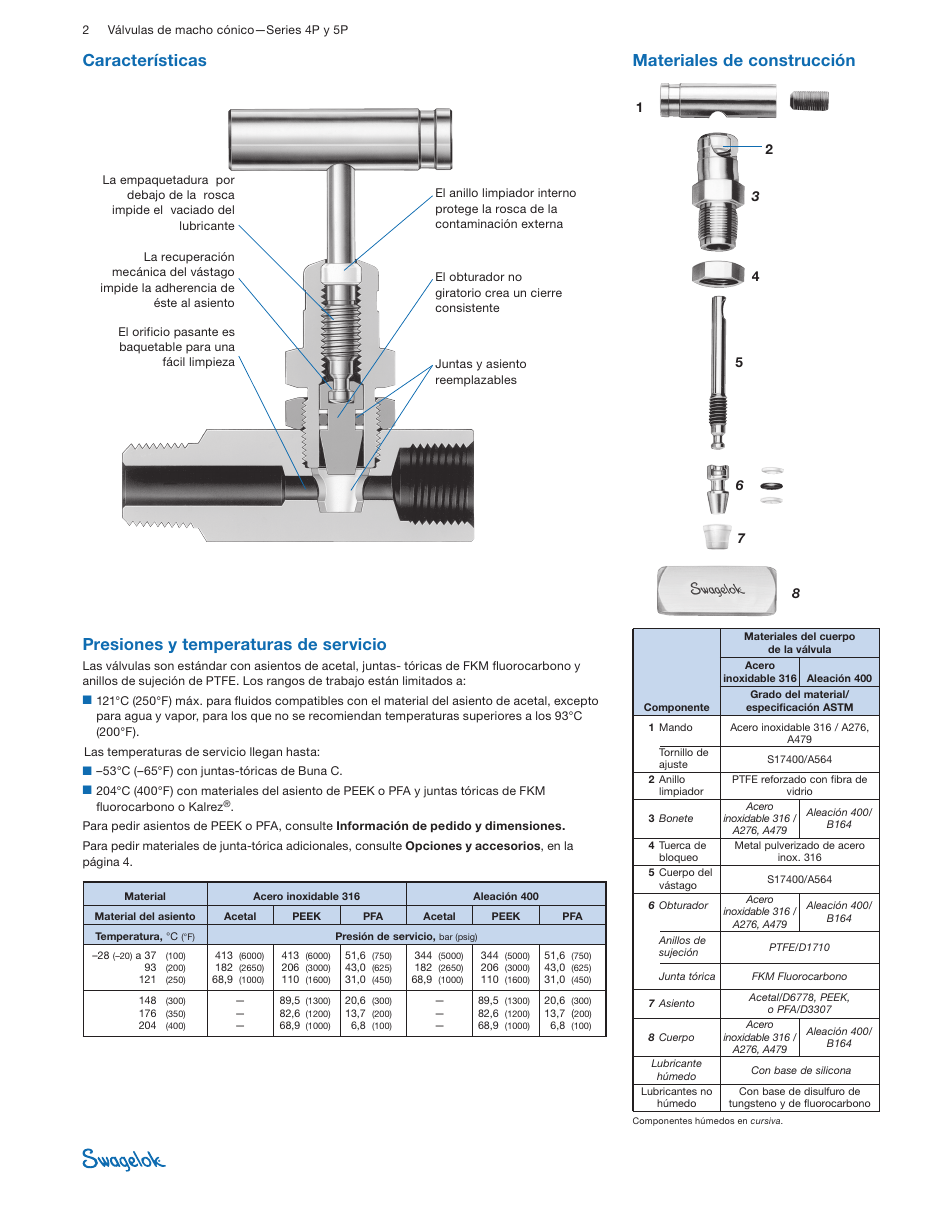

Swagelok Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra – Drawing (Swagelok datasheet S. 1)
Drawing · Swagelok datasheet · S. 1

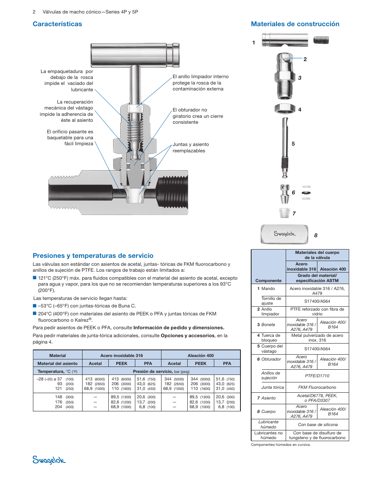

Swagelok Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra – Drawing (Swagelok datasheet S. 2)
Drawing · Swagelok datasheet · S. 2

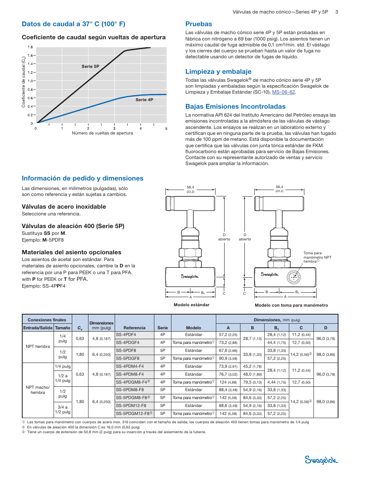

Swagelok Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra – Drawing (Swagelok datasheet S. 3)
Drawing · Swagelok datasheet · S. 3

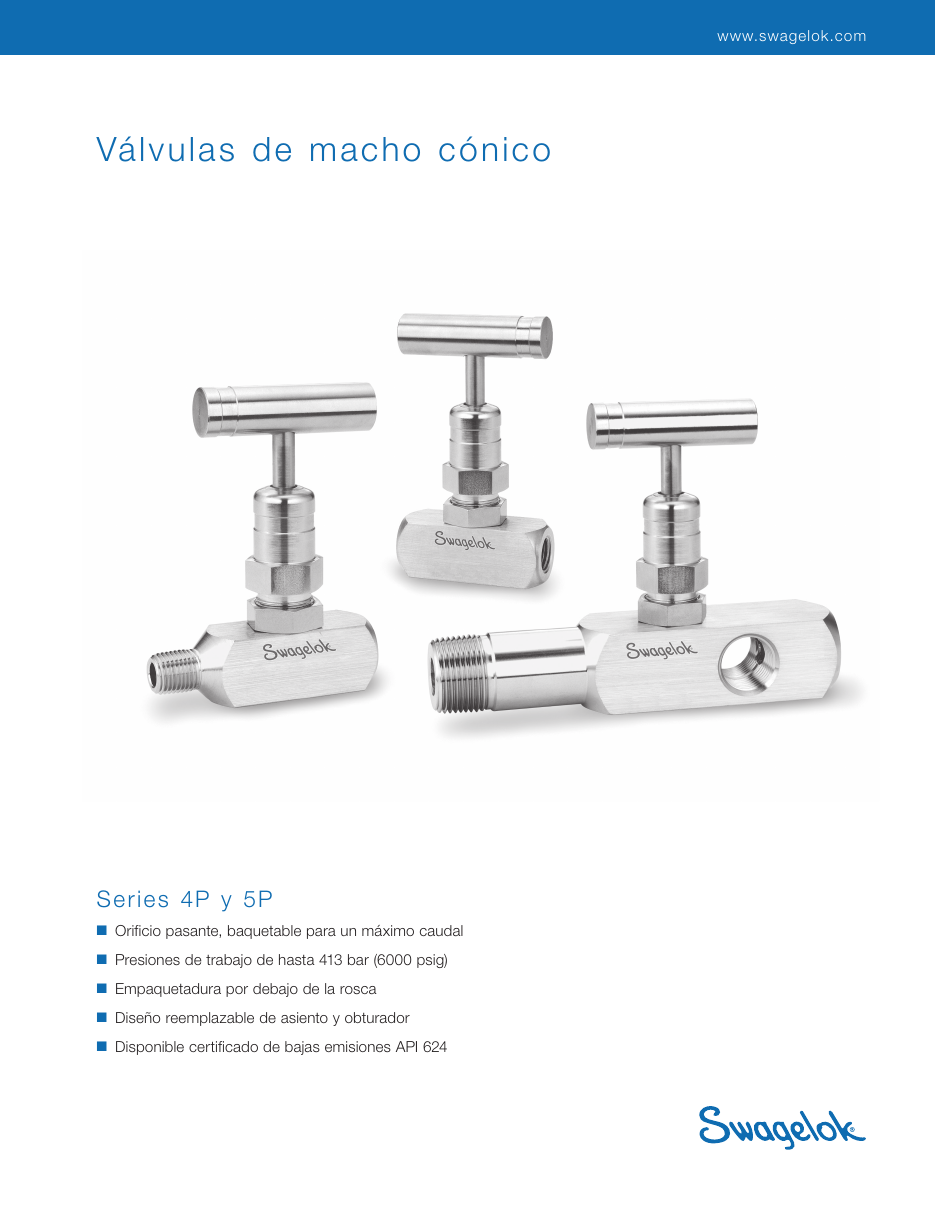

Swagelok Válvula de macho cónico con bonete roscado de acero inox., asiento de Acetal, 1/4 pulg. NPT hembra – Page preview (Swagelok datasheet S. 4)
Page preview · Swagelok datasheet · S. 4
Source: Válvulas de macho cónico: Series 4P y 5P (MS-01-49;rev_O;es-ES;Catálog, p. 1
