Library› Electrical› Lighting› LED Light Fitting› WISKA PL-Luminaire LED 6W 97430715624DC
WISKA

PL-Luminaire LED 6W 97430715624DC

LED Light Fitting · Lighting

Class-certified type (DNV register) · technical data sheet not yet verified

PL-Luminaire LED 6W 97430715624DC - LED Multi-purpose luminaire 6W 24V DC, Aluminium RAL 7035, Cover opal, IP67 - Lighting - WISKA

Specifications

Technical data.reference — unverified

Voltage24 V
Temp. range min-25 °C
Temp. range max45 °C
Luminous flux500 lm
Type of cable glandPG16 / 12-14mm
Ø cable diameter min12 mm
Ø cable diameter max14 mm
MaterialCast aluminium
Material globe/diffuserPolycarbonate
Voltage24 V
Type of VoltageDC
Temp. range min-25 °C
Temp. range max45 °C
Power supply, electronicLow voltage 24VDC
Ø cable diameter min12 mm
Ø cable diameter max14 mm
External dimensions LxWxH244x86x69mm
Weight0,74 kg
ApprovalSGS
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

LED Multi-purpose luminaire with 6W power, 24V DC voltage, aluminium housing, and opal cover. IP67 rated for dust and water resistance.

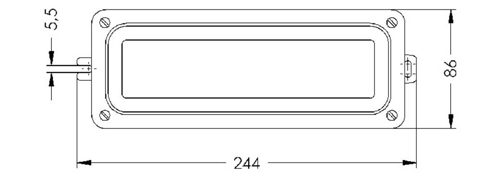

WISKA PL-Luminaire LED 6W 97430715624DC – Photo (ee23a4fc0f46_S1-1 S. 1)
Photo · ee23a4fc0f46_S1-1 · S. 1

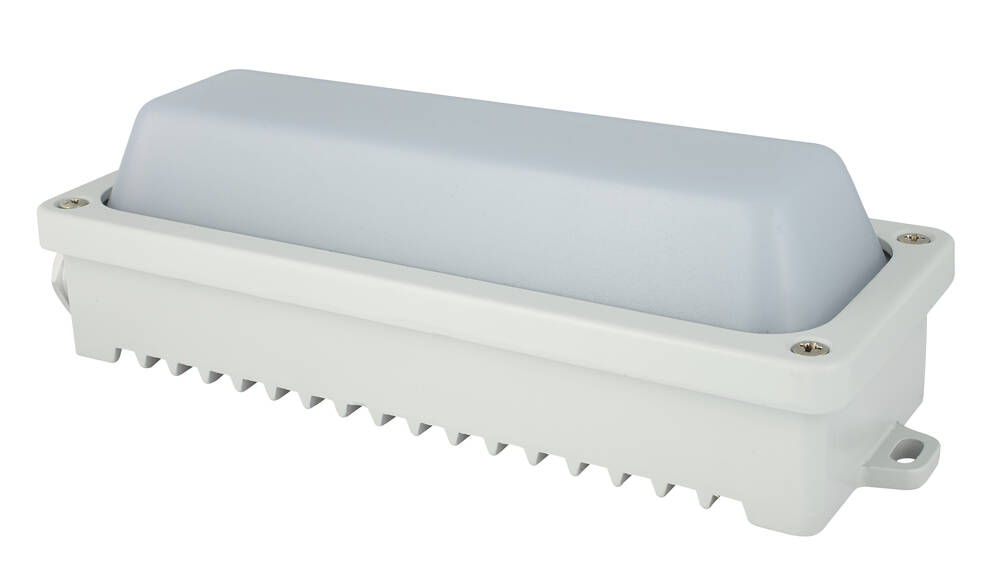

WISKA PL-Luminaire LED 6W 97430715624DC – Photo (ee23a4fc0f46_S1-1 S. 1)
Photo · ee23a4fc0f46_S1-1 · S. 1

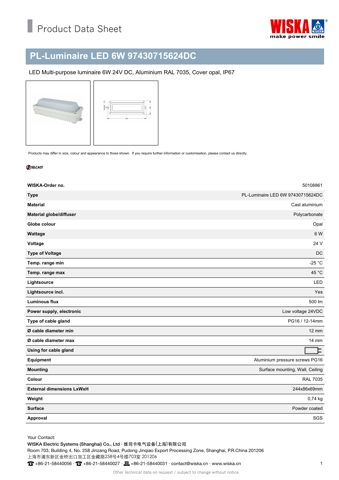

WISKA PL-Luminaire LED 6W 97430715624DC – Drawing (ee23a4fc0f46_S1-1 S. 1)
Drawing · ee23a4fc0f46_S1-1 · S. 1
Source: WISKA PL-Luminaire LED 6W 97430715624DC datasheet, p. 1
