Library› Electrical› Electrical Components & Switchgear› Cable Gland› WISKA 2074 coupling for telecommunication
WISKA

2074 coupling for telecommunication

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

2074 coupling for telecommunication - Coupling for telecommunication 10A 50V DC, brass, IP56 - Installation material shipbuilding - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage50 V
Current10 A
Protection classIP56
Temp. range min-25 °C
Temp. range max45 °C
Type of cable glandM24x1,5 W 10 / 8-10,5mm
Ø cable diameter max10,5 mm
Weight0,3 kg
Tariff number85366990
Ø cable diameter min8 mm
MaterialBrass
Voltage50 V
Type of VoltageDC
Current10 A
Temp. range min-25 °C
Temp. range max45 °C
Ø cable diameter min8 mm
Ø cable diameter max10,5 mm
Weight0,3 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A coupling for telecommunication, designed for 10A 50V DC, made of brass with IP56 protection.

Applications

  • telecommunication coupling

Features

  • brass material
  • 50V DC voltage
  • 10A current
  • IP56 protection
  • 4-pole terminals
  • M24x1,5 W 10 / 8-10,5mm cable gland
  • 8-10,5mm cable diameter
  • 0,3kg weight

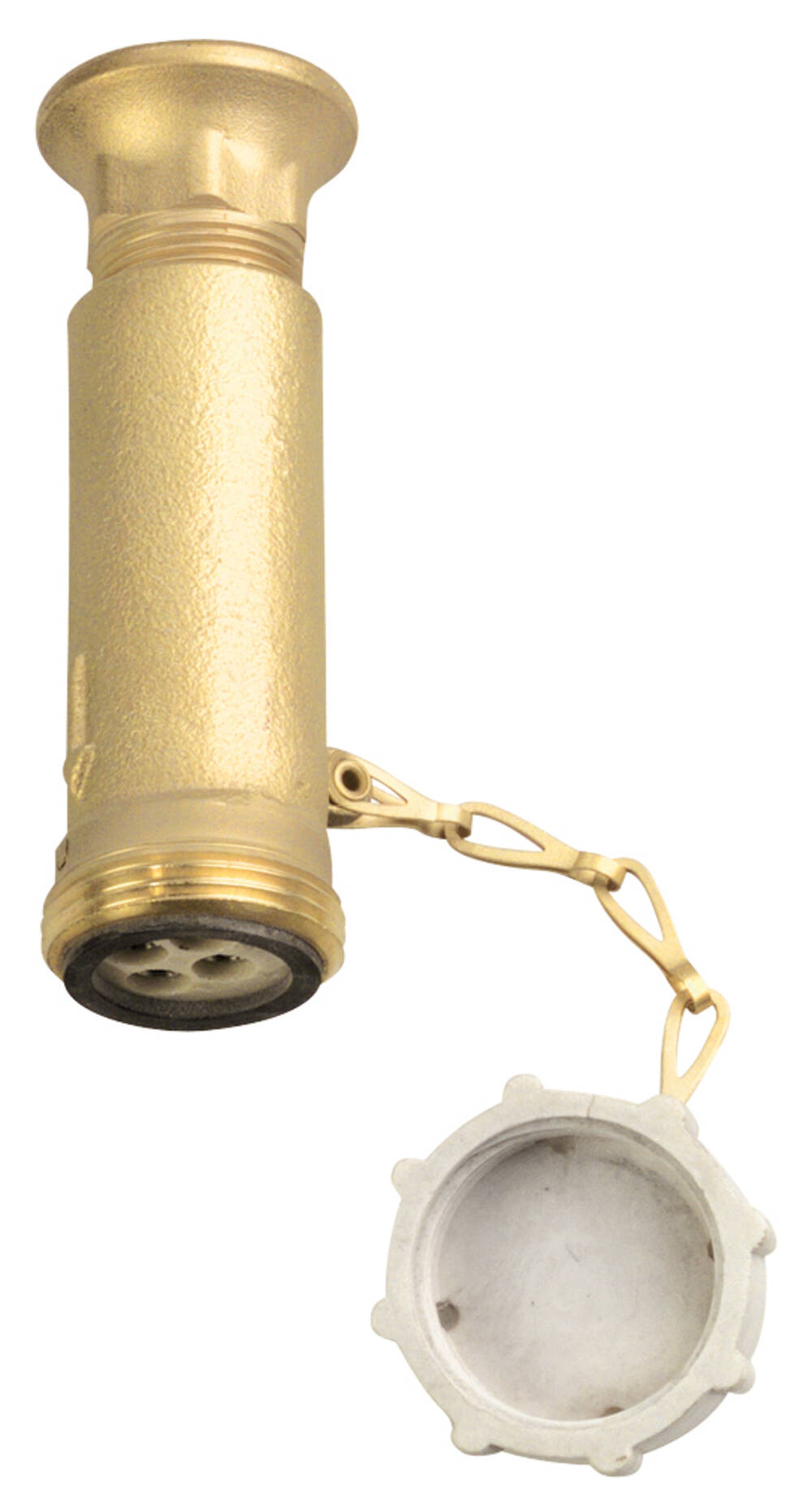

WISKA 2074 coupling for telecommunication – Photo (c437cd27285b_S1-1 S. 1)
Photo · c437cd27285b_S1-1 · S. 1

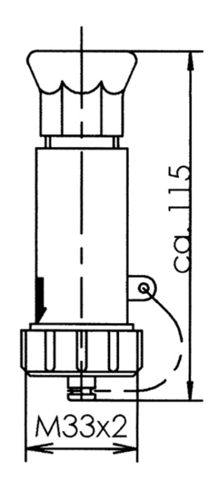

WISKA 2074 coupling for telecommunication – Photo (c437cd27285b_S1-1 S. 1)
Photo · c437cd27285b_S1-1 · S. 1
WISKA 2074 coupling for telecommunication – Photo (c437cd27285b_S1-1 S. 1)
Photo · c437cd27285b_S1-1 · S. 1

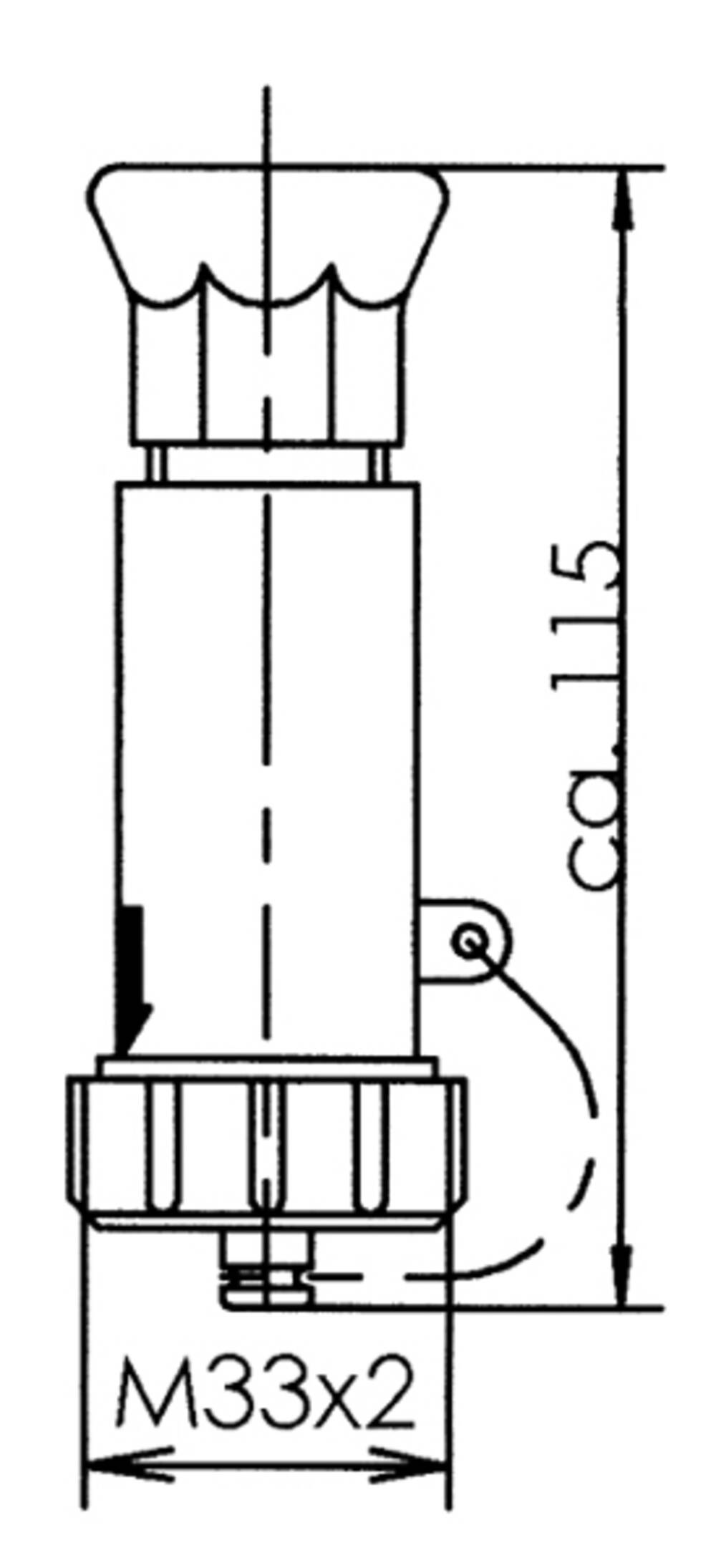

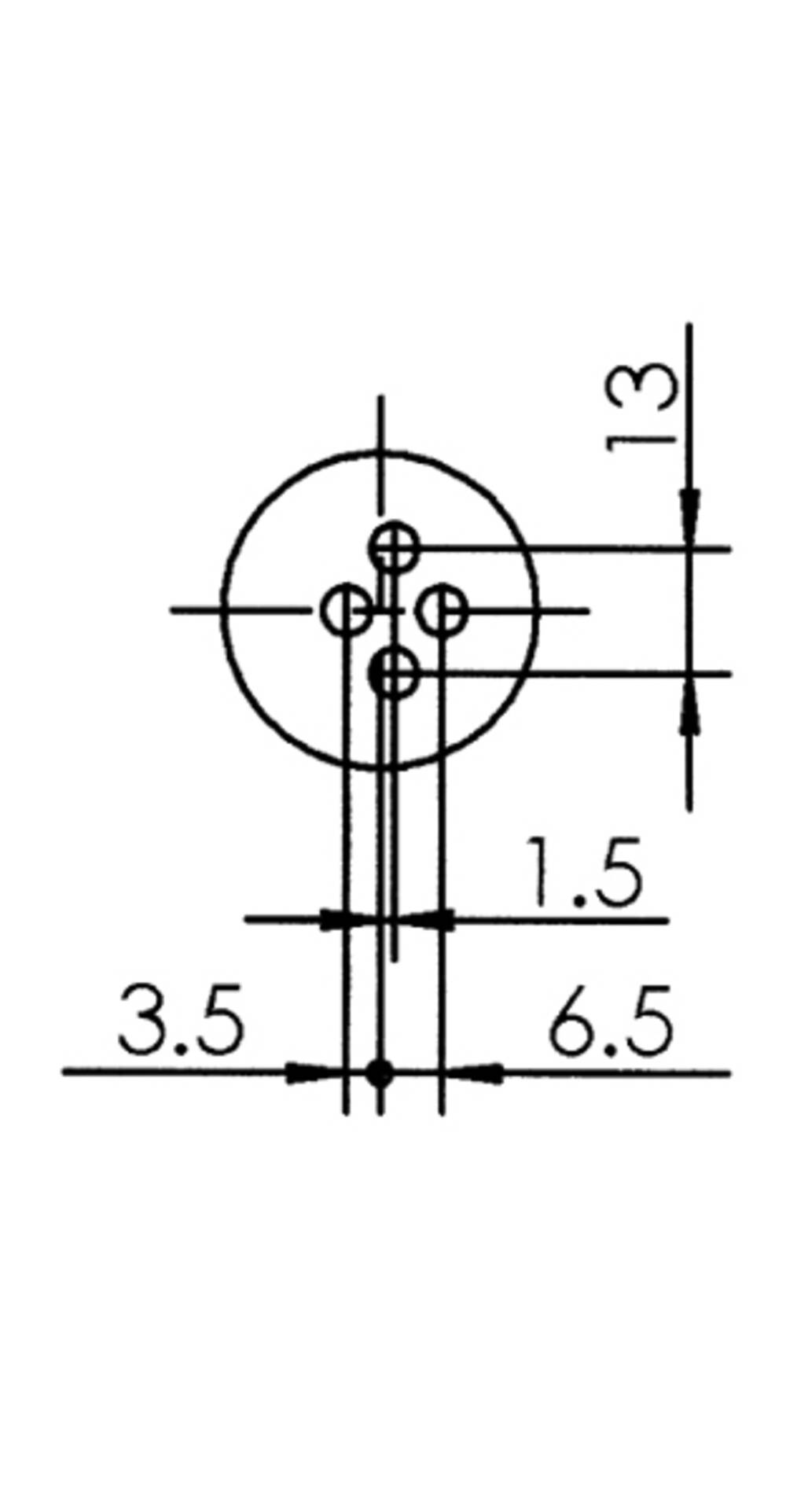

WISKA 2074 coupling for telecommunication – Drawing (c437cd27285b_S1-1 S. 1)
Drawing · c437cd27285b_S1-1 · S. 1

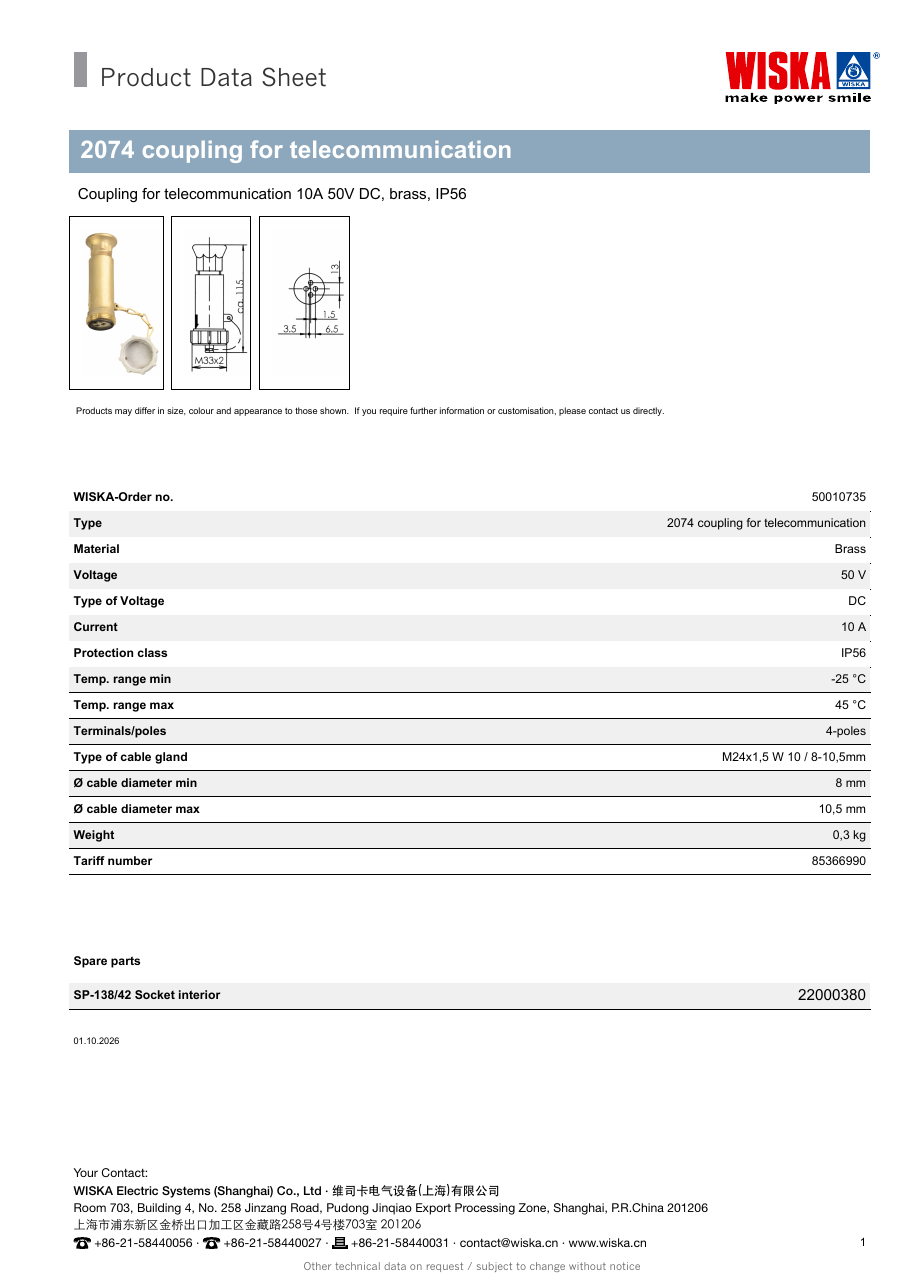

Source: WISKA 2074 coupling for telecommunication datasheet, p. 1
