WISKA

IBS 302015

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

IBS 302015 - IBS Industry boxes system 340x206x170mm, stainless steel - Installation material shipbuilding - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Protection classIP66 / IP67
Mounting hole space322x175mm
External dimensions LxWxH340x206x170 mm
Internal dimensions LxWxH280x180x117 mm
Temp. range max120 °C
Weight3,58 kg
MaterialStainless steel 1.4301 (V2A)
External dimensions LxWxH340x206x170 mm
Internal dimensions LxWxH280x180x117 mm
Temp. range min-40 °C
Temp. range max120 °C
Weight3,58 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The IBS 302015 is a stainless steel industry box with a compact design. It is designed for various indoor and outdoor applications, offering protection against dust and water ingress.

Applications

  • Indoor work space
  • Engine room
  • Outdoor

Features

  • Indestructible allround cover seal
  • Earthing bolts inside and outside

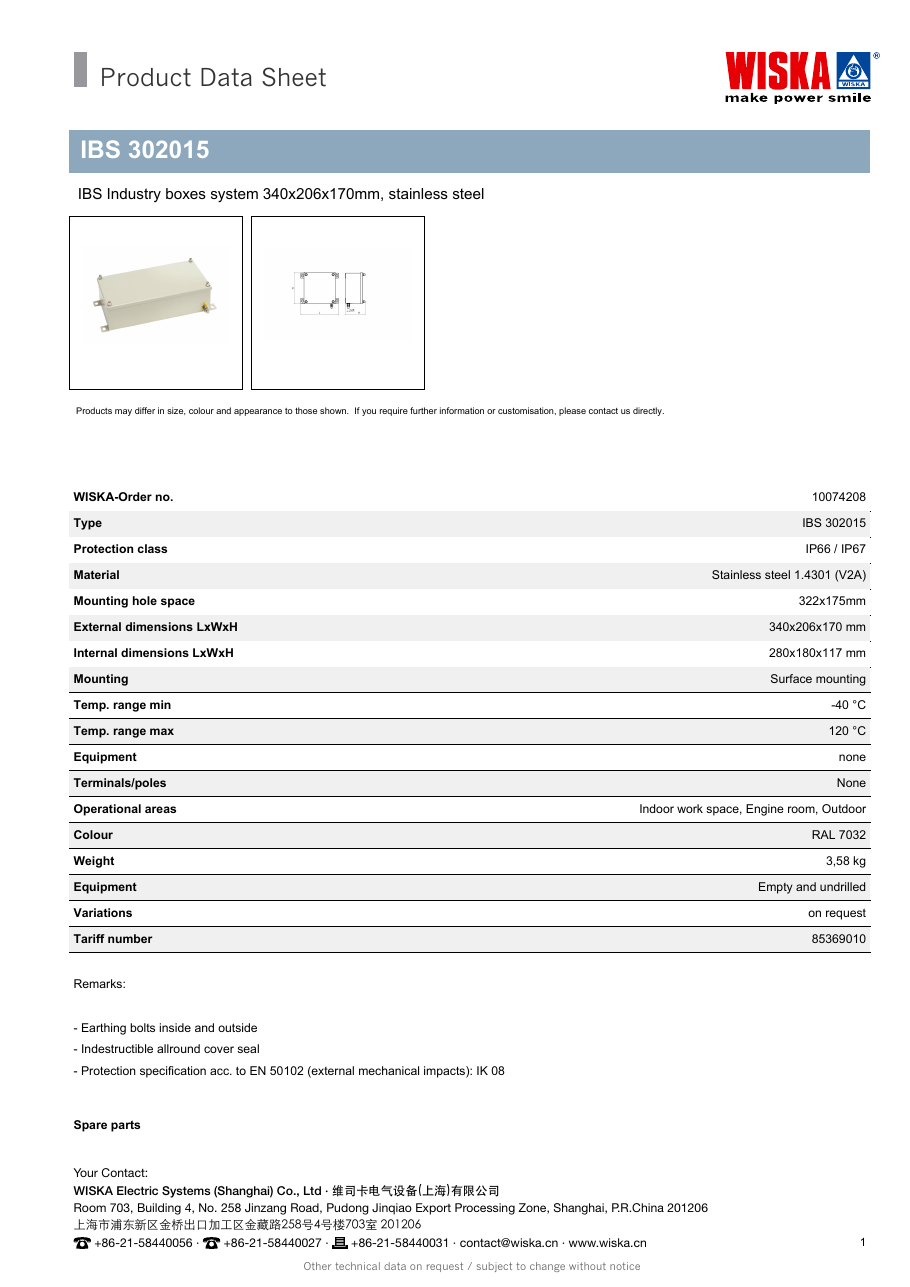

WISKA IBS 302015 – Drawing (ffa3327f4aef_S1-1 S. 1)
Drawing · ffa3327f4aef_S1-1 · S. 1
Source: WISKA IBS 302015 datasheet, p. 1
