Library› Electrical› Electrical Components & Switchgear› Cable Gland› WISKA IBS 402012
WISKA

IBS 402012

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

IBS 402012 - IBS Industry boxes system 440x206x140mm, stainless steel - Installation material shipbuilding - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Protection classIP66 / IP67
Mounting hole space422x175mm
External dimensions LxWxH440x206x100 mm
Internal dimensions LxWxH380x180x77 mm
Temp. range max120 °C
Weight4,07 kg
Temp. range min-40 °C
MaterialStainless steel 1.4301 (V2A)
External dimensions LxWxH440x206x100 mm
Internal dimensions LxWxH380x180x77 mm
Temp. range min-40 °C
Temp. range max120 °C
Weight4,07 kg
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Stainless steel industrial box with IP66/67 protection, suitable for indoor, engine room, and outdoor use.

Applications

  • Indoor work space
  • Engine room
  • Outdoor

Features

  • Stainless steel construction
  • IP66/67 protection
  • Surface mountable
  • -40°C to 120°C temperature range
  • No equipment or terminals
  • 4.07 kg weight
  • Empty and undrilled

Standards

  • EN 50102 (external mechanical impacts): IK 08

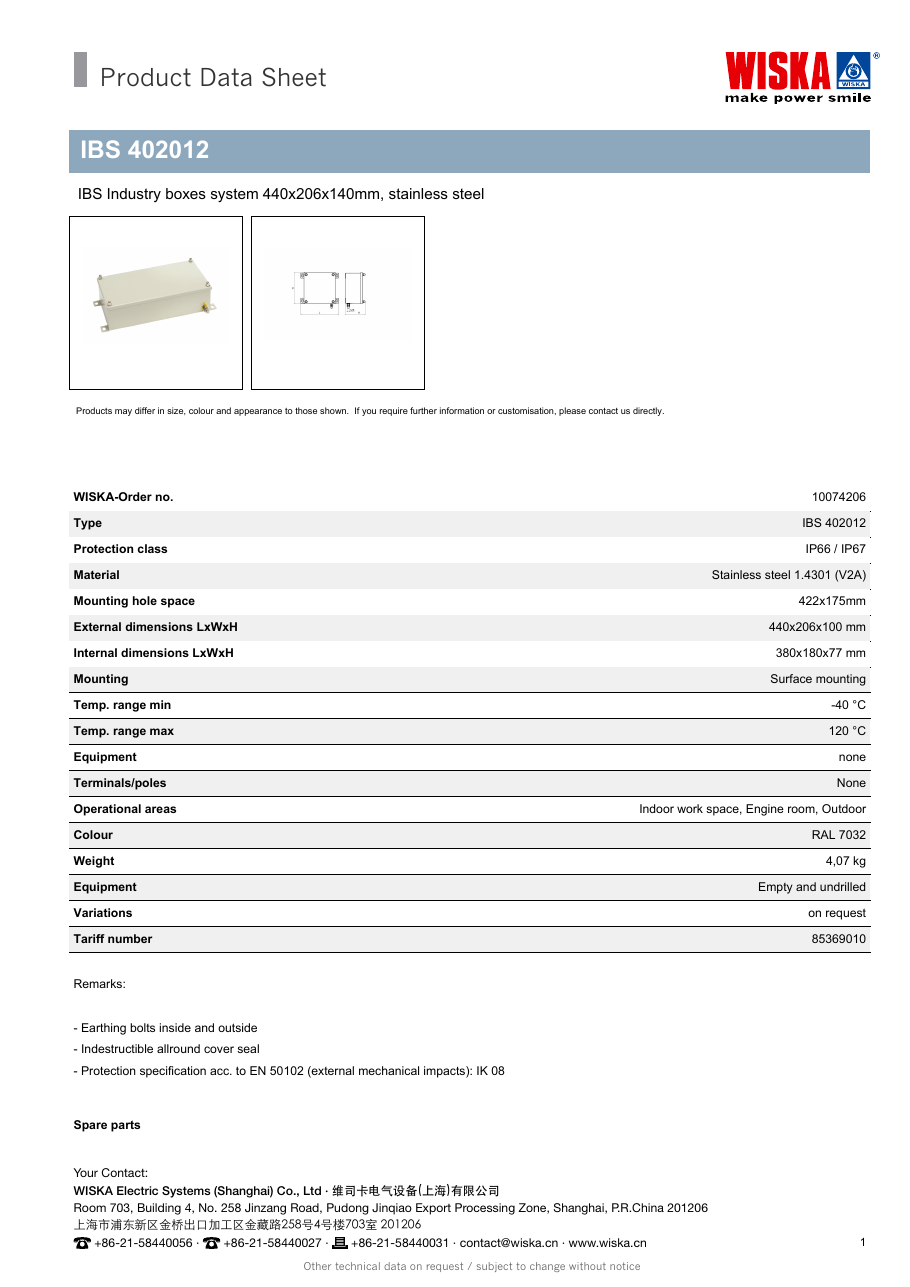

WISKA IBS 402012 – Drawing (670ab2c71759_S1-1 S. 1)
Drawing · 670ab2c71759_S1-1 · S. 1
Source: WISKA IBS 402012 datasheet, p. 1
