Library› Electrical› Electrical Components & Switchgear› Marine Installation Switch› WISKA COMBI 304 SWITCH RS/6-1 BK
WISKA

COMBI 304 SWITCH RS/6-1 BK

Marine Installation Switch · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified
Ø 87 x 78 mmDimensions

COMBI 304 SWITCH RS/6-1 BK - Rotary switch surface mounting, Change-over switch 1-pole plastic black, IP66/67 - Installation material industry and electrical trade - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Voltage max. (V)250 V
Current16 A
Protection classIP66 / IP67
Glow wire test750 °C
Type of cable glandM 20 x 1,5
Temp. range min-30 °C
Temp. range max55 °C
DimensionsØ 87 x 78 mm
Voltage max. (V)250 V
Current16 A
MaterialPolypropylene
Temp. range min-30 °C
Temp. range max55 °C
External dimensions LxWxHØ 87 x 78 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Rotary switch for surface mounting, 1-pole change-over switch.

Features

  • IP66/67 protection
  • Polypropylene material
  • Surface mounting
  • -30°C to 55°C temperature range
  • 16A current
  • 250V voltage
  • Change-over, 1-pole switch

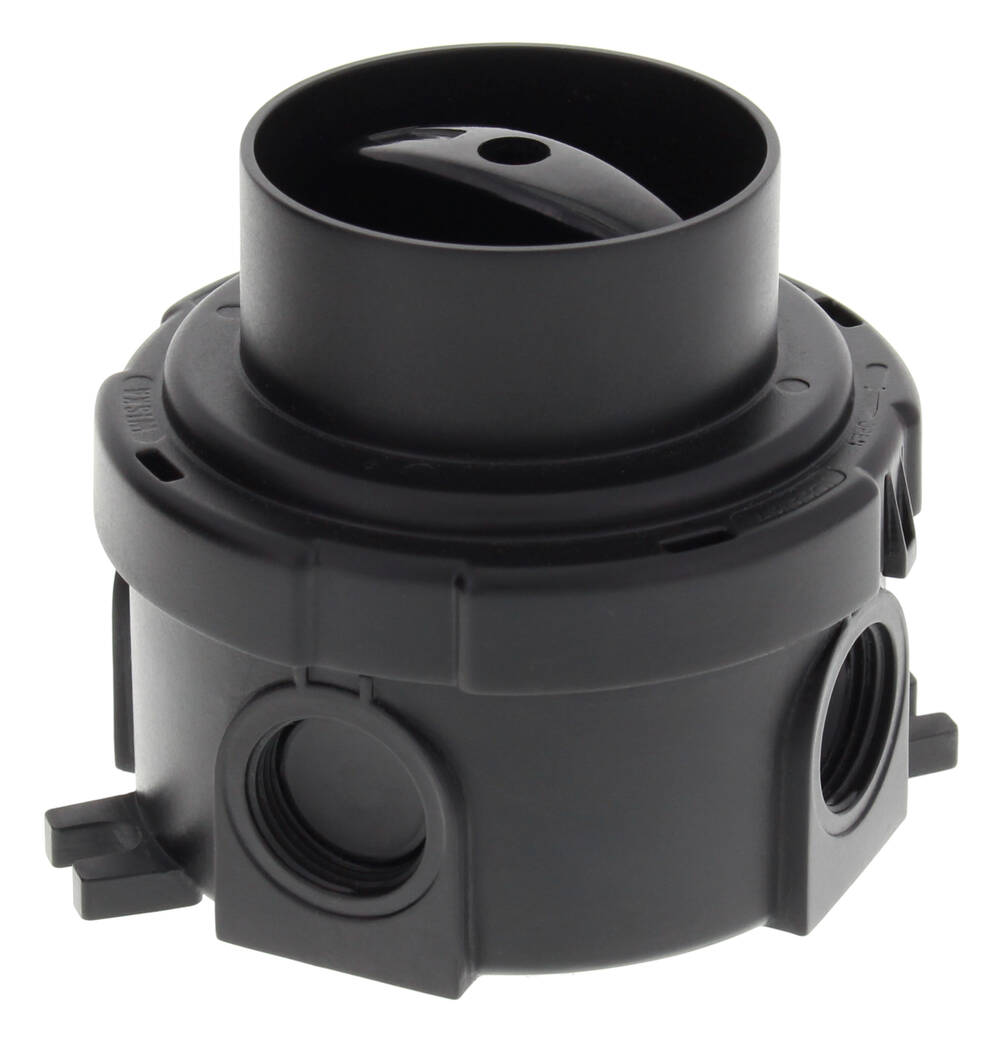

WISKA COMBI 304 SWITCH RS/6-1 BK – Photo (0a271697e3b4_S1-1 S. 1)
Photo · 0a271697e3b4_S1-1 · S. 1
WISKA COMBI 304 SWITCH RS/6-1 BK – Photo (0a271697e3b4_S1-1 S. 1)
Photo · 0a271697e3b4_S1-1 · S. 1

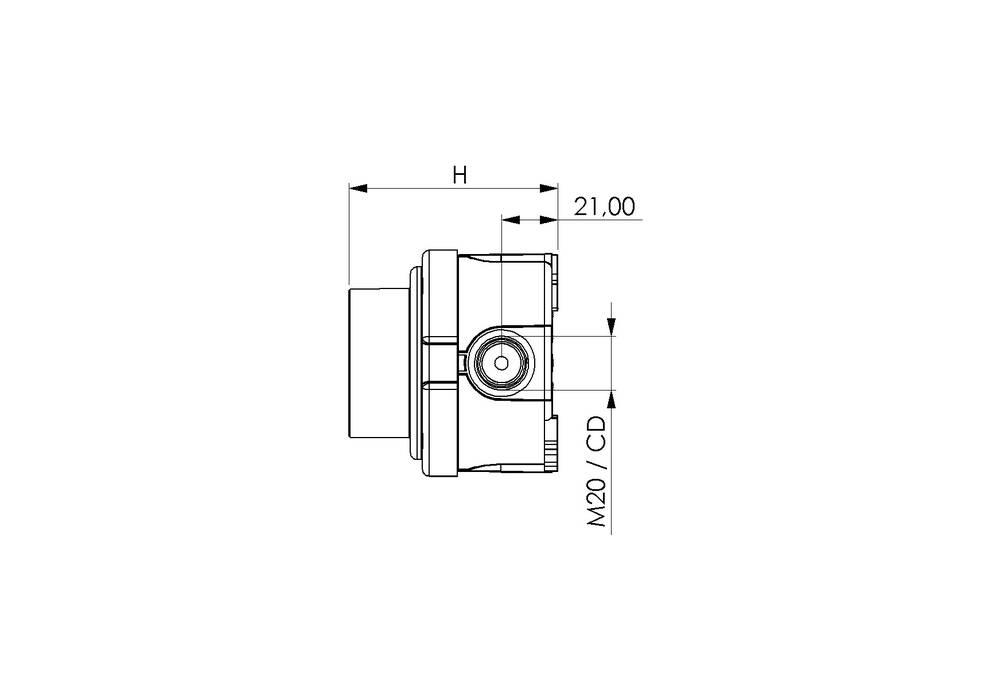

WISKA COMBI 304 SWITCH RS/6-1 BK – Drawing (0a271697e3b4_S1-1 S. 1)
Drawing · 0a271697e3b4_S1-1 · S. 1

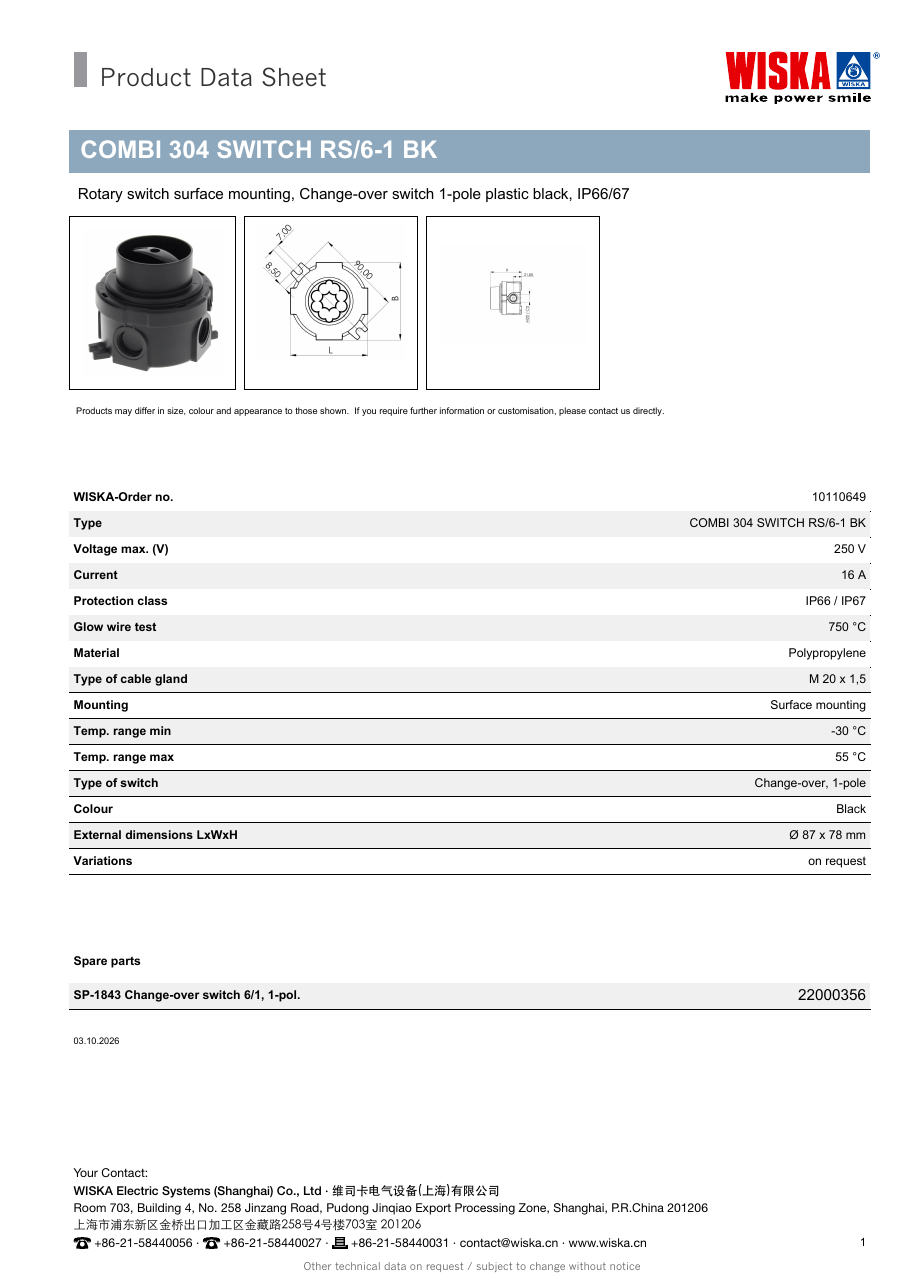

Source: 6-1 BK datasheet, p. 1
