Library› Engine Room› Pipe Connections & Fittings› Pipeline Strainer & Filter› Swagelok Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe
Swagelok

Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe

Pipeline Strainer & Filter · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified
Specifications

Technical data.from datasheet

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Internal volume19,7 cm3 (1,2 Zoll3)🔖
Max. working pressure68,9 (1000) bar (psig)🔖
Particle efficiency99,99 %🔖
KörperwerkstoffEdelstahl 316
Maximale Temperatur °F (°C)400 (204)
Minimum-Temperatur °F (°C)0 (-17)
O-ring-materialFluorkautschuk FPM
📄
Download datasheet (PDF) (242 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

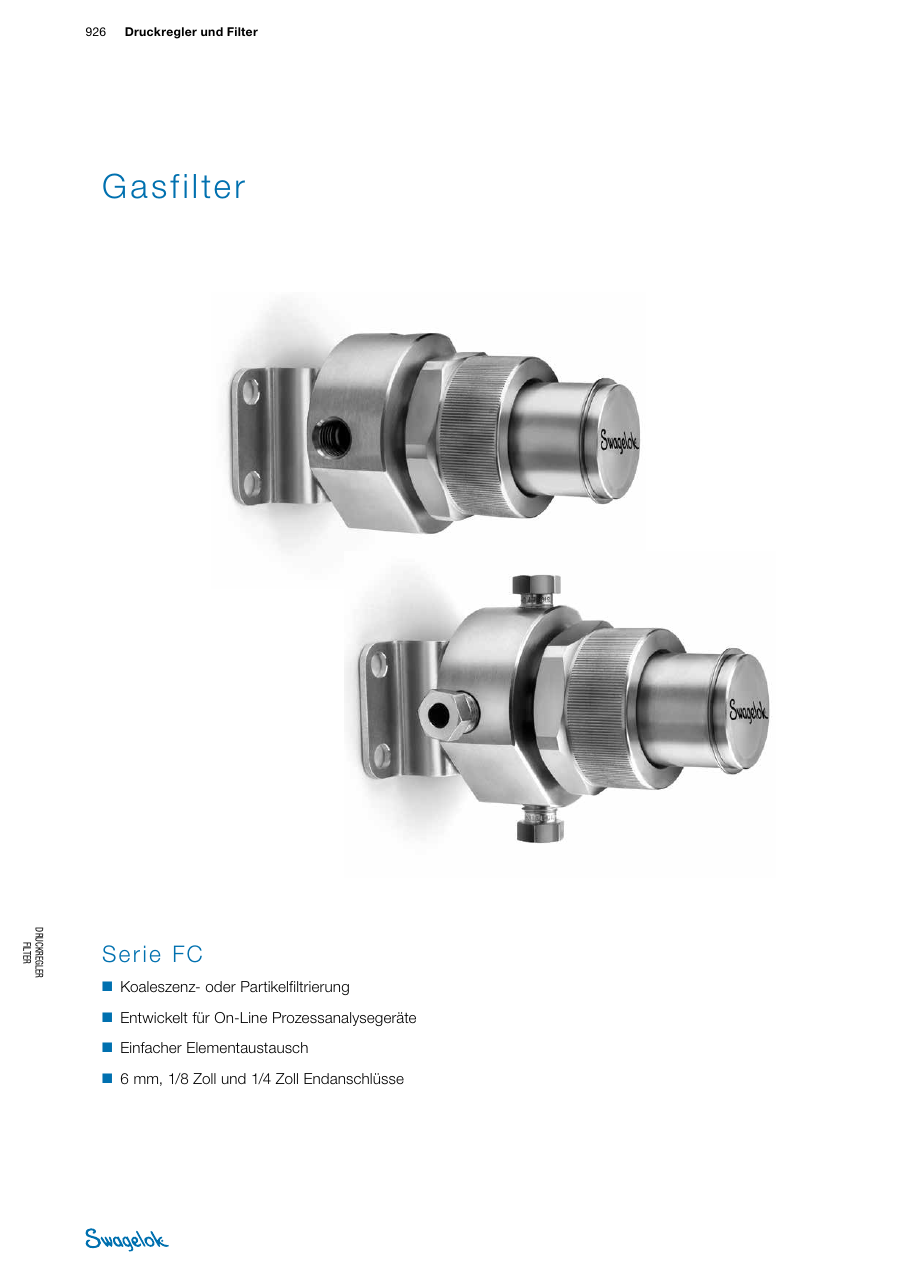

“Se r ie FC ■ Koaleszenz- oder Partikelfiltrierung ■ Entwickelt für On-Line Prozessanalysegeräte ■ Einfacher Elementaustausch ■ 6 mm, 1/8 Zoll und 1/4 Zoll Endanschlüsse”

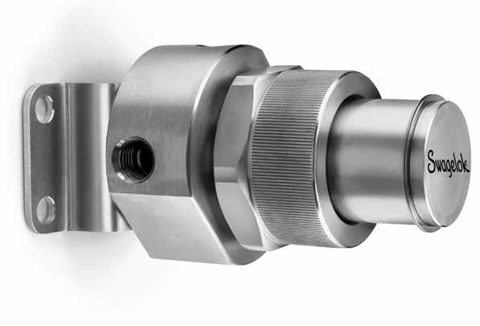

Swagelok Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe – Photo (Swagelok datasheet S. 1)
Photo · Swagelok datasheet · S. 1

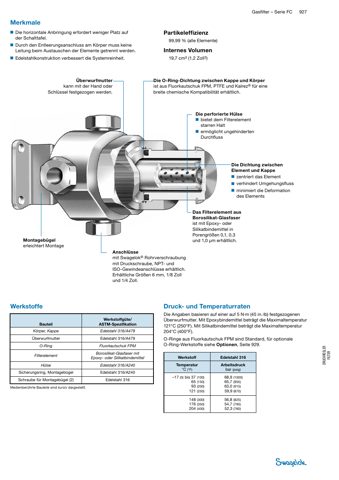

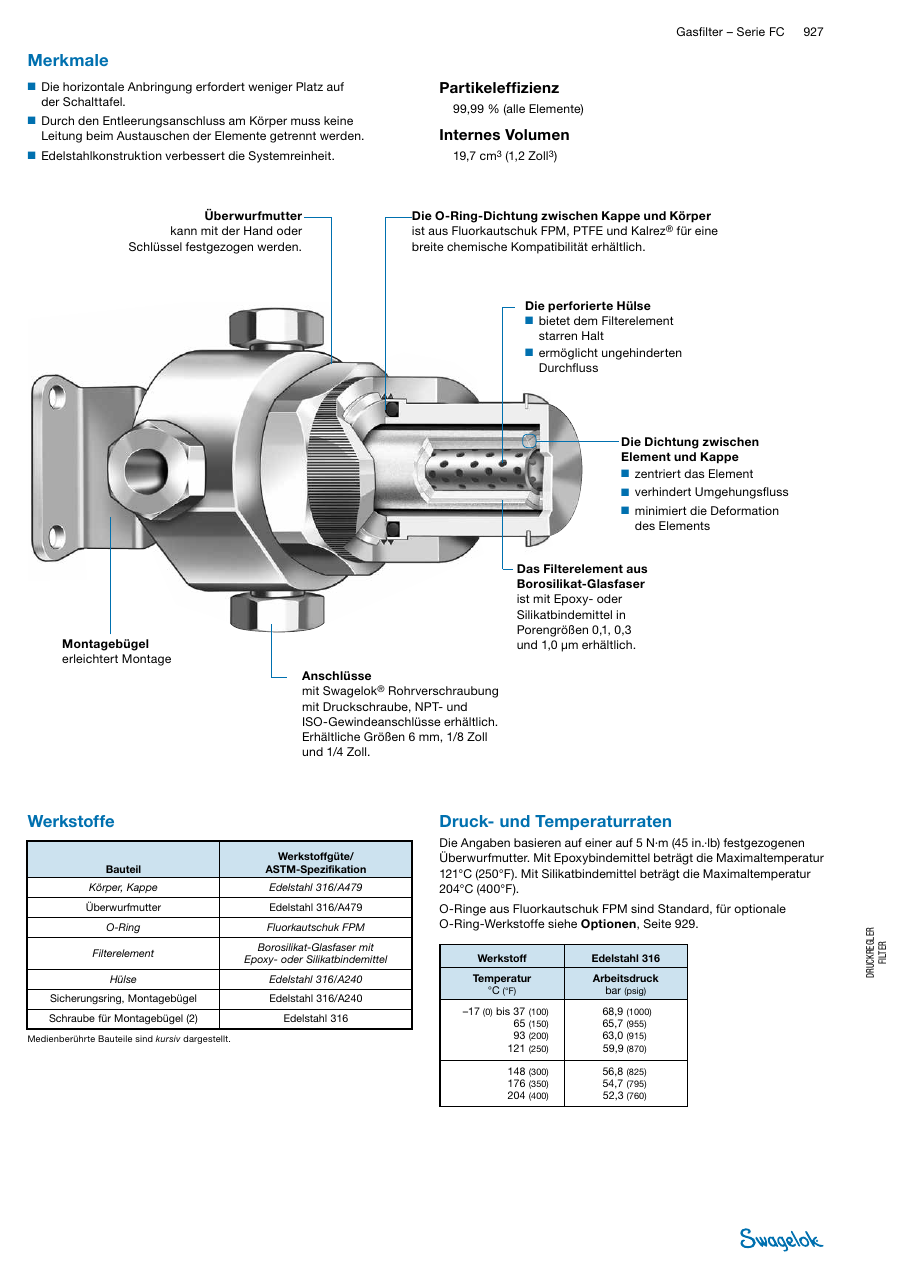

Swagelok Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe – Drawing (Swagelok datasheet S. 1)
Drawing · Swagelok datasheet · S. 1

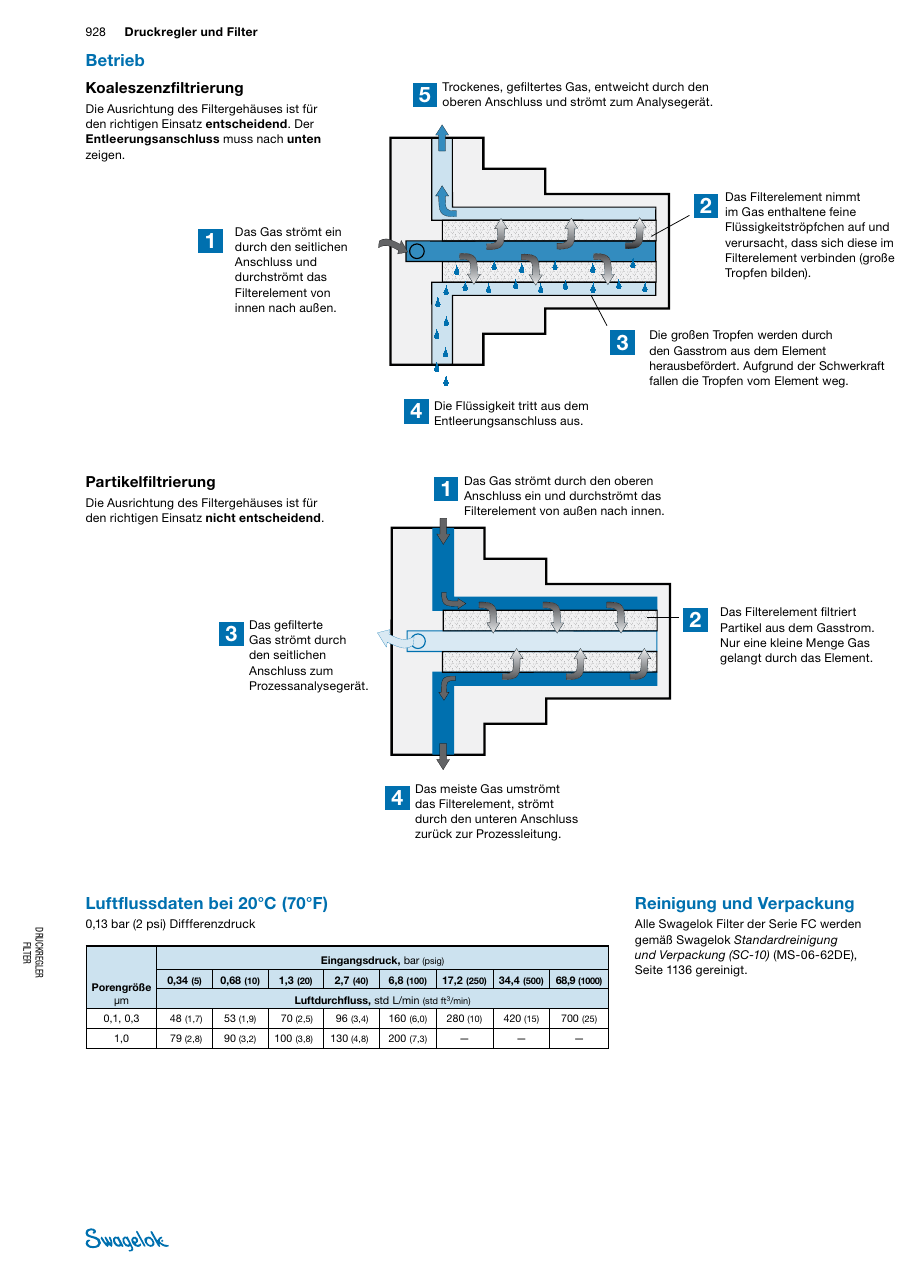

Swagelok Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe – Drawing (Swagelok datasheet S. 2)
Drawing · Swagelok datasheet · S. 2

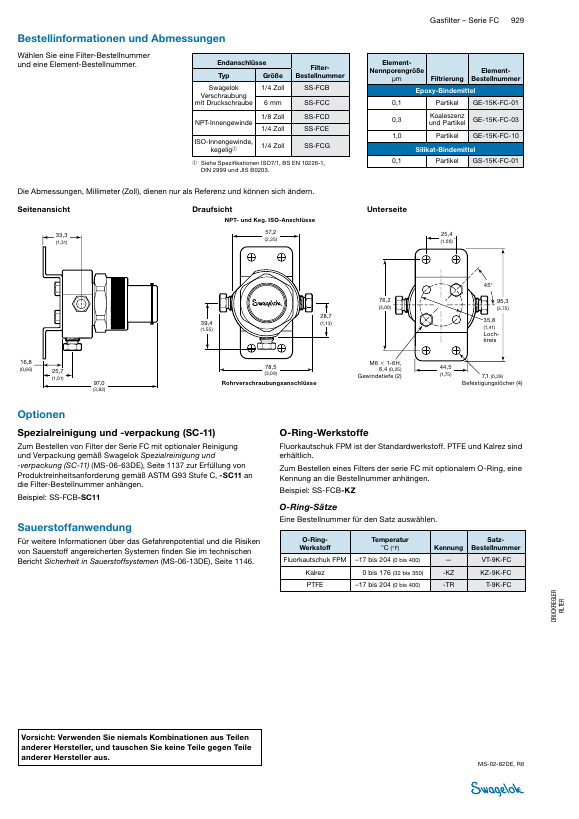

Swagelok Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe – Drawing (Swagelok datasheet S. 3)
Drawing · Swagelok datasheet · S. 3
Swagelok Koaleszenz-/ Partikelfilter aus Edelstahl, 1/4 Zoll NPT-Innengewinde, FPM O-Ringe – Page preview (Swagelok datasheet S. 4)
Page preview · Swagelok datasheet · S. 4
Source: Gasfilter Serie FC (MS-02-82;rev_6;de-DE;Catalog), p. 1
