WISKA

EVSF 16 LG

Cable Gland Accessory · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

EVSF 16 LG - Stop end flame-retardant, polyamide, RAL 7035, M16 - Cable entries - WISKA - Your expert for installation material, maritime lighting and CCTV

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temp. range max100 °C
Glow wire test960 °C
Protection classIP56
Hazard level EN acc. 45545R22=HL3 / R23=HL3 / R24=HL3
Advicewith sealing IP66/IP68
Lead1,5
Length screw-in thread L6 mm
Total length TL9 mm
External diameter ED20 mm
Temp. range min-40 °C
Ø Connection thread D16
Product ColorRAL 7035
MaterialPolyamide UL94-V0
Temp. range min-40 °C
Temp. range max100 °C
Thread typeM
Ø Connection thread D16
Length screw-in thread L6 mm
External diameter ED20 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A flame-retardant stop end made of polyamide with RAL 7035 color, suitable for marine applications.

Features

  • flame-retardant
  • polyamide material
  • IP56 protection class
  • sealing with IP66/IP68

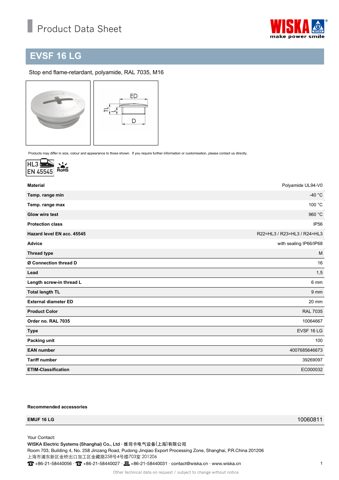

WISKA EVSF 16 LG – Drawing (4cccd38c194c_S1-1 S. 1)
Drawing · 4cccd38c194c_S1-1 · S. 1
Source: WISKA EVSF 16 LG datasheet, p. 1
