Library› Electrical› Electrical Components & Switchgear› Cable Gland Accessory› WISKA VSG 36 LG
WISKA

VSG 36 LG

Cable Gland Accessory · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

VSG 36 LG - Stop end, polyamide, RAL 7035, Pg36 - Cable entries - WISKA - Your expert for installation material, maritime lighting and CCTV

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temp. range max100 °C
Protection classIP56
Length screw-in thread L10 mm
Total length TL15 mm
External diameter ED55 mm
Packing unit25
Etim-classificationEC000032
Temp. range min-40 °C
Ø Connection thread D36
Product ColorRAL 7035
MaterialPolyamide, fibre reinforced
Temp. range min-40 °C
Temp. range max100 °C
Thread typePG
Ø Connection thread D36
Length screw-in thread L10 mm
External diameter ED55 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Stop end made of polyamide, reinforced with fibers, used in marine applications.

Applications

  • connection

Features

  • polyamide material
  • fibre reinforced
  • temperature range -40°C to 100°C
  • IP56 protection class
  • PG thread type
  • 36mm connection thread diameter
  • 10mm screw-in thread length
  • 15mm total length

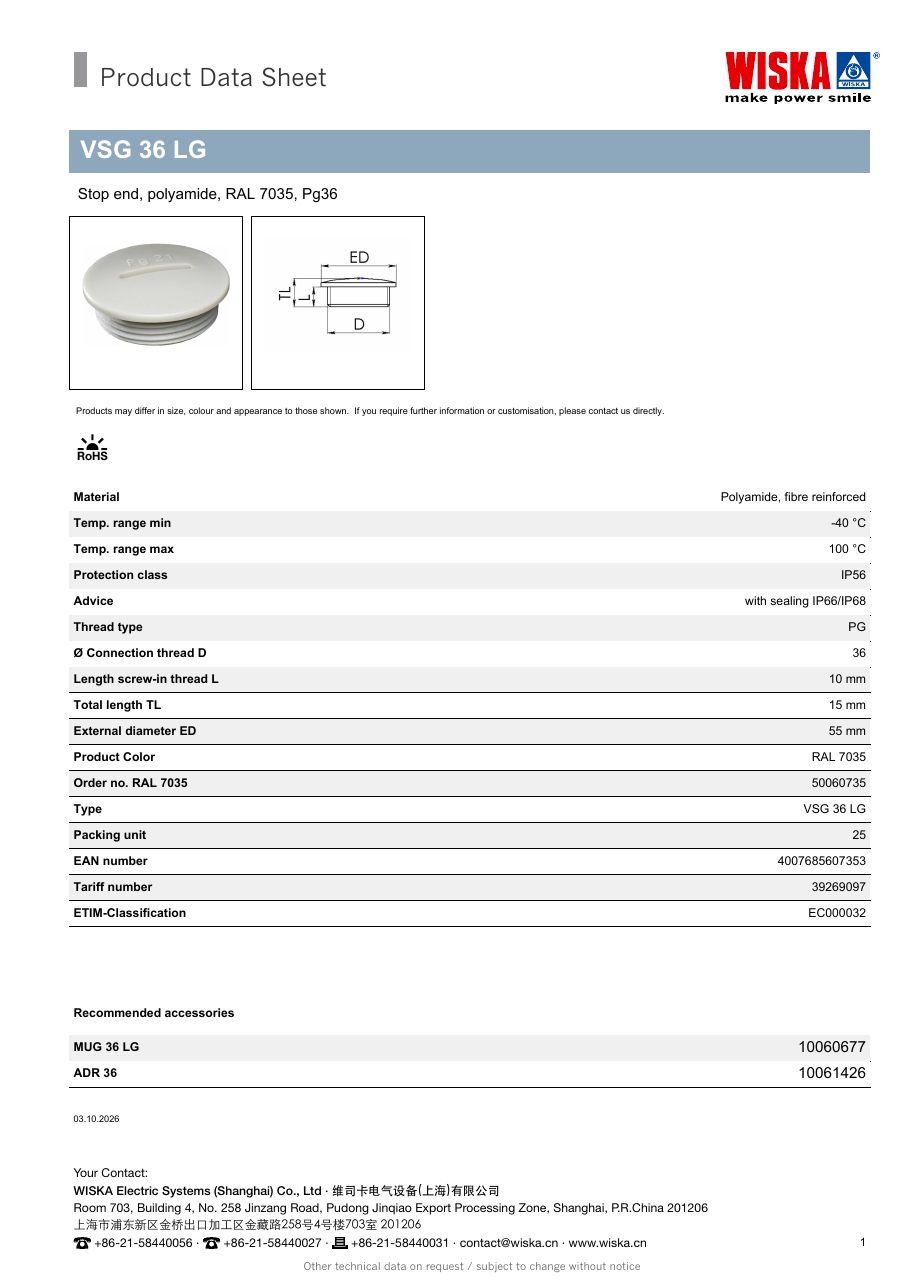

WISKA VSG 36 LG – Drawing (5ec680ce66eb_S1-1 S. 1)
Drawing · 5ec680ce66eb_S1-1 · S. 1
Source: WISKA VSG 36 LG datasheet, p. 1
