Library› Electrical› Electrical Components & Switchgear› Cable Gland› WISKA FD 63 BK
WISKA

FD 63 BK

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

FD 63 BK - FLIP cable grommet, EPDM, RAL 9005, M63 - Cable entries - WISKA - Your expert for installation material, maritime lighting and CCTV

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Temp. range max110 °C
Protection classIP66 / IP67
Ø cable diameter min34 mm
Ø cable diameter max45 mm
Total length TL40 mm
Ø Drilling50 mm - 51 mm
Wall thickness S1 mm - 4 mm
Temp. range min-40 °C
Ø Connection thread D63
Product ColorRAL 9005
MaterialEPDM
Temp. range min-40 °C
Temp. range max110 °C
Thread typeM
Ø Connection thread D63
Ø cable diameter min34 mm
Ø cable diameter max45 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Flip cable grommet for marine use, suitable for cables with a diameter between 34 mm and 45 mm.

Applications

  • cable protection

Features

  • EPDM material
  • temperature range -40°C to 110°C
  • IP66/67 protection class
  • thread type M
  • cable diameter 34 mm to 45 mm
  • total length 40 mm
  • drilling size 50 mm to 51 mm
  • wall thickness 1 mm to 4 mm

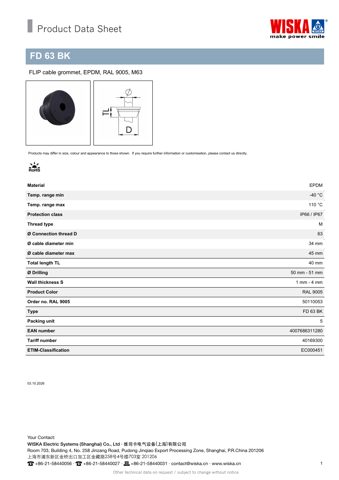

WISKA FD 63 BK – Drawing (bbf1c006c36a_S1-1 S. 1)
Drawing · bbf1c006c36a_S1-1 · S. 1
Source: WISKA FD 63 BK datasheet, p. 1
