Library› Electrical› Instrumentation & Gauges› Temperature Switch› AFRISO THMK 52
AFRISO

THMK 52

Temperature Switch · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

Heating, cooling and plumbing, e.g. boilers, buffer tanks.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Capillary length500 mm
Hou-sing ⌀52 mm
Nominal size52
Range temperature0/120 °C
Accuracy temperature50 °C = ± 3 °C
Operating temperature range Ambientmax. 70 °C
Degree of protectionIP 32 (EN 60529)
Connection temperature∅ 6 x 30 mm, Copper
Capillary length1000 mm
Housing diameter52 mm
Temperature range0/120 °C
Pointer0/120 °C
Temperature:50 °C = ± 3 °C
Range pressure0/4 bar
Pressure range0/4 bar
Temperaturepressure
Pressure0/4 bar
MediumFull scale value
Operating pressurewithout pressure
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A combined thermometer and pressure gauge for industrial applications. It measures both temperature and pressure simultaneously.

Applications

  • Heating systems
  • Cooling systems
  • Plumbing applications
  • Boilers
  • Buffer tanks
Source: AFRISO THMK 52 datasheet, p. 1

Features

  • Ideal for boilers and hot water storage tanks
  • Corrosion-resistant plastic housing
  • Highly impact-resistant
  • Customised versions available
Source: AFRISO THMK 52 datasheet, p. 1

Options

  • Dial with customer logo
  • various capillary lengths
  • special colours for housing, dial, pointer

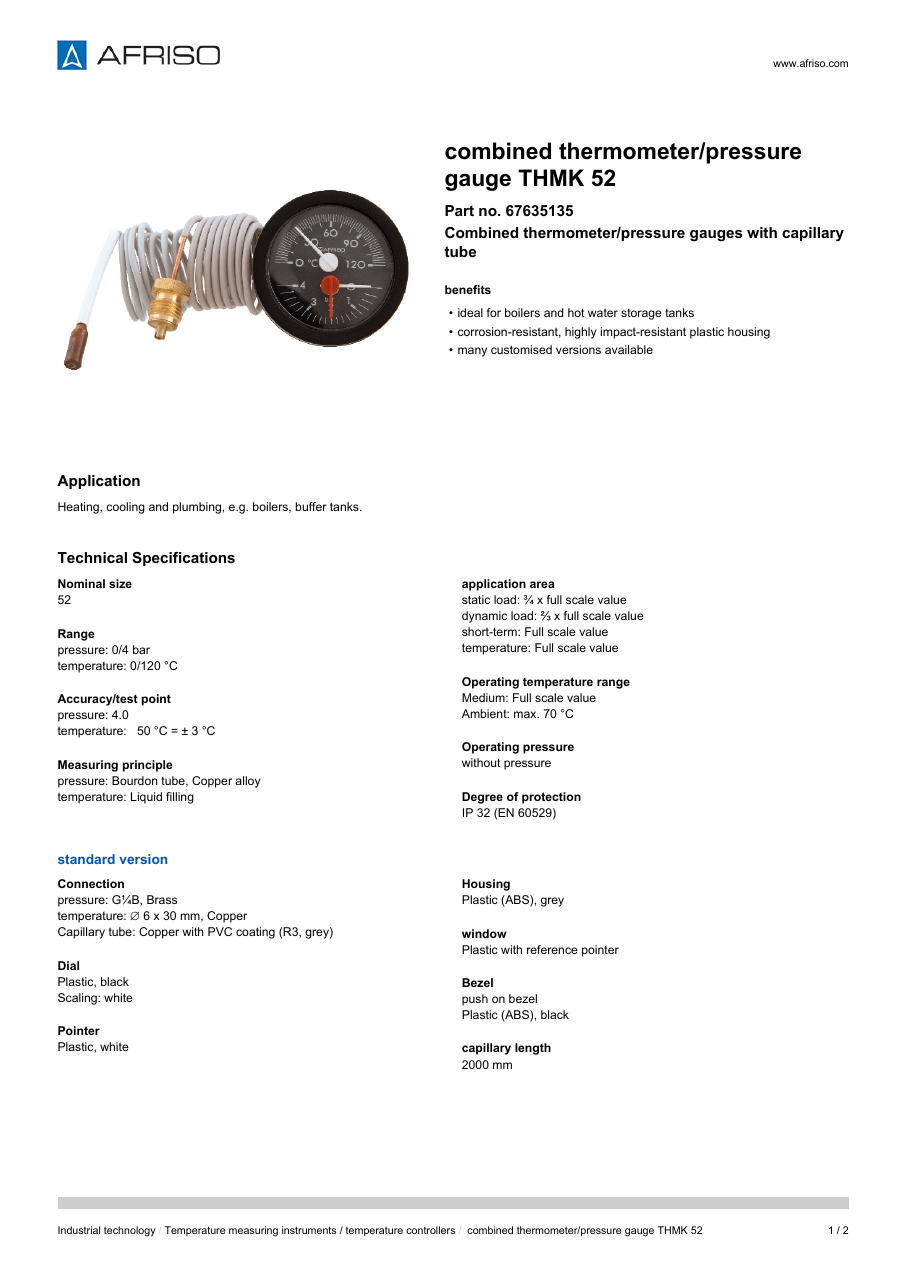

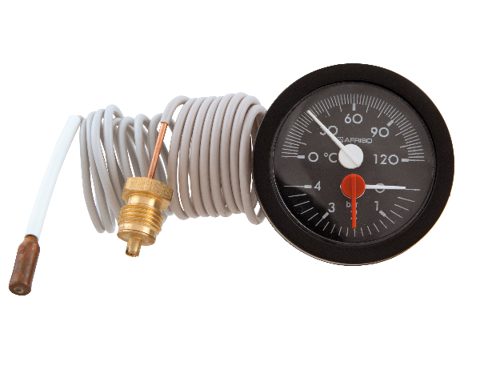

AFRISO THMK 52 – Photo (65dd42e2c924_S1-2 S. 1)
Photo · 65dd42e2c924_S1-2 · S. 1
AFRISO THMK 52 – Photo (65dd42e2c924_S1-2 S. 2)
Photo · 65dd42e2c924_S1-2 · S. 2

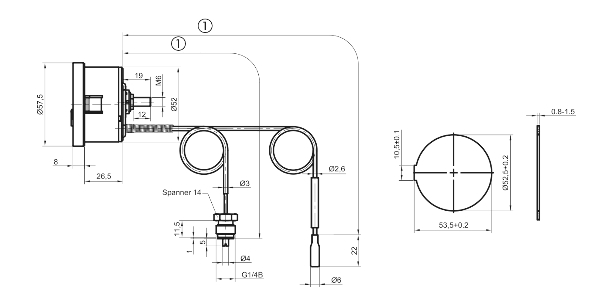

AFRISO THMK 52 – Drawing (65dd42e2c924_S1-2 S. 1)
Drawing · 65dd42e2c924_S1-2 · S. 1
AFRISO THMK 52 – Drawing (65dd42e2c924_S1-2 S. 2)
Drawing · 65dd42e2c924_S1-2 · S. 2
AFRISO THMK 52 – Drawing (3445ab100643_S1-2 S. 1)
Drawing · 3445ab100643_S1-2 · S. 1
Source: AFRISO THMK 52 datasheet, p. 2
