Library› Engine Room› Pipe Connections & Fittings› Pipeline Strainer & Filter› Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings
Swagelok

Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings

Pipeline Strainer & Filter · Pipe Connections & Fittings

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗
Specifications

Technical data.

Every value below comes from the manufacturer datasheet or class-society record on file for this model.

Body Material316 Stainless Steel
Connection 1 Size1/4 in.
Connection 1 TypeFemale Swagelok® Tube Fitting
Connection 2 Size1/4 in.
Connection 2 TypeFemale Swagelok® Tube Fitting
Maximum Temperature, °F (°C)400 (204)
Minimum Temperature, °F (°C)0 (-17)
O-Ring MaterialFluorocarbon FKM
📄
Download datasheet (PDF) (651 KB)
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

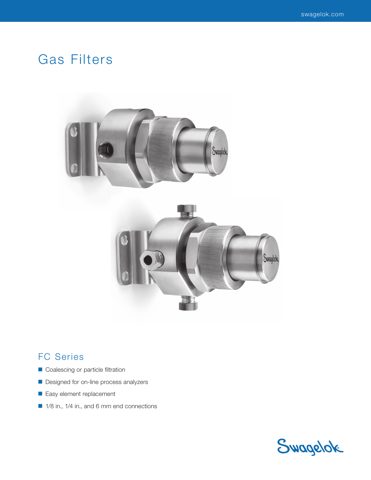

“FC Series ■ Coalescing or particle filtration ■ Designed for on-line process analyzers ■ Easy element replacement ■ 1/8 in., 1/4 in., and 6 mm end connections”

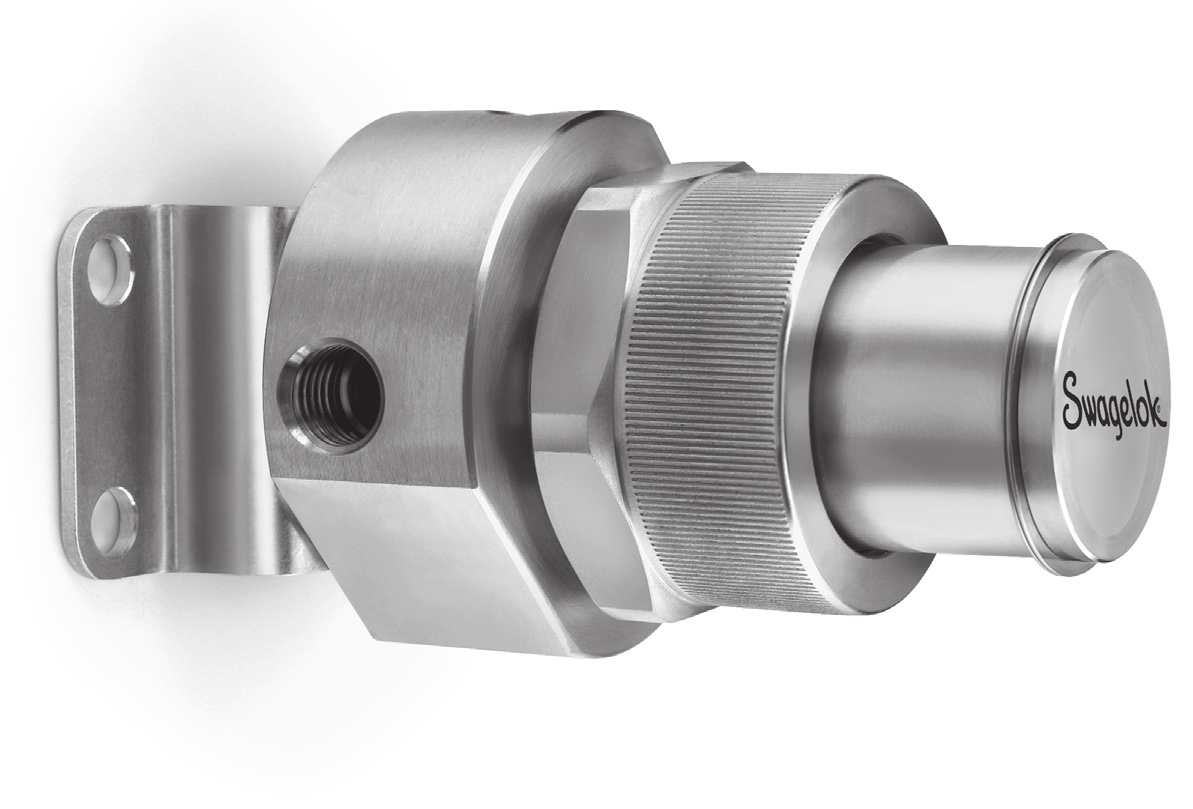

Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings – Photo (Swagelok datasheet S. 1)
Photo · Swagelok datasheet · S. 1

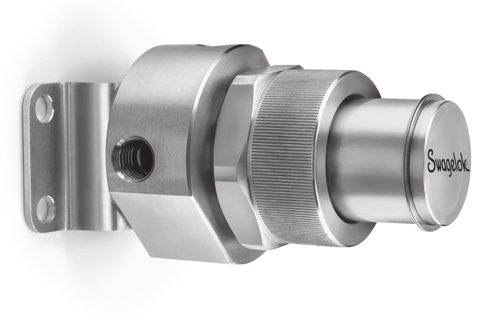

Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings – Photo (Swagelok datasheet S. 2)
Photo · Swagelok datasheet · S. 2

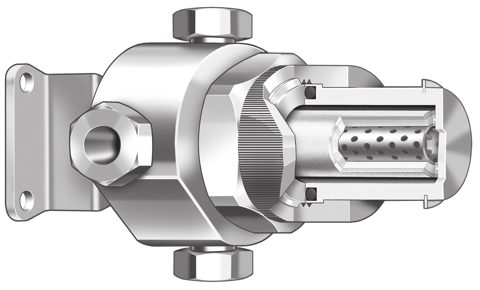

Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings – Drawing (Swagelok datasheet S. 1)
Drawing · Swagelok datasheet · S. 1
Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings – Drawing (Swagelok datasheet S. 2)
Drawing · Swagelok datasheet · S. 2
Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings – Drawing (Swagelok datasheet S. 4)
Drawing · Swagelok datasheet · S. 4

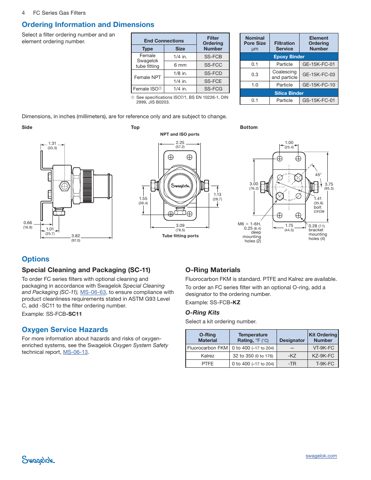

Swagelok Stainless Steel Coalescing / Particle Filter, 1/4 in. Female Swagelok Tube Fitting, Fluorocarbon FKM O-Rings – Page preview (Swagelok datasheet S. 3)
Page preview · Swagelok datasheet · S. 3
Source: Gas Filters—FC Series (MS-02-82;rev_6;en-US), p. 1
