Nuova Fima

BSV/VV-

Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

BSV/VV- @de Bar stock needle valve, block and bleed

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rating6000 psi; or 10000 psi (code 10K)
Tee-barAISI 303 st.st.
StemAISI 316 L st.st.
Bonnet sealAISI 316L st.st. seal
AnwendungsbedingungVibrationen NACE Ausführung SAUERSTOFF Ausführung Korrosive Medien Hochdruck-Anwendungen Hohe Prozesstemperatur Niedrige Umgebungstemperatur Unterdruck Manovakuum-Bereich (Über- und Unterdruck)
MaterialKomplett aus Edelstahl
Maximaldruck6000psi
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A high-pressure bar stock needle valve designed for precise flow control in marine applications.

Applications

  • pressure control

Features

  • high-pressure rating
  • stainless steel construction
  • PTFE or Graphoil packing options
  • non-rotating needle

Options

  • 10K - Rating bonnet : 10000 psi
  • LOK - T-Bar handle locking
  • ANT - Anti-tamper
  • E30 - NACE version as per MR 0103/0175-ISO15156
  • GRA - Graphoil packing

Standards

  • MR 0103/0175-ISO15156

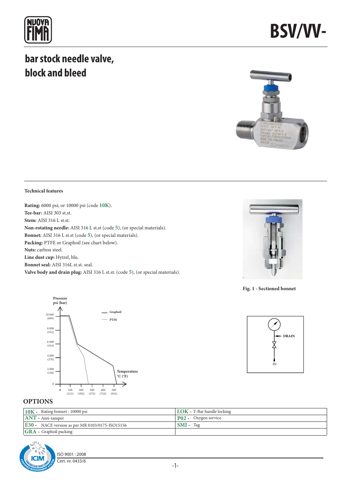

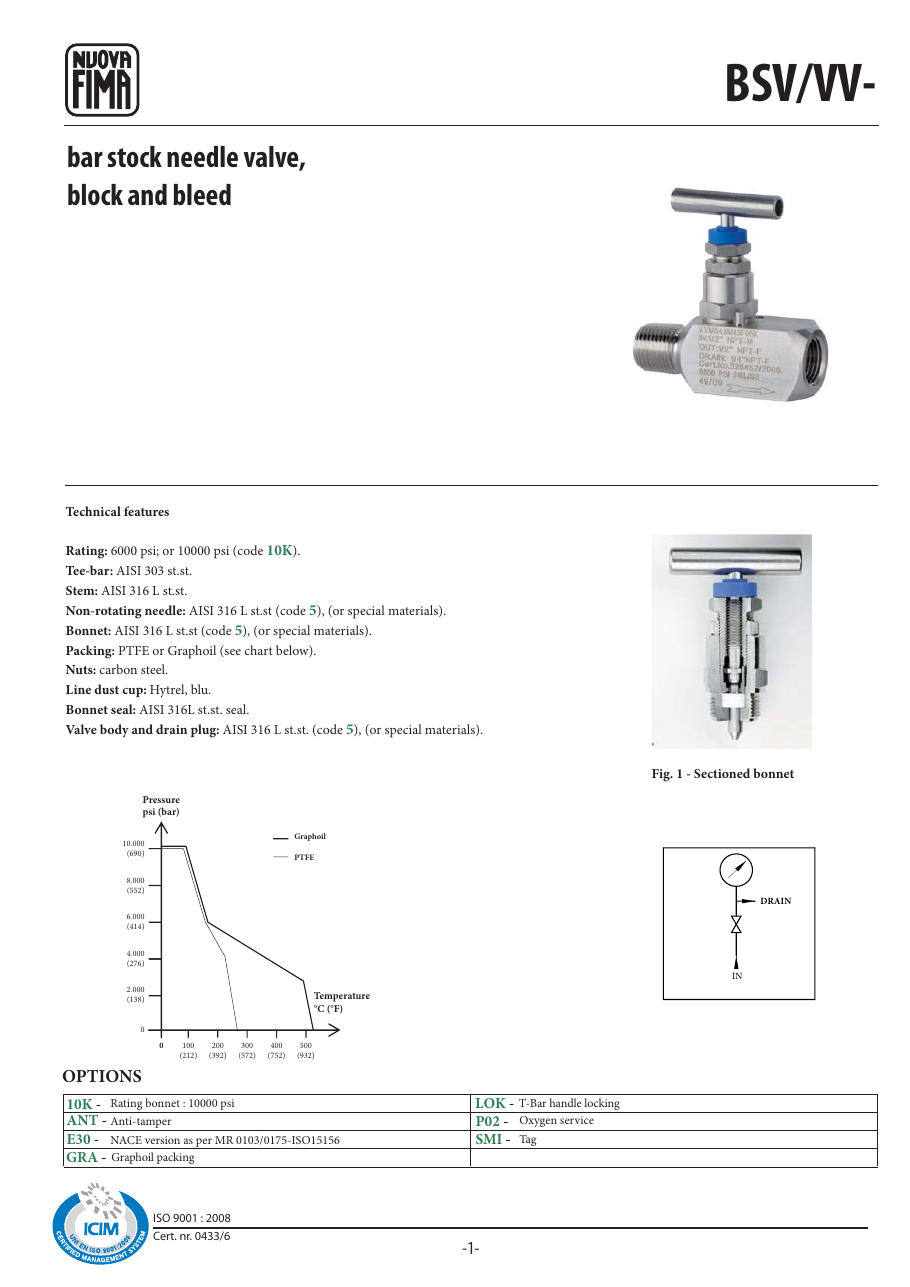

Nuova Fima BSV/VV- – Drawing (4c6fe4344a5d_S1-1 S. 1)
Drawing · 4c6fe4344a5d_S1-1 · S. 1
Source: VV- datasheet, p. 1
