Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot FMR10
Endress+Hauser

Micropilot FMR10

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

Micropilot FMR10 offers continuous non-contact level measurement and is a perfect application fit for the water & wastewater industry and utilities across all industries. FMR10 belongs to the first radars with Bluetooth® commissioning, operation and maintenance app. Signal curves can be shown via app on every Bluetooth®-enabled smartphone or tablet (iOS, Android). With the compact design, thanks to unique chip, the device is ideal for limited space applications.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring rangeup to 12 m
Process temperature–40 to 60 °C
Antenna length40 mm (1.5 in) mm (in)
Weightapprox. 3.0 kg (6.6 lb)
Material316L (1.4404)
Cantilever arm1 000 mm
Opening for G 1" or MNPT 1" connections35 mm
Opening for additional sensor22 mm
Maximaler Messbereichbis zu 12 m
Prozesstemperatur–40 … 60 °C
Dimensions152 (5.98) mm (in)
Weight4,9 kg (10,08 lb)
Abstrahlwinkel30 °
Kegeldurchmesser WD × 0,54
Abmessungen 40 mm (1,5 in) Antenne mit Überflutungsschutzhülse montiert264 (10.4) mm (in)
Gewicht (einschließlich 10 m (32,8 ft) Kabel)ca. 3,0 kg
Abstrahlwinkel α30 °
Process pressure–1 to 3 bar
Accuracyup to ± 5 mm
Process connectionG 1"
Prozessdruck–1 … 3 bar
Genauigkeitbis zu ± 5 mm
Part numberFMR10
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A free space radar for level measurement in liquids, suitable for storage tanks, open basins, pump shafts, and canal systems.

Applications

  • storage tanks
  • open basins
  • pump shafts
  • canal systems

Features

  • IP66/68 ingress protection
  • Bluetooth wireless technology
  • SmartBlue app for remote access
  • hermetically sealed wiring
  • compact design

Options

  • smart software
Source: Endress+Hauser Micropilot FMR10 datasheet, p. 3

Standards

  • EN 302729-1/2
Source: Endress+Hauser Micropilot FMR10 datasheet, p. 20
Endress+Hauser Micropilot FMR10 – Photo (5b9fb3d78920_S15-32 S. 15)
Photo · 5b9fb3d78920_S15-32 · S. 15

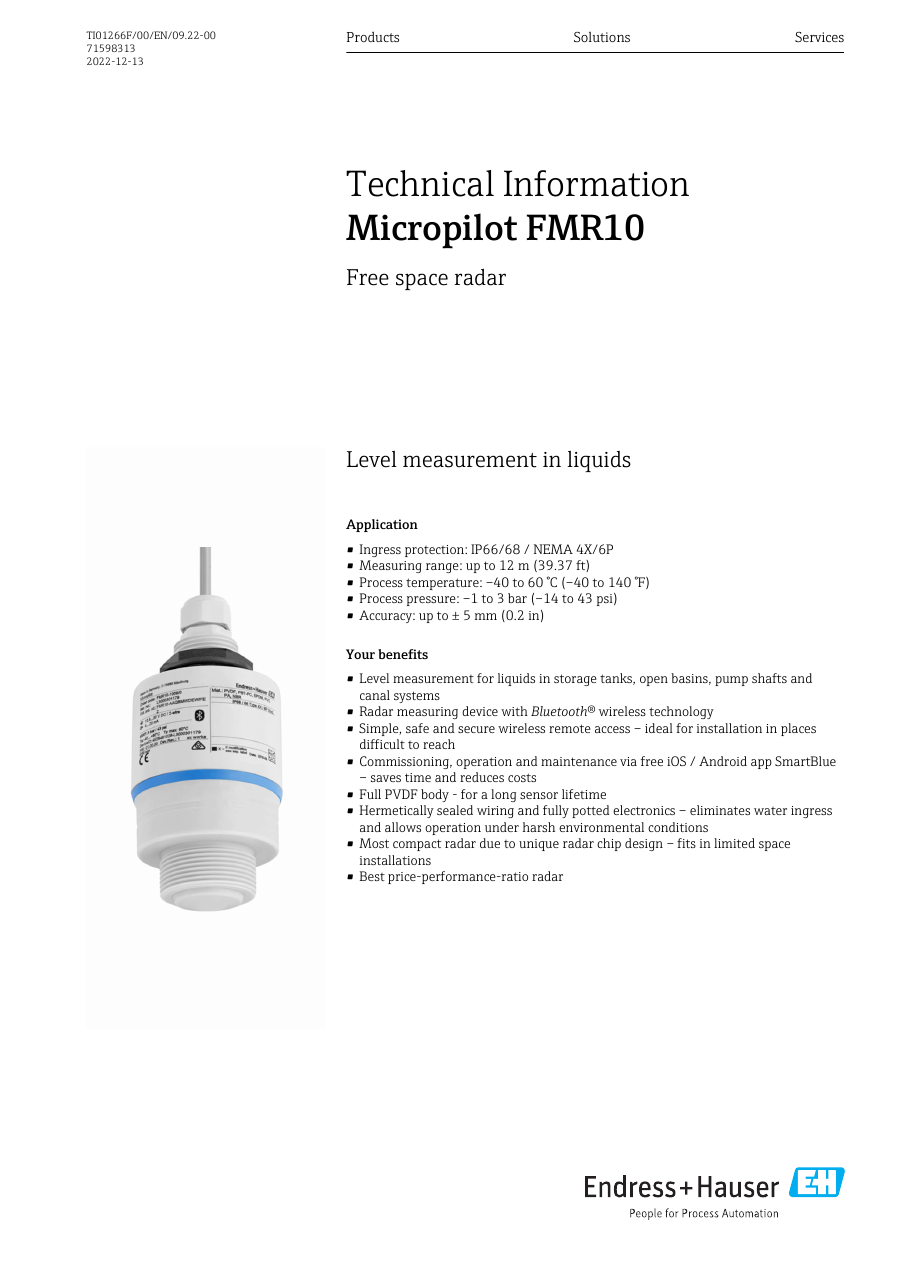

Endress+Hauser Micropilot FMR10 – Drawing (91b333c28a0c_S1-30 S. 1)
Drawing · 91b333c28a0c_S1-30 · S. 1

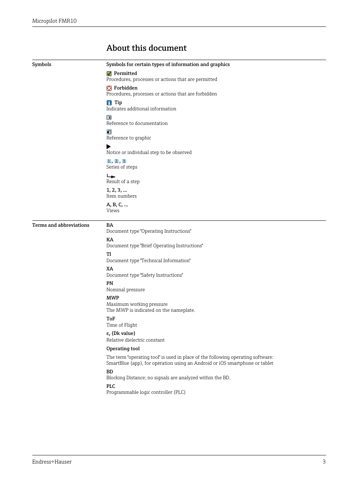

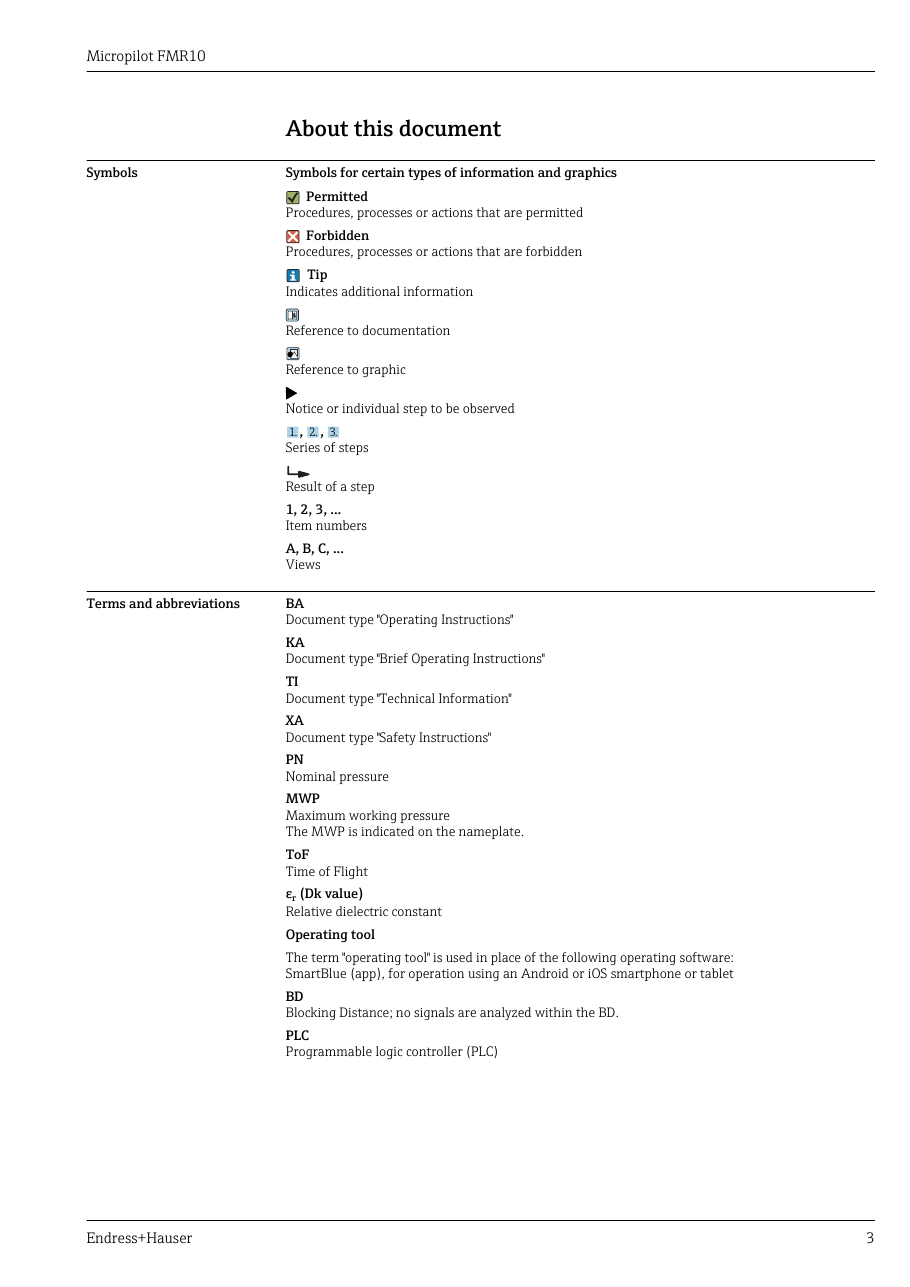

Endress+Hauser Micropilot FMR10 – Drawing (91b333c28a0c_S1-30 S. 3)
Drawing · 91b333c28a0c_S1-30 · S. 3

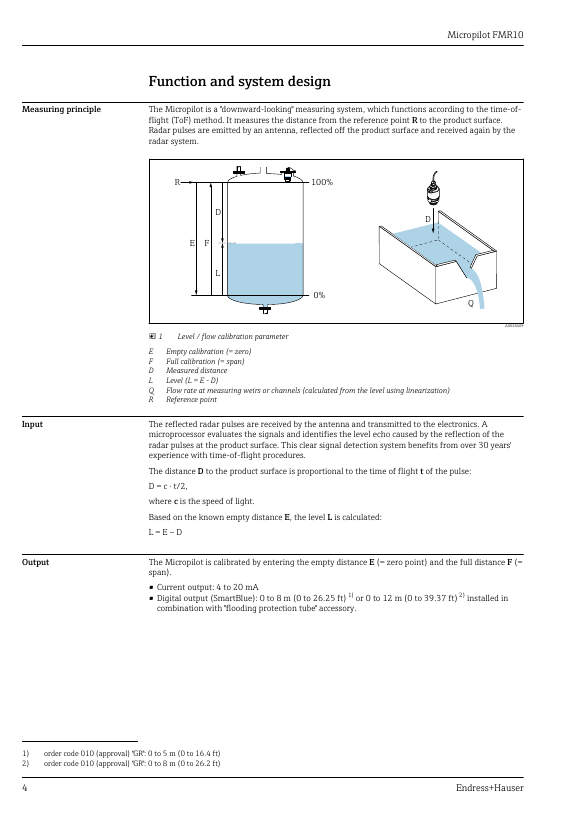

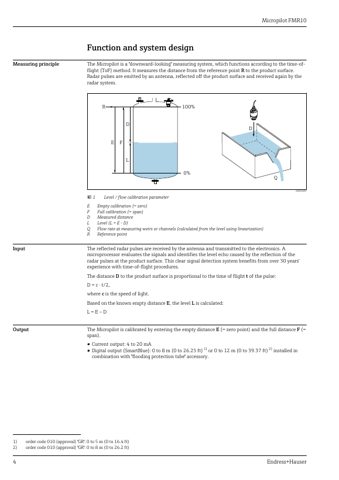

Endress+Hauser Micropilot FMR10 – Page preview (91b333c28a0c_S1-30 S. 4)
Page preview · 91b333c28a0c_S1-30 · S. 4

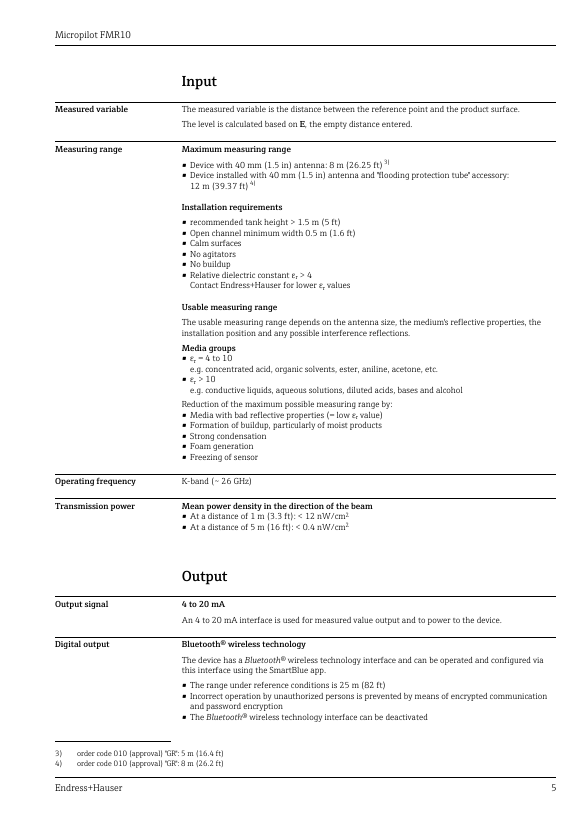

Endress+Hauser Micropilot FMR10 – Page preview (91b333c28a0c_S1-30 S. 5)
Page preview · 91b333c28a0c_S1-30 · S. 5

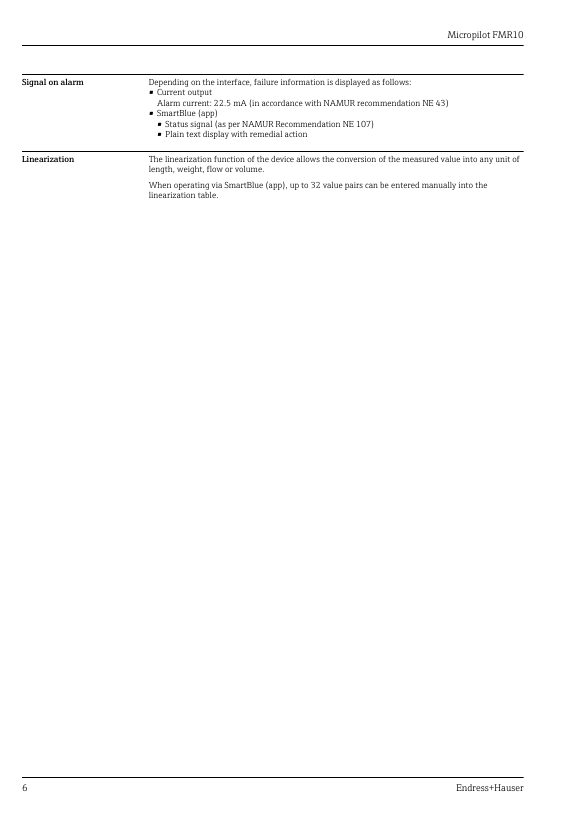

Endress+Hauser Micropilot FMR10 – Page preview (91b333c28a0c_S1-30 S. 6)
Page preview · 91b333c28a0c_S1-30 · S. 6

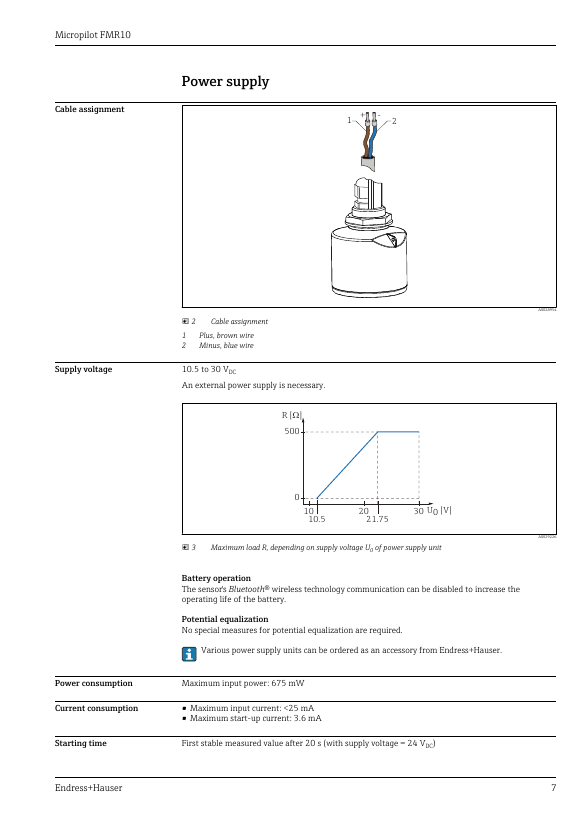

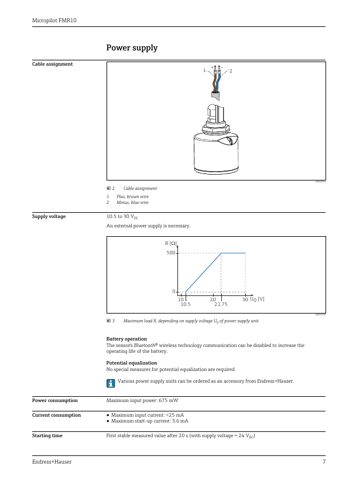

Endress+Hauser Micropilot FMR10 – Page preview (91b333c28a0c_S1-30 S. 7)
Page preview · 91b333c28a0c_S1-30 · S. 7
Source: Endress+Hauser Micropilot FMR10 datasheet, p. 1
