Liquiphant T FTL20H

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified

Liquiphant FTL20H is a point level switch with compact hygiene design for use in storage tanks, agitators and pipes which have to meet particularly high hygiene standards internally and externally. FTL20H can be used as an overfill prevention or as a pump dry-run protector. The measurement is unaffected of viscosity, build-up, turbulences, flows, air bubbles or temperature changes during cleaning. Functional check in installed state from the outside possible. EHEDG approval available.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Measuring range> 0.7 g/cm3
Switching delay0.5 s when covering 1.0 s when becoming free other switching time on request
Switching thresholdwith vertical orientation: 13.0 mm from top of fork with horizontal orientation:
Hysteresis3.0 ±0.5 mm
Coupling nut316L
ProtectionIP69K (fully locked)
Temperature range-25 °C to +70 °C
CertificationsLiquiphant FTL20, FTL20H (Leckage) Allgemeine bauaufsichtliche Zulassung Z-65.40-312 ZE248F/00/de
Measured value resolution< 0.5 mm
Measuring frequencyApprox. 1100 Hz in air
Maximum measured error13.0 ±1 mm
Repeatability±0.5 mm
Influence of medium temperature–29.6 x 10-3 mm/°C
Influence of medium pressure–55.2 x 10-3 mm/bar
max. Druck25 bar
max. Temperatur150 °C
Material1.4435 (AISI 316L)
Weight0,13 kg
Supply voltage10...35 V DC
Power consumption< 825 mW
Current consumption< 15 mA
Pressuremax. 16 bar
Temperaturemax. 120 °C
Weight0.15 kg
Settling time<2s
Part numberFTL20H
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Liquiphant T FTL20H is a level switch designed to detect liquid presence based on density.

Applications

  • overfill protection
  • dry running protection for pumps

Features

  • Detects liquid presence based on density
  • Switching delay adjustable

Options

  • Other density settings available on request

Standards

  • Externe Normen und Richtlinien
Source: Endress+Hauser Liquiphant T FTL20H datasheet, p. 2
Endress+Hauser Liquiphant T FTL20H – Drawing (3a7e800a212f_S4-21 S. 4)
Drawing · 3a7e800a212f_S4-21 · S. 4

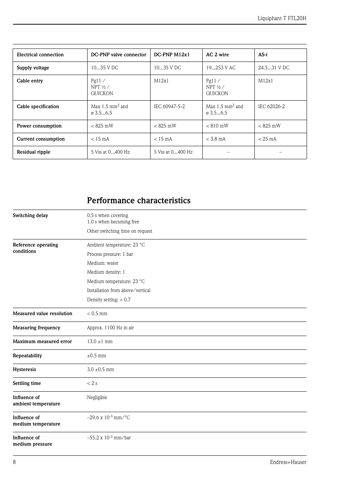

Endress+Hauser Liquiphant T FTL20H – Drawing (3a7e800a212f_S4-21 S. 5)
Drawing · 3a7e800a212f_S4-21 · S. 5

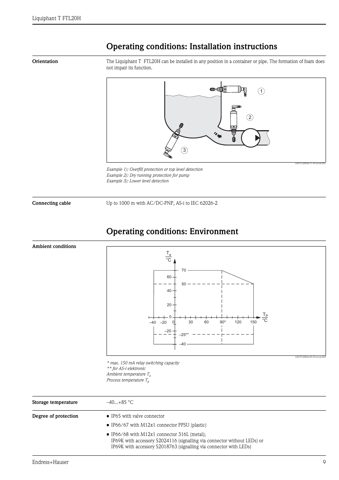

Endress+Hauser Liquiphant T FTL20H – Drawing (3a7e800a212f_S4-21 S. 6)
Drawing · 3a7e800a212f_S4-21 · S. 6

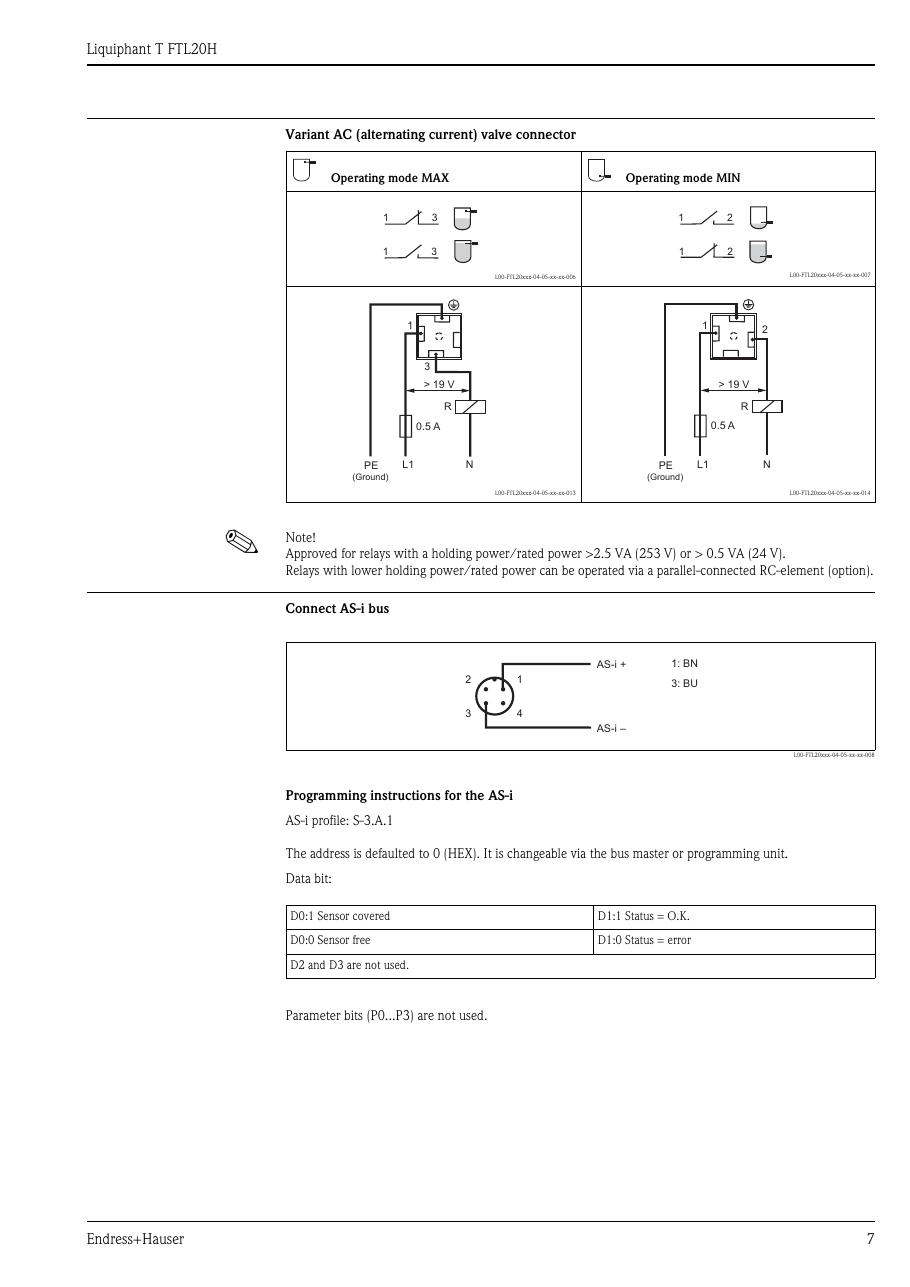

Endress+Hauser Liquiphant T FTL20H – Page preview (3a7e800a212f_S4-21 S. 7)
Page preview · 3a7e800a212f_S4-21 · S. 7

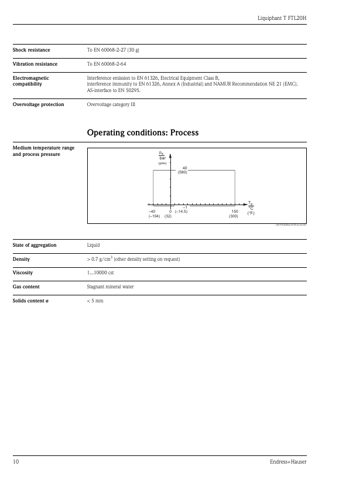

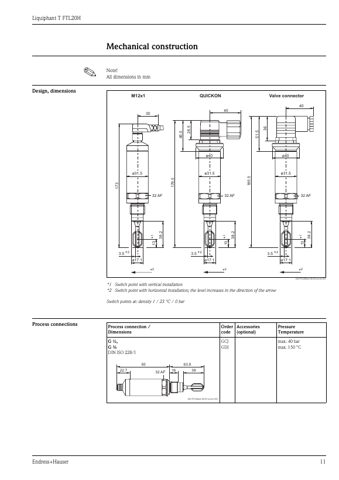

Endress+Hauser Liquiphant T FTL20H – Page preview (3a7e800a212f_S4-21 S. 8)
Page preview · 3a7e800a212f_S4-21 · S. 8

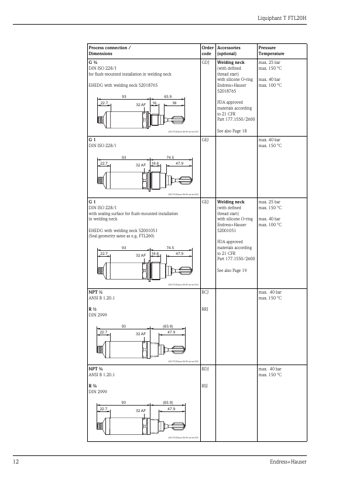

Endress+Hauser Liquiphant T FTL20H – Page preview (3a7e800a212f_S4-21 S. 9)
Page preview · 3a7e800a212f_S4-21 · S. 9

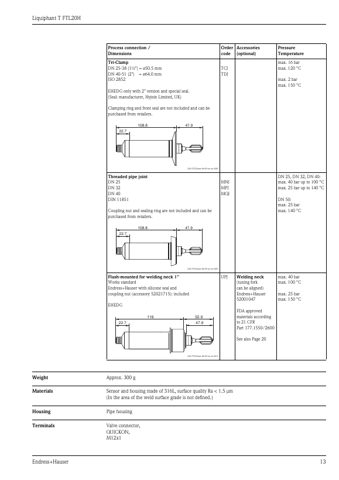

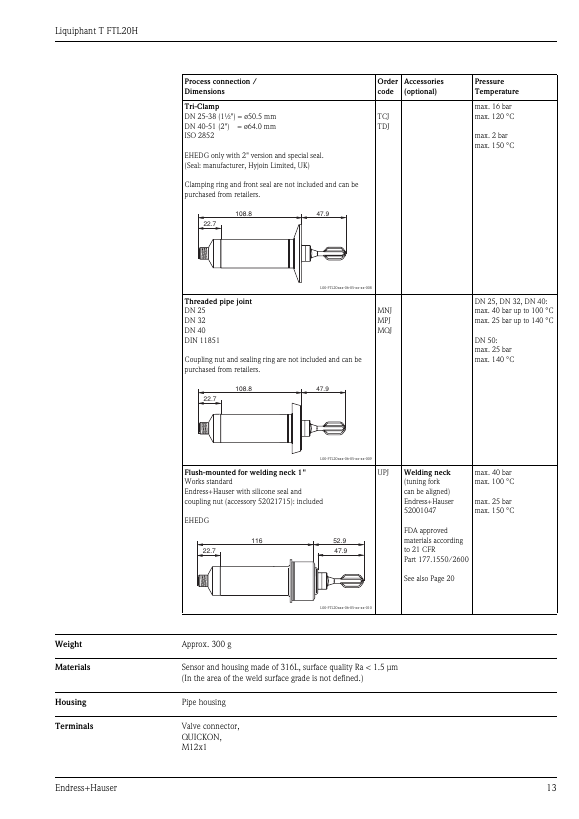

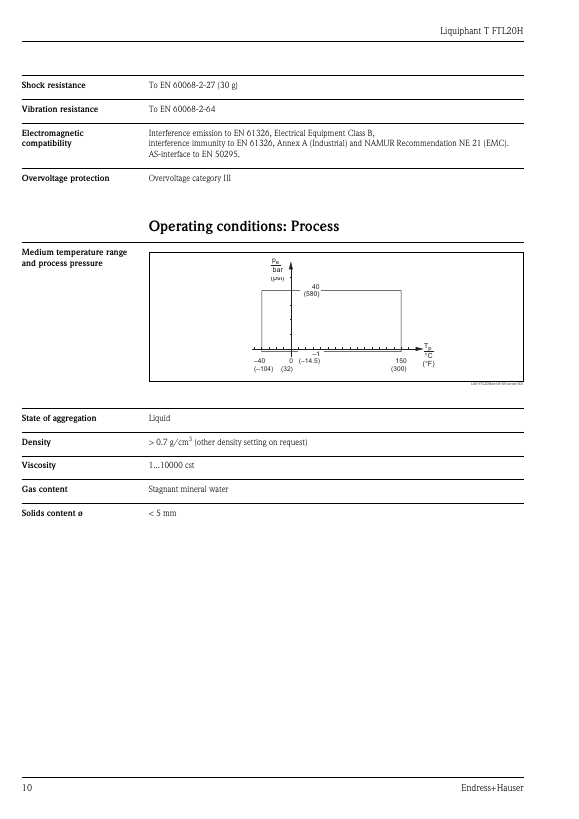

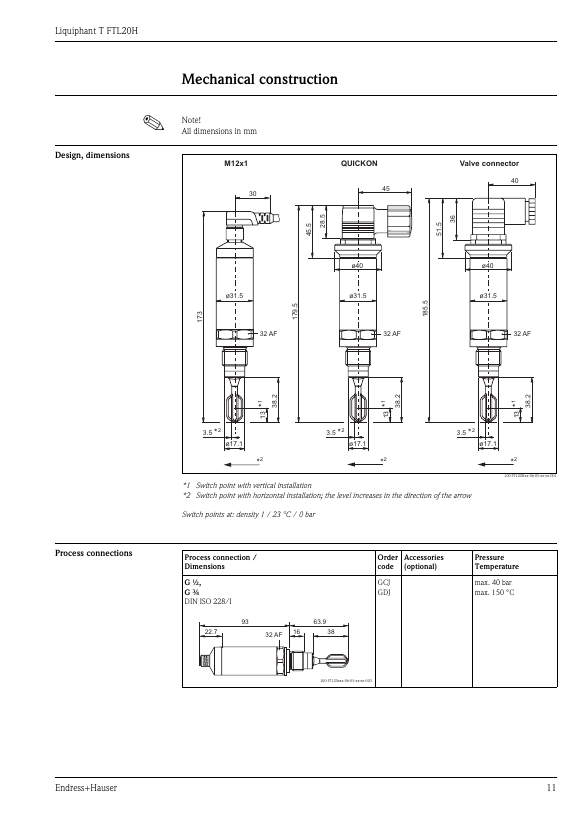

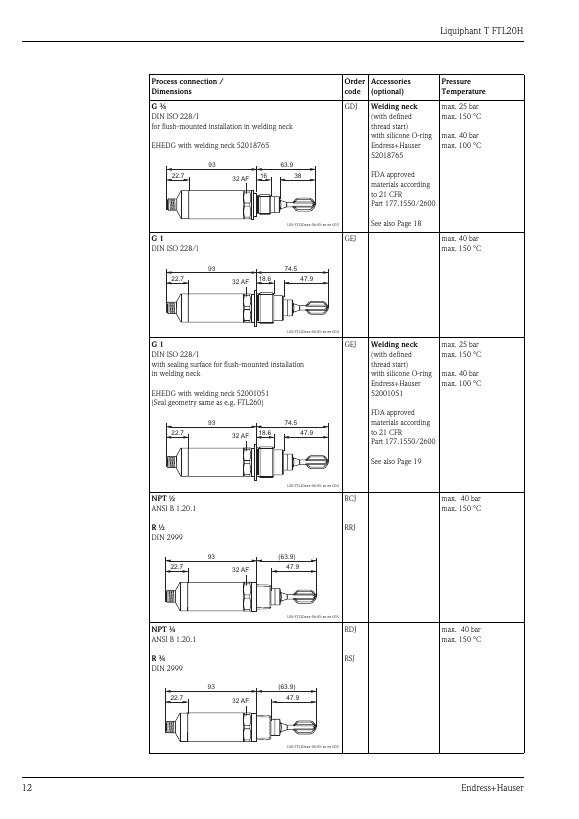

Endress+Hauser Liquiphant T FTL20H – Page preview (3a7e800a212f_S4-21 S. 10)
