Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser Nivotester FTR325
Endress+Hauser

Nivotester FTR325

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified

The Nivotester FTR325 is a 1-channel switch amplifier and suitable for the Soliwave FQR50/FDR50 microwave barrier. Used for point level detection for any type of solids or for control and counting tasks for packaged goods.

Specifications

Technical data.reference — unverified

Breaking capacity for relay contactsU~ max. 253 VAC
Service lifemin. 105 switching operations at max. contact load
Fqr50/fdr50C* (ATEX II 1/2G Ex ia IIC T4 Ga/Gb and ATEX II 1/2D Ex ia IIIC T98°C Da/Db resp
Ambient temperature range- 20°C ... + 60°C (if installed individually)
Storage temperature- 20°C ... + 85°C (preferably at + 20°C)
Degree of protectionIP 20
Electromagnetic compatibilityInterference Immunity to EN 61326, Appendix A (Industrial)
Schaltverzögerung (anzugverzögert)t(T) = 0,5..20 s
Schaltverzögerung (abfallverzögert)t(S) = 0,5..20 s
Power supply (terminal 1, 2):A = U~ 85 ... 253 V(AC), 50 / 60 Hz E = U- 20 ... 60 V(DC) U~ 20 ... 30 V(AC), 5
Part numberFTR325
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Nivotester FTR325 is a device that generates a limit signal when a microwave barrier is interrupted or uninterrupted, depending on the selected type of limit signal.

Applications

  • hazardous areas

Features

  • limit signal generation
  • intrinsically safe circuit
  • galvanically isolated relay output

Options

  • IECEx certified

Standards

  • EN 61326
Source: Endress+Hauser Nivotester FTR325 datasheet, p. 8

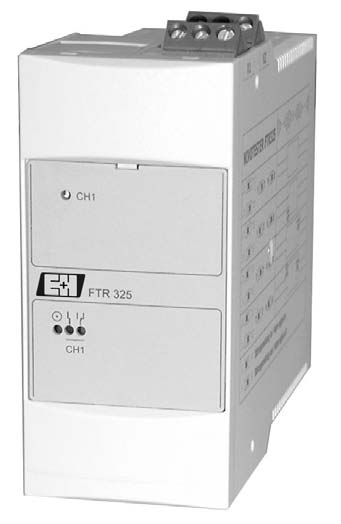

Endress+Hauser Nivotester FTR325 – Photo (3a79b0fb5bfc_S1-7 S. 1)
Photo · 3a79b0fb5bfc_S1-7 · S. 1

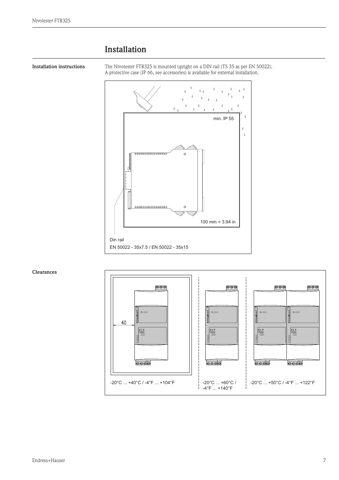

Endress+Hauser Nivotester FTR325 – Drawing (96d56634c47a_S4-8 S. 4)
Drawing · 96d56634c47a_S4-8 · S. 4

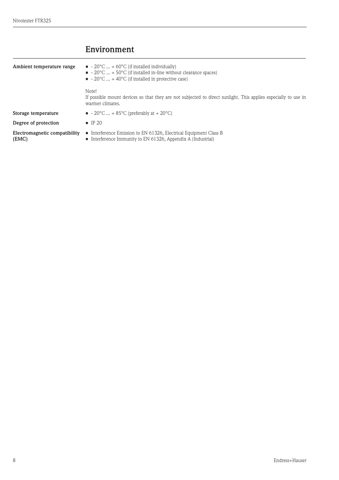

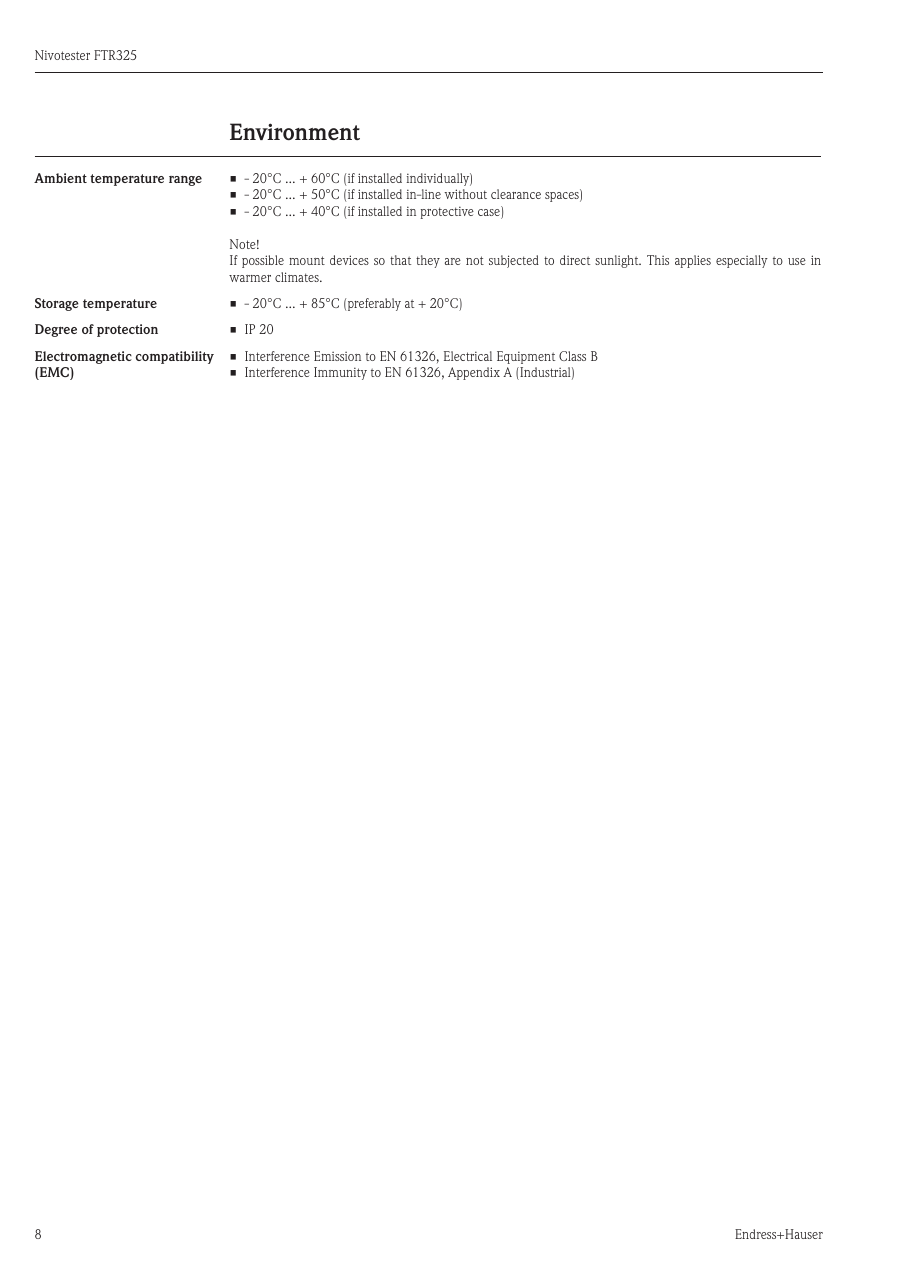

Endress+Hauser Nivotester FTR325 – Drawing (96d56634c47a_S4-8 S. 5)
Drawing · 96d56634c47a_S4-8 · S. 5

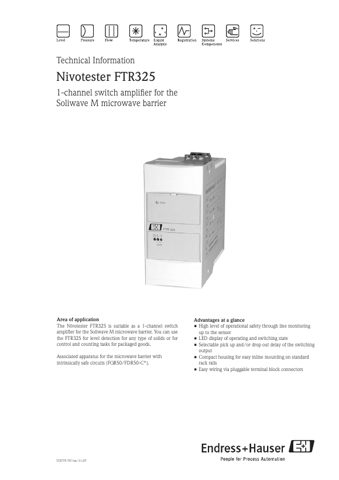

Endress+Hauser Nivotester FTR325 – Page preview (3a79b0fb5bfc_S1-7 S. 1)
Page preview · 3a79b0fb5bfc_S1-7 · S. 1

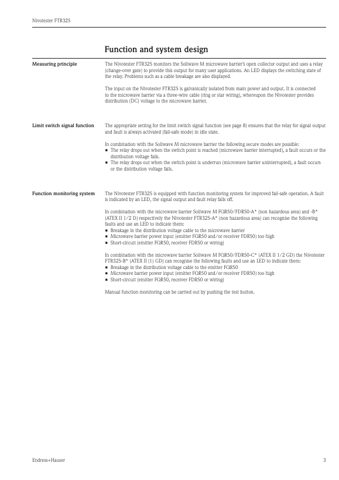

Endress+Hauser Nivotester FTR325 – Page preview (3a79b0fb5bfc_S1-7 S. 3)
Page preview · 3a79b0fb5bfc_S1-7 · S. 3

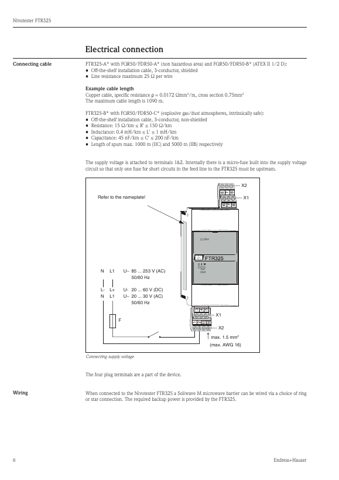

Endress+Hauser Nivotester FTR325 – Page preview (3a79b0fb5bfc_S1-7 S. 6)
Page preview · 3a79b0fb5bfc_S1-7 · S. 6

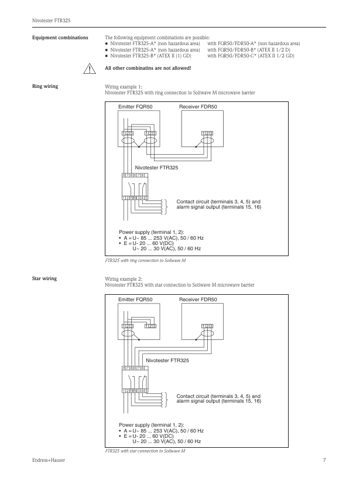

Endress+Hauser Nivotester FTR325 – Page preview (3a79b0fb5bfc_S1-7 S. 7)
Page preview · 3a79b0fb5bfc_S1-7 · S. 7
Source: Endress+Hauser Nivotester FTR325 datasheet, p. 4
