Micropilot S FMR533

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

Micropilot FMR533 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR533 radar with parabolic antenna is excellently suited for free space applications up to 40m (131ft). Micropilot FMR533 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

max. Befüllgeschwindigkeit100 mm Füllstandänderung / min
Prozesstemperaturbereich-40 °C...+200 °C
Prozessdruckgrenze0...40 bar (Option 64 bar)
Dielektrizitätszahl im Schwallrohrεr ≥ 1,4
Dielektrizitätszahl im Freifeldεr ≥ 1,9
Degree of protectionIP 68, NEMA 6P (also ingress protection of the display): IP20, NEMA 1)
Antenna Degree of protectionIP 68 (NEMA 6P)
CertificationsOIML R85
Load HARTMinimum load for HART communication: 250 Ω
Cable entryCable gland: M20x1.5 or Pg13.5 Cable entry: G ½ or ½ NPT
Supply voltagesee Page 31 ff.
Power consumptionMax. 330 mW at 16 V, max. 500 mW at 24 V, max. 600 mW at 30 V.
Current consumptionMax. 21 mA (50 mA inrush current).
Power supplyFor stand alone operation recommended via e.g. E+H RN 221 N/Z.
Sicherheitsdistanz (SD)0,5 m
A1000 mm
B0,5 m
C150...300 mm
Weightca. 6 kg + Flanschgewicht
Part numberFMR533
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot S FMR533 is a radar level gauge that measures liquid levels in tanks and vessels. It can correct measurement errors caused by multi-path reflections.

Applications

  • tank gauging

Features

  • tank gauging function

Options

  • FieldCare software
  • halbautomatischer Modus
Source: Endress+Hauser Micropilot S FMR533 datasheet, p. 55

Standards

  • EN 60529
  • EN 61010
  • EN 61326
  • NAMUR
  • API
  • OIML R85
Source: Endress+Hauser Micropilot S FMR533 datasheet, p. 82

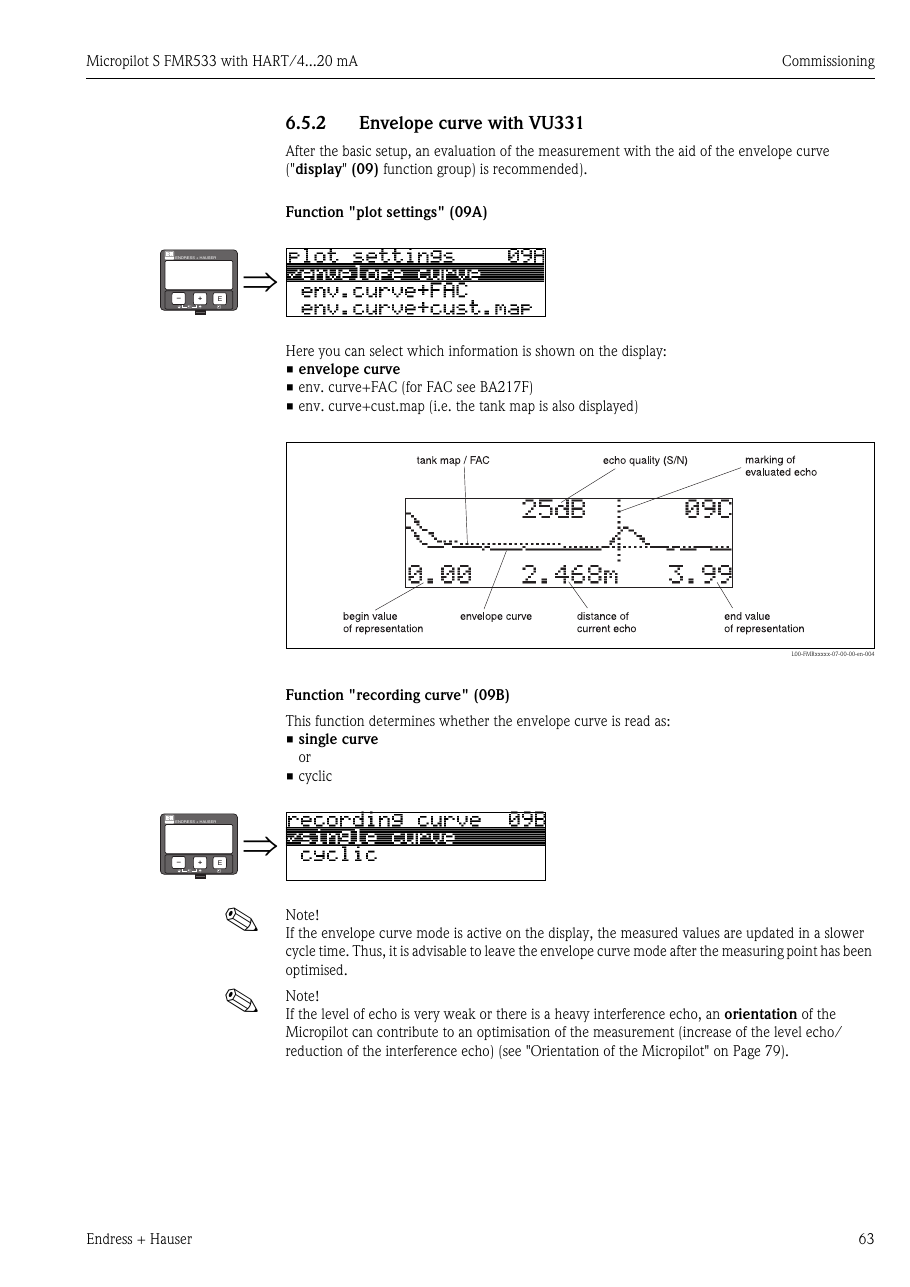

Endress+Hauser Micropilot S FMR533 – Drawing (399e78054774_S32-98 S. 32)
Drawing · 399e78054774_S32-98 · S. 32

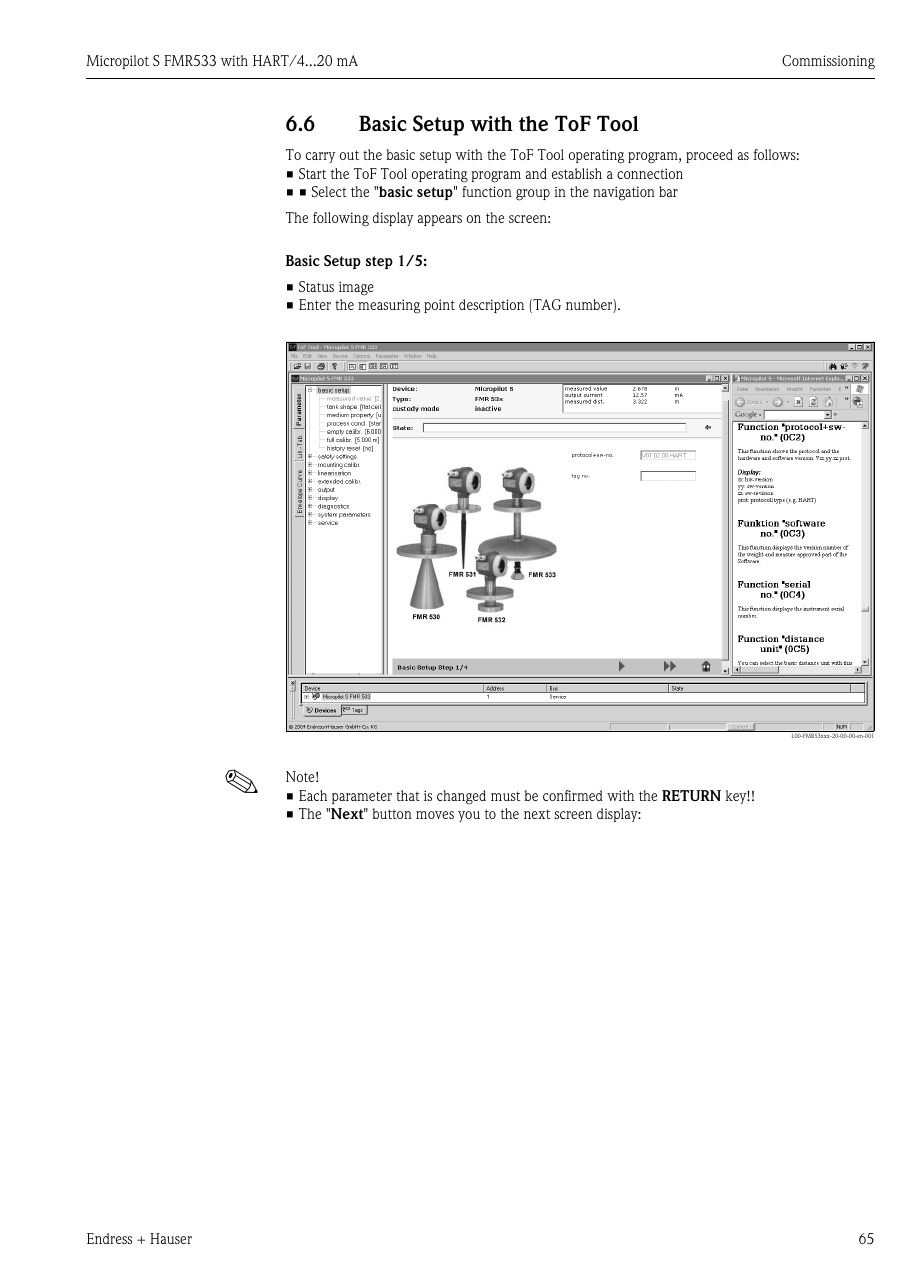

Endress+Hauser Micropilot S FMR533 – Drawing (399e78054774_S32-98 S. 33)
Drawing · 399e78054774_S32-98 · S. 33

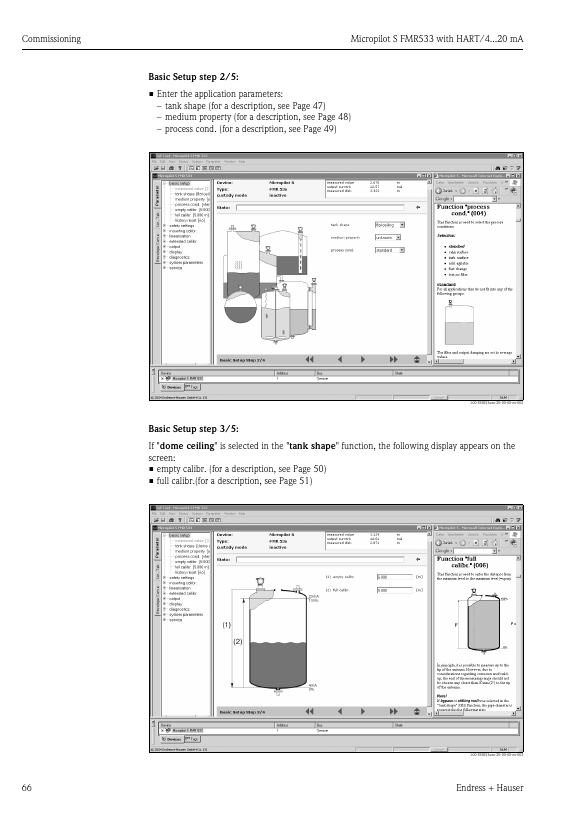

Endress+Hauser Micropilot S FMR533 – Drawing (399e78054774_S32-98 S. 34)
Drawing · 399e78054774_S32-98 · S. 34

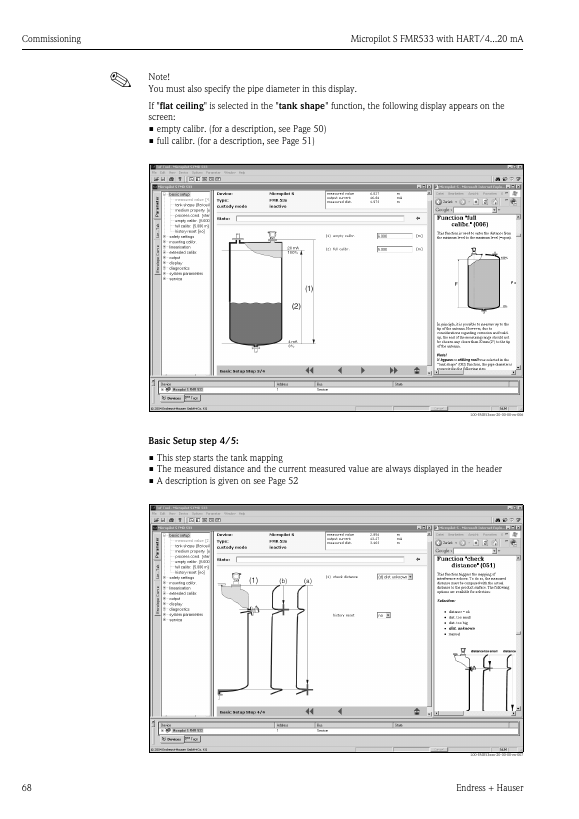

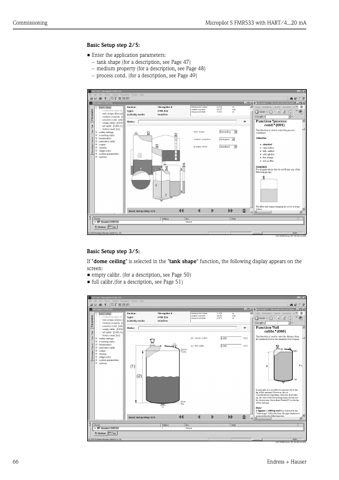

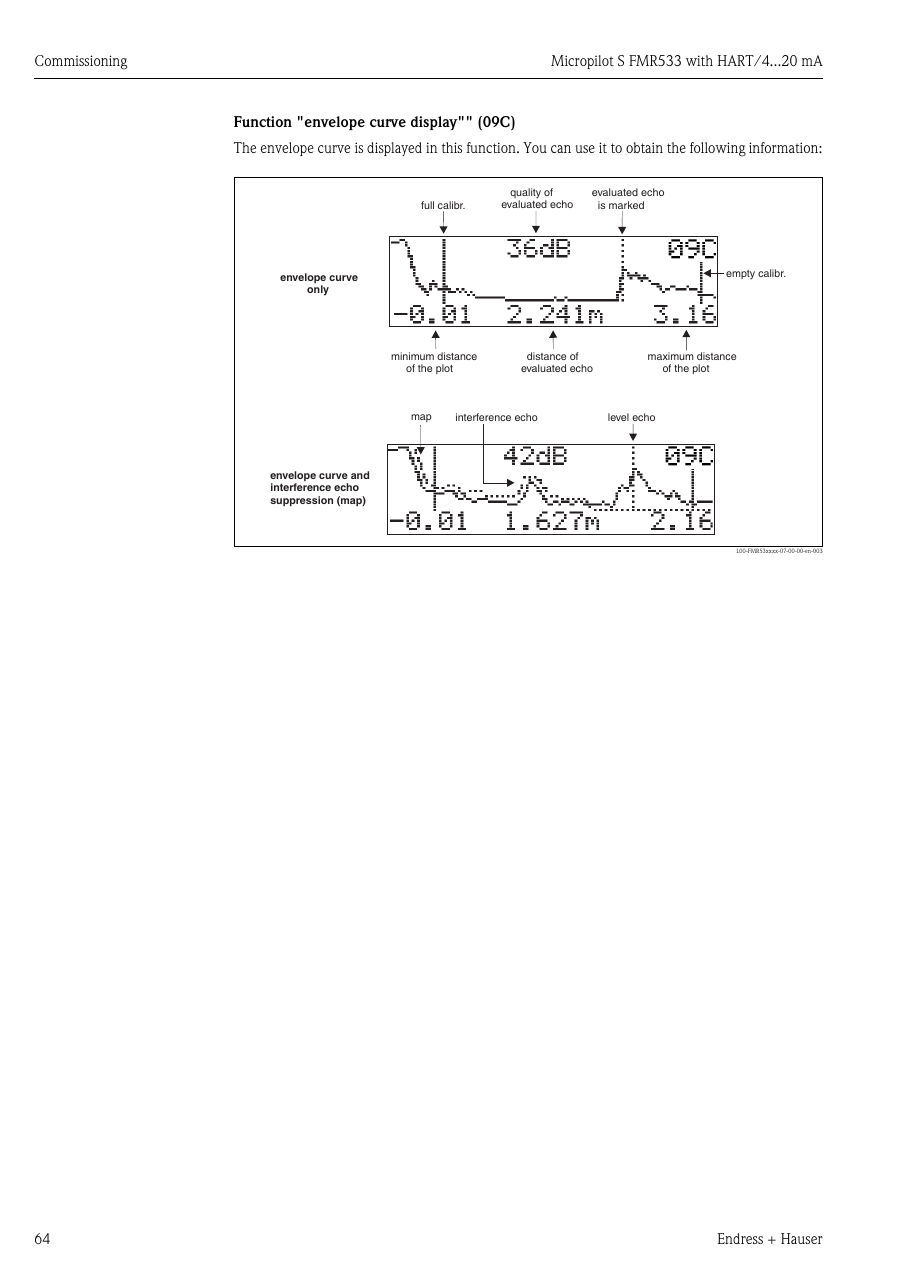

Endress+Hauser Micropilot S FMR533 – Page preview (399e78054774_S32-98 S. 35)
Page preview · 399e78054774_S32-98 · S. 35

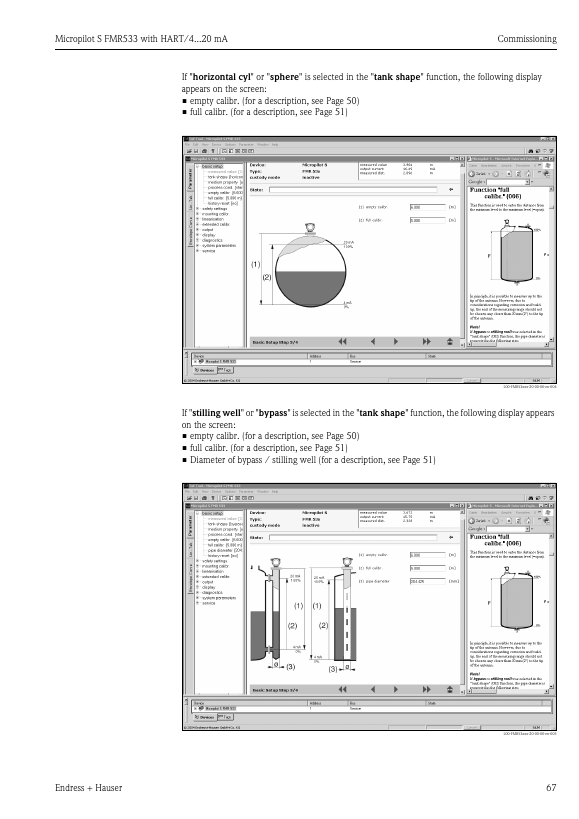

Endress+Hauser Micropilot S FMR533 – Page preview (399e78054774_S32-98 S. 36)
Page preview · 399e78054774_S32-98 · S. 36

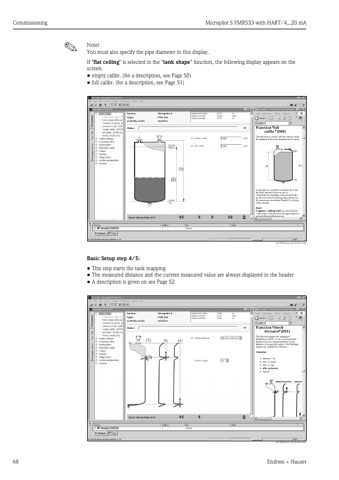

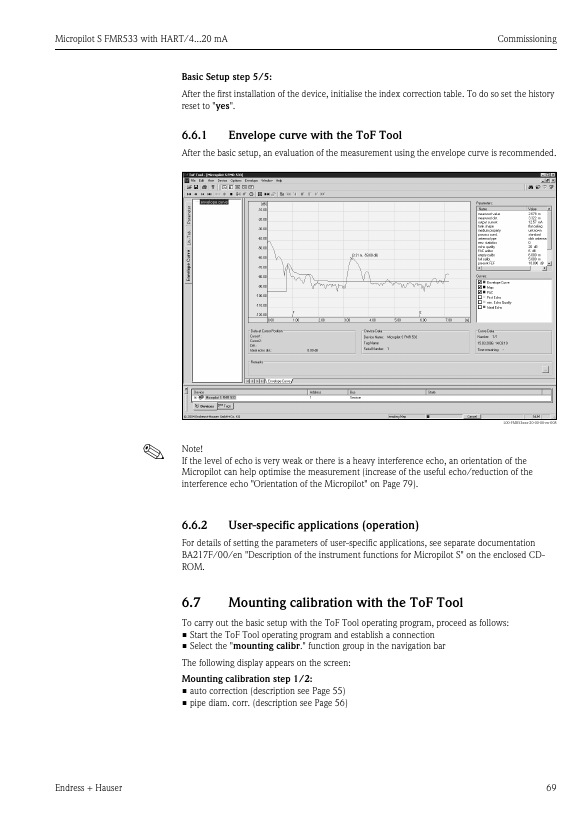

Endress+Hauser Micropilot S FMR533 – Page preview (399e78054774_S32-98 S. 37)
Page preview · 399e78054774_S32-98 · S. 37

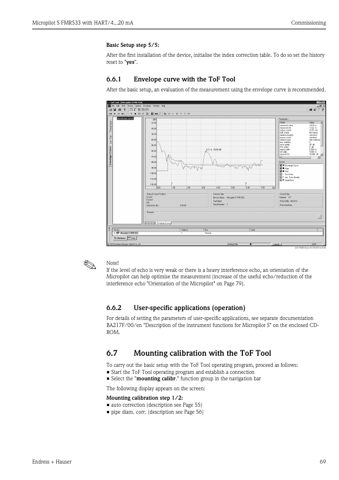

Endress+Hauser Micropilot S FMR533 – Page preview (399e78054774_S32-98 S. 38)
