Micropilot S FMR532

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

The Micropilot FMR532 is used for custody transfer and inventory control applications with NMi- and PTB-approvals. It meets the relevant requirements according to OIML R85 and API 3.1B. The FMR532 free space radar with planar antenna is specifically suited for stilling well applications. Micropilot FMR532 offers cost-effective and simple installation via 4-wire cable with HART and 24 V DC intrinsically safe power supply.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Blocking distance (BD)1 (3.3) m (ft)
Safety distance (SD)0.5 (1.6) m (ft)
A1000 (39,4) mm (in)
B0,5 (1,6) m (ft)
Blockdistanz1 (3,3) m (ft)
Sicherheitsdistanz0,5 (1,6) m (ft)
C150...300 mm (in)
Maximale Befüllgeschwindig-keitWährend des ersten Durchfahren des Füllstandbereiches: 100 mm/min, danach unbesc
Wiederholbarkeit0,3 mm
Hysterese0,3 mm
Auflösung• digital: 0,1 mm • analog: 0,03 % des Messbereich
EinschwingzeitTypisch 15 sec
Einfluss der Umgebungstem-peraturInnerhalb der spezifizierten Messabweichung nach OIML R85
SoftwarezuverlässigkeitOIML R85
Umgebungstemperatur• Standard: -40 °C ... +80 °C • Eichfähig: -25 °C
KlimaklasseDIN EN 60068-2-38 (Prüfung Z/AD)
Schutzart• Gehäuse: IP 65, NEMA 4X (offenes Gehäuse und herausgezogenes Display: IP20, NE
CertificationsOIML R85
Inactive length60 (2.36)
Bürde HARTMin. Bürde für HART-Kommunikation: 250 Ω
Kabeleinführung - KabelverschraubungM20x1,5 oder Pg13,5
Versorgungsspannung - Gleichspannung16…36 VDC
Versorgung - StandardU (20 mA) = 16 V
Versorgung - ExU (20 mA) = 16 V
Signal - U (4 mA)11,5 V
Signal - ExU (20 mA) = 11,5 V
LeistungsaufnahmeMax. 330 mW bei 16 V, max. 500 mW bei 24 V, max. 600 mW bei 30 V.
Stromaufnahme - maximal21 mA (50 mA Einschaltstrom).
SpeisungAls stand alone Version Speisung z.B. über den E+H RN 221 N empfohlen.
Max. Messbereich2 °C
Part numberFMR532
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot S FMR532 is a radar level gauge used for measuring liquid levels in tanks.

Applications

  • mineral oils
  • alcohols
Source: Endress+Hauser Micropilot S FMR532 datasheet, p. 84

Features

  • detects level accurately
  • adjustable safety distance

Options

  • extended antenna
  • additional safety distance

Standards

  • PTB
  • NMi
Source: Endress+Hauser Micropilot S FMR532 datasheet, p. 84

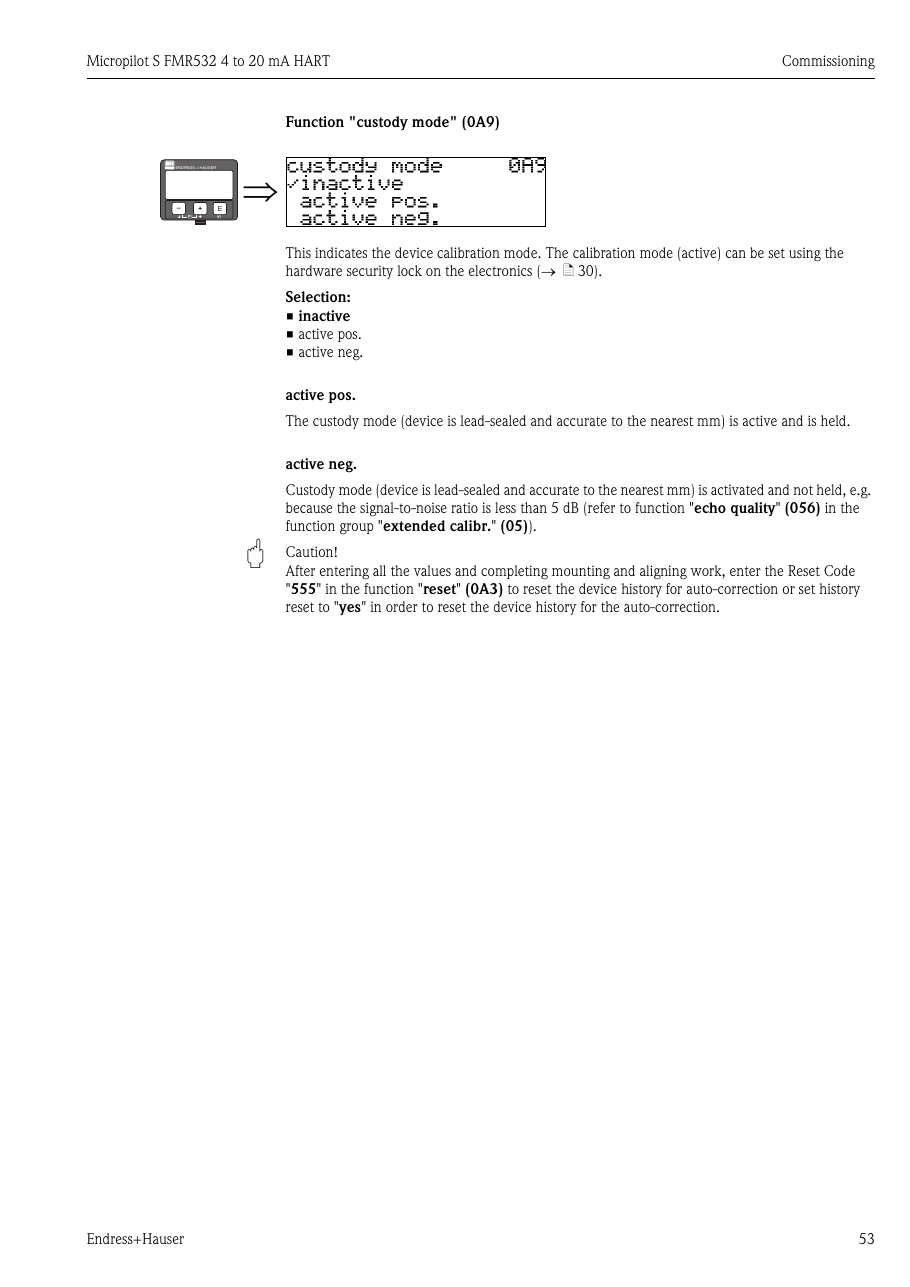

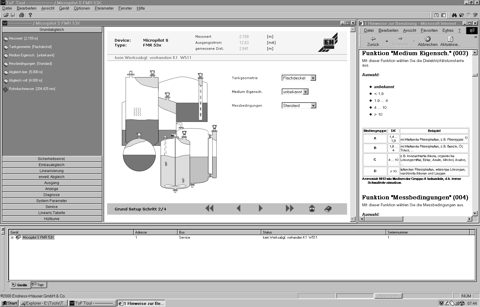

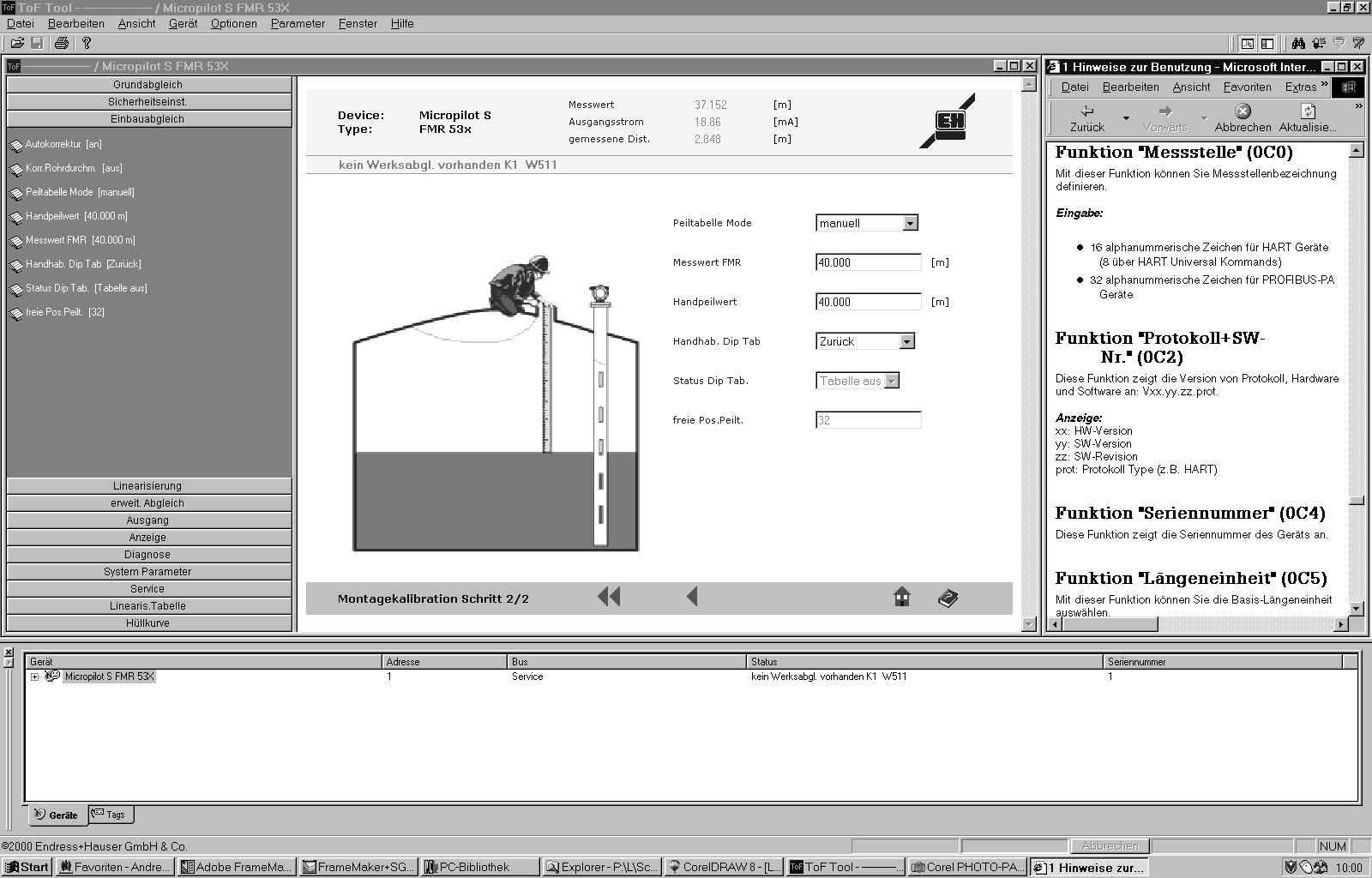

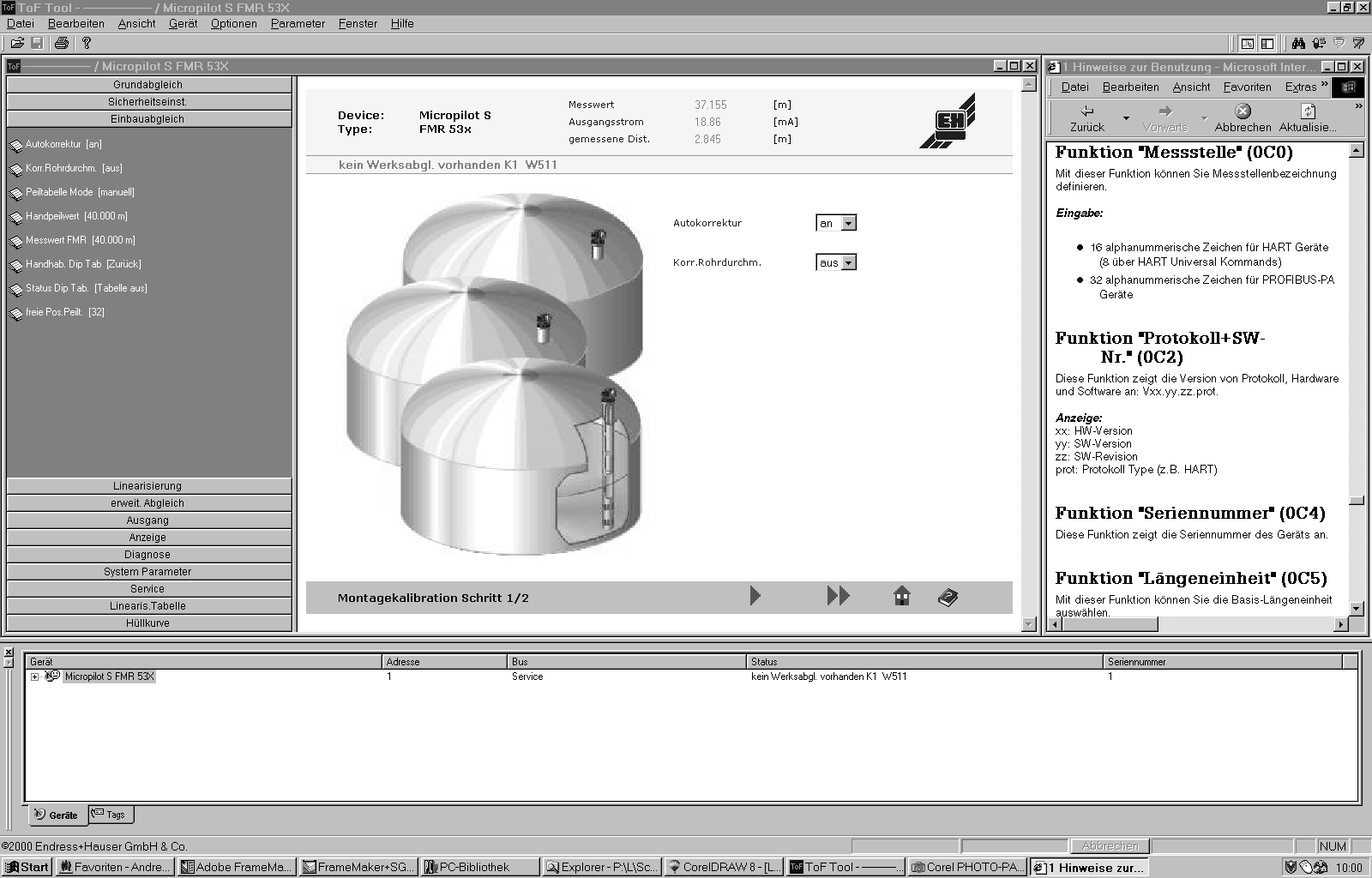

Endress+Hauser Micropilot S FMR532 – Photo (abd89a04cd88_S26-95 S. 38)
Photo · abd89a04cd88_S26-95 · S. 38

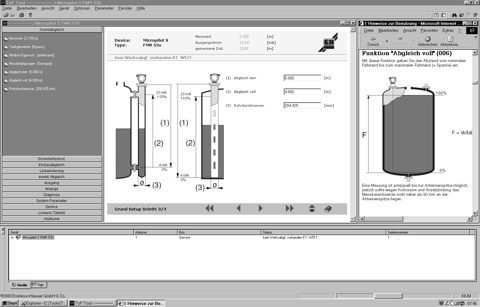

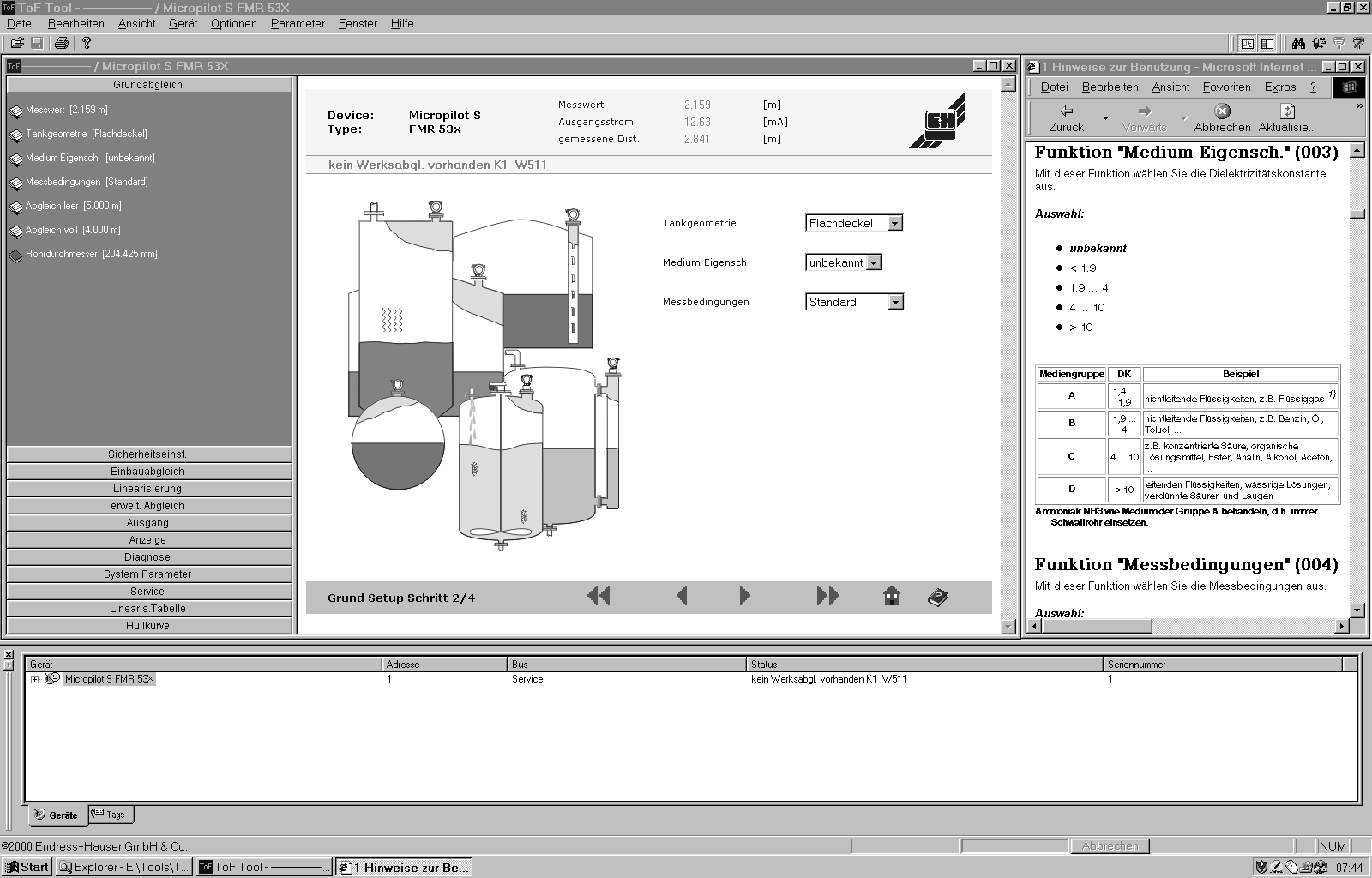

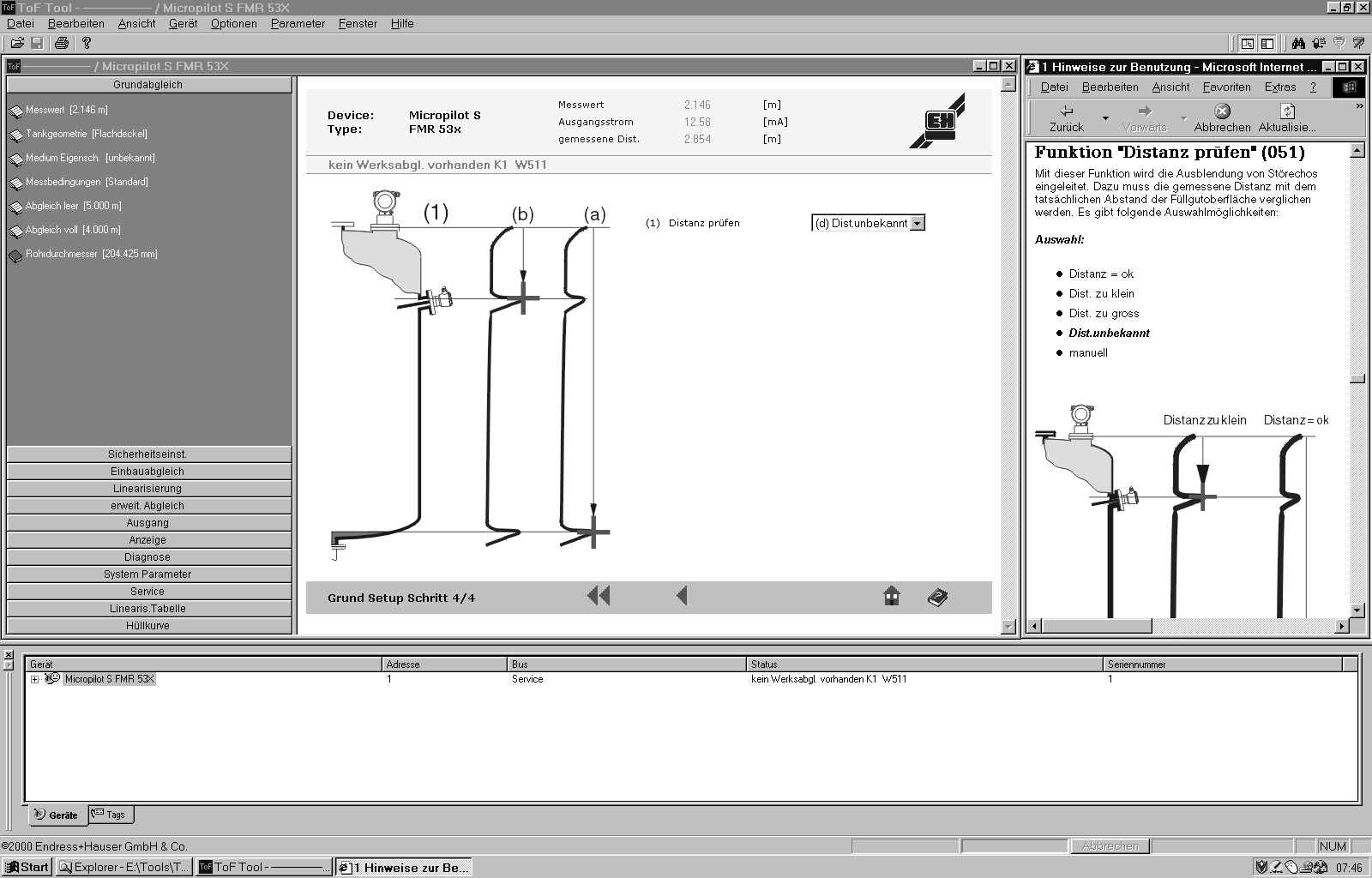

Endress+Hauser Micropilot S FMR532 – Photo (abd89a04cd88_S26-95 S. 39)
Photo · abd89a04cd88_S26-95 · S. 39

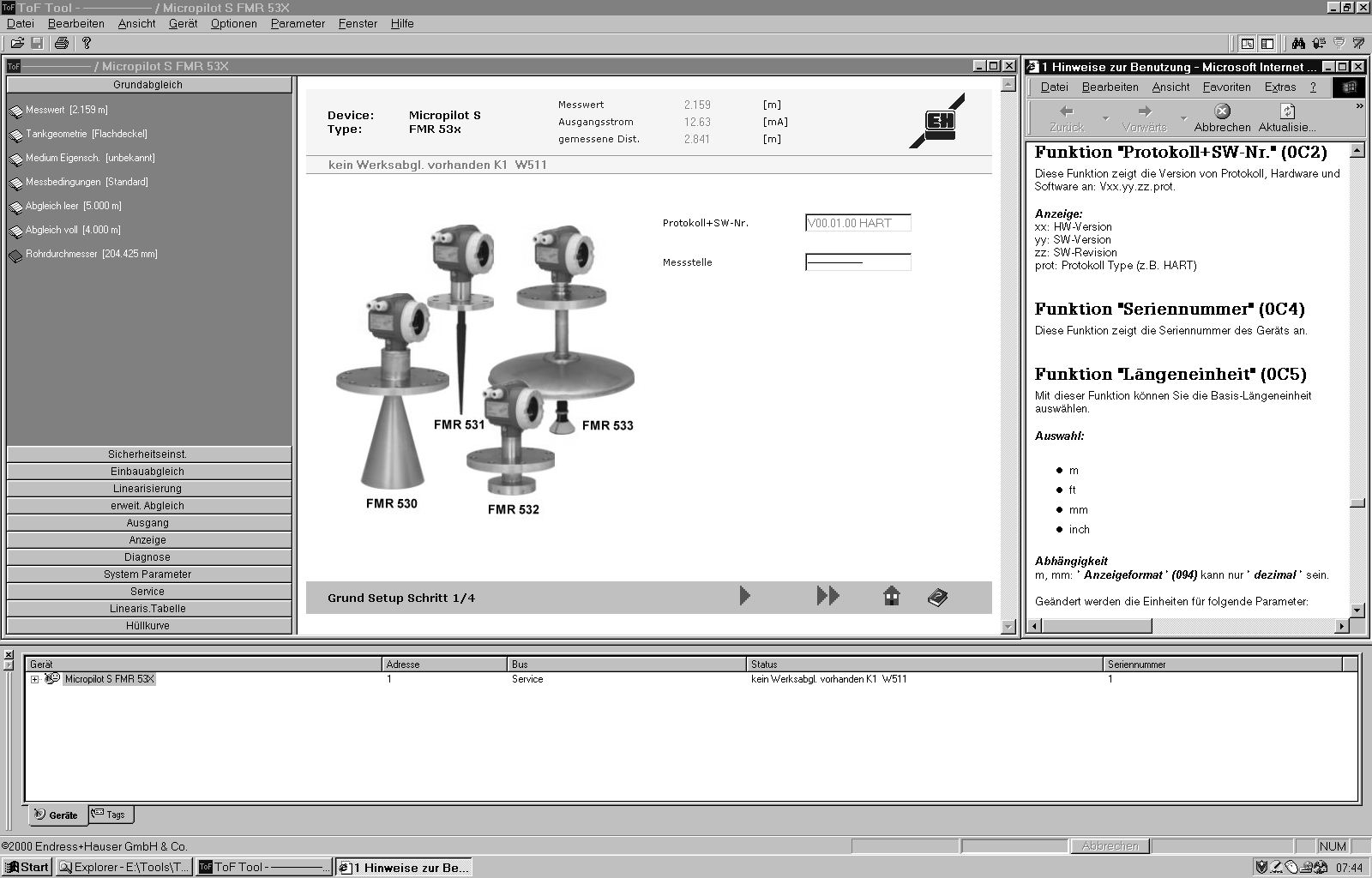

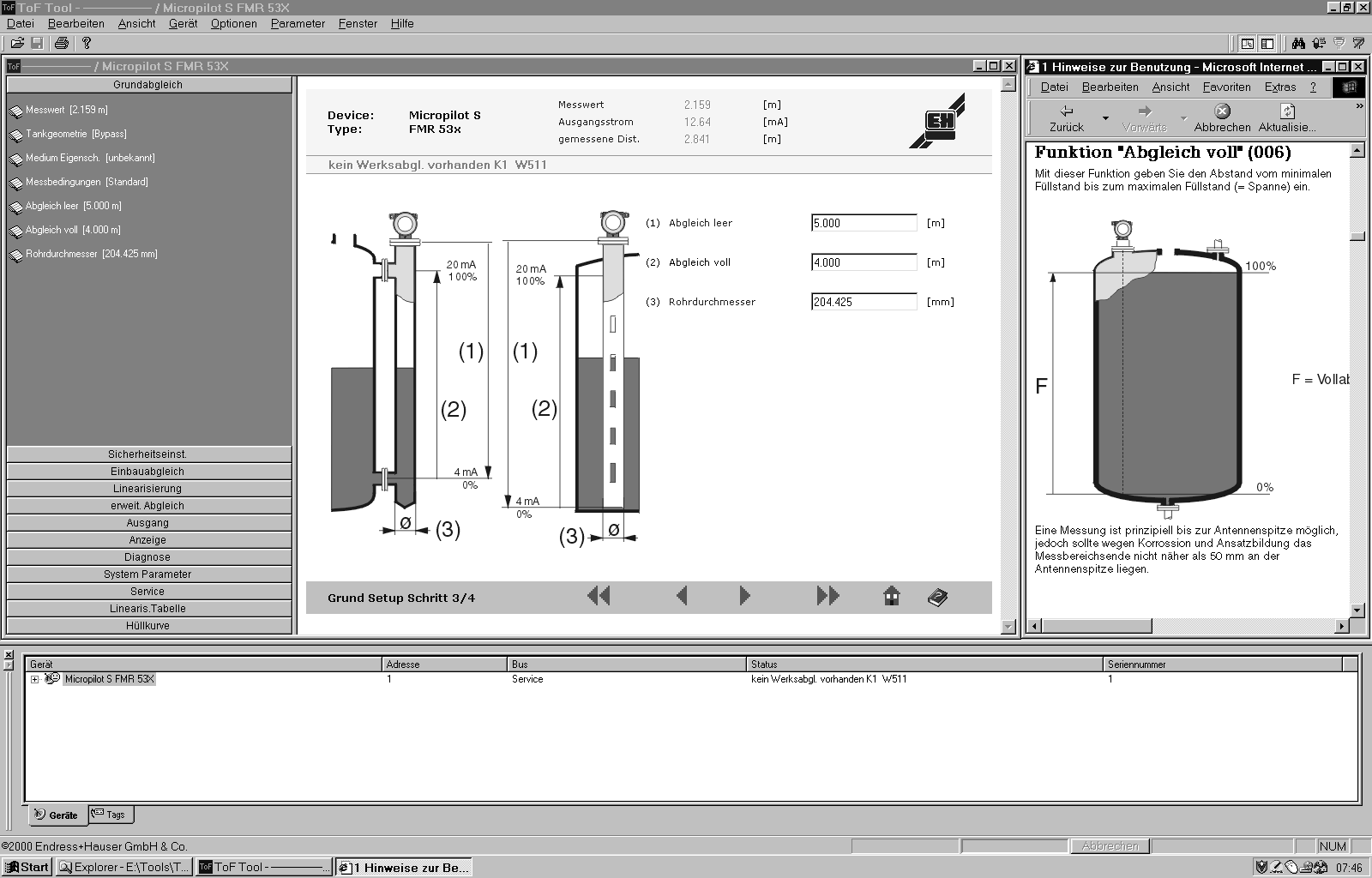

Endress+Hauser Micropilot S FMR532 – Photo (abd89a04cd88_S26-95 S. 39)
Photo · abd89a04cd88_S26-95 · S. 39

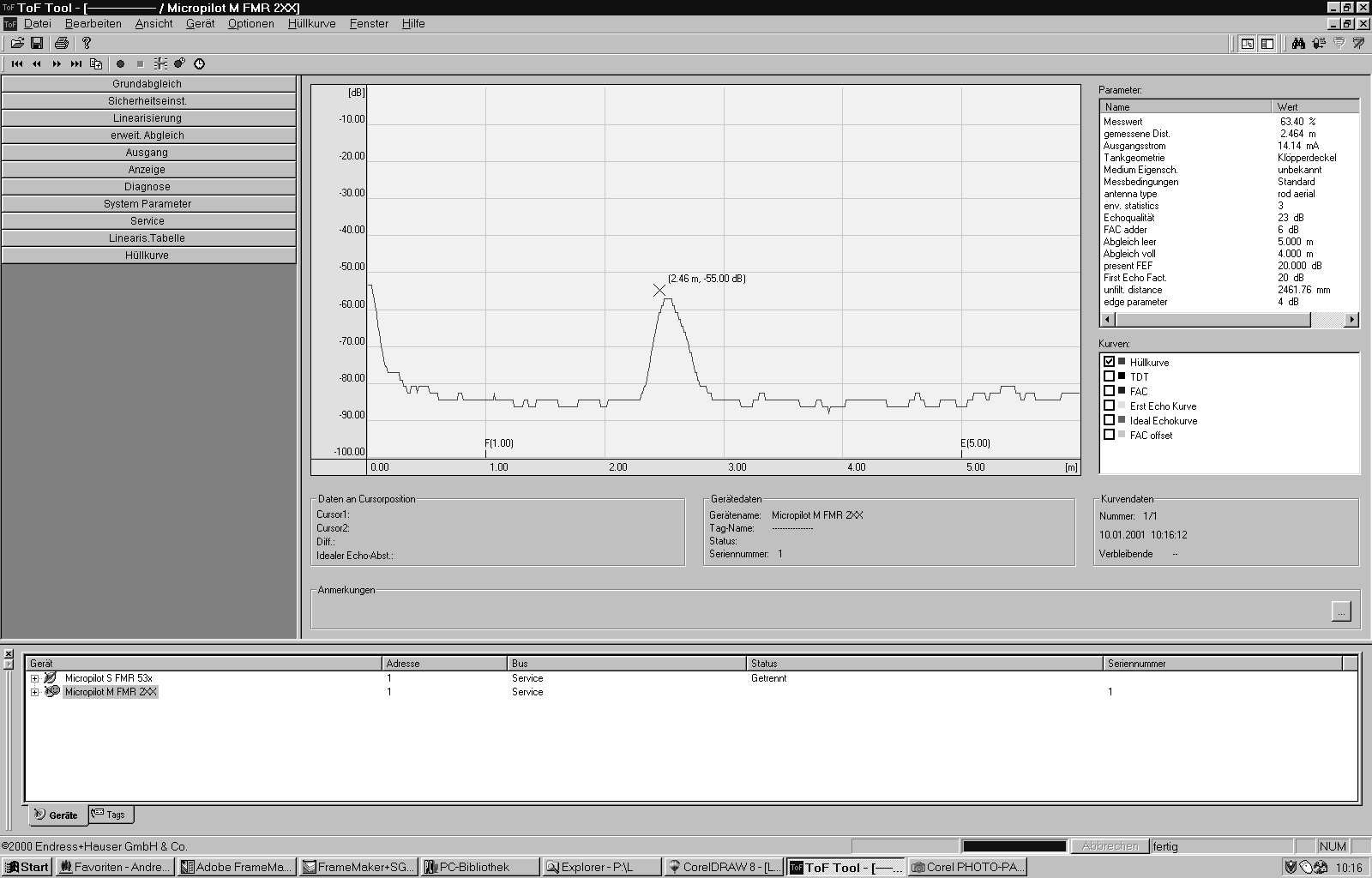

Endress+Hauser Micropilot S FMR532 – Photo (abd89a04cd88_S26-95 S. 40)
Photo · abd89a04cd88_S26-95 · S. 40
Endress+Hauser Micropilot S FMR532 – Photo (abd89a04cd88_S26-95 S. 41)
Photo · abd89a04cd88_S26-95 · S. 41

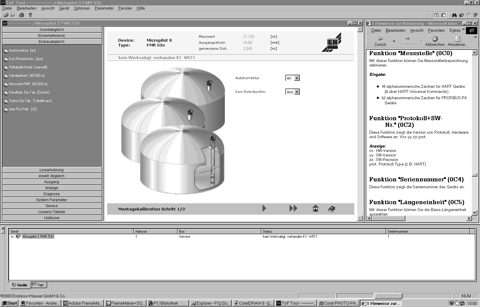

Endress+Hauser Micropilot S FMR532 – Photo (abd89a04cd88_S26-95 S. 42)
