Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot FMR30B
Endress+Hauser

Micropilot FMR30B

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗

The Micropilot FMR30B is made for continuous non-contact level measurement equipped with 80 GHz-technology. The installation and commissioning of the device is fast and easy due to its simple design and guiding wizards. Remote access via Bluetooth or on-site access via the color touch display ensures easy operation. With on-demand process verification and device diagnostics, thanks to Heartbeat Technology, downtime can be reduced. The compact device is ideal for narrow installation conditions.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Rated cross-section0.5 to 2.5 mm2 (20 to 13 AWG)
Cable outer diameter⌀5 to 10 mm (0.2 to 0.38 in)
Overvoltage protection1 000 V wire to ground
Power supply12 to 30 V
Minimum alarm current< 3.6 mA
Maximum alarm current21.5 to 23 mA
Minimum start-up voltage12 V
Start-up current< 3.6 mA
Starting time< 15 s
Minimum operating voltage12 V
Time to establish connection< 30 s
Ambient temperature range–40 to +80 °C
Temperaturbereich–40 … 45 °C (–40 … 113 °F)
Abmessungen Befestigungsmutter10 (0.39) mm
Abmessungen Adapter Uni65 mm
Weight6 kg (13,23 lb)
Material316L (1.4404)
Gewicht Wandhalter1,2 kg (2,65 lb)
Material Wandhalter316L (1.4404)
Ausleger1 000 mm schwenkbar
Abmessungen Wandhalter3.2 (0.1) 180 (7.1) 4 (0.16) ø33.7 (1.3) 6.5 (0.3) 213 (8.4) 110 (4.3) 150 (5.9) mm (in)
Part numberFMR30B
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR30B is a free-space radar level transmitter used for measuring liquid and solid levels in tanks and silos.Source: Endress+Hauser Micropilot FMR30B datasheet, p. 1

Applications

  • process control

Features

  • HART communication
  • smart object

Options

  • FieldCare / DeviceCare software
  • SmartBlue app

Standards

  • IEC/DIN EN 61326-1
  • IEC/DIN EN 61000-4-5
  • IEC/DIN EN 61010-1
Source: Endress+Hauser Micropilot FMR30B datasheet, p. 19

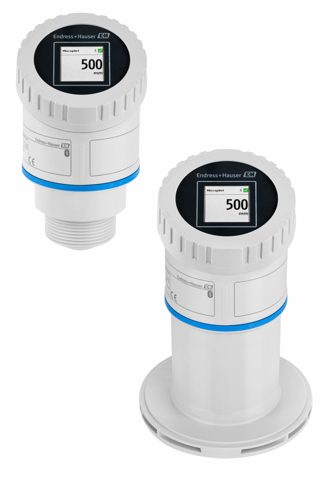

Endress+Hauser Micropilot FMR30B – Photo (8aa506ec2ffe_S1-19 S. 1)
Photo · 8aa506ec2ffe_S1-19 · S. 1

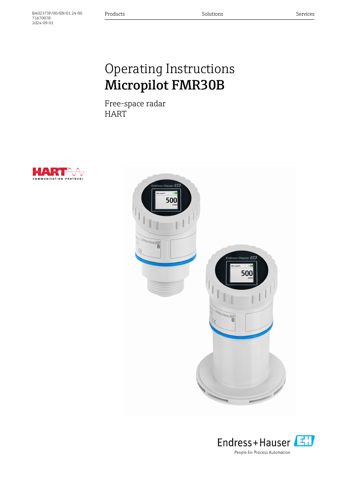

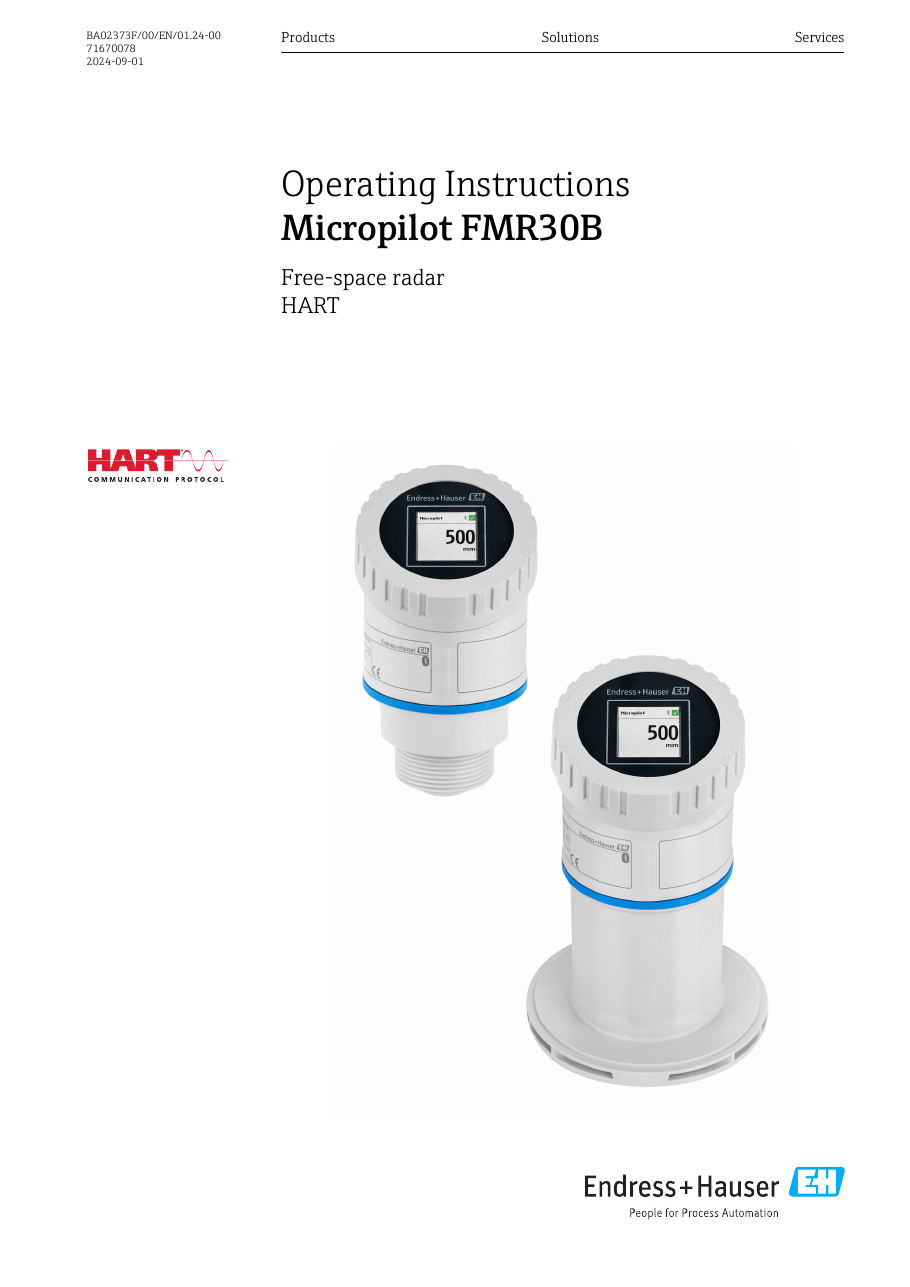

Endress+Hauser Micropilot FMR30B – Drawing (8aa506ec2ffe_S1-19 S. 1)
Drawing · 8aa506ec2ffe_S1-19 · S. 1

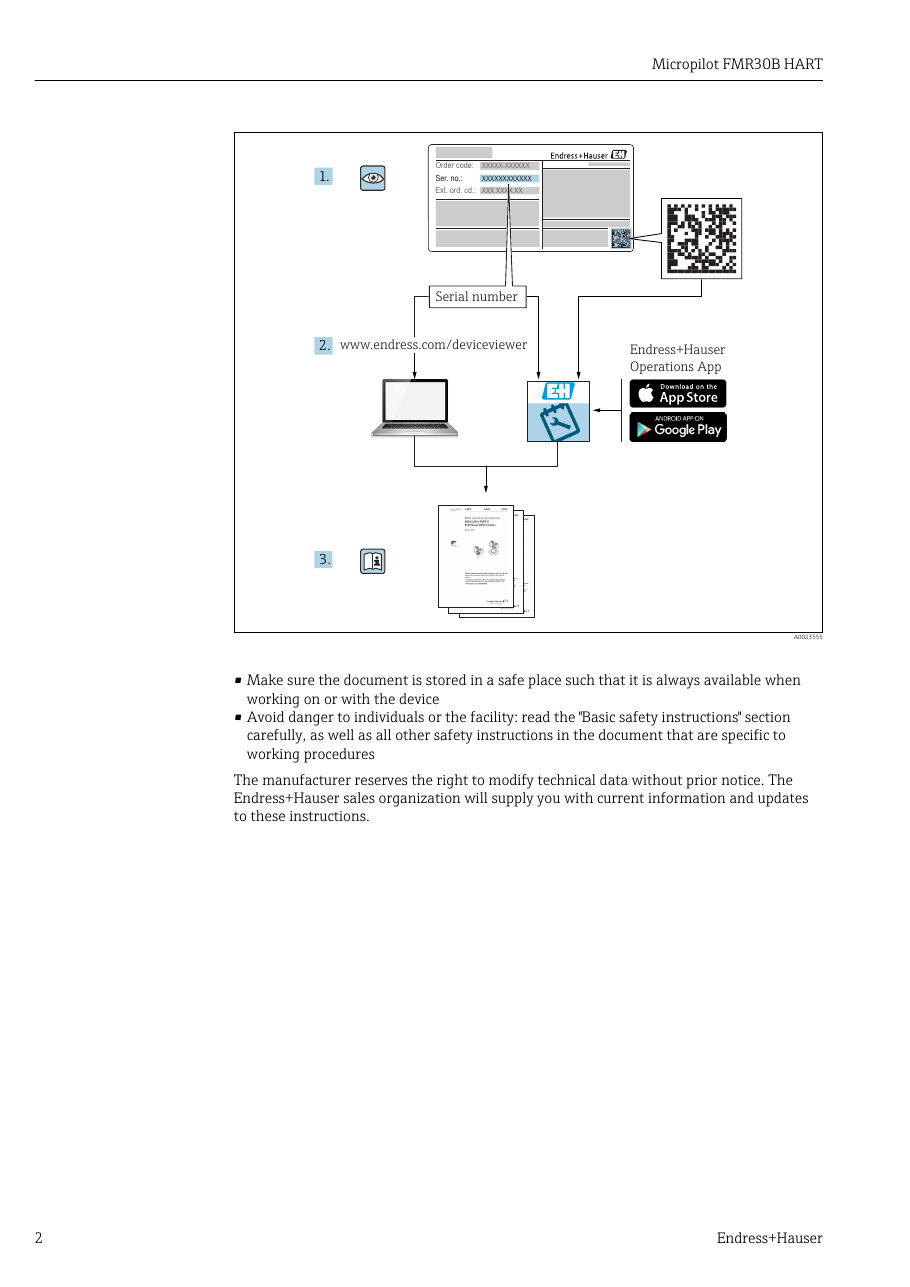

Endress+Hauser Micropilot FMR30B – Drawing (8aa506ec2ffe_S1-19 S. 2)
Drawing · 8aa506ec2ffe_S1-19 · S. 2

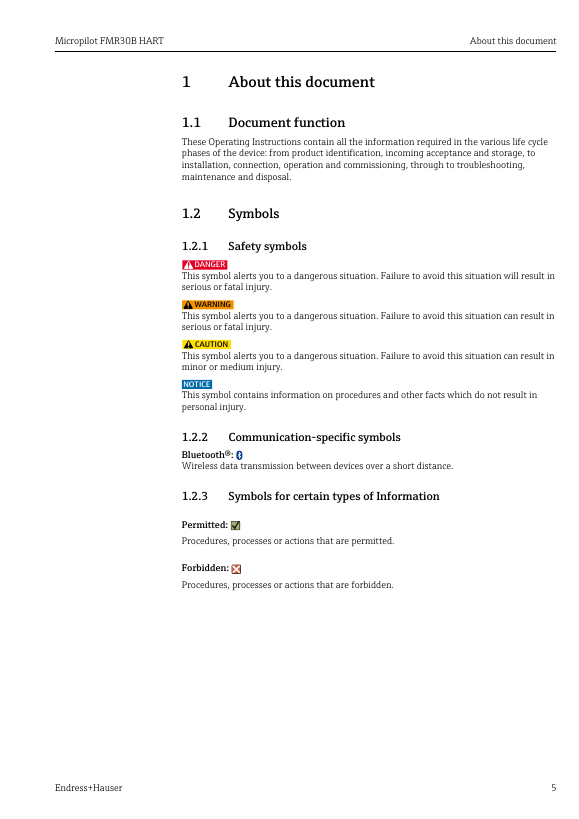

Endress+Hauser Micropilot FMR30B – Page preview (8aa506ec2ffe_S1-19 S. 5)
Page preview · 8aa506ec2ffe_S1-19 · S. 5

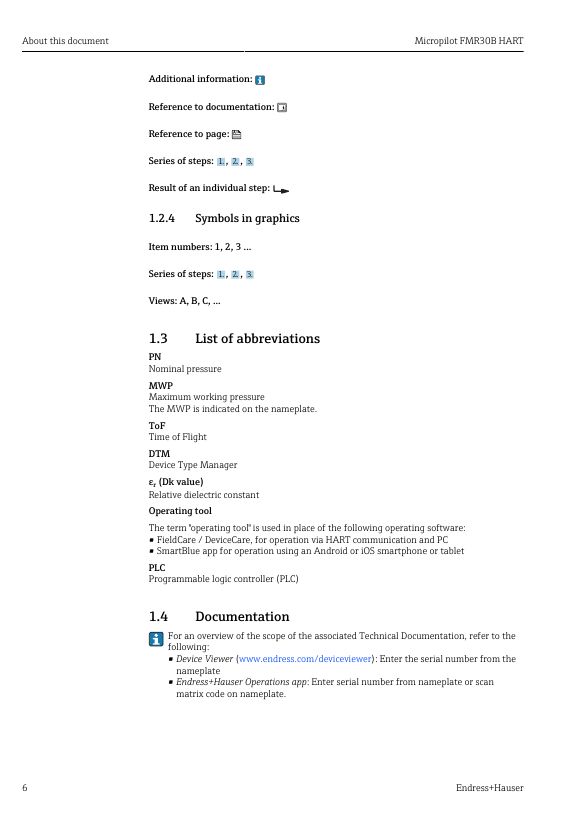

Endress+Hauser Micropilot FMR30B – Page preview (8aa506ec2ffe_S1-19 S. 6)
Page preview · 8aa506ec2ffe_S1-19 · S. 6

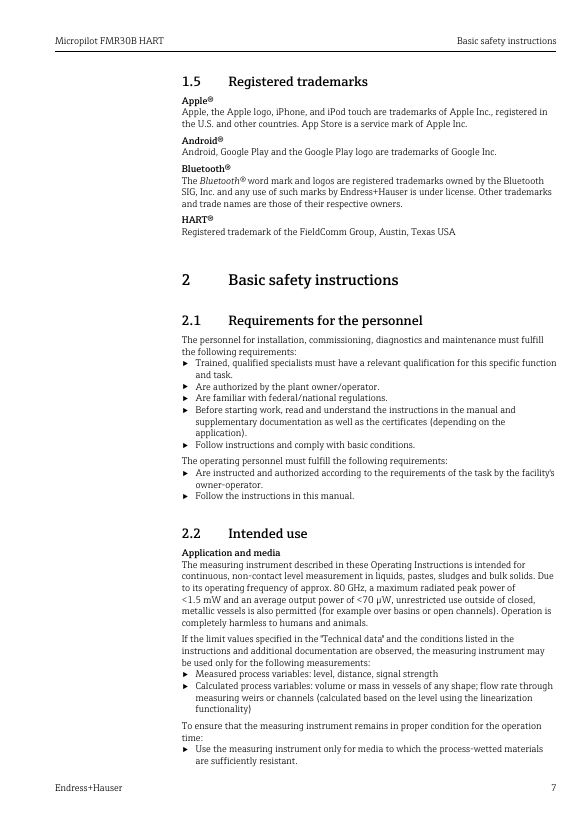

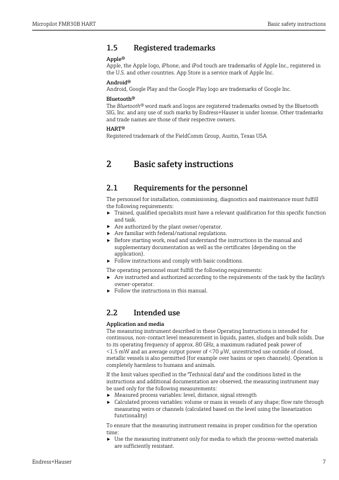

Endress+Hauser Micropilot FMR30B – Page preview (8aa506ec2ffe_S1-19 S. 7)
Page preview · 8aa506ec2ffe_S1-19 · S. 7
Source: Endress+Hauser Micropilot FMR30B datasheet, p. 6
