Micropilot FMR20B

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified

The Micropilot FMR20B offers continuous non-contact level measurement with 80 GHz technology. Guiding wizards enable easy handling for installation, commissioning and operation. Efficiency through reduced downtime can be realized with on-demand process verification and device diagnostics, thanks to Heartbeat Technology. The compact design of the device also allows use in narrow installation conditions.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Degree of protectionIP66/68 / NEMA Type 4X/6P
Maximum measuring rangeup to 30 m
Process temperature–40 to 80 °C
Process pressure–1 to 3 bar
AccuracyUp to ± 2 mm
Dimensions1 1/2 NPT 60.3 (2.37), 2 NPT 39.1 (1.56)
Communication and data processing4 to 20 mA with superimposed digital communication protocol HART, 2-wire
Maximum measurement error in near-range applications±2 mm (±0.08 in) mm (in)
Average TC±2 mm (±0.08 in)/10 K
Zero point (4 mA)0.02 %/10 K
Span (20 mA)0.05 %/10 K
Warm-up time≤ 30 s
Kabelzugkraft30 N (6,74 lbf)
Überspannungsschutz1 000 V Leitung gegen Erde
Umgebungstemperatur+21 … +33 °C (+70 … +91 °F)
Feuchte5 … 80 % rF ± 5 %
Umgebungsdruck860 … 1 060 mbar (12,47 … 15,37 psi)
Versorgungsspannung24 VDC ±3 VDC
Digital1 mm (0,04 in)
Maximale Messabweichung im Nahbereich20 (0.79) mm (in)
Referenzpunkt der Distanzmessung0.8 (2.6) m ("'
Mittlerer TK (Digitalausgang)±2 mm (±0,08 in) /10 K
Mittlerer TK (Analog)0,02 %/10 K
Aufwärmzeit≤ 30 s
Abmessungen Adapter Uni1 1/2 NPT 60.3 (2.37), 2 NPT 39.1 (1.56)
Abmessungen Überflutungsschutzhülse80 mm (3 in) mm (in)
Weight6 kg (13.23 lb)
Material316L (1.4404)
Dimensions of the wall bracket3.2 (0.1) mm (in)
Step response time< 1 s
Process connectionKabeleinführung G 1" / NPT 1"
Part numberFMR20B
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR20B is a free-space radar for continuous, non-contact level measurement of liquids and bulk solids.

Applications

  • Continuous level measurement
  • Bulk solids measurement
  • Liquids measurement
  • Hazardous areas

Features

  • LED indicator for status detection
  • Easy guided commissioning
  • Bluetooth wireless technology
  • HART communication
  • Wireless remote access
  • iOS/Android app for commissioning and maintenance
  • Flow measurement in open channels or weirs

Options

  • Weather protective cover
  • Accessories via Product Configurator
Source: Endress+Hauser Micropilot FMR20B datasheet, p. 36

Standards

  • ISO 9001:2015 Section 7.1.5.2
Source: Endress+Hauser Micropilot FMR20B datasheet, p. 36

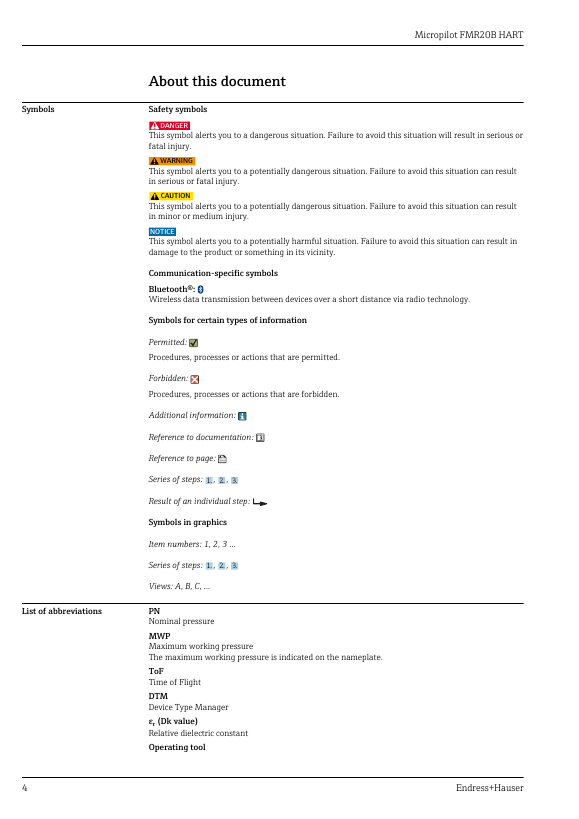

Endress+Hauser Micropilot FMR20B – Drawing (a3ef1cb14782_S1-39 S. 1)
Drawing · a3ef1cb14782_S1-39 · S. 1

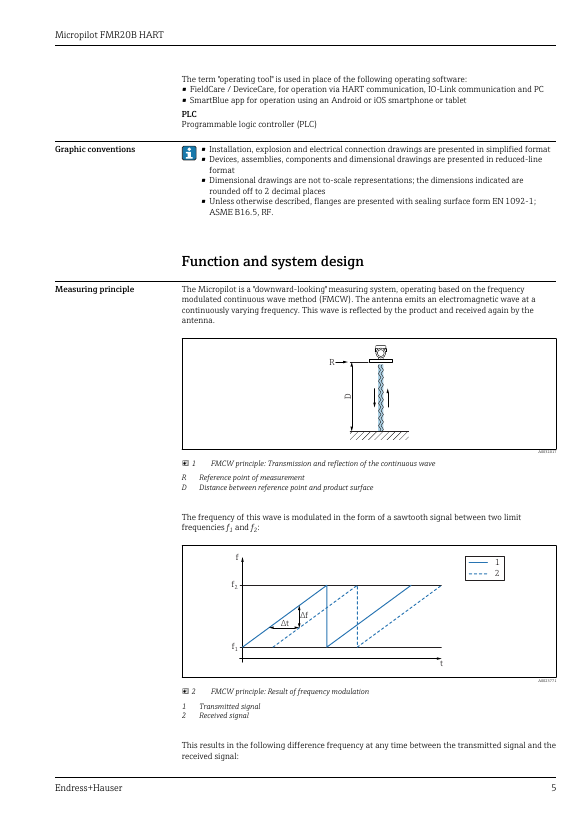

Endress+Hauser Micropilot FMR20B – Page preview (a3ef1cb14782_S1-39 S. 4)
Page preview · a3ef1cb14782_S1-39 · S. 4

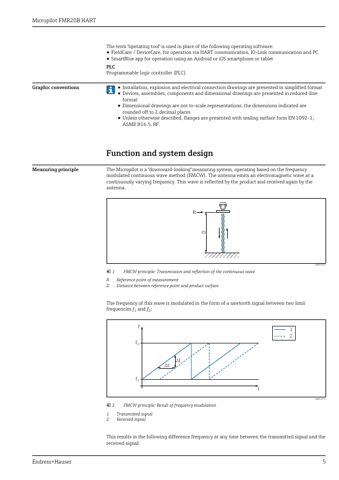

Endress+Hauser Micropilot FMR20B – Page preview (a3ef1cb14782_S1-39 S. 5)
Page preview · a3ef1cb14782_S1-39 · S. 5

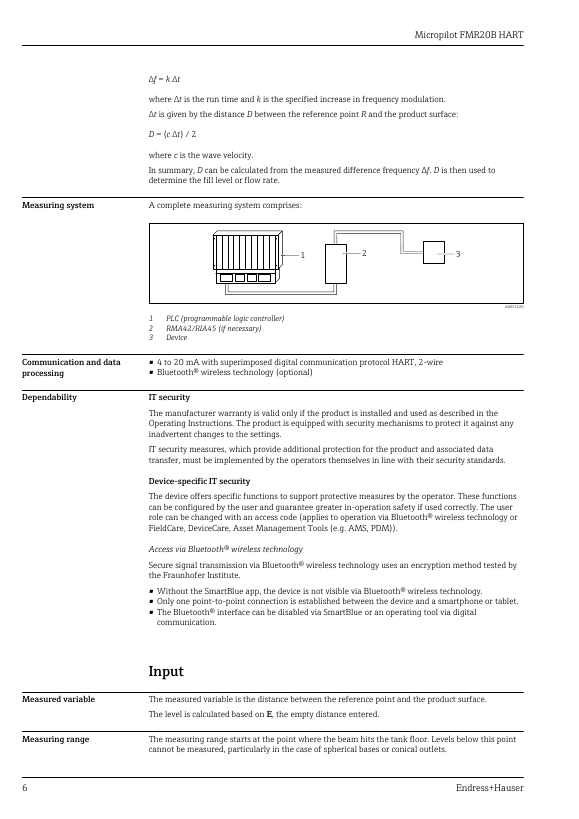

Endress+Hauser Micropilot FMR20B – Page preview (a3ef1cb14782_S1-39 S. 6)
Page preview · a3ef1cb14782_S1-39 · S. 6

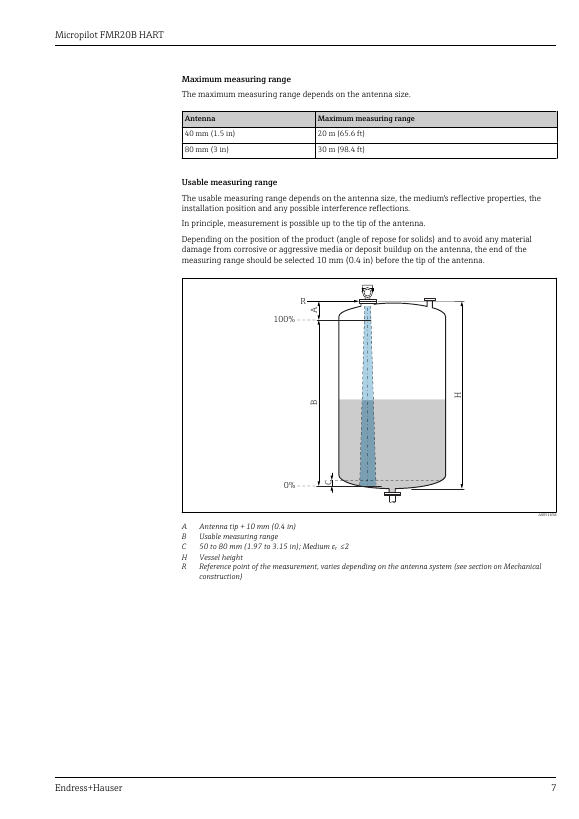

Endress+Hauser Micropilot FMR20B – Page preview (a3ef1cb14782_S1-39 S. 7)
Page preview · a3ef1cb14782_S1-39 · S. 7

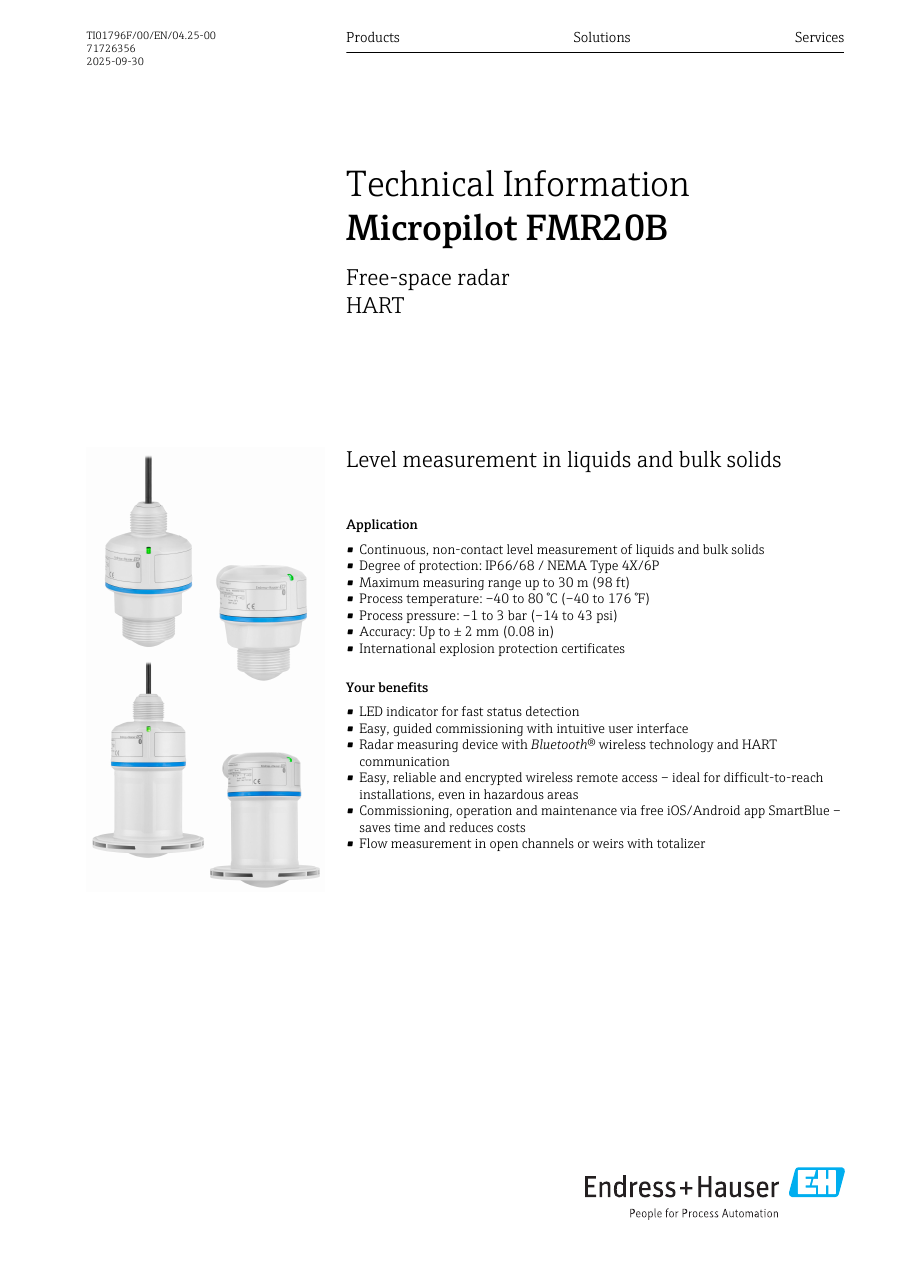

Source: Endress+Hauser Micropilot FMR20B datasheet, p. 1
