Library› Electrical› Electrical Components & Switchgear› Cable Gland› WISKA ESKV-P 16 BK
WISKA

ESKV-P 16 BK

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

ESKV-P 16 BK - Cable gland, plastic, M16, RAL 9005 - Cable entries - WISKA - Your expert for installation material, maritime lighting and CCTV

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Protection classIP68
Temp. range max100 °C
Glow wire test750 °C
Length screw-in thread L6 mm
Ø cable diameter min4,5 mm
Ø cable diameter max10 mm
Key width SW20 mm
Collar diameter (E)24 mm
Total length TL36 mm - 43 mm
Ø Drilling16 mm - 16,2 mm
Wall thickness S1 mm - 3 mm
MaterialPolyamide
Material sealing gasketon cable EPDM, on housing TPE
Temp. range min-40 °C
Temp. range max100 °C
Ø Connection thread D16
Length screw-in thread L6 mm
Ø cable diameter min4,5 mm
Ø cable diameter max10 mm
Collar diameter (E)24 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

A plastic cable gland with a connection thread of M16, suitable for cables with a diameter between 4.5mm and 10mm, designed for use in harsh environments with an IP68 protection rating.

Features

  • IP68 protection
  • temperature range -40°C to 100°C
  • polyamide material

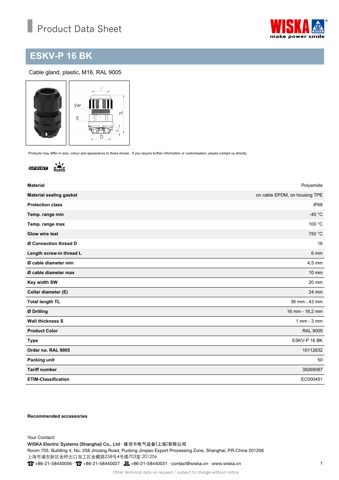

WISKA ESKV-P 16 BK – Drawing (fbd66e5eb522_S1-1 S. 1)
Drawing · fbd66e5eb522_S1-1 · S. 1
Source: WISKA ESKV-P 16 BK datasheet, p. 1
