Library› Electrical› Electrical Components & Switchgear› Cable Gland› WISKA ESKV 50 LG
WISKA

ESKV 50 LG

Cable Gland · Electrical Components & Switchgear

Class-certified type (DNV register) · technical data sheet not yet verified

ESKV 50 LG - Cable gland, polyamide, M50, RAL 7035 with short thread - Cable entries - WISKA

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Protection classIP69, IP68 (5 bar 30 min)
Temp. range max100 °C
Glow wire test750 °C
Lead1,5
Length screw-in thread L14 mm
Ø cable diameter min21 mm
Ø cable diameter max35 mm
Key width SW55 mm
Collar diameter (E)61 mm
Total length TL59 mm - 72 mm
Install. torques fitting30 N/m
Install. torques cap nut30 N/m
Material cable glandPolyamide
Material sealing gasketEPDM
Temp. range min-40 °C
Temp. range max100 °C
Thread typeM
Ø Connection thread D50
Length screw-in thread L14 mm
Ø cable diameter min21 mm
Ø cable diameter max35 mm
Collar diameter (E)61 mm
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The ESKV 50 LG is a cable gland made of polyamide with an EPDM sealing gasket, designed for use in harsh environments requiring high protection against water and dust.

Applications

  • outdoor equipment

Features

  • IP69 and IP68 protection
  • operating temperature range from -40°C to 100°C
  • M50 thread type
  • cable diameter range from 21mm to 35mm
  • impact category 5

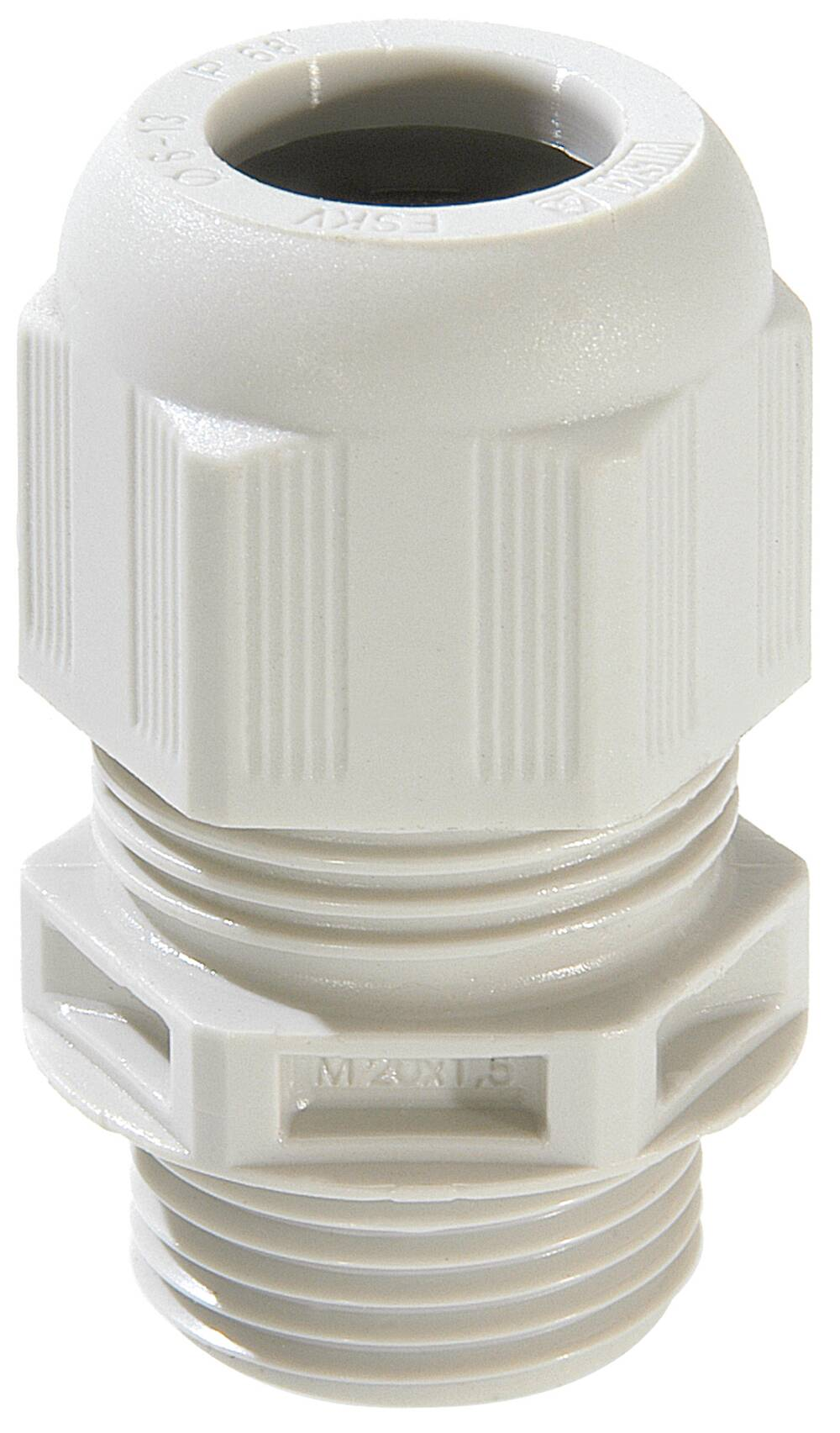

WISKA ESKV 50 LG – Photo (c09a6c3d2388_S1-1 S. 1)
Photo · c09a6c3d2388_S1-1 · S. 1

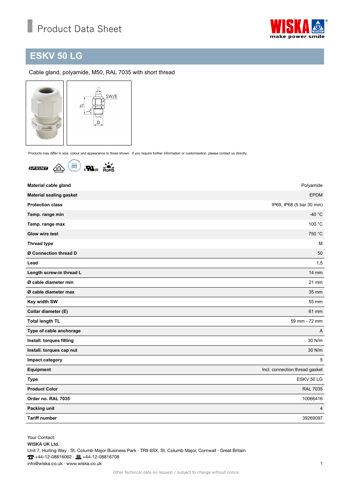

WISKA ESKV 50 LG – Drawing (c09a6c3d2388_S1-1 S. 1)
Drawing · c09a6c3d2388_S1-1 · S. 1
Source: WISKA ESKV 50 LG datasheet, p. 1
