Library› Electrical› Instrumentation & Gauges› Bourdon Tube Pressure Gauge› Nuova Fima MGS32 DN125
Nuova Fima

MGS32 DN125

Bourdon Tube Pressure Gauge · Instrumentation & Gauges

Class-certified type (DNV register) · technical data sheet not yet verified

MGS32 DN125 @de Bourdon tube "solid-front" pressure gauges for high pressures, turret case DS 4.5” (125 mm)

Specifications

Technical data.

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

AnwendungsbedingungHochdruck-Anwendungen
Genauigkeit1A nach ASME B40.1
MaterialEdelstahl und spezielles Material
Range0...30000bar/psi, 0...40000bar/psi, 0...60000bar/psi
SchutzartIP 65
Arbeitsdruck75% v.E.
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

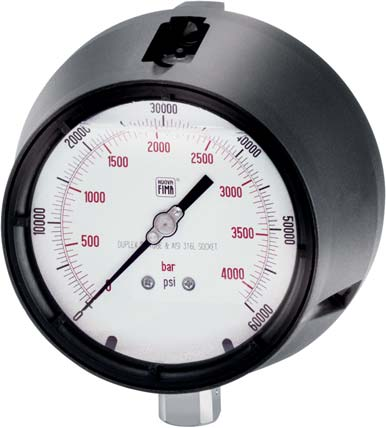

High-pressure solid-front pressure gauge designed for water jet applications and high-pressure environments, offering protection and accuracy.

Applications

  • water cutting machines
  • hydro-blasting pumps
  • turbines
  • hydro-demolition systems

Features

  • solid-front stainless steel safety cell
  • TIG welding for reinforcement
  • protection against condensation and corrosive environments

Options

  • panel mounting kit
  • suitable for silicon and Fluorolube filling
  • silicone filling
Source: Nuova Fima MGS32 DN125 datasheet, p. 2

Standards

  • ASME B40.1
  • IEC 529

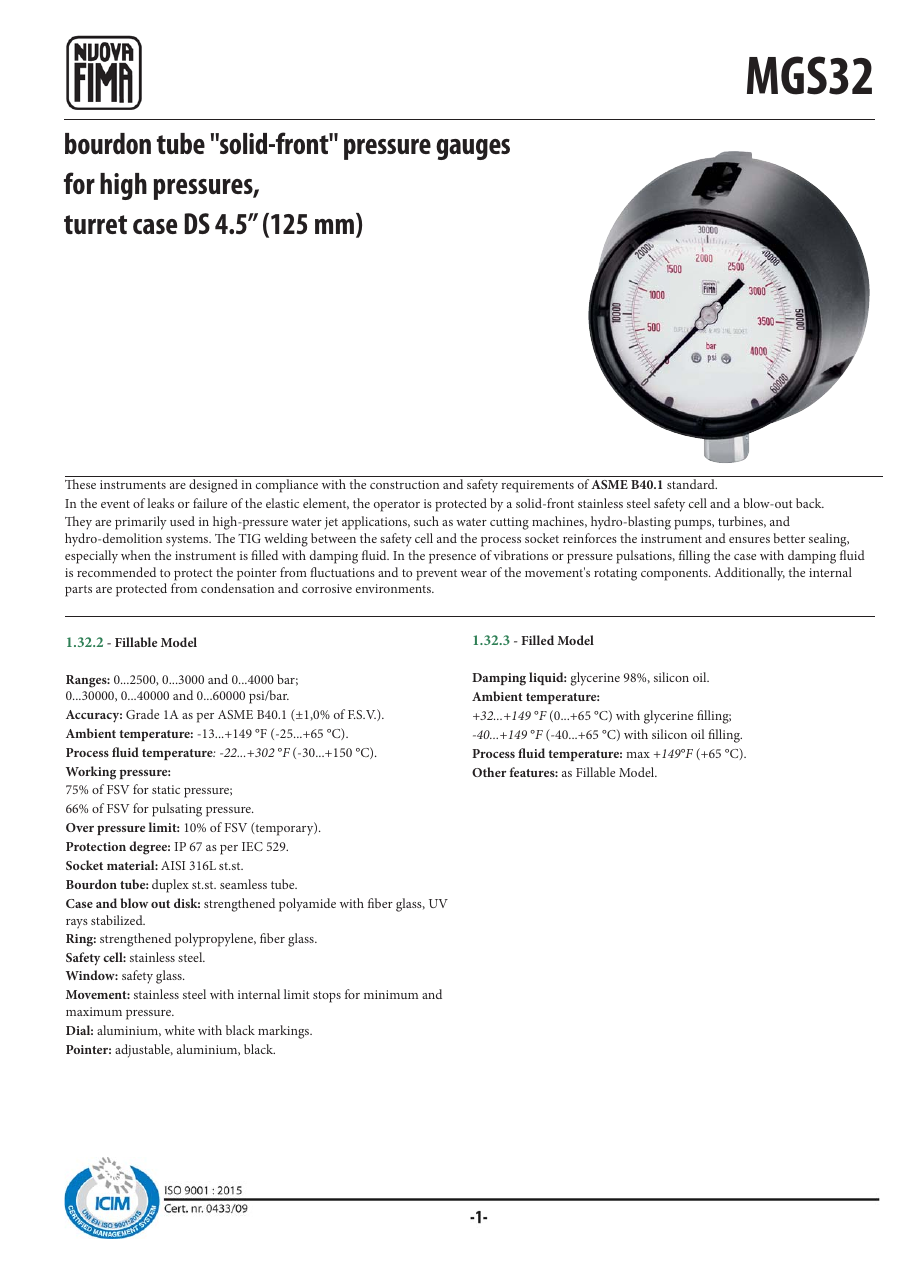

Nuova Fima MGS32 DN125 – Photo (557cbc12484b_S1-2 S. 1)
Photo · 557cbc12484b_S1-2 · S. 1

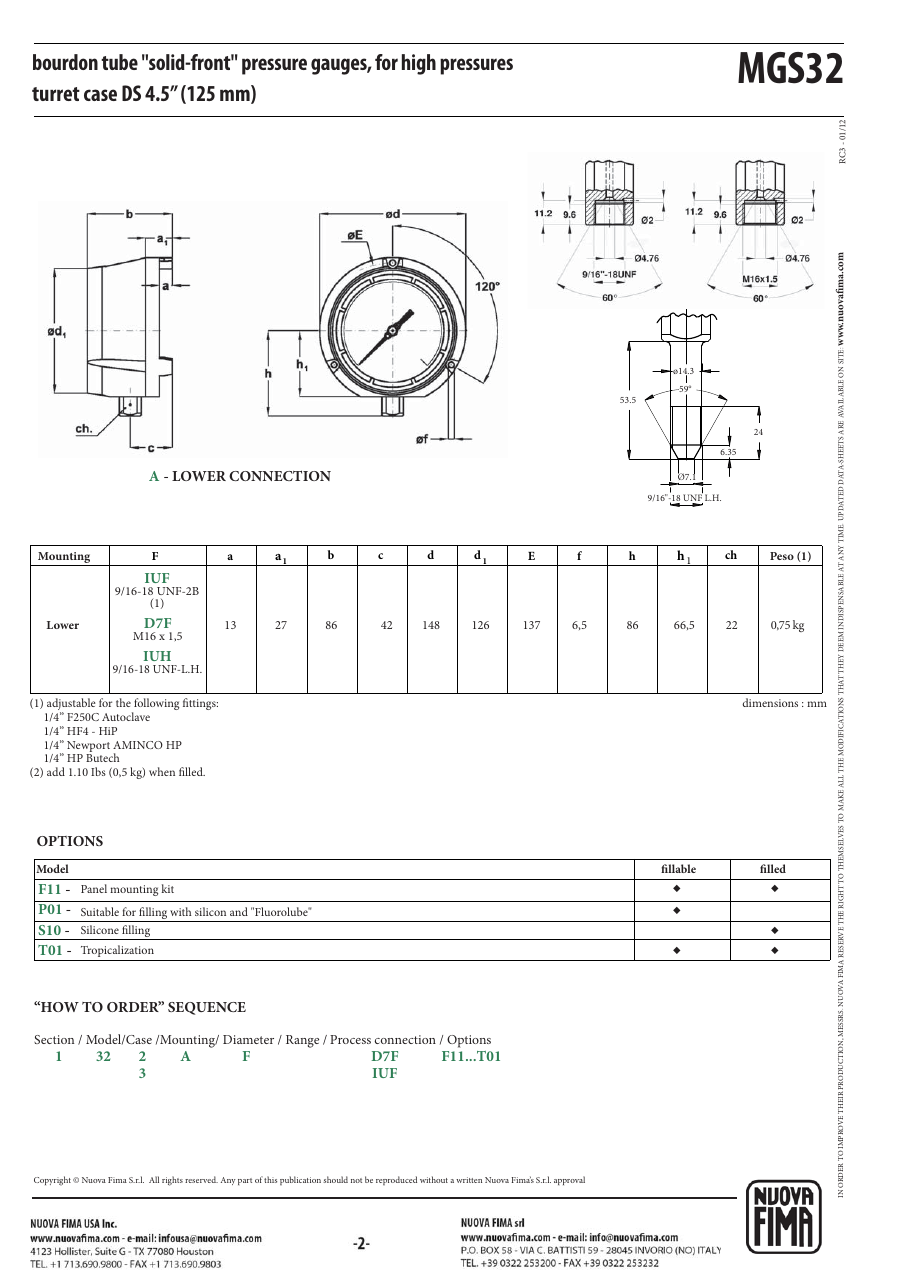

Nuova Fima MGS32 DN125 – Photo (557cbc12484b_S1-2 S. 2)
Photo · 557cbc12484b_S1-2 · S. 2
Nuova Fima MGS32 DN125 – Photo (557cbc12484b_S1-2 S. 2)
Photo · 557cbc12484b_S1-2 · S. 2

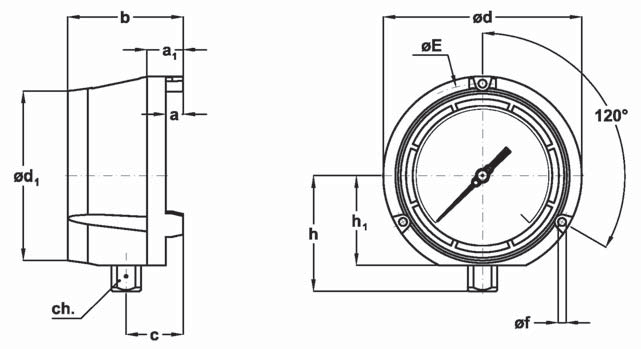

Nuova Fima MGS32 DN125 – Drawing (557cbc12484b_S1-2 S. 1)
Drawing · 557cbc12484b_S1-2 · S. 1

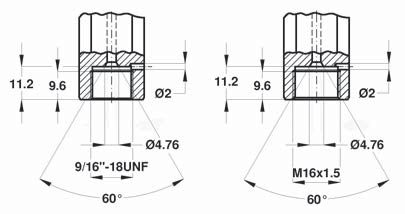

Nuova Fima MGS32 DN125 – Drawing (557cbc12484b_S1-2 S. 2)
Drawing · 557cbc12484b_S1-2 · S. 2
Source: Nuova Fima MGS32 DN125 datasheet, p. 1
