Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot FMR66B
Endress+Hauser

Micropilot FMR66B

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗

The Micropilot FMR66B belongs to the new generation of 80 GHz radar sensors. It is suitable for continuous, non-contact level measurement in simple solid applications. Wizards guide through commissioning, retesting and verification of the instrument and guarantee easy handling. The small beam angle is perfect for measurements in narrow silos. Heartbeat Technology detects unwanted anomalies, such as buildup, for increased productivity.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum measuring range50 m
Temperature–20 to +200 °C
Load4 to 20 mA HART
Protocol-specific data Manufacturer ID17 (0x11 hex)
Device type ID0x11C1
Degree of protectionIP68 / NEMA 6P, IP66 / NEMA 4x
Ambient temperature–40 to +80 °C (–40 to +176 °F), Option: –50 to +80 °C (–58 to +176 °F)
Beliebige andere Linearisierungstabellenaus bis zu 32 Wertepaaren
Digital Input168 Ansatz am Sensor, 952 Schaumbildung erkannt
Antenne gekapselt, PVDF40 mm (1,57 in)
Maximale Stutzenlänge Hmax600 mm (24 in)
Maximaler Messbereich50 m
Temperatur–40 … +130 °C
Druck–1 … +16 bar
Hersteller-id17 (0x11)
Ident number0x1568 oder 0x9700
Profil-version3.02
Device profileApplication interface identifier 0xB321 Generic device
Manufacturer ID0x11
Ambient temperature rangeThe following values apply up to a process temperature of +85 °C (+185 °F). At h
CertificationsSIL2 nach IEC 61508, SIL3 bei homogener Redundanz
01.00.zz (Gerätefirmware)2024-12-04
SchutzartIP68 / NEMA 6P, IP66 / NEMA 4x
Außendurchmesser6 … 10 mm (0,24 … 0,4 in)
Umgebungstemperatur–40 … +80 °C (–40 … +176 °F), Option: –50 … +80 °C (–58 … +176 °F)
Spannungsversorgung10,5 … 30 VDC Ex i
Minimalen Kommunikationswiderstand250 Ω
Temperatura-40 ... +200 °C (-40 ... +392 °F)
Pressionefino a +3 bar (fino a +43,5 psi)
Campo di misurafino a 50 m (164 ft)
Genauigkeit±3 mm
Part numberFMR66B
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR66B is a free space radar for continuous, non-contact level measurement of powdered to granular bulk solids.

Applications

  • Powdered to granular bulk solids
  • Process connections: Thread or mounting bracket

Features

  • PVDF or PTFE Drip-off antenna
  • Reliable measurement with good signal focusing
  • Easy guided commissioning with intuitive user interface
  • SIL2 as per IEC 61508, SIL3 for homogeneous redundancy

Options

  • remote display FHX50B
  • connecting cable up to 30 m (98 ft)
Source: Endress+Hauser Micropilot FMR66B datasheet, p. 49

Standards

  • IEC 61508

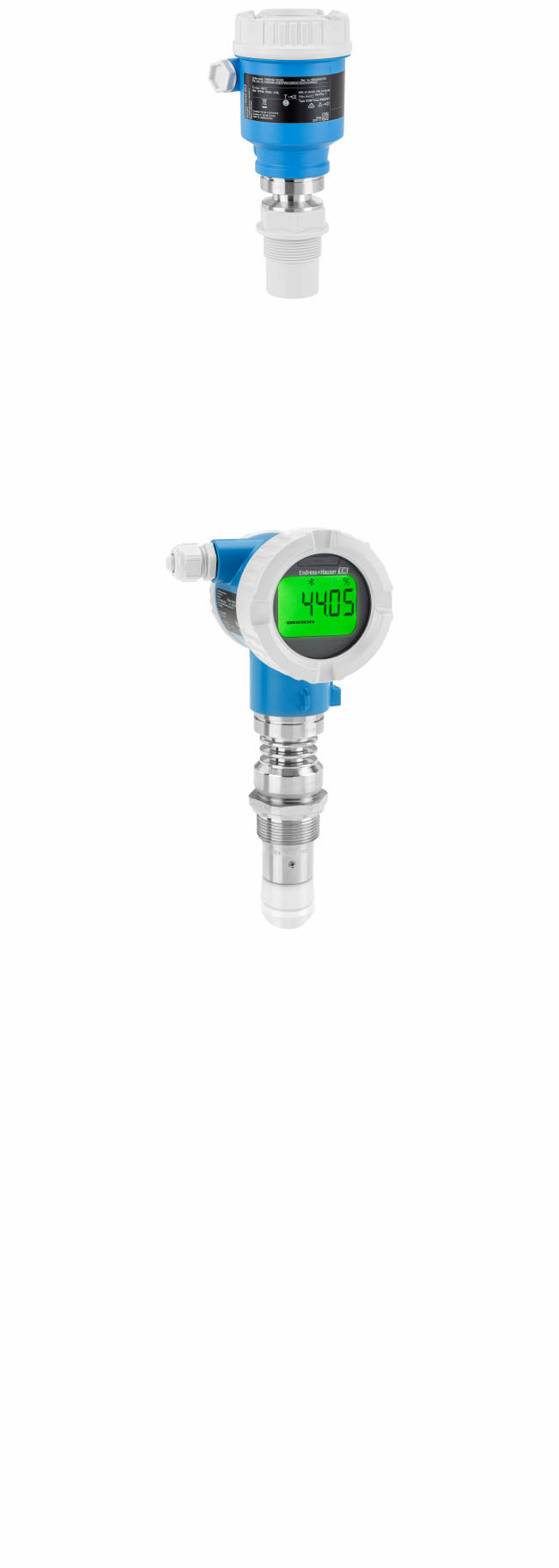

Endress+Hauser Micropilot FMR66B – Photo (80f57c1a8ccb_S1-49 S. 1)
Photo · 80f57c1a8ccb_S1-49 · S. 1

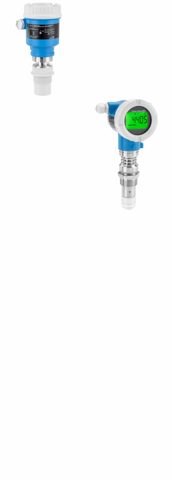

Endress+Hauser Micropilot FMR66B – Photo (746b8cc332a2_S1-7 S. 1)
Photo · 746b8cc332a2_S1-7 · S. 1

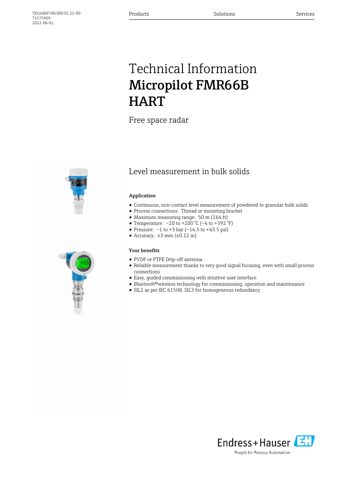

Endress+Hauser Micropilot FMR66B – Drawing (80f57c1a8ccb_S1-49 S. 1)
Drawing · 80f57c1a8ccb_S1-49 · S. 1

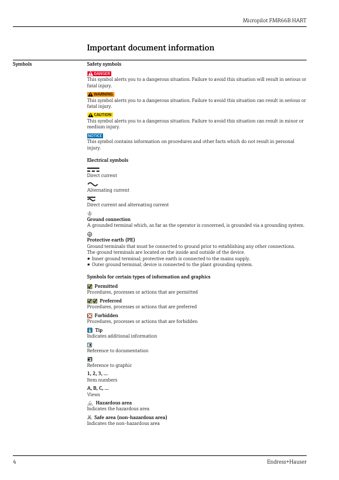

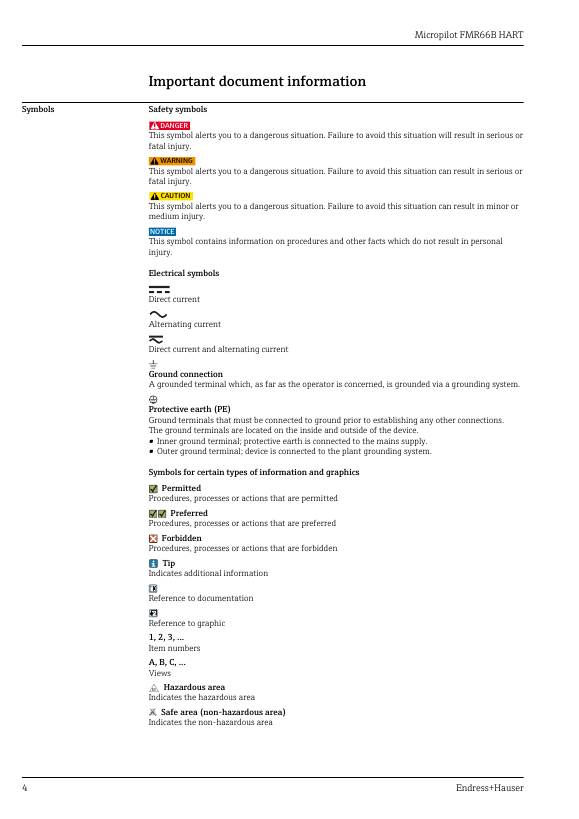

Endress+Hauser Micropilot FMR66B – Page preview (80f57c1a8ccb_S1-49 S. 4)
Page preview · 80f57c1a8ccb_S1-49 · S. 4

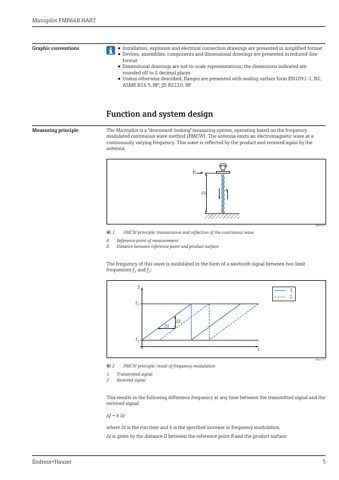

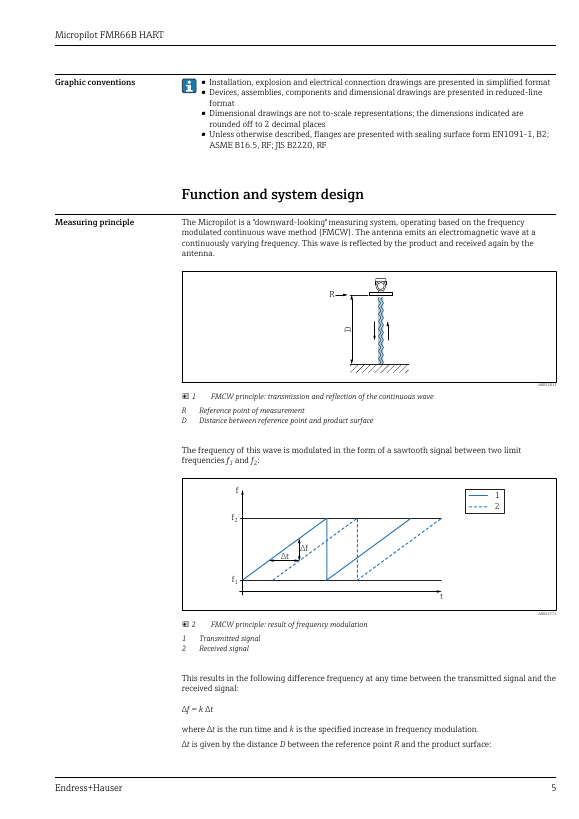

Endress+Hauser Micropilot FMR66B – Page preview (80f57c1a8ccb_S1-49 S. 5)
Page preview · 80f57c1a8ccb_S1-49 · S. 5

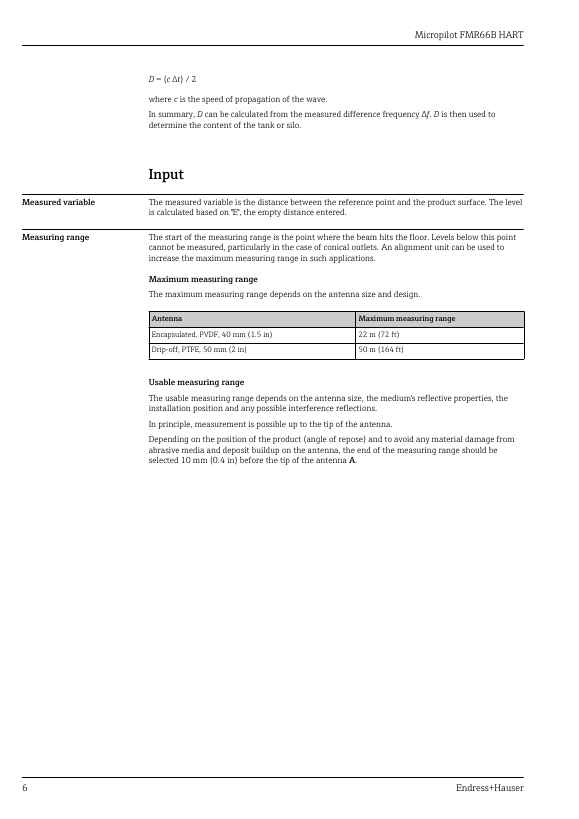

Endress+Hauser Micropilot FMR66B – Page preview (80f57c1a8ccb_S1-49 S. 6)
Page preview · 80f57c1a8ccb_S1-49 · S. 6

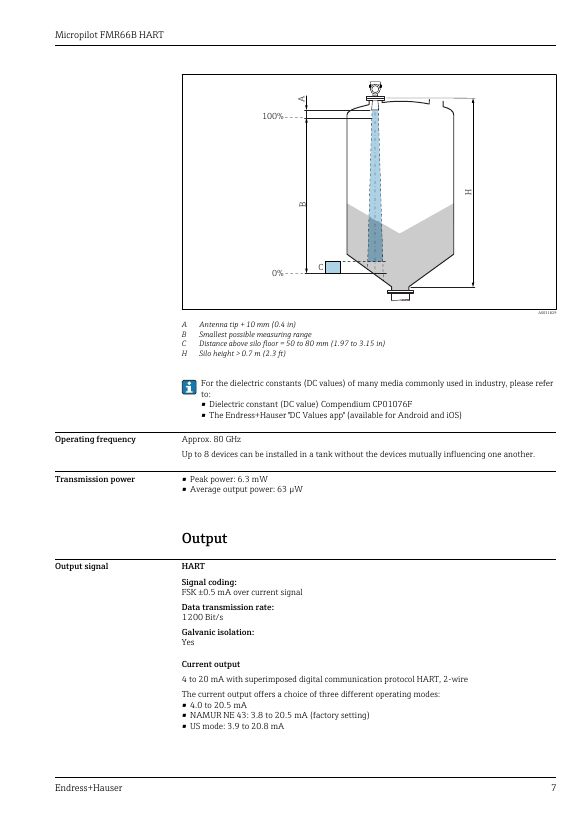

Endress+Hauser Micropilot FMR66B – Page preview (80f57c1a8ccb_S1-49 S. 7)
Page preview · 80f57c1a8ccb_S1-49 · S. 7

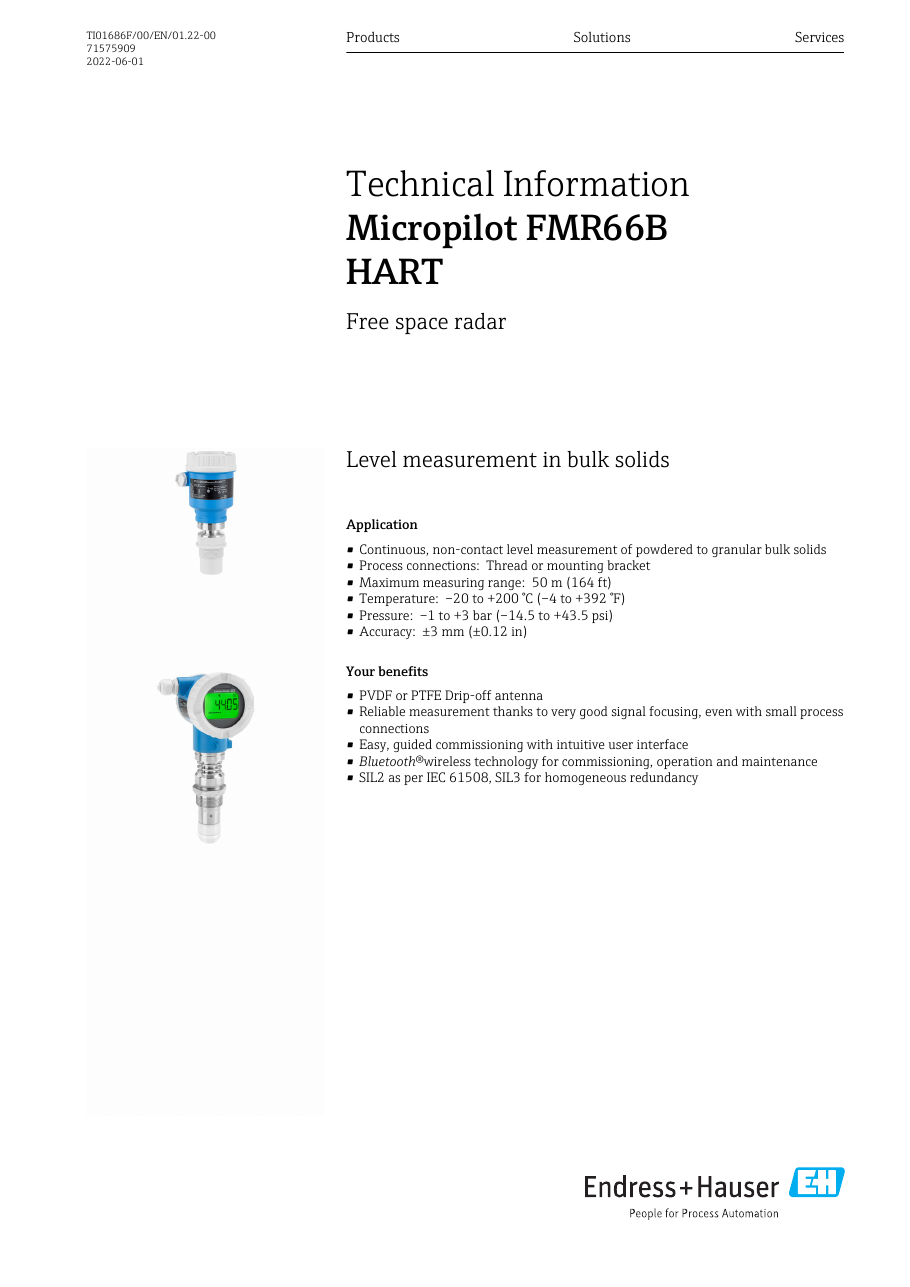

Source: Endress+Hauser Micropilot FMR66B datasheet, p. 1
