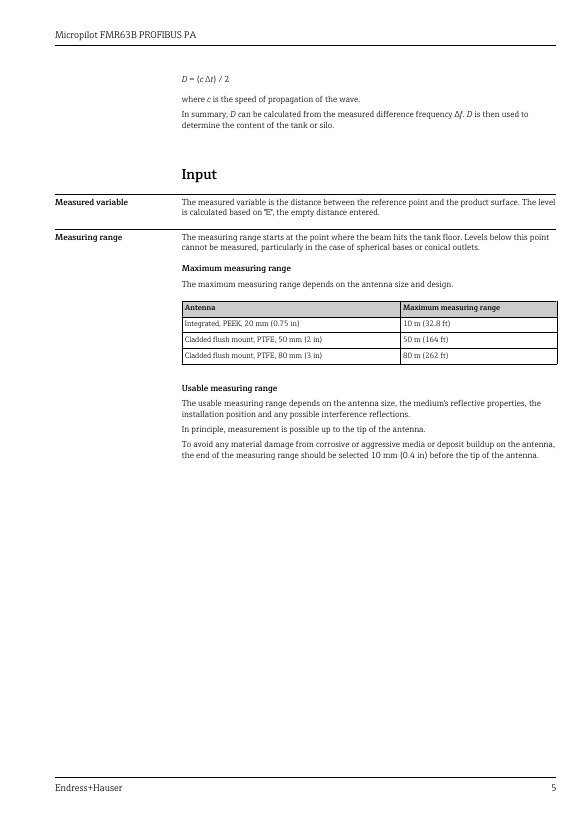

Maximum measuring range80 m
Temperature–40 to +200 °C
Pressure–1 to +25 bar
Ambient temperature range–40 to +85 °C (–40 to +185 °F)
Process temperature range–20 to +150 °C (–4 to +302 °F)
Current output4.0 to 20.5 mA
NAMUR NE 433.8 to 20.5 mA
US mode3.9 to 20.8 mA
Power supply10.5 to 30 VDC Ex i
Rlmax1065 W
Supply voltage10.5 to 30 VDC
Communication resistor250 Ω
HART load250 Ω
Minimum start-up voltage10.5 V
Start-up current< 3.6 mA
Starting time< 15 s
Minimum operating voltage10.5 V
Voltage10.5 to 35 V
Current4 to 20 mA
Ambient temperature–50 to +80 °C (–58 to +176 °F)
Average TC (Digital output)2 mm/10 K
Zero point (Analog output)0.02 %/10 K
Span (Analog output)0.05 %/10 K
Minimum distance to tank wall15 cm
Integrated antennaPEEK 20 mm (0.75 in)
Maximum nozzle length Hmax200 mm (8 in)
Einfluss Umgebungstemperatur2 mm/10 K
Maximale Messabweichung im Nahbereich4 (0.16) mm
Referenzpunkt der Distanzmessung0.8 (2.62) m
Device firmware01.00.zz
AntennaPEEK-cladded, 20 mm (0.75 in) flush mount with NEUMO Bio Control D25
Profile version3.02
Manufacturer ID17 (0x11)
Ident number0x1568 oder 0x9700
Slot01 … 06
Failure modeMinimum alarm (= factory setting): 3.6 mA, Maximum alarm: 22 mA, Failure mode wi
Time to establish connection< 30 s
Process temperature0 to +150 °C (+32 to +302 °F)
P1Tp: 0 °C (+32 °F) | Ta: +76 °C (+169 °F)
P2Tp: +76 °C (+169 °F) | Ta: +76 °C (+169 °F)
P3Tp: +150 °C (+302 °F) | Ta: +25 °C (+77 °F)
P4Tp: +150 °C (+302 °F) | Ta: 0 °C (+32 °F)
P5Tp: 0 °C (+32 °F) | Ta: 0 °C (+32 °F)
Degree of protectionIP66/68, NEMA Type 4X
Data structureFloating point number (IEEE 754)
Schwingungsfestigkeit1,5 (m/s2)2/Hz
Elektromagnetische Verträglichkeit (EMV)EN 61326-Serie und NAMUR-Empfehlung EMV (NE21)
Maximale Messabweichung während EMV-Prüfungen< 0,5 % der Spanne.
Spannungsversorgung10,5 … 30 VDC Ex i
Maximaler Messbereich80 m
Temperatur–40 … +200 °C
Druck–1 … +25 bar
Prozesstemperatur0 … +200 °C (+32 … +392 °F)
Ta+76 °C (+169 °F)
Tp+200 °C (+392 °F)
Hersteller-id17 (0x11)
Profil-version3.02
Umgebungstemperaturbereich–40 … +85 °C (–40 … +185 °F)
Temperatura-40 ... +200 °C (-40 ... +392 °F)
Pressione-1...+25 bar (-14.5...+363 psi)
Campo di misurafino a 80 m (262 ft)
Accuracy±1 mm
Pulse frequency≥ 5/s (cycle time ≤ 200 ms)
Step response time< 1 s
MesswertauflösungDigital: 1 mm
Reaktionszeit< 1 s
Genauigkeit±1 mm

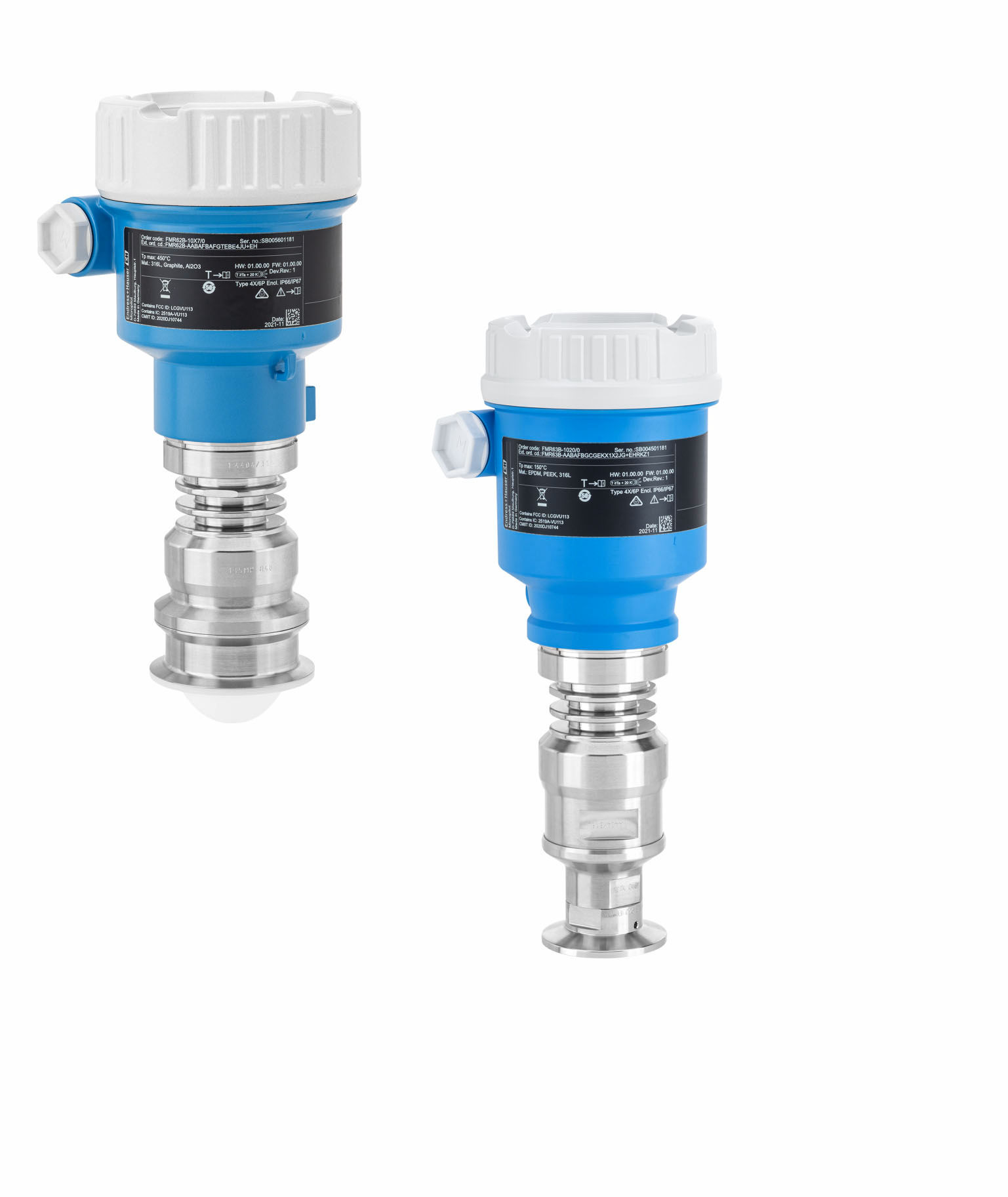

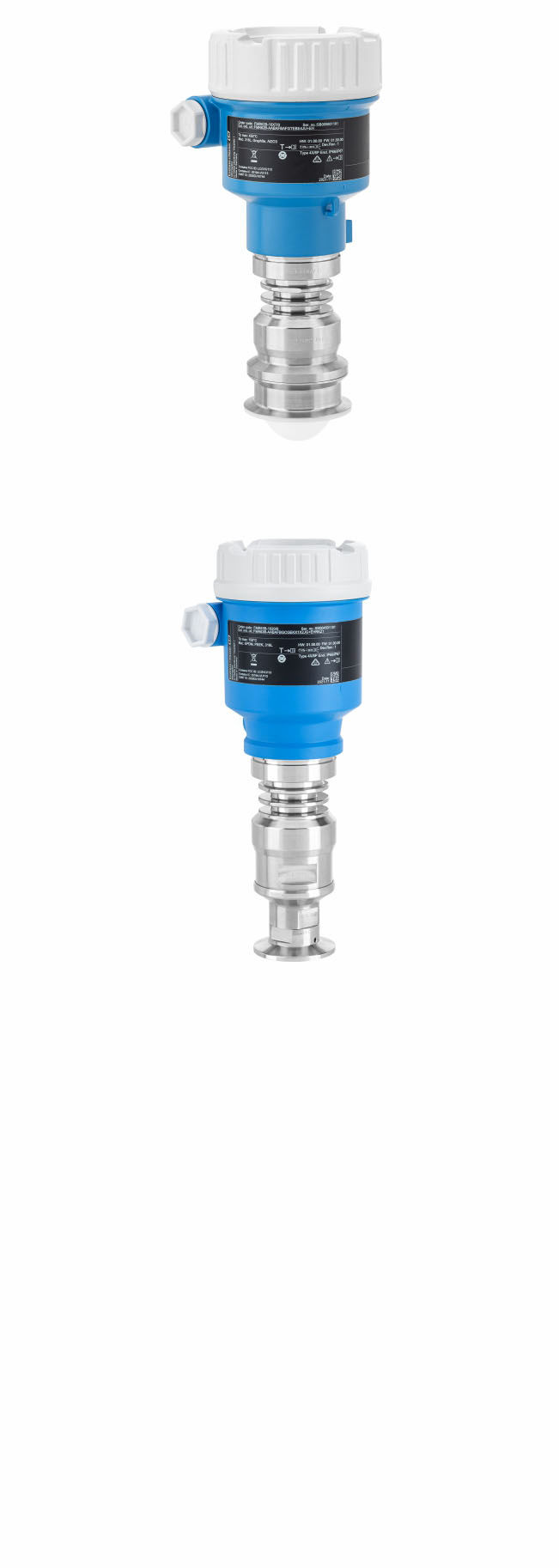

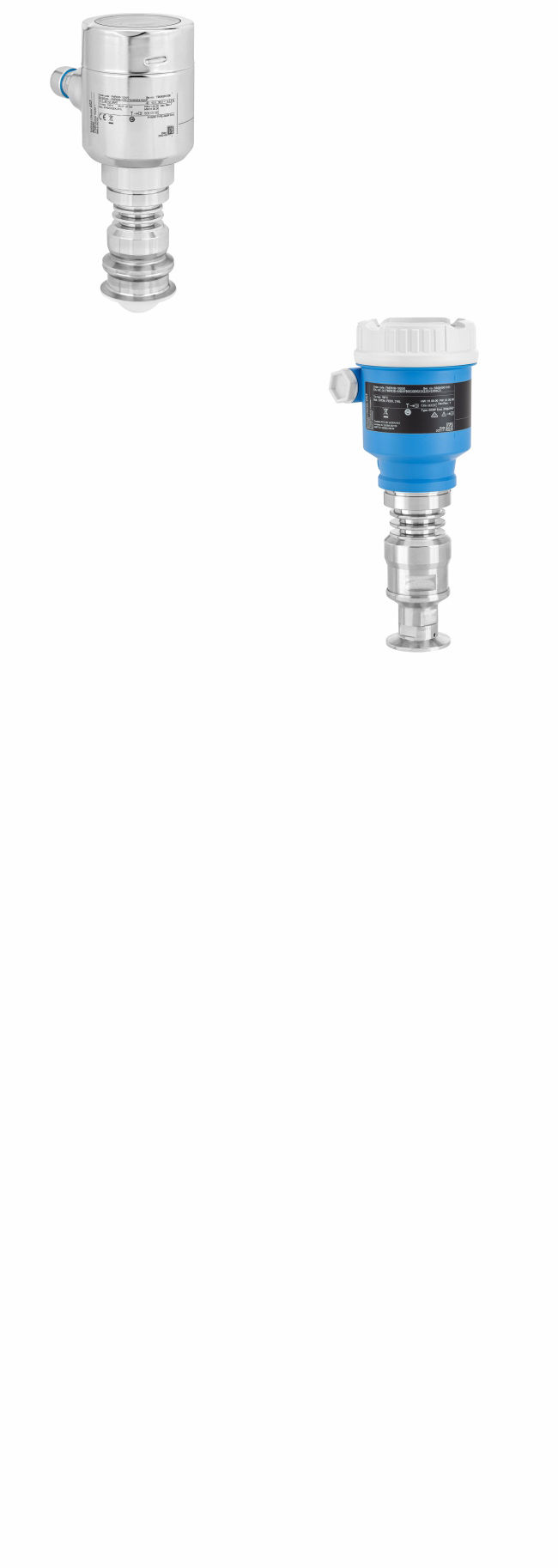

Part numberFMR63B
