Liquiphant FTL64

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified

Liquiphant FTL64 has a strong focus on high temperature applications and simplicity with easy proof testing, reliability and safety (SIL) with compliance to IEC 61508, API 2350 and WHG. The vibronic device is determined for a safe and active measuring technology in applications with high temperatures and want a reliable and proven point level detection for tank overfill protection and pump dry run protection. The FTL64 is easy to use, has a digital connection and gives a real-time data at hand.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Free-field range50 m (165 ft) max.
Operation radius with intervisibility around the device10 m (33 ft)
Δu<3.8 mA K
Operating voltage230 V 230 V, 50 Hz/60 Hz
Holding power/rated power2.3 VA 80.5 VA
Supply voltage10 to 55 VDC CLASS 2 or SELV
Power consumption0.5 W
Current consumption10 mA without load
Load current350 mA
Residual current< 100 µA
U10...55 V DC
I max350 mA
L+55 V
Connectable loadIAC ≤ 6 A, U~ ≤ AC 253 V; P~ ≤ 1 500 VA, cos φ = 1, P~ ≤ 750 VA, cos φ > 0.7; ID
Conductor cross-section maximum2.5 mm2 (AWG14)
Minimale Anlaufspannung10,5 V
Anlaufstrom> 3,6 mA
Minimale Betriebsspannung10,5 V
Temperatur für relevante Wasserstoffdiffusion> 180 °C (356 °F)
Thermischer Schock≤ 120 K/s
Material316/316L
Druckstufe≤ 100 bar (1 450 psi)
Temperatur≤ 280 °C (536 °F)
Weight0,3 kg (0,66 lb)
Reichweite im Freifeld:Maximal 50 m (165 ft)
Bedienradius um das Gerät bei Sichtkontakt:10 m (33 ft)

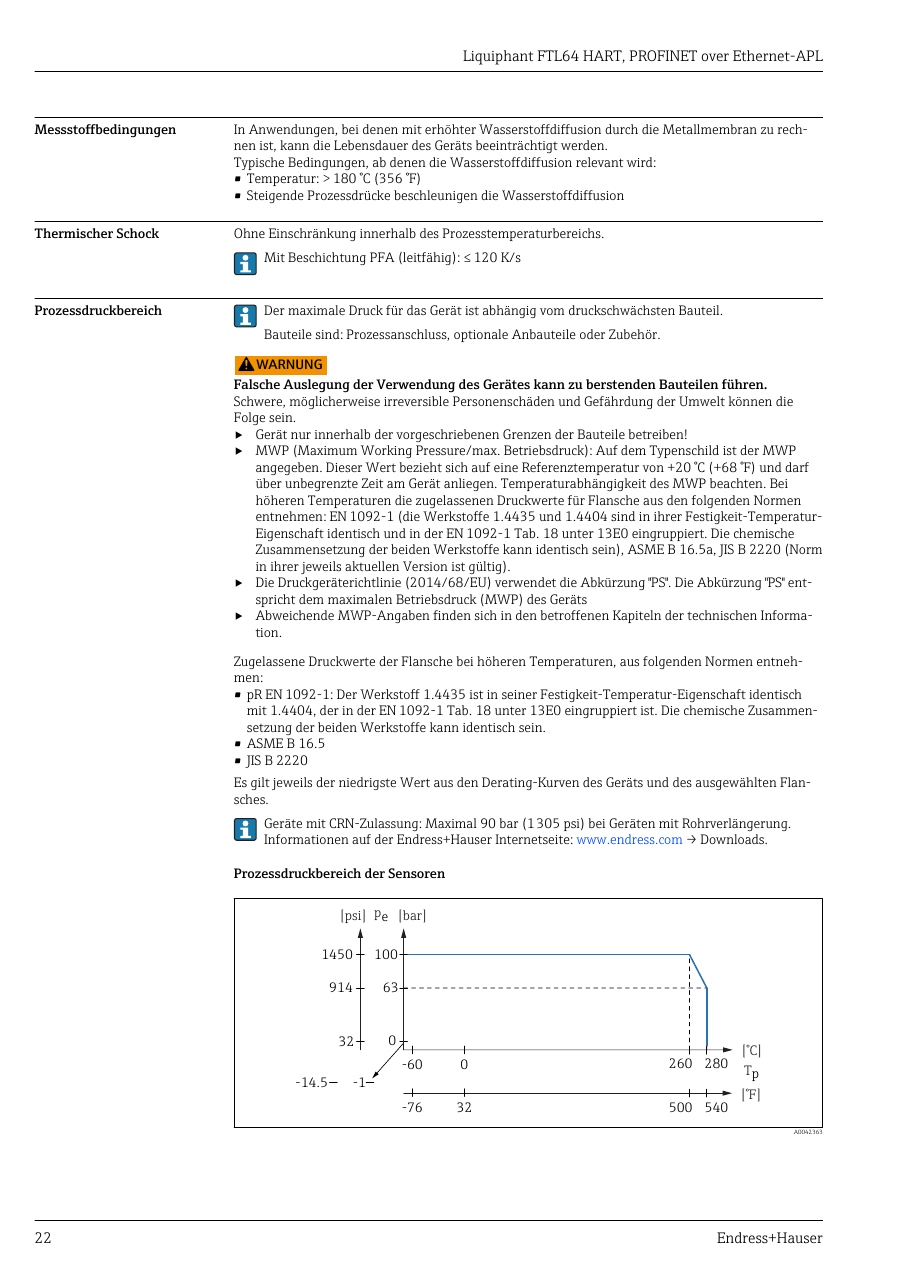

Prozessdruckbereich26

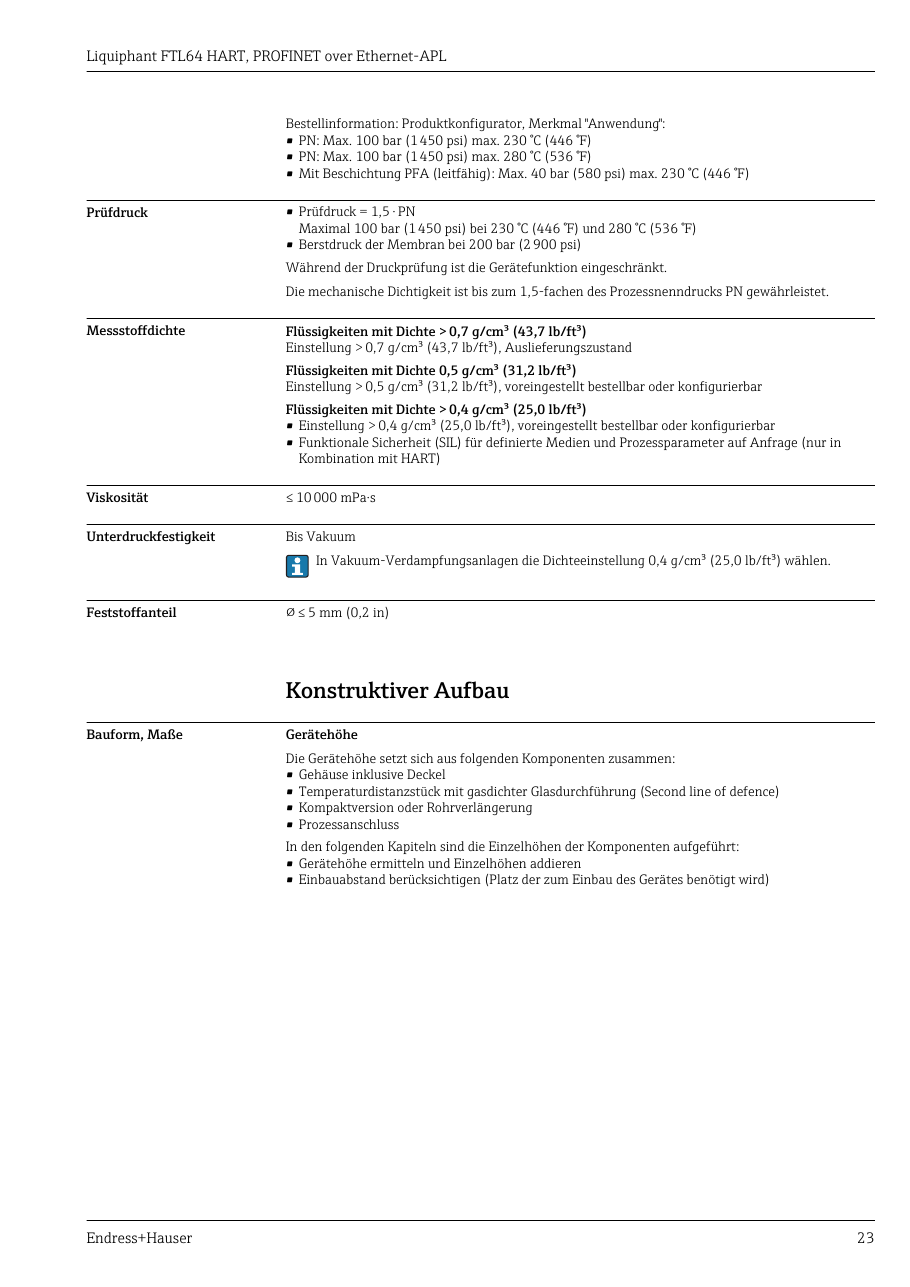

Prüfdruck27
Aggregatzustand27
Messstoffdichte27
Viskosität27
Unterdruckfestigkeit27
Feststoffanteil27
Seitliche Belastbarkeit28
Konstruktiver Aufbau28
Bauform, Maße28
Werkstoffe35
Oberflächenrauhigkeit36
Bedienbarkeit36
Bedienkonzept36
Elemente auf dem Elektronikeinsatz37
Klemmen37
Vor-ort-bedienung37
Vor-ort-anzeige38
Fernabfrage38
Diagnoseinformationen39
Zertifikate und Zulassungen39
Ce-zeichen39
RCM-Tick Kennzeichnung39
Standard Rohrverlängerungbis 3 m (9,8 ft) und bis 6 m (20 ft) auf Anfrage
Versorgungsspannung10 … 55 VDC
Leistungsaufnahme≤ 0,5 W
Stromaufnahme≤ 10 mA (ohne Last)
Laststrom≤ 350 mA
Kapazitive LastC ≤ 0,5 µF bei 55 V, C ≤ 1,0 µF bei 24 V
Reststrom< 100 µA (bei gesperrtem Transistor)
U~19...253 V AC
Temperatura massima280 °C (536 °F)
NormaIEC 61508

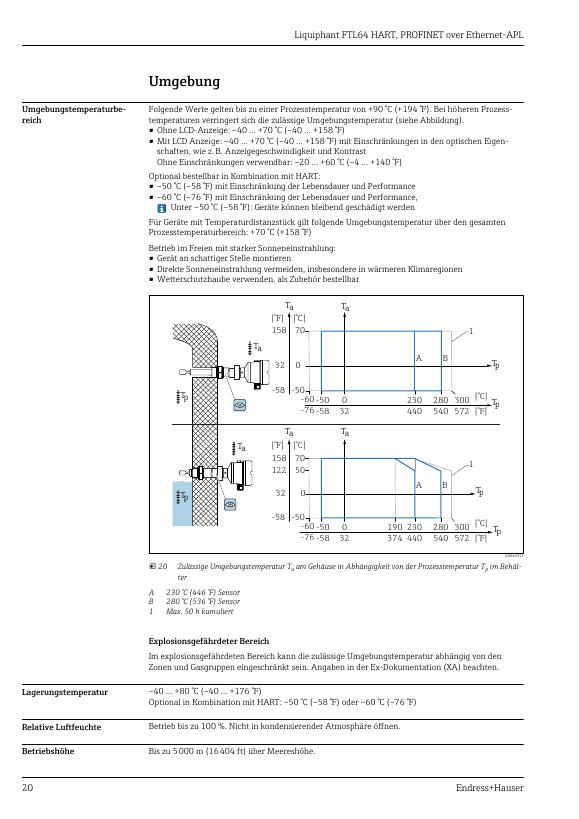

Temperatura-60 ... +280 °C (-76 ... +540 °F)
Restspannung< 3 V (bei durchgeschaltetem Transistor)
Part numberFTL64
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

Bluetooth-enabled level switch with diagnostic and monitoring features.

Applications

  • Level measurement in industrial applications
  • Remote monitoring of liquid levels

Features

  • Heartbeat Technology for diagnostics and monitoring
  • Bluetooth module for data transfer
  • Long service life of Bluetooth module

Options

  • Test magnet as an option
Source: Endress+Hauser Liquiphant FTL64 datasheet, p. 26

Standards

  • IEC 61010-1
Source: Endress+Hauser Liquiphant FTL64 datasheet, p. 22

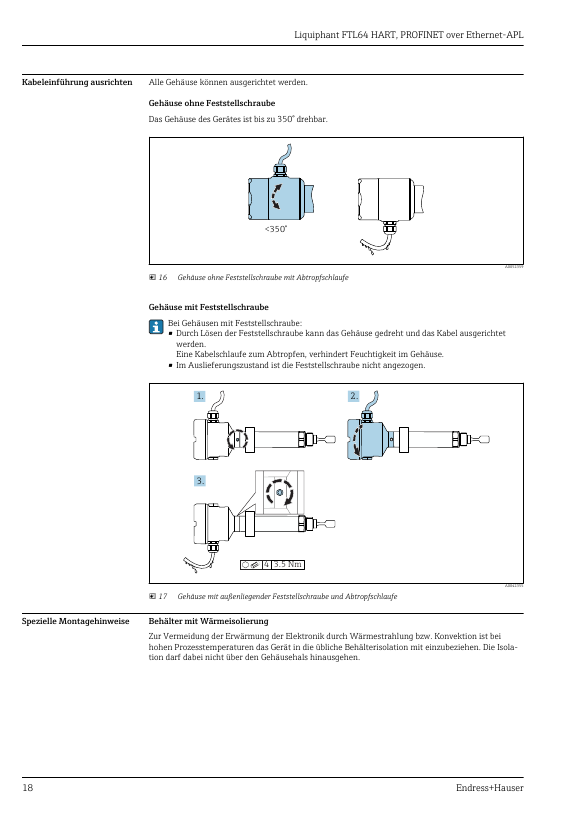

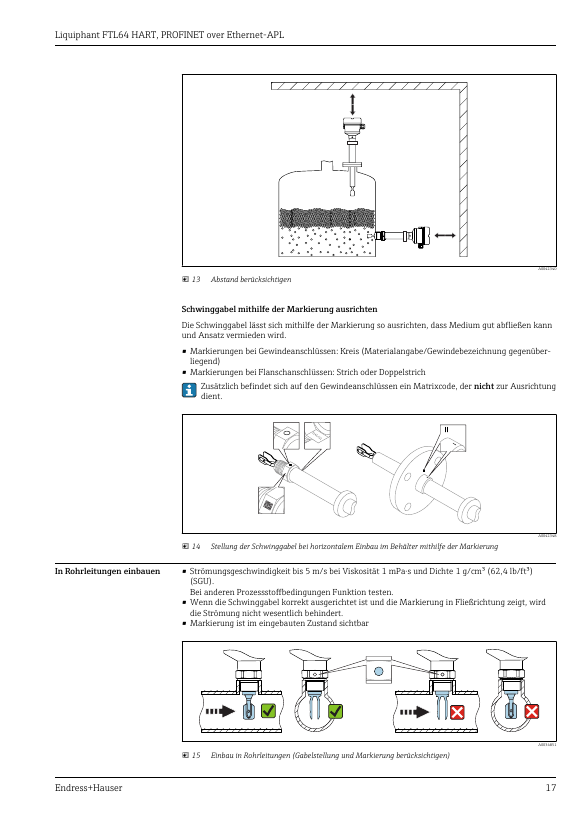

Endress+Hauser Liquiphant FTL64 – Drawing (98ef1714698b_S9-31 S. 11)
Drawing · 98ef1714698b_S9-31 · S. 11

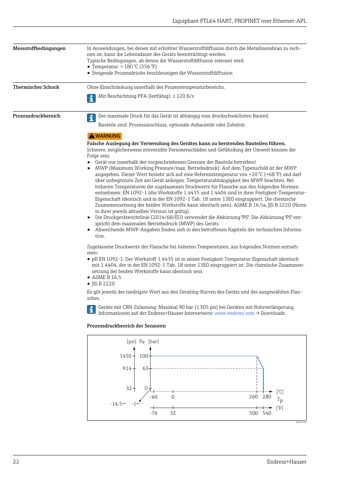

Endress+Hauser Liquiphant FTL64 – Drawing (98ef1714698b_S9-31 S. 14)
Drawing · 98ef1714698b_S9-31 · S. 14

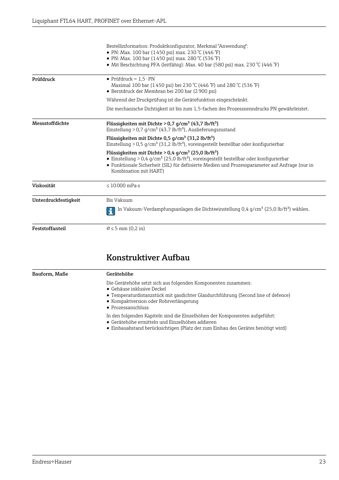

Endress+Hauser Liquiphant FTL64 – Drawing (98ef1714698b_S9-31 S. 15)
Drawing · 98ef1714698b_S9-31 · S. 15

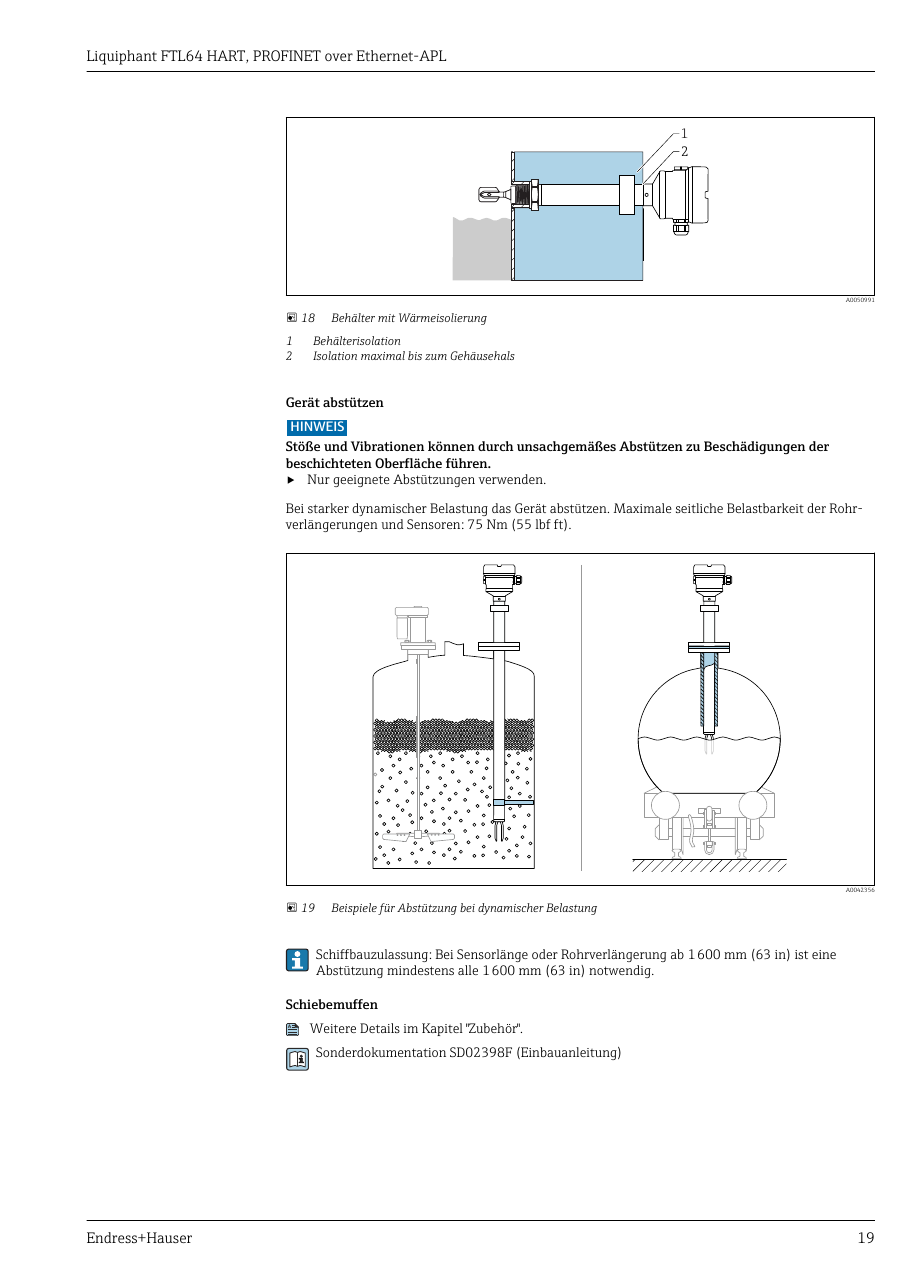

Endress+Hauser Liquiphant FTL64 – Page preview (f6c2fa353f9f_S1-1 S. 1)
Page preview · f6c2fa353f9f_S1-1 · S. 1

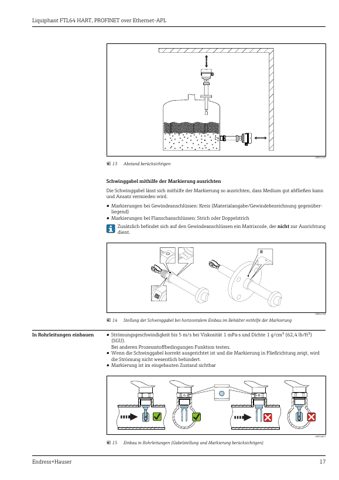

Endress+Hauser Liquiphant FTL64 – Page preview (98ef1714698b_S9-31 S. 9)
