Library› Cargo› Cargo Level & Temperature Gauging› Radar Level Gauge› Endress+Hauser Micropilot FMR60
Endress+Hauser

Micropilot FMR60

Radar Level Gauge · Cargo Level & Temperature Gauging

Class-certified type (DNV register) · technical data sheet not yet verified
View photo ↗

Micropilot FMR60 is the first 80GHz radar developed according to the international functional safety directive IEC 61508. The free space radar offers maximum reliability due to the drip-off antenna, improved algorithms and small beam angle. It is used for continuous non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. It also possesses the smart sensor functionality Heartbeat Technology.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

Maximum measuring range50 m
Temperature–40 to +130 °C
Pressure–1 to +16 bar
Signal on alarm - Minimum alarm (HART devices)3.6 mA
Signal on alarm - Maximum alarm (HART devices)22 mA
HART specification7.0
HART load250
Sampling rate≥1.3 s–1 at U ≥ 24 V
Response time< 3.6 s
Lock at the housing neckScrew: A4-70 Clamp: 316L (1.4404)
Mindestabstand zwischen Referenzpunkt R und 100% MarkeAntennenlänge + 200 mm (8 in)
Mindestwert400 mm (16 in)
Minimale SpanneF ≥400 mm (16 in)
Maximalwert für Abgleich LeerE ≤24 m (79 ft)
Hilfsenergie, Ausgang2-Draht; 4-20 mA HART, Schaltausgang
Material316L
Max. Druck4 bar abs / 58 psia
Widerstand pro Kanal2 × 0,5 Ω max.
Ansprechgleichspannung400 … 700 V
Ansprechstoßspannung< 800 V
Kapazität bei 1 MHz< 1,5 pF
Nennableitstoßstrom (8/20 μs)10 kA
Mindestabstand zwischen Referenzpunkt R und 100% Mark400 mm (16 in)
Accuracy± 1 mm
Part numberFMR60
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Micropilot FMR60 is a free space radar for continuous, non-contact level measurement of liquids, pastes, and sludges.

Applications

  • liquid level measurement
  • paste level measurement
  • sludge level measurement

Features

  • PTFE drip-off antenna
  • reliable measurement in vessels with internal fittings
  • Bluetooth wireless technology
  • multi-echo tracking

Options

  • Bluetooth module for HART devices
Source: Endress+Hauser Micropilot FMR60 datasheet, p. 43

Standards

  • IEC 61508

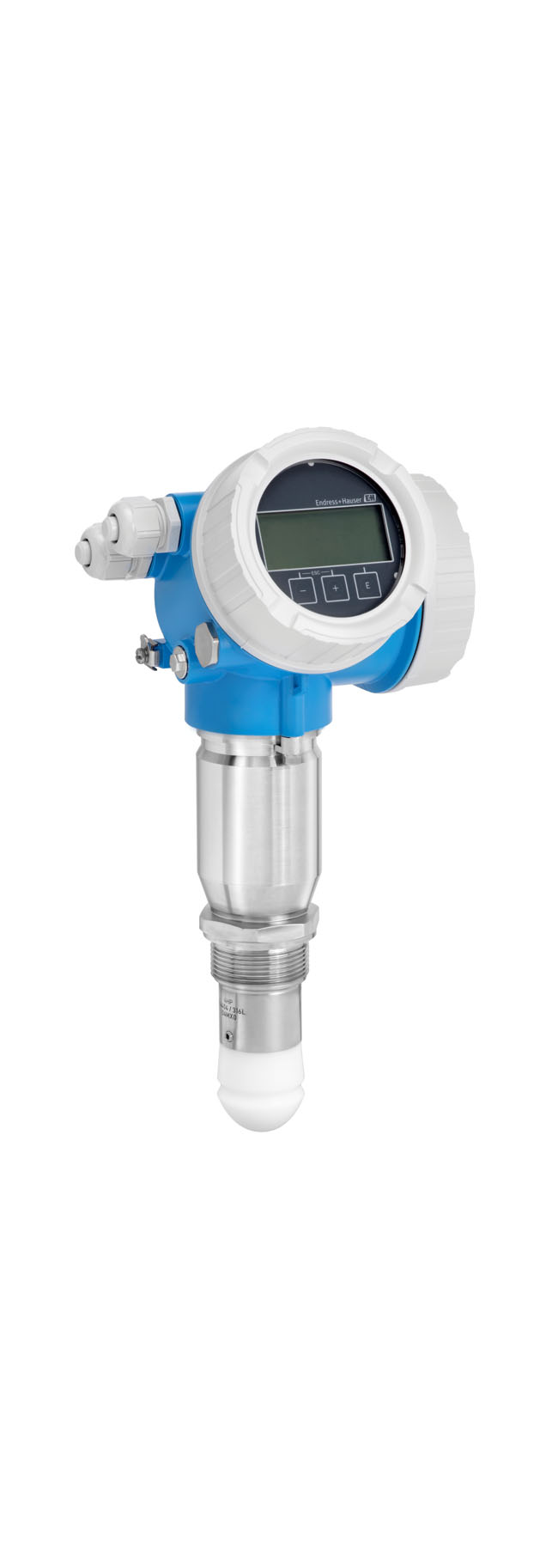

Endress+Hauser Micropilot FMR60 – Photo (3f7628fc2009_S1-38 S. 1)
Photo · 3f7628fc2009_S1-38 · S. 1

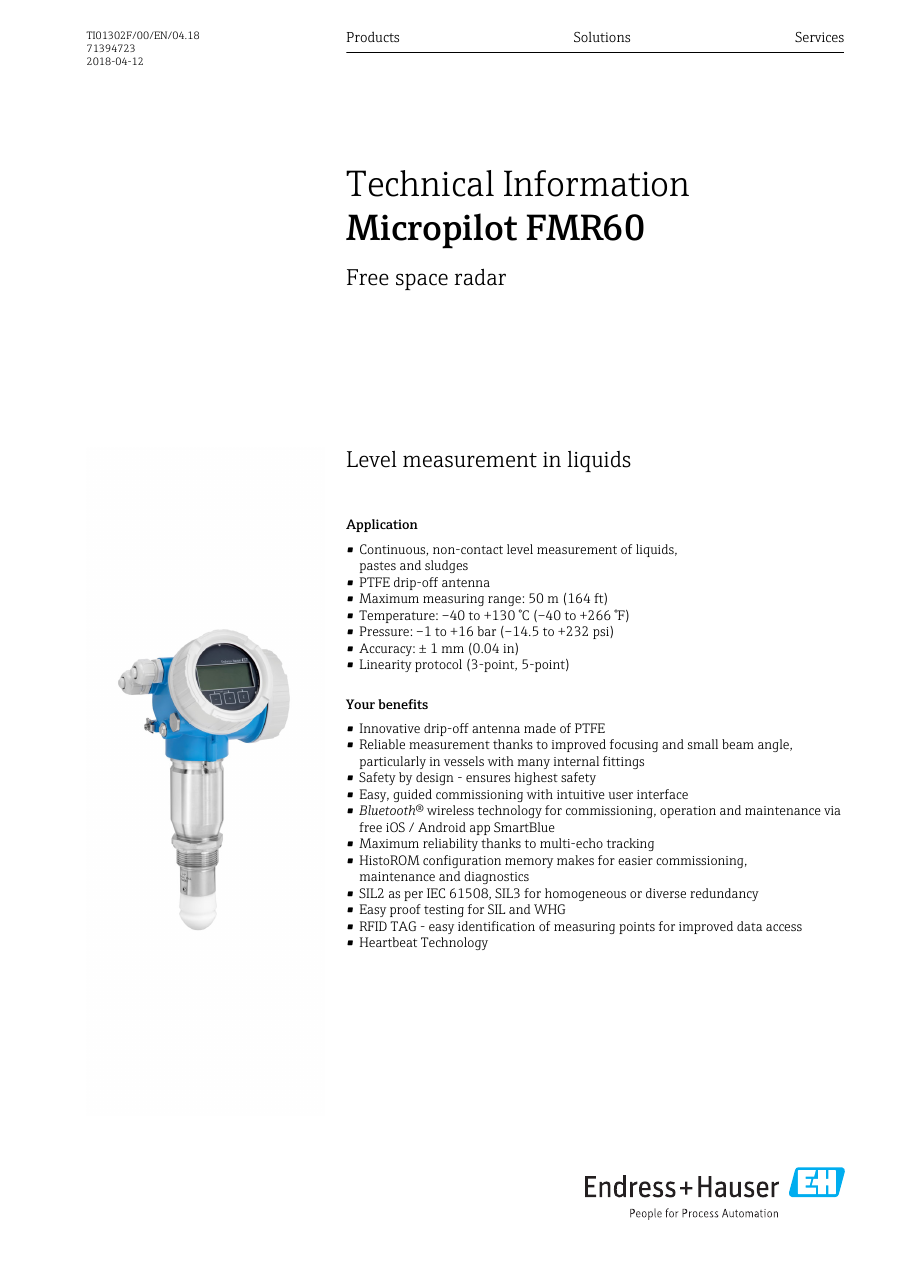

Endress+Hauser Micropilot FMR60 – Drawing (3f7628fc2009_S1-38 S. 1)
Drawing · 3f7628fc2009_S1-38 · S. 1
Source: Endress+Hauser Micropilot FMR60 datasheet, p. 1
