Library› Engine Room› Automation & Control› Level Switch› Endress+Hauser Nivotester FTW325
Endress+Hauser

Nivotester FTW325

Level Switch · Automation & Control

Class-certified type (DNV register) · technical data sheet not yet verified

The Nivotester FTW325 is a point level switch with intrinsically safe signal circuit for connection to a conductive sensor. It has a compact housing for easy series mounting on a standard DIN rail in the cabinet.

Specifications

Technical data.reference — unverified

Do you have the manufacturer datasheet for this model? Send it with the enquiry form — we check it and name the source.

SicherheitsschaltungSchalter S5 (Kanal 1) bzw. Schalter S105 (Kanal 2) geschlossen.
LeitungsüberwachungSchalter S4 (Kanal 1) bzw. Schalter S104 (Kanal 2) auf Stellung "EIN"
EinstellbereichSchalter S1, S2, S3 (Kanal 1) bzw. S101, S102, S103 (Kanal 2)
Supply voltageAlternating current version (AC): Voltage ranges: 85 to 253 V AC, 50/60 Hz Direc
Power consumptionAC: maximum 5.2 VA DC: maximum 1.2 W (at 20 V)
Part numberFTW325
Manufacturer documentation

Images from manufacturer documentation.

Photos, drawings and page previews from this model’s datasheet or catalog.

The Nivotester FTW 325 is a level switch used for monitoring and controlling liquid levels in various applications.

Applications

  • Tank monitoring
  • Pump control
  • Level indication

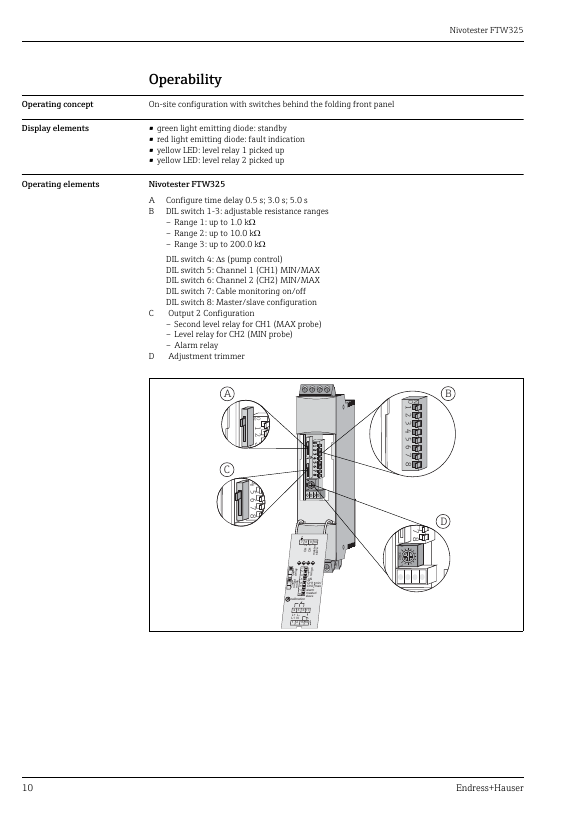

Features

  • Local configuration with switches
  • Green, red, and yellow LEDs for indication
  • Adjustable time delay
  • Resistance ranges for different applications
  • Master/slave setting
  • Line monitoring
  • Alarm relay

Options

  • time delay configuration
  • output relay configuration
  • alarm relay
Source: Endress+Hauser Nivotester FTW325 datasheet, p. 10

Standards

  • EN 60 715
Source: Endress+Hauser Nivotester FTW325 datasheet, p. 19

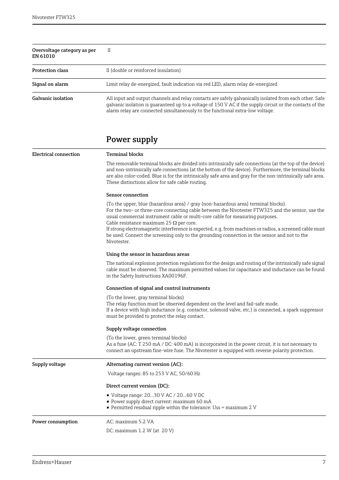

Endress+Hauser Nivotester FTW325 – Drawing (43e922cbd619_S3-10 S. 5)
Drawing · 43e922cbd619_S3-10 · S. 5
Endress+Hauser Nivotester FTW325 – Drawing (43e922cbd619_S3-10 S. 6)
Drawing · 43e922cbd619_S3-10 · S. 6

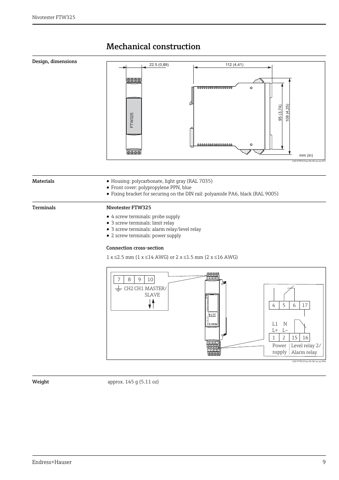

Endress+Hauser Nivotester FTW325 – Drawing (43e922cbd619_S3-10 S. 7)
Drawing · 43e922cbd619_S3-10 · S. 7

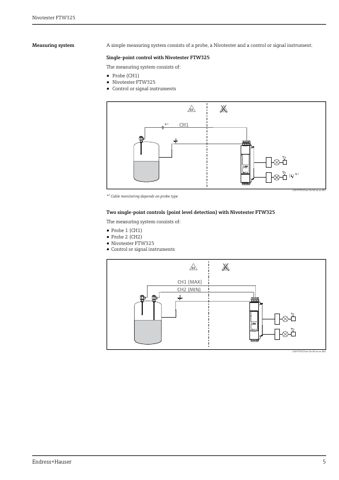

Endress+Hauser Nivotester FTW325 – Page preview (43e922cbd619_S3-10 S. 3)
Page preview · 43e922cbd619_S3-10 · S. 3
Endress+Hauser Nivotester FTW325 – Page preview (43e922cbd619_S3-10 S. 4)
Page preview · 43e922cbd619_S3-10 · S. 4
Endress+Hauser Nivotester FTW325 – Page preview (43e922cbd619_S3-10 S. 8)
Page preview · 43e922cbd619_S3-10 · S. 8
Source: Endress+Hauser Nivotester FTW325 datasheet, p. 12
